Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial catalogue/OCR-first then sequential <=1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1332.webp. IMG_1322 additionally has one 250x435 post-schedule crop. Regions normalized in unrotated access-image coordinates; rotationDegrees is clockwise correction. Selected evidence only, no full extraction/modeling. Partial timed visual review: 2026-10-11 remaining-region review. Prior queue, OCR and packages reused; ten sequential inspections total, confined to IMG_1329/1334/1336/1337. Normalized regions in unrotated complete-upright WebP. Research only; no accepted geometry or complete extraction. Partial timed visual review: OCR and prior package text review only this pass; no new visual verification. Partial timed visual review: Additive source-local review; normalized coordinates in unrotated 2200×1650 access WebP. Reuse previous verified records; no accepted geometry or complete extraction. Partial timed visual review: Additive source-local lighting review; source regions normalized in unrotated access-image coordinates. Printed numbers are preserved separately from fixture types. No world coordinates, complete extraction or installed acceptance. Partial timed visual review: undefined Partial timed visual review: New readings use raw 4032x3024 master-image coordinates, ignoring EXIF. Regional identities are modern extraction IDs, not historical identifiers. No accepted installed transforms or building geometry. Partial timed visual review: undefined Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible source evidence only; partial review, applies to depicted assembly.

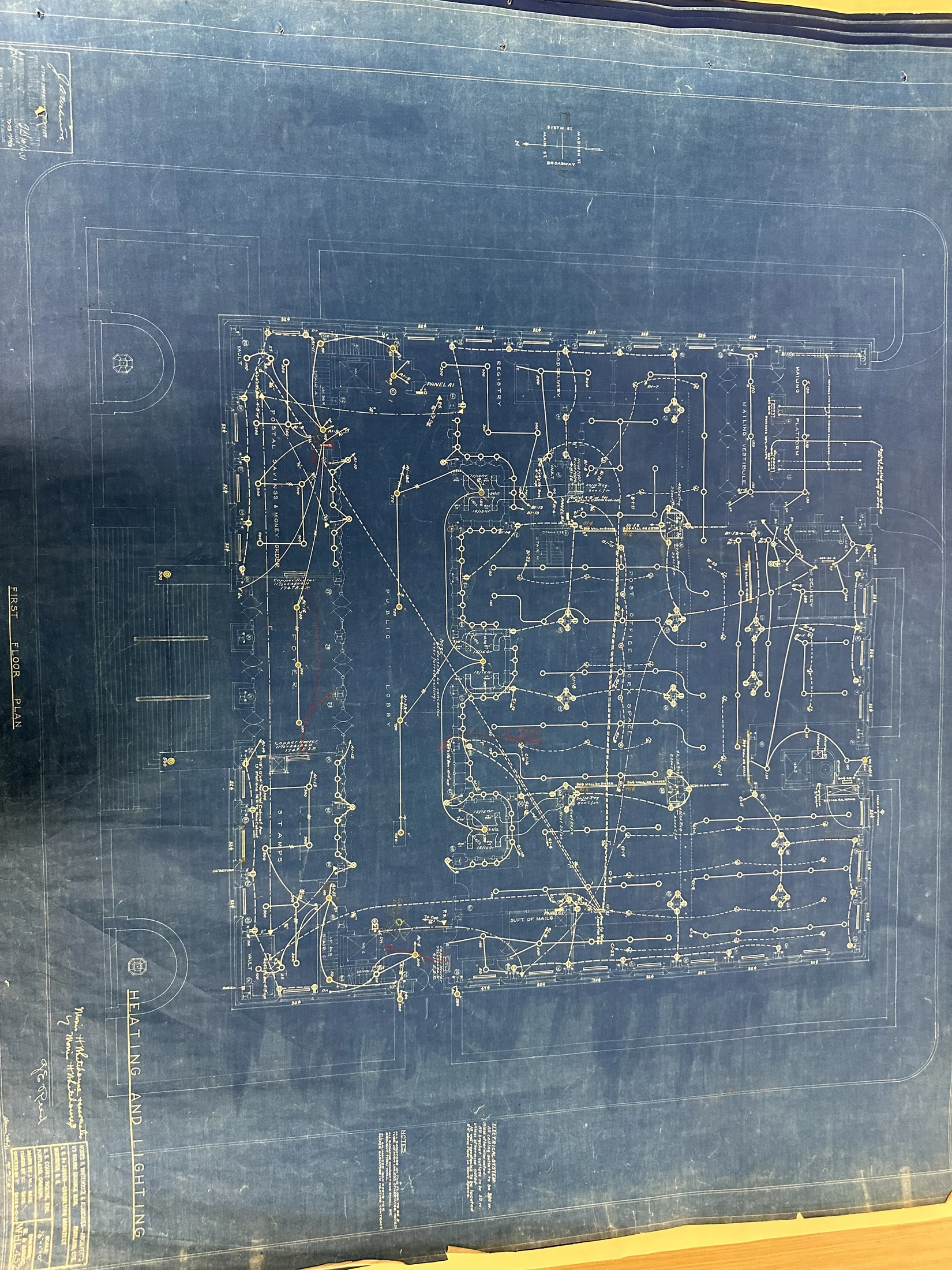

Drawing notation: HEATING AND LIGHTING
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Drawing notation: FIRST FLOOR PLAN
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Drawing notation: Dense branching linework, circular fixture symbols and perimeter equipment shown
Selected visible source evidence only; partial review, applies to depicted assembly.
Numeric value unresolved
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Numeric value unresolved
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Separate visible annotation; revision authority and exact circuit values unresolved.
Drawing notation: Red colored route/mark annotations present
Separate visible annotation; revision authority and exact circuit values unresolved.
Source-local property only; no accepted installed transform or fixture type association.
Drawing notation: PUBLIC LOBBY
Source-local property only; no accepted installed transform or fixture type association.
4 count
Count of drawn outlet stations in the marked lobby run. Does not identify fixture P-5, number of lamps per fixture, or accepted installed centers.
Drawing notation: Four circular electrical outlet symbols on horizontal PUBLIC LOBBY run
Count of drawn outlet stations in the marked lobby run. Does not identify fixture P-5, number of lamps per fixture, or accepted installed centers.
1 count
Source-local property only; no accepted installed transform or fixture type association.
Drawing notation: One circular electrical outlet station
Source-local property only; no accepted installed transform or fixture type association.
750 number
Source-local property only; no accepted installed transform or fixture type association.
Drawing notation: 750
Source-local property only; no accepted installed transform or fixture type association.
750 W
Power interpretation of station annotation only; note elsewhere uses W for outlet ratings. No lighting specimen identity or whole-fixture consumption accepted.
Drawing notation: 750 [W inferred from electrical-system note context]
Power interpretation of station annotation only; note elsewhere uses W for outlet ratings. No lighting specimen identity or whole-fixture consumption accepted.
Calculated from: lighting1013a-img1332-printed_station_number-4
Source-local property only; no accepted installed transform or fixture type association.
Source-local property only; no accepted installed transform or fixture type association.
1 count
Source-local property only; no accepted installed transform or fixture type association.
Drawing notation: One circular electrical outlet station
Source-local property only; no accepted installed transform or fixture type association.
750 number
Source-local property only; no accepted installed transform or fixture type association.
Drawing notation: 750
Source-local property only; no accepted installed transform or fixture type association.
750 W
Power interpretation of station annotation only; note elsewhere uses W for outlet ratings. No lighting specimen identity or whole-fixture consumption accepted.
Drawing notation: 750 [W inferred from electrical-system note context]
Power interpretation of station annotation only; note elsewhere uses W for outlet ratings. No lighting specimen identity or whole-fixture consumption accepted.
Calculated from: lighting1013a-img1332-printed_station_number-8
Source-local property only; no accepted installed transform or fixture type association.
Source-local property only; no accepted installed transform or fixture type association.
1 count
Source-local property only; no accepted installed transform or fixture type association.
Drawing notation: One circular electrical outlet station
Source-local property only; no accepted installed transform or fixture type association.
750 number
Source-local property only; no accepted installed transform or fixture type association.
Drawing notation: 750
Source-local property only; no accepted installed transform or fixture type association.
750 W
Power interpretation of station annotation only; note elsewhere uses W for outlet ratings. No lighting specimen identity or whole-fixture consumption accepted.
Drawing notation: 750 [W inferred from electrical-system note context]
Power interpretation of station annotation only; note elsewhere uses W for outlet ratings. No lighting specimen identity or whole-fixture consumption accepted.
Calculated from: lighting1013a-img1332-printed_station_number-12
Source-local property only; no accepted installed transform or fixture type association.
Source-local property only; no accepted installed transform or fixture type association.
1 count
Source-local property only; no accepted installed transform or fixture type association.
Drawing notation: One circular electrical outlet station
Source-local property only; no accepted installed transform or fixture type association.
750 number
Source-local property only; no accepted installed transform or fixture type association.
Drawing notation: 750
Source-local property only; no accepted installed transform or fixture type association.
750 W
Power interpretation of station annotation only; note elsewhere uses W for outlet ratings. No lighting specimen identity or whole-fixture consumption accepted.
Drawing notation: 750 [W inferred from electrical-system note context]
Power interpretation of station annotation only; note elsewhere uses W for outlet ratings. No lighting specimen identity or whole-fixture consumption accepted.
Calculated from: lighting1013a-img1332-printed_station_number-16
Source-local property only; no accepted installed transform or fixture type association.
Source-local property only; no accepted installed transform or fixture type association.
300 W
Printed ceiling-outlet default with explicit exception; not an installed count or lamp/type schedule.
Drawing notation: All ceiling outlets to be 300 W. Unless otherwise noted.
Printed ceiling-outlet default with explicit exception; not an installed count or lamp/type schedule.
50 W
Printed bracket-outlet default with explicit exception; distinct from ceiling outlets and lobby750 station labels.
Drawing notation: All bracket outlets to be 50 W. unless otherwise noted.
Printed bracket-outlet default with explicit exception; distinct from ceiling outlets and lobby750 station labels.
60 in
Printed wall-receptacle height rule applies to Work Space. Not a pendant drop or fixture center elevation.
Drawing notation: All wall receptacles to be located 5′-0″ above floor in Work Space
Printed wall-receptacle height rule applies to Work Space. Not a pendant drop or fixture center elevation.
1 count
Source-local drawn evidence only; not accepted installed geometry, quantity, lamp wattage or P-type mapping.
Drawing notation: One plain circular electrical outlet symbol
Source-local drawn evidence only; not accepted installed geometry, quantity, lamp wattage or P-type mapping.
200 number
Printed number beside station; no local W suffix or governing P-type correlation certified. Number is neither historical instance ID nor installed quantity.
Drawing notation: 200
Printed number beside station; no local W suffix or governing P-type correlation certified. Number is neither historical instance ID nor installed quantity.
No governing fixture/P-type key verified in this bounded station crop; not evidence that no key survives elsewhere.
No governing fixture/P-type key verified in this bounded station crop; not evidence that no key survives elsewhere.
1 count
Source-local drawn evidence only; not accepted installed geometry, quantity, lamp wattage or P-type mapping.
Drawing notation: One plain circular electrical outlet symbol
Source-local drawn evidence only; not accepted installed geometry, quantity, lamp wattage or P-type mapping.
200 number
Printed number beside station; no local W suffix or governing P-type correlation certified. Number is neither historical instance ID nor installed quantity.
Drawing notation: 200
Printed number beside station; no local W suffix or governing P-type correlation certified. Number is neither historical instance ID nor installed quantity.
No governing fixture/P-type key verified in this bounded station crop; not evidence that no key survives elsewhere.
No governing fixture/P-type key verified in this bounded station crop; not evidence that no key survives elsewhere.
2 count
Sum of the separately recorded drawn stations in this bounded group only. Excludes adjacent symbol families, routes and unreviewed stations; does not establish installed count.
Drawing notation: 2 individually recorded plain circular outlet stations
Sum of the separately recorded drawn stations in this bounded group only. Excludes adjacent symbol families, routes and unreviewed stations; does not establish installed count.
Calculated from: lighting1013d-img1332-020-drawn_outlet_station_presence, lighting1013d-img1332-023-drawn_outlet_station_presence
Printed named-area witness adjacent to bounded electrical row; no canonical room polygon or P-type assignment established.
Drawing notation: C.O.D. DELIVERY
Printed named-area witness adjacent to bounded electrical row; no canonical room polygon or P-type assignment established.
3 count
Printed tube count per radiator under floor general rule; not installed quantity.
Drawing notation: ALL RADIATORS ON THIS FLOOR TO BE 3 TUBE
Printed tube count per radiator under floor general rule; not installed quantity.
20 in
Explicit inch mark and unless-otherwise-noted qualification retained.
Drawing notation: 20″ HIGH UNLESS OTHERWISE NOTED
Explicit inch mark and unless-otherwise-noted qualification retained.
Printed route requirement only; individual penetration positions and sizes remain unknown.
Drawing notation: ALL RADIATOR CONNECTIONS SHALL BE BROUGHT THRU WALL
Printed route requirement only; individual penetration positions and sizes remain unknown.
