Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial catalogue/OCR-first then sequential <=1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1331.webp. IMG_1322 additionally has one 250x435 post-schedule crop. Regions normalized in unrotated access-image coordinates; rotationDegrees is clockwise correction. Selected evidence only, no full extraction/modeling. Partial timed visual review: 2026-10-11 remaining-region review. Prior queue, OCR and packages reused; ten sequential inspections total, confined to IMG_1329/1334/1336/1337. Normalized regions in unrotated complete-upright WebP. Research only; no accepted geometry or complete extraction. Partial timed visual review: OCR and prior package text review only this pass; no new visual verification. Partial timed visual review: Additive source-local review; normalized coordinates in unrotated 2200×1650 access WebP. Reuse previous verified records; no accepted geometry or complete extraction. Partial timed visual review: Additive source-local lighting review; source regions normalized in unrotated access-image coordinates. Printed numbers are preserved separately from fixture types. No world coordinates, complete extraction or installed acceptance. Partial timed visual review: undefined Partial timed visual review: New readings use raw 4032x3024 master-image coordinates, ignoring EXIF. Regional identities are modern extraction IDs, not historical identifiers. No accepted installed transforms or building geometry. Partial timed visual review: undefined Partial timed visual review: Bounded additive source review. Printed schedule quantities and source-local apparatus detail dimensions do not establish installed building geometry. Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible source evidence only; partial review, applies to depicted assembly.

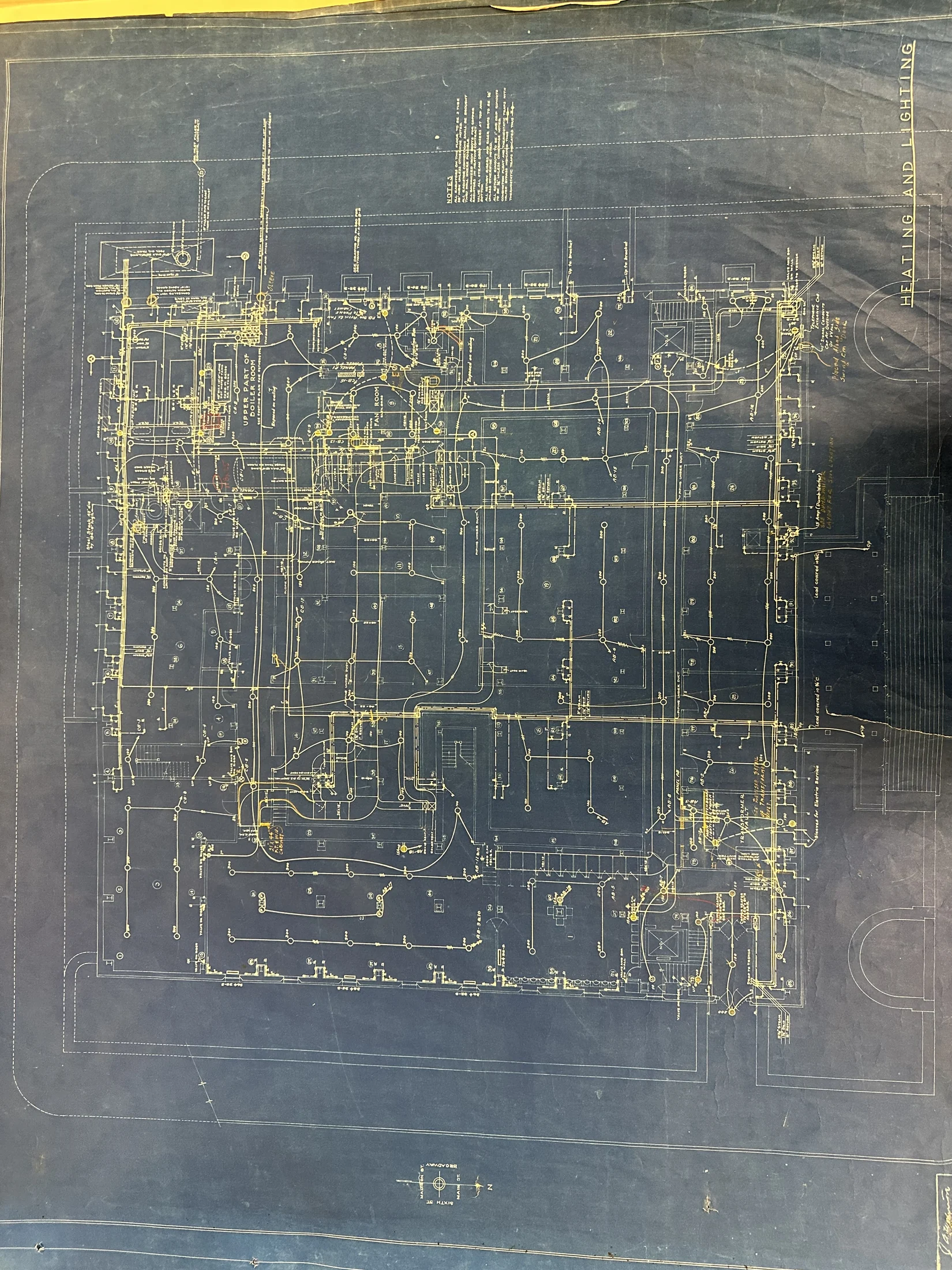

Drawing notation: HEATING AND LIGHTING
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Drawing notation: Dense branching linework, circular fixture symbols and perimeter equipment shown
Selected visible source evidence only; partial review, applies to depicted assembly.
Numeric value unresolved
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Numeric value unresolved
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Rotated whole locator shows multiple symbol families and a dense boiler/fan/service field. No type-symbol legend verified; basement floor assignment remains a catalogue lead, not a newly verified printed floor.
Rotated whole locator shows multiple symbol families and a dense boiler/fan/service field. No type-symbol legend verified; basement floor assignment remains a catalogue lead, not a newly verified printed floor.
1 count
Source-local drawn evidence only; not accepted installed geometry, quantity, lamp wattage or P-type mapping.
Drawing notation: One plain circular electrical outlet symbol
Source-local drawn evidence only; not accepted installed geometry, quantity, lamp wattage or P-type mapping.
300 number
Printed number beside station; no local W suffix or governing P-type correlation certified. Number is neither historical instance ID nor installed quantity.
Drawing notation: 300
Printed number beside station; no local W suffix or governing P-type correlation certified. Number is neither historical instance ID nor installed quantity.
No governing fixture/P-type key verified in this bounded station crop; not evidence that no key survives elsewhere.
No governing fixture/P-type key verified in this bounded station crop; not evidence that no key survives elsewhere.
1 count
Source-local drawn evidence only; not accepted installed geometry, quantity, lamp wattage or P-type mapping.
Drawing notation: One plain circular electrical outlet symbol
Source-local drawn evidence only; not accepted installed geometry, quantity, lamp wattage or P-type mapping.
300 number
Printed number beside station; no local W suffix or governing P-type correlation certified. Number is neither historical instance ID nor installed quantity.
Drawing notation: 300
Printed number beside station; no local W suffix or governing P-type correlation certified. Number is neither historical instance ID nor installed quantity.
No governing fixture/P-type key verified in this bounded station crop; not evidence that no key survives elsewhere.
No governing fixture/P-type key verified in this bounded station crop; not evidence that no key survives elsewhere.
1 count
Source-local drawn evidence only; not accepted installed geometry, quantity, lamp wattage or P-type mapping.
Drawing notation: One plain circular electrical outlet symbol
Source-local drawn evidence only; not accepted installed geometry, quantity, lamp wattage or P-type mapping.
300 number
Printed number beside station; no local W suffix or governing P-type correlation certified. Number is neither historical instance ID nor installed quantity.
Drawing notation: 300
Printed number beside station; no local W suffix or governing P-type correlation certified. Number is neither historical instance ID nor installed quantity.
No governing fixture/P-type key verified in this bounded station crop; not evidence that no key survives elsewhere.
No governing fixture/P-type key verified in this bounded station crop; not evidence that no key survives elsewhere.
1 count
Source-local drawn evidence only; not accepted installed geometry, quantity, lamp wattage or P-type mapping.
Drawing notation: One plain circular electrical outlet symbol
Source-local drawn evidence only; not accepted installed geometry, quantity, lamp wattage or P-type mapping.
300 number
Printed number beside station; no local W suffix or governing P-type correlation certified. Number is neither historical instance ID nor installed quantity.
Drawing notation: 300
Printed number beside station; no local W suffix or governing P-type correlation certified. Number is neither historical instance ID nor installed quantity.
No governing fixture/P-type key verified in this bounded station crop; not evidence that no key survives elsewhere.
No governing fixture/P-type key verified in this bounded station crop; not evidence that no key survives elsewhere.
1 count
Source-local drawn evidence only; not accepted installed geometry, quantity, lamp wattage or P-type mapping.
Drawing notation: One plain circular electrical outlet symbol
Source-local drawn evidence only; not accepted installed geometry, quantity, lamp wattage or P-type mapping.
300 number
Printed number beside station; no local W suffix or governing P-type correlation certified. Number is neither historical instance ID nor installed quantity.
Drawing notation: 300
Printed number beside station; no local W suffix or governing P-type correlation certified. Number is neither historical instance ID nor installed quantity.
No governing fixture/P-type key verified in this bounded station crop; not evidence that no key survives elsewhere.
No governing fixture/P-type key verified in this bounded station crop; not evidence that no key survives elsewhere.
5 count
Sum of the separately recorded drawn stations in this bounded group only. Excludes adjacent symbol families, routes and unreviewed stations; does not establish installed count.
Drawing notation: 5 individually recorded plain circular outlet stations
Sum of the separately recorded drawn stations in this bounded group only. Excludes adjacent symbol families, routes and unreviewed stations; does not establish installed count.
Calculated from: lighting1013d-img1331-004-drawn_outlet_station_presence, lighting1013d-img1331-007-drawn_outlet_station_presence, lighting1013d-img1331-010-drawn_outlet_station_presence, lighting1013d-img1331-013-drawn_outlet_station_presence, lighting1013d-img1331-016-drawn_outlet_station_presence
3 count
Printed tube count per radiator under general floor rule; not installed radiator quantity.
Drawing notation: ALL RADIATORS ON THIS FLOOR TO BE 3 TUBE
Printed tube count per radiator under general floor rule; not installed radiator quantity.
20 in
Printed radiator-height default with explicit inch mark and exception retained.
Drawing notation: 20″ HIGH UNLESS OTHERWISE NOTED
Printed radiator-height default with explicit inch mark and exception retained.
Conditional connection route requirement only; no wall penetration locations established.
Drawing notation: ALL RADIATOR CONNECTIONS SHALL BE BROUGHT THRU WALL WHERE POSSIBLE
Conditional connection route requirement only; no wall penetration locations established.
Material assigned only to boots; no sheet-metal thickness inferred.
Drawing notation: ALL GALVANIZED IRON BOOTS FOR COPPER RADIATORS IN HEATING CONTRACT
Material assigned only to boots; no sheet-metal thickness inferred.
Copper applies to radiators named in the boot clause, not automatically every radiator on the floor.
Drawing notation: ALL GALVANIZED IRON BOOTS FOR COPPER RADIATORS IN HEATING CONTRACT
Copper applies to radiators named in the boot clause, not automatically every radiator on the floor.
Printed contract allocation, not installation evidence.
Drawing notation: ALL GALVANIZED IRON BOOTS FOR COPPER RADIATORS IN HEATING CONTRACT
Printed contract allocation, not installation evidence.
Valve requirement for steam drop risers only.
Drawing notation: VALVE ALL STEAM DROP RISERS AT TOP AND BOTTOM
Valve requirement for steam drop risers only.
Locations relative to each applicable riser; no exact heights or valve sizes established.
Drawing notation: VALVE ALL STEAM DROP RISERS AT TOP AND BOTTOM
Locations relative to each applicable riser; no exact heights or valve sizes established.
Numeric value unresolved
Fraction and its unit mark not securely distinguished. Preserve null; no size transfer from other floor or source.
Drawing notation: ALL RETURN RISERS AND RISER DRIPS TO BE [fraction unclear] UNLESS OTHERWISE NOTED
Fraction and its unit mark not securely distinguished. Preserve null; no size transfer from other floor or source.
1 in
Explicit printed one-inch return-runout default; following UNLESS OTHERWISE NOTED qualification applies to sentence. Drip-runout fraction remains separate.
Drawing notation: ALL RETURN RUNOUTS TO BE 1″
Explicit printed one-inch return-runout default; following UNLESS OTHERWISE NOTED qualification applies to sentence. Drip-runout fraction remains separate.
Numeric value unresolved
Drip-runout fractional size and its unit mark unresolved; not supplied by neighboring one-inch return-runout value.
Drawing notation: AND DRIP RUNOUTS TO BE [fraction unclear] UNLESS OTHERWISE NOTED
Drip-runout fractional size and its unit mark unresolved; not supplied by neighboring one-inch return-runout value.
Literal combination-trap designation in legend clause; installed types and quantity not established.
Drawing notation: COMBINATION FLOAT AND THERMOSTATIC TRAPS
Literal combination-trap designation in legend clause; installed types and quantity not established.
Exact legend clause specifies valved bypass. No installed instance count or additional piping topology inferred.
Drawing notation: COMBINATION FLOAT AND THERMOSTATIC TRAPS WITH VALVED BYPASS INDICATED THUS [symbol]
Exact legend clause specifies valved bypass. No installed instance count or additional piping topology inferred.
Caption preserves separate thermostatic-trap convention; no installed quantities established.
Drawing notation: THERMOSTATIC TRAPS INDICATED THUS [symbol]
Caption preserves separate thermostatic-trap convention; no installed quantities established.
