← Back to the building1933 reconstruction · research preview

The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

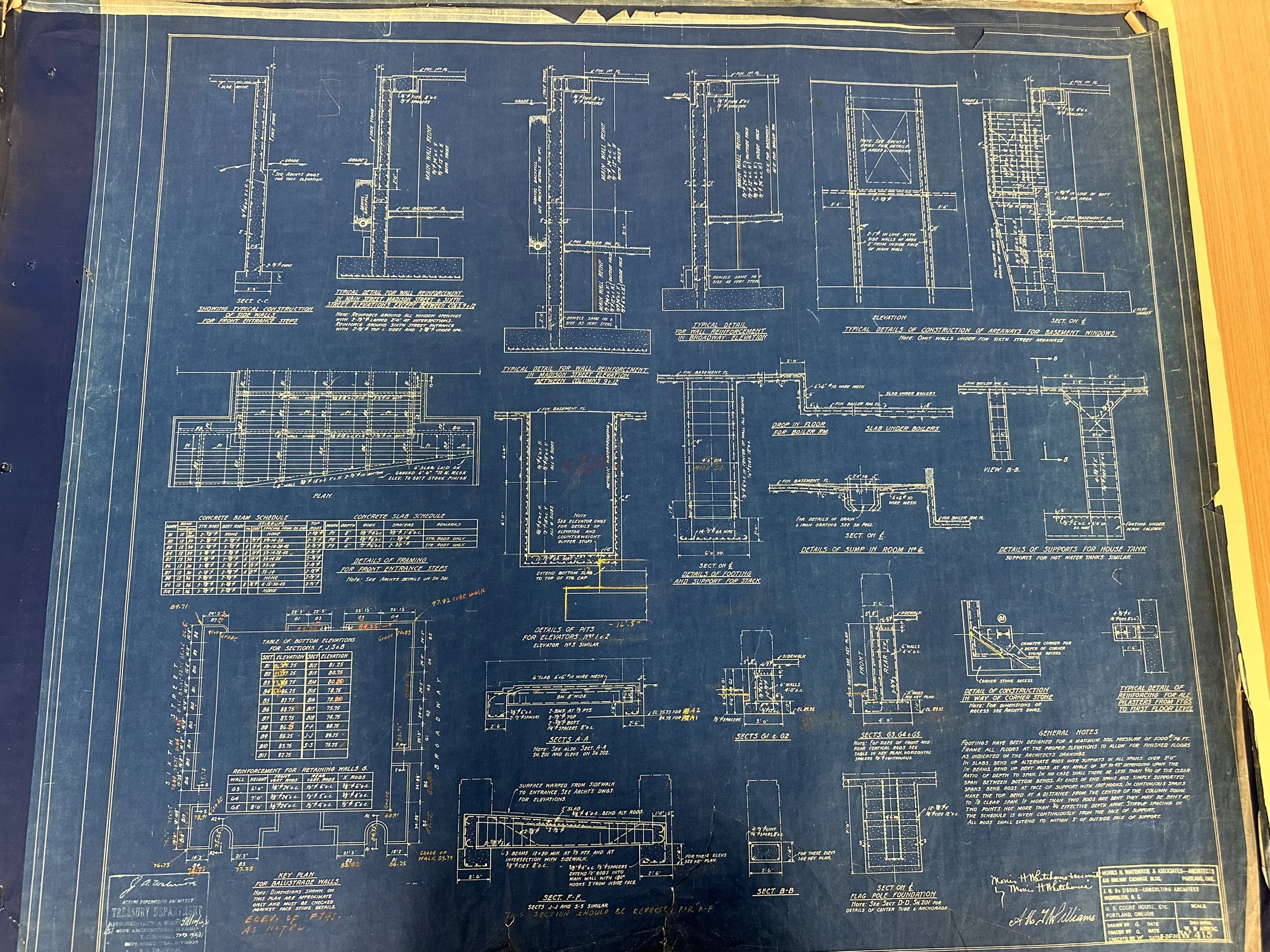

IMG_1329 · Folder 186

DETAILS OF FRAMING FOR FRONT ENTRANCE STEPS

Sheet W415

Extraction: Reviewed · extraction partial. targeted regions only; front-entrance framing plan P1 mark; concrete slab schedule P1 row; six-inch ground-slab note; sheet title block. Partial timed visual review: 2026-10-11 remaining-region review. Prior queue, OCR and packages reused; ten sequential inspections total, confined to IMG_1329/1334/1336/1337. Normalized regions in unrotated complete-upright WebP. Research only; no accepted geometry or complete extraction. Partial timed visual review: Additive source-local review; normalized coordinates in unrotated 2200×1650 access WebP. Reuse previous verified records; no accepted geometry or complete extraction. Partial timed visual review: undefined Partial timed visual review: Bounded additive source review. Printed schedule quantities and source-local apparatus detail dimensions do not establish installed building geometry. Partial timed visual review: Selected general notes only; normalized region in unrotated 2200×1650 derivative. Existing verified readings reused without retranscription. Partial timed visual review: Source-local schedule, fabrication or connection evidence only; no installed geometry or architectural acceptance. Partial timed visual review: undefined Partial timed visual review: undefined

Unresolved extraction work
  • other structural schedules
  • unrelated wall/footing details
  • full plan dimension and reinforcement audit
  • Remaining individual dimensions, service/member instances, schedules, material and connection details require source review.
  • Original/revised annotation authority and companion registrations remain unresolved.
  • Architectural geometry and installed quantities are not established by service underlays.
  • Remaining individual dimensions, service instances, fine callouts and routes require source review.
  • Original/revised annotations, companion sheets and installed registration unresolved.
  • Architectural geometry and installed quantities are not established; model unchecked.
  • Beam width/depth numbers and stirrup sequence units remain unlabeled in this table; no unit guessed.
  • Beam straight/bent/top rod fractions remain too soft for a fully verified row-by-row transcription.
  • Table quantities are type components, not building-wide installed quantities.
  • Other sheet regions, fine notes, schedules, callouts and revisions remain unreviewed.
  • Complete source-to-instance registration, connection capacities, material grades and independent model/as-built checks remain pending.
  • Full source-to-building registration, installed quantities and as-built correspondence remain unresolved.
  • Complete notes, schedules, callouts, margins and colored revision authority outside listed regions await review.
  • Extraction remains partial; modeling/checking unchecked. No irrecoverable evidence conclusion.
  • Full concrete beam/slab schedule row extraction
  • Companion details, revisions and member assignments
  • Complete source-to-plan registration and installed-instance applicability remain unresolved.
  • Unreviewed sheet regions, notes, callouts, schedules and revision authority remain open.
  • Material grades, full profiles, connection capacities and independent modeling checks unresolved.
  • 1/5 clear-span top bend and3/4 effective-depth separation close four repeated null clause questions only.
  • Unlabeled beam width/depth and stirrup-sequence units remain unknown; type-component counts do not establish installed quantities.
  • Complete source-to-instance and endpoint registration remains unresolved.
  • Material grades, finishes, connection capacities and as-built checks remain unestablished.
  • Unreviewed regions, fine fractions, schedules, companion applicability and revision authority remain open.
  • Beam WIDTH/DEPTH header still has no independently established physical unit. Adjacent slab DEPTH inch marks are in a different table and do not authorize beam units.
  • No dimensional closure from repeated unitless numeric glyphs; all beam width/depth unit questions remain open.
  • Full source-to-instance assignment, physical endpoints, installed quantities and governing revision remain unresolved.
  • Unreviewed regions, notes, fine fractions and companion sheets remain open; this package is not exhaustive coverage.
  • No world geometry, material grade, structural capacity or model acceptance established.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

105 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

main-north-entrance-w415-p1-page-left-slabverified · printed

printed slab type mark

P1

Printed P1 mark only; physical placement withheld.

IMG_1329 · sheet-W415 · Locate on drawing ↗

Drawing notation: PLAN; P1 (page-left lower slab field); DETAILS OF FRAMING FOR FRONT ENTRANCE STEPS

P1 is a printed slab mark; page-left is a photographic position, not an east/west assignment. The perimeter of this P1 field has not been independently picked or dimensioned.

main-north-entrance-w415-p1-page-left-slabverified · printed

concrete slab scheduled depth

P1 | 8"

8 in

Local vertical section thickness only. No top or bottom world elevation follows from this value.

IMG_1329 · sheet-W415 · Locate on drawing ↗

Drawing notation: PLAN; P1 (page-left lower slab field); DETAILS OF FRAMING FOR FRONT ENTRANCE STEPS

P1 is a printed slab mark; page-left is a photographic position, not an east/west assignment. The perimeter of this P1 field has not been independently picked or dimensioned.

IMG_1329 · sheet-W415 · Locate on drawing ↗

Drawing notation: CONCRETE SLAB SCHEDULE; MARK P1; DEPTH 8"

The P1 schedule row governs slab depth. Rod and spacer figures were not transcribed in this bounded pass.

main-north-entrance-w415-p1-page-left-slabunreviewed · inferred

closed plan footprint

Unresolved

Numeric value unresolved

P1 label and drawn slab region are visible, but no accepted face picks or printed bounding dimensions define a physical polygon.

IMG_1329 · sheet-W415 · Locate on drawing ↗

Drawing notation: PLAN; P1 (page-left lower slab field); DETAILS OF FRAMING FOR FRONT ENTRANCE STEPS

P1 is a printed slab mark; page-left is a photographic position, not an east/west assignment. The perimeter of this P1 field has not been independently picked or dimensioned.

main-north-entrance-w415-p1-page-left-slabunreviewed · inferred

top surface historic elevation

Unresolved

Numeric value unresolved

W-415 says the ground-slab elevation suits stone finish; W-201's 83.26 and 93.24 refer to finished approach/landing surfaces, not the P1 concrete top.

IMG_1329 · sheet-W415 · Locate on drawing ↗

Drawing notation: PLAN; P1 (page-left lower slab field); DETAILS OF FRAMING FOR FRONT ENTRANCE STEPS

P1 is a printed slab mark; page-left is a photographic position, not an east/west assignment. The perimeter of this P1 field has not been independently picked or dimensioned.

IMG_1329 · sheet-W415 · Locate on drawing ↗

Drawing notation: 6" SLABS LAID ON GROUND ... ELEV. TO SUIT STONE FINISH

A separate six-inch ground-slab note. Its leader/field has not been proven to denote the marked P1 slab, so six inches is not substituted for P1's scheduled eight inches. The mesh notation between these phrases is not securely transcribed.

IMG_1242 · sheet-W201 · Locate on drawing ↗

Drawing notation: SECTION C-C; 23 TREADS @ 1'-1" = 24'-11"; EL. 83.26; ELEV. 93.24; 4'-0" upper landing

These are finished-stair/landing controls, not a P1 structural-slab elevation or tread/riser profile.

main-north-entrance-w415-p1-page-left-slabunreviewed · inferred

registered world XZ footprint

Unresolved

Numeric value unresolved

The provisional W3 stair center/run cannot locate this particular W-415 P1 slab face or decide page-left's east/west identity.

IMG_1329 · sheet-W415 · Locate on drawing ↗

Drawing notation: PLAN; P1 (page-left lower slab field); DETAILS OF FRAMING FOR FRONT ENTRANCE STEPS

P1 is a printed slab mark; page-left is a photographic position, not an east/west assignment. The perimeter of this P1 field has not been independently picked or dimensioned.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: CENTER LINE OF ENTRANCE; Main entrance stair plan

W3 registered the broad stair run envelope only; the P1 structural slab outline was not registered.

detail-img1329-20261011o-general-reinforcementverified · printed

maximum_design_soil_pressure

5000 #/SQ. FT.

5000 psf

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 5000 #/SQ. FT.

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

detail-img1329-20261011o-general-reinforcementverified · printed

slab_alternate_rod_bend_span_threshold

IN SLABS BEND UP ALTERNATE RODS OVER SUPPORTS IN ALL SPANS OVER 3′-0″

36 in

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: IN SLABS BEND UP ALTERNATE RODS OVER SUPPORTS IN ALL SPANS OVER 3′-0″

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

detail-img1329-20261011o-general-reinforcementverified · printed

beam_rod_bend_angle_minimum

30° TO 45°

30 degrees

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 30° TO 45°

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

detail-img1329-20261011o-general-reinforcementverified · printed

beam_rod_bend_angle_maximum

30° TO 45°

45 degrees

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 30° TO 45°

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

detail-img1329-20261011o-general-reinforcementverified · printed

minimum_clear_span_between_bottom_bends_fraction

LESS THAN 6/10 OF THE CLEAR SPAN BETWEEN BOTTOM BENDS

0.6 ratio

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: LESS THAN 6/10 OF THE CLEAR SPAN BETWEEN BOTTOM BENDS

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

detail-img1329-20261011o-general-reinforcementverified · printed

end_span_support_hook_angle

AT ENDS OF END SPANS AND SIMPLY SUPPORTED SPANS BEND RODS AT FACE OF SUPPORT WITH 180° HOOKS

180 degrees

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: AT ENDS OF END SPANS AND SIMPLY SUPPORTED SPANS BEND RODS AT FACE OF SUPPORT WITH 180° HOOKS

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

detail-img1329-20261011o-general-reinforcementunreviewed · printed

continuous_span_top_bend_distance_rule

MAKE THE TOP BEND AT A DISTANCE FROM THE CENTER OF THE COLUMN EQUAL TO [fraction unresolved] CLEAR SPAN

Numeric value unresolved

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: MAKE THE TOP BEND AT A DISTANCE FROM THE CENTER OF THE COLUMN EQUAL TO [fraction unresolved] CLEAR SPAN

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

detail-img1329-20261011o-general-reinforcementunreviewed · printed

multiple_rod_bend_point_spacing_rule

IF MORE THAN TWO RODS ARE BENT THEY MAY BE BENT AT TWO POINTS NOT MORE THAN [fraction unresolved] EFFECTIVE DEPTH APART

Numeric value unresolved

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: IF MORE THAN TWO RODS ARE BENT THEY MAY BE BENT AT TWO POINTS NOT MORE THAN [fraction unresolved] EFFECTIVE DEPTH APART

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

detail-img1329-20261011o-general-reinforcementverified · printed

rod_termination_distance_from_outer_support_face

ALL RODS SHALL EXTEND TO WITHIN 3″ OF OUTSIDE FACE OF SUPPORT

3 in

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: ALL RODS SHALL EXTEND TO WITHIN 3″ OF OUTSIDE FACE OF SUPPORT

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

detail-img1329-20261011o-general-reinforcementverified · printed

stirrup_spacing_reference

STIRRUP SPACING IN THE SCHEDULE IS GIVEN CONTINUOUSLY FROM THE FACE OF SUPPORT

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: STIRRUP SPACING IN THE SCHEDULE IS GIVEN CONTINUOUSLY FROM THE FACE OF SUPPORT

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

detail-img1329-20261011o-general-reinforcementverified · printed

floor_elevation_relationship

FRAME ALL FLOORS AT THE PROPER ELEVATIONS TO ALLOW FOR FINISHED FLOORS AS INDICATED ON THE ARCHITECT'S DRAWINGS

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: FRAME ALL FLOORS AT THE PROPER ELEVATIONS TO ALLOW FOR FINISHED FLOORS AS INDICATED ON THE ARCHITECT'S DRAWINGS

Printed design rule applies to the depicted sheet/floor assembly; does not establish installed condition or individual exact geometry.

detail-w415-front-step-slab-p2-1329verified · printed

slab-depth

6″

6 in

Selected concrete slab schedule row P2; row mark is a printed schedule designation, not an installed element identity. Fine rod fraction and spacing remain unresolved.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 6″

Selected concrete slab schedule row P2; row mark is a printed schedule designation, not an installed element identity. Fine rod fraction and spacing remain unresolved.

detail-w415-front-step-slab-p2-1329verified · printed

reinforcement-form

STR. RODS ONLY

Selected concrete slab schedule row P2; row mark is a printed schedule designation, not an installed element identity. Fine rod fraction and spacing remain unresolved.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: STR. RODS ONLY

Selected concrete slab schedule row P2; row mark is a printed schedule designation, not an installed element identity. Fine rod fraction and spacing remain unresolved.

detail-w415-front-step-slab-p3-1329verified · printed

slab-depth

6″

6 in

Selected concrete slab schedule row P3; fine rod fraction and spacing remain unresolved.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 6″

Selected concrete slab schedule row P3; fine rod fraction and spacing remain unresolved.

detail-w415-front-step-slab-p3-1329verified · printed

reinforcement-form

STR. RODS ONLY

Selected concrete slab schedule row P3; fine rod fraction and spacing remain unresolved.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: STR. RODS ONLY

Selected concrete slab schedule row P3; fine rod fraction and spacing remain unresolved.

detail-w415-front-step-framing-reference-1329verified · printed

companion-sheet

Note: See Archit's Dwgs on Sh 201.

201 sheet-number

Printed companion reference below step schedule; no inferred match to an archive image.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: Note: See Archit's Dwgs on Sh 201.

Printed companion reference below step schedule; no inferred match to an archive image.

detail-w415-general-rule-followup-1329unresolved · printed

continuous-span-top-bend-distance

… EQUAL TO [fraction unresolved] CLEAR SPAN

Numeric value unresolved

Revisited prior null fractions at access resolution; neither numeric fraction promoted. Existing 20261011o properties retained; higher resolution required.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: … EQUAL TO [fraction unresolved] CLEAR SPAN

Revisited prior null fractions at access resolution; neither numeric fraction promoted. Existing 20261011o properties retained; higher resolution required.

detail-w415-general-rule-followup-1329unresolved · printed

multiple-rod-bend-point-spacing

… NOT MORE THAN [fraction unresolved] EFFECTIVE DEPTH APART

Numeric value unresolved

Revisited prior null fractions at access resolution; neither numeric fraction promoted. Existing 20261011o properties retained; higher resolution required.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: … NOT MORE THAN [fraction unresolved] EFFECTIVE DEPTH APART

Revisited prior null fractions at access resolution; neither numeric fraction promoted. Existing 20261011o properties retained; higher resolution required.

structsched1013g-img1329-beam-schedule-b2verified · printed

scheduled_stirrup_quantity

6

6 count

B2 printed No cell. Type/scheduled component quantity, not installed building-wide count.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 6

B2 printed No cell. Type/scheduled component quantity, not installed building-wide count.

structsched1013g-img1329-beam-schedule-b2verified · printed

stirrup_spacing_sequence_notation

3½-14-28

B2 SPACING FROM EA END cell; hyphen-separated numbers retained. Physical unit unprinted/unresolved; no distances assigned.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 3½-14-28

B2 SPACING FROM EA END cell; hyphen-separated numbers retained. Physical unit unprinted/unresolved; no distances assigned.

structsched1013g-img1329-beam-schedule-b3verified · printed

scheduled_stirrup_quantity

8

8 count

B3 printed No cell. Type/scheduled component quantity, not installed building-wide count.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 8

B3 printed No cell. Type/scheduled component quantity, not installed building-wide count.

structsched1013g-img1329-beam-schedule-b3verified · printed

stirrup_spacing_sequence_notation

3½-14-28-42

B3 SPACING FROM EA END cell; hyphen-separated numbers retained. Physical unit unprinted/unresolved; no distances assigned.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 3½-14-28-42

B3 SPACING FROM EA END cell; hyphen-separated numbers retained. Physical unit unprinted/unresolved; no distances assigned.

structsched1013g-img1329-beam-schedule-b4verified · printed

scheduled_stirrup_quantity

8

8 count

B4 printed No cell. Type/scheduled component quantity, not installed building-wide count.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 8

B4 printed No cell. Type/scheduled component quantity, not installed building-wide count.

structsched1013g-img1329-beam-schedule-b4verified · printed

stirrup_spacing_sequence_notation

3½-14-28-42

B4 SPACING FROM EA END cell; hyphen-separated numbers retained. Physical unit unprinted/unresolved; no distances assigned.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 3½-14-28-42

B4 SPACING FROM EA END cell; hyphen-separated numbers retained. Physical unit unprinted/unresolved; no distances assigned.

structsched1013g-img1329-beam-schedule-b5verified · printed

scheduled_stirrup_quantity

6

6 count

B5 printed No cell. Type/scheduled component quantity, not installed building-wide count.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 6

B5 printed No cell. Type/scheduled component quantity, not installed building-wide count.

structsched1013g-img1329-beam-schedule-b5verified · printed

stirrup_spacing_sequence_notation

3½-14-28

B5 SPACING FROM EA END cell; hyphen-separated numbers retained. Physical unit unprinted/unresolved; no distances assigned.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 3½-14-28

B5 SPACING FROM EA END cell; hyphen-separated numbers retained. Physical unit unprinted/unresolved; no distances assigned.

structsched1013g-img1329-beam-schedule-b6verified · printed

scheduled_stirrup_quantity

4

4 count

B6 printed No cell. Type/scheduled component quantity, not installed building-wide count.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 4

B6 printed No cell. Type/scheduled component quantity, not installed building-wide count.

structsched1013g-img1329-beam-schedule-b6verified · printed

stirrup_spacing_sequence_notation

3½-14

B6 SPACING FROM EA END cell; hyphen-separated numbers retained. Physical unit unprinted/unresolved; no distances assigned.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 3½-14

B6 SPACING FROM EA END cell; hyphen-separated numbers retained. Physical unit unprinted/unresolved; no distances assigned.

structsched1013g-img1329-beam-schedule-b7verified · printed

scheduled_stirrup_quantity

4

4 count

B7 printed No cell. Type/scheduled component quantity, not installed building-wide count.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 4

B7 printed No cell. Type/scheduled component quantity, not installed building-wide count.

structsched1013g-img1329-beam-schedule-b7verified · printed

stirrup_spacing_sequence_notation

3½-14

B7 SPACING FROM EA END cell; hyphen-separated numbers retained. Physical unit unprinted/unresolved; no distances assigned.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 3½-14

B7 SPACING FROM EA END cell; hyphen-separated numbers retained. Physical unit unprinted/unresolved; no distances assigned.

structsched1013g-img1329-beam-schedule-b9verified · printed

scheduled_stirrup_quantity

8

8 count

B9 printed No cell. Type/scheduled component quantity, not installed building-wide count.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 8

B9 printed No cell. Type/scheduled component quantity, not installed building-wide count.

structsched1013g-img1329-beam-schedule-b9verified · printed

stirrup_spacing_sequence_notation

4-15-30-45

B9 SPACING FROM EA END cell; hyphen-separated numbers retained. Physical unit unprinted/unresolved; no distances assigned.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 4-15-30-45

B9 SPACING FROM EA END cell; hyphen-separated numbers retained. Physical unit unprinted/unresolved; no distances assigned.

framingcells1013m-img1329-slab-schedule-p3verified · printed

slab_depth

6″

6 in

P3 DEPTH cell explicitly carries inch mark; application/source-to-plan registration remains open.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: 6″

P3 DEPTH cell explicitly carries inch mark; application/source-to-plan registration remains open.

framingcells1013m-img1329-slab-schedule-p3verified · printed

rod_spacing

½ φ 6″ O.C.

6 in

Printed source-local detail/type property only; no installed instance, coordinates, quantity or manufactured rolled profile inferred.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: ½ φ 6″ O.C.

Printed source-local detail/type property only; no installed instance, coordinates, quantity or manufactured rolled profile inferred.

framingcells1013m-img1329-slab-schedule-p3verified · printed

rod_designation

½ φ

P3 rod designation preserved literally; numeric diameter unit remains unresolved.

IMG_1329 · W-415 · Locate on drawing ↗

Drawing notation: ½ φ

P3 rod designation preserved literally; numeric diameter unit remains unresolved.

View all source photographs →
