Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. IMG_1327 bounded typical roof slab section: candidate dimensions remain unreviewed; no field placement. Main roof physical field gate; one IMG_1327 detail inspected after text audit, no accepted solid. Partial timed visual review: Selected new access-derivative regions inspected; previously verified evidence reused. Partial extraction only. Partial timed visual review: Sequential access derivative inspection for detail assignment and hooked-end note; no numeric fraction resolved. Partial timed visual review: Prior evidence reused; only selected remaining source-local regions reviewed. No historical placement or accepted physical geometry. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Source-local schedule, fabrication or connection evidence only; no installed geometry or architectural acceptance. Partial timed visual review: undefined
Loading the selected drawing…

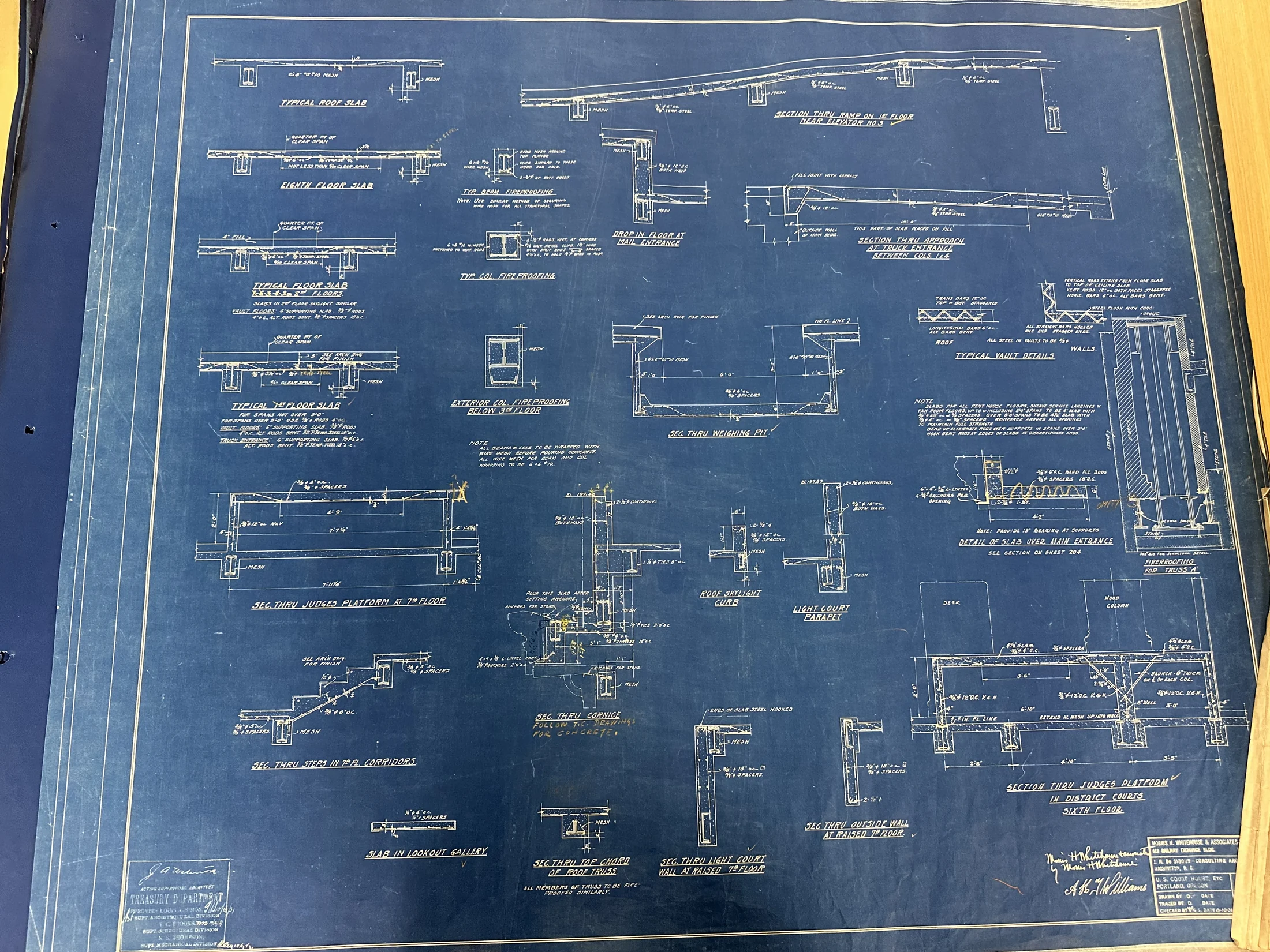

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Caption identifies a generic detail; does not identify a particular W11 roof field.
Drawing notation: TYPICAL ROOF SLAB
3 in
Center vertical witness appears to read 3 inches; numeral and exact endpoints require independent review. Not a verified slab thickness and not a complete roofing build-up.
Drawing notation: 3″ [candidate reading]
Visible mesh notation and bent/dashed line in slab; do not guess size, gauge, spacing or cover.
Drawing notation: EXP … MESH [middle specification unreadable]
Two drawn I-section silhouettes sit in downward slab/encasement pockets. This is a local sectional observation, not an installed beam count or a verified material specification.
Drawing notation: TYPICAL ROOF SLAB
2 in
Right beam lower vertical witness appears to read 2 inches; its exact reference faces and reading require review.
Drawing notation: 2″ [candidate reading]
2 in
Right beam lower horizontal witness appears to read 2 inches; exact reference faces remain unresolved.
Drawing notation: 2″ [candidate reading]
Legible MESH leader at right beam enclosure; does not specify mesh size or full geometry.
Drawing notation: MESH
Numeric value unresolved
No complete layer chain established by this crop. W11 COMPOSITION ROOF remains a separate field material note.
Drawing notation: TYPICAL ROOF SLAB
No accepted field-specific callout or world registration; no placement or underside elevation follows from candidate section readings.
Drawing notation: TYPICAL ROOF SLAB
Close W11 roof registration with well-spread independent dimension or structural controls and held-out checks. Classify and close one physical slab perimeter plus court boundary and all skylight, headhouse, fan-room, drain and access cuts or curbs that intersect it. Transcribe and correlate a roof-field-specific section for structural slab, topping, roofing and underside elevations, with distinct local surface slope/elevation facets. Correlate roof edge to an exterior wall/parapet section with both classified faces, thickness, projection and top/bottom elevations.
Drawing notation: TYPICAL ROOF SLAB
Detail applicability and complete thickness remain unverified.
12 in
Printed vault roof detail spacing; does not establish any room geometry.
Drawing notation: TRANS BARS 12" O.C. TOP & BOT. STAGGERED
Printed vault roof detail spacing; does not establish any room geometry.
Top and bottom roof transverse bars staggered.
Drawing notation: TOP & BOT. STAGGERED
Top and bottom roof transverse bars staggered.
6 in
Printed vault roof longitudinal spacing.
Drawing notation: LONGITUDINAL BARS 6" O.C. ALL BARS BENT
Printed vault roof longitudinal spacing.
Printed reinforcement treatment, bend dimensions unknown.
Drawing notation: ALL BARS BENT
Printed reinforcement treatment, bend dimensions unknown.
12 in
Printed vault wall spacing; both-face staggered assignment retained.
Drawing notation: VERTICAL RODS EXTEND FROM FLOOR SLAB TO TOP OF CEILING SLAB VERT RODS 12" C. BOTH FACES STAGGERED
Printed vault wall spacing; both-face staggered assignment retained.
Printed endpoints are generic detail relationships, not registered building elevations.
Drawing notation: VERTICAL RODS EXTEND FROM FLOOR SLAB TO TOP OF CEILING SLAB
Printed endpoints are generic detail relationships, not registered building elevations.
6 in
Printed wall horizontal bar spacing.
Drawing notation: HORIZ. BARS 6" O.C. ALL BARS BENT
Printed wall horizontal bar spacing.
Final wording visibly incomplete/ambiguous in access crop; exact hook/stagger requirement must be checked at higher resolution.
Drawing notation: ALL STRAIGHT BARS HOOKED ONE END STRAIGHT ENDS
Final wording visibly incomplete/ambiguous in access crop; exact hook/stagger requirement must be checked at higher resolution.
Numeric value unresolved
Fraction/glyph not securely resolved; preserve as unresolved rather than assign exact diameter.
Drawing notation: ALL STEEL IN VAULTS TO BE ½[diameter glyph?]
Fraction/glyph not securely resolved; preserve as unresolved rather than assign exact diameter.
Visible note above light-court raised seventh-floor wall section. Source-local reinforcement treatment only; no hook length/diameter, wall placement or numeric geometry inferred.
Drawing notation: ENDS OF SLAB STEEL HOOKED
Visible note above light-court raised seventh-floor wall section. Source-local reinforcement treatment only; no hook length/diameter, wall placement or numeric geometry inferred.
Master crop resolves prior ambiguous final wording; generic vault detail only.
Drawing notation: ALL STRAIGHT BARS HOOKED ONE END STAGGER ENDS.
Master crop resolves prior ambiguous final wording; generic vault detail only.
0.5 in
Half-inch fraction appears legible; final section glyph still needs independent check. Candidate preserved separately from prior null.
Drawing notation: ALL STEEL IN VAULTS TO BE ½ [round glyph]
Half-inch fraction appears legible; final section glyph still needs independent check. Candidate preserved separately from prior null.
Source-local leader at generic vault wall detail; no cover dimension inferred.
Drawing notation: STEEL FLUSH WITH CONC.
Source-local leader at generic vault wall detail; no cover dimension inferred.
Printed application categories; individual instances unregistered.
Drawing notation: SLABS FOR ALL PENT HOUSE FLOORS, SHEAVE SERVICE LANDINGS & FAN ROOM FLOORS
Printed application categories; individual instances unregistered.
96 in
Threshold qualifies 4-inch slab rule, not room span.
Drawing notation: UP TO & INCLUDING 8′-0″ SPANS
Threshold qualifies 4-inch slab rule, not room span.
4 in
Default within printed short-span range.
Drawing notation: TO BE 4″ SLAB
Default within printed short-span range.
96 in
Exclusive lower threshold for long-span rule.
Drawing notation: OVER 8′-0″ SPANS
Exclusive lower threshold for long-span rule.
4.5 in
Printed long-span default; no maximum span supplied.
Drawing notation: TO BE 4½″ SLAB
Printed long-span default; no maximum span supplied.
Opening bars, amounts and location need detailing.
Drawing notation: REINFORCE AROUND ALL OPENINGS TO MAINTAIN FULL STRENGTH.
Opening bars, amounts and location need detailing.
36 in
Threshold associated with alternate rod bend-up rule.
Drawing notation: IN SPANS OVER 3′-0″
Threshold associated with alternate rod bend-up rule.
Printed support relationship; no bend length inferred.
Drawing notation: BEND UP ALTERNATE RODS OVER SUPPORTS
Printed support relationship; no bend length inferred.
Printed edge treatment only.
Drawing notation: HOOK BENT RODS AT EDGES OF SLABS AT DISCONTINUOUS ENDS.
Printed edge treatment only.
Numeric value unresolved
Fractions remain incompletely verified.
Drawing notation: [rod/spacer fractions unresolved]
Fractions remain incompletely verified.
Caption is source-local detail assignment.
Drawing notation: DETAIL OF SLAB OVER MAIN ENTRANCE
Caption is source-local detail assignment.
13 in
Support seats not physically registered.
Drawing notation: NOTE: PROVIDE 13″ BEARING AT SUPPORTS
Support seats not physically registered.
50 in
Lower horizontal witness between depicted slab endpoints, not accepted entrance width.
Drawing notation: 4′-2″
Lower horizontal witness between depicted slab endpoints, not accepted entrance width.
18 in
Spacing numeral verified; spacer diameter remains separately unresolved.
Drawing notation: ⅜ φ SPACERS 18″ O.C.
Spacing numeral verified; spacer diameter remains separately unresolved.
Printed alternating rod bend instruction.
Drawing notation: BEND ALT. RODS
Printed alternating rod bend instruction.
Separate colored annotation beside slab/detail; target and authority uncertain.
Drawing notation: OMIT
Separate colored annotation beside slab/detail; target and authority uncertain.
4.5 in
Rod spacing in up-to-and-including8foot spans; prior thickness4in and applicability reused.
Drawing notation: ⅜ φ 4½″ O.C.
Rod spacing in up-to-and-including8foot spans; prior thickness4in and applicability reused.
