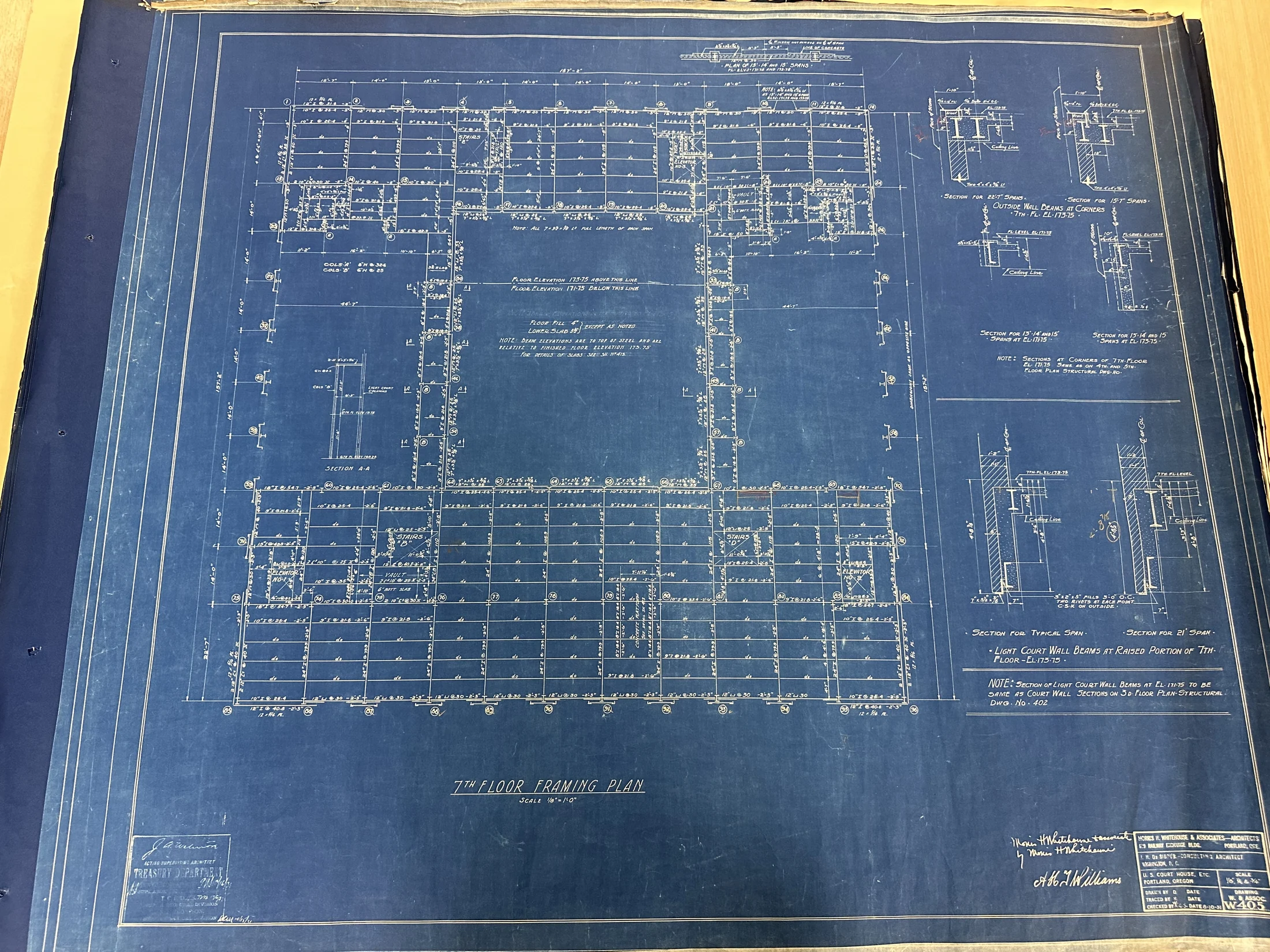

7TH FLOOR FRAMING PLANSelected visible source evidence only; partial review, applies to depicted assembly.
Drawing notation: 7TH FLOOR FRAMING PLAN
Selected visible source evidence only; partial review, applies to depicted assembly.
Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial catalogue/OCR-first then sequential <=1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1319.webp. IMG_1322 additionally has one 250x435 post-schedule crop. Regions normalized in unrotated access-image coordinates; rotationDegrees is clockwise correction. Selected evidence only, no full extraction/modeling. Partial timed visual review: Bounded source-reading review only; no full-source or geometry acceptance. Partial timed visual review: Selected new access-derivative regions inspected; previously verified evidence reused. Partial extraction only. Partial timed visual review: Text/OCR and prior-package audit only; no new image inspection and no duplicate verified measurements. Partial timed visual review: Prior evidence reused; only selected remaining source-local regions reviewed. No historical placement or accepted physical geometry. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Source-local schedule, fabrication or connection evidence only; no installed geometry or architectural acceptance. Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible source evidence only; partial review, applies to depicted assembly.
Drawing notation: 7TH FLOOR FRAMING PLAN
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Drawing notation: FLOOR ELEVATION 173.75 ABOVE THIS LINE
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Drawing notation: FLOOR ELEVATION 171.75 BELOW THIS LINE
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Drawing notation: FLOOR LOAD [unresolved] / LOWER SLAB [unresolved] EXCEPT AS NOTED
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Drawing notation: LIGHT COURT WALL BEAMS AT RAISED PORTION OF 7TH FLOOR EL.173.75
Selected visible source evidence only; partial review, applies to depicted assembly.
Selected visible source evidence only; partial review, applies to depicted assembly.
Drawing notation: SECTION OF LIGHT COURT WALL BEAMS AT EL.171.75 TO BE SAME AS COURT WALL SECTIONS ON 3RD FLOOR PLAN STRUCTURAL DWG.NO.402
Selected visible source evidence only; partial review, applies to depicted assembly.
4 in
Printed floor-fill note; regional exceptions and material specification unestablished. Does not establish total slab thickness.
Drawing notation: FLOOR FILL 4"
Printed floor-fill note; regional exceptions and material specification unestablished. Does not establish total slab thickness.
Printed reference face for elevations on this structural framing sheet.
Drawing notation: BEAM ELEVATIONS ARE TO TOP OF STEEL
Printed reference face for elevations on this structural framing sheet.
Preserve datum notation without inventing a unit or assigning the lower regional floor.
Drawing notation: RELATIVE TO FINISHED FLOOR ELEVATION 173.75
Preserve datum notation without inventing a unit or assigning the lower regional floor.
Printed dependency points to slab-detail sheet W413 (IMG_1327); does not verify applicability of every generic detail.
Drawing notation: FOR DETAILS OF SLABS SEE SH. No 413
Printed dependency points to slab-detail sheet W413 (IMG_1327); does not verify applicability of every generic detail.
4.5 in
Printed local default; exceptions and slab field boundaries require registration.
Drawing notation: LOWER SLAB 4½″
Printed local default; exceptions and slab field boundaries require registration.
Bracket qualifies both floor fill 4″ and lower slab 4½″; prior fill reading retained.
Drawing notation: EXCEPT AS NOTED
Bracket qualifies both floor fill 4″ and lower slab 4½″; prior fill reading retained.
5 in
Printed source-local detail/type property only; no installed instance, coordinates, quantity or manufactured rolled profile inferred.
Drawing notation: 3″ × 2″ × 5″ FILLS
Printed source-local detail/type property only; no installed instance, coordinates, quantity or manufactured rolled profile inferred.
3 in
Printed source-local detail/type property only; no installed instance, coordinates, quantity or manufactured rolled profile inferred.
Drawing notation: 3″ × 2″ × 5″ FILLS
Printed source-local detail/type property only; no installed instance, coordinates, quantity or manufactured rolled profile inferred.
2 in
Printed source-local detail/type property only; no installed instance, coordinates, quantity or manufactured rolled profile inferred.
Drawing notation: 3″ × 2″ × 5″ FILLS
Printed source-local detail/type property only; no installed instance, coordinates, quantity or manufactured rolled profile inferred.
3 ft
Printed source-local detail/type property only; no installed instance, coordinates, quantity or manufactured rolled profile inferred.
Drawing notation: 3′-0″ O.C.
Printed source-local detail/type property only; no installed instance, coordinates, quantity or manufactured rolled profile inferred.
2 count
Type-local rivets per fill point only.
Drawing notation: TWO RIVETS AT EACH POINT
Type-local rivets per fill point only.
Printed source-local detail/type property only; no installed instance, coordinates, quantity or manufactured rolled profile inferred.
Drawing notation: C.S.K ON OUTSIDE
Printed source-local detail/type property only; no installed instance, coordinates, quantity or manufactured rolled profile inferred.
Literal bottom-angle designation in this raised seventh-floor section; independent of floor-wide continuity rules and not a manufactured rolled profile.
Drawing notation: 7″ × 3½″ × ⅜″ L
Literal bottom-angle designation in this raised seventh-floor section; independent of floor-wide continuity rules and not a manufactured rolled profile.
