The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

IMG_1306 · Folder 187

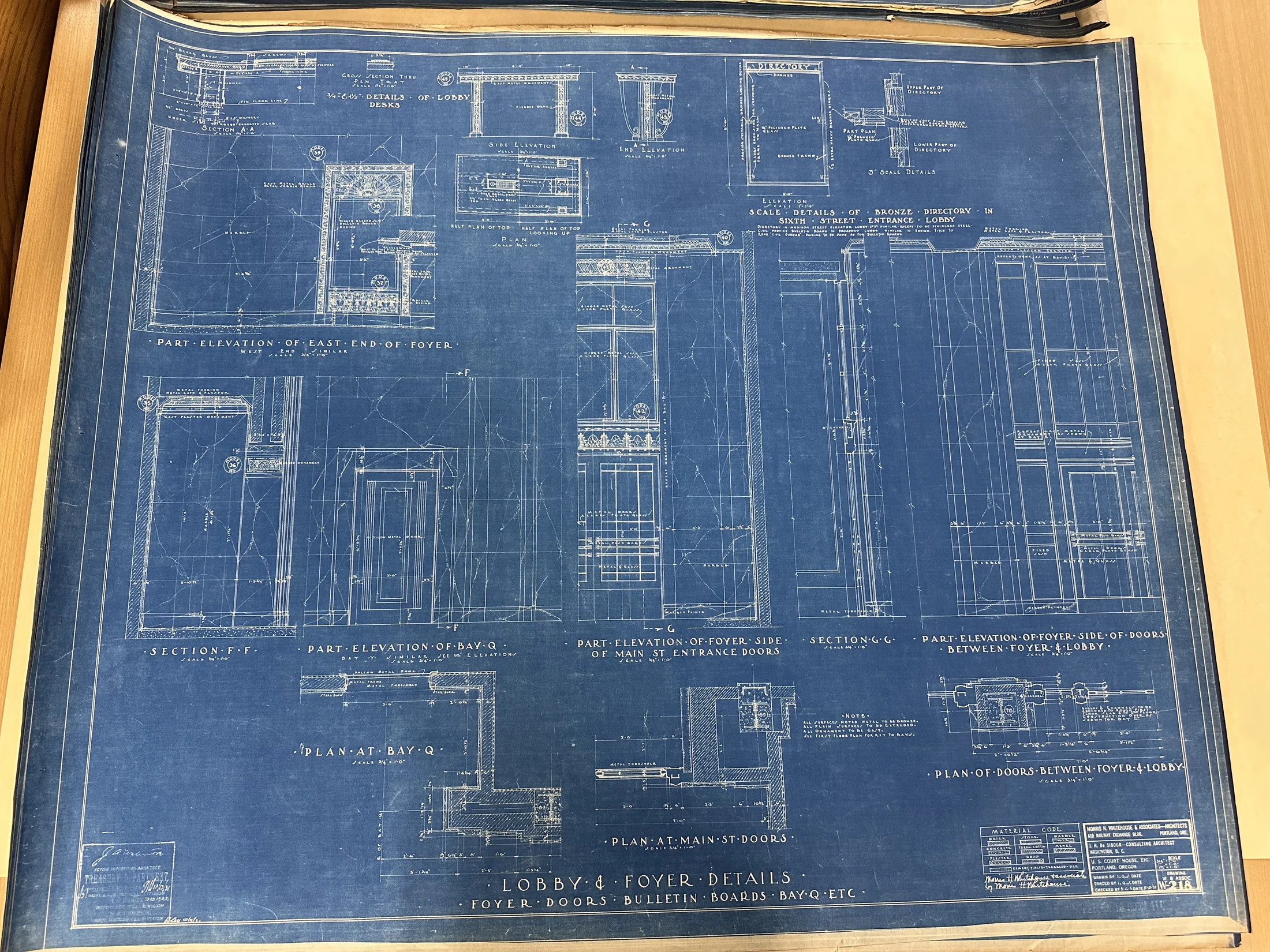

Lobby & Foyer Details — Foyer Doors, Bulletin Boards, Bay Q, Etc.

Sheet W-218

Extraction: Reviewed · extraction partial. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family. Normalized from an existing text re-audit; this import did not reopen the source image. Partial timed visual review: undefined Partial timed visual review: Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed. Partial timed visual review: Printed source-local construction/detail only. Dimension witnesses remain local; no accepted geometry, installed placement or revision precedence established. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Source-local regional inventory and bounded companion findings; architecture and exhaustive extraction unapproved.

Unresolved extraction work

Complete drawing-note transcription
Every dimension and bay placement
Detailed hardware/fastener schedule
Exact cross-sheet bay correspondence
Cross-photo physical deduplication
Complete surviving-object inventory
Exact dimensions
Construction/alteration chronology
Condition assessment
P-6 component extraction
Installed fixture schedule and positions
As-built correspondence
Fixture finish and glass color
Text-only reuse; no new evidence selected for shared material/world-transform questions.
Remaining uninspected notes, dimensions, schedules, details and companion sheets require separate review.
Original versus revision authority, installed instance correspondence and source-to-building registration remain unresolved.
No closed physical profile or architectural/model acceptance established.
All other fine dimensions and endpoint classes remain to be reviewed
Installed instance quantity, exact room/bay coordinates and source-to-building registration unresolved
Original approval/revision fields and cleaner companion captures require separate reconciliation
Unreviewed fine dimensions, fractions, witness endpoints and construction notes
Companion detail/revision reconciliation and installed-instance registration
Modeling and whole-building acceptance checks outstanding
Unmeasured curve radii, moulding endpoints and closed physical profiles remain null; photographic tracing is not a dimension.
Original versus revision authority, installed quantities and source-to-room/bay registration remain unresolved.
Companion details, fixing schedules, actual installed finishes and as-built correspondence remain open.
Remaining dimensions, fine fractions, notes, schedules and companion details are not exhaustively extracted.
Installed quantities, accepted room/bay placement and source-to-building registration remain unresolved.
Original/revision authority, actual finish and physical profile applicability remain unresolved; modeling/checking unchecked.
Historical 24-inch directory reading remains preserved pending primary correction review. Raw reread is 36 inches at the same bottom witness; Bay P directory is a different target.
Directory plate-glass/backing thicknesses, rolled edge, lock form, full hardware counts and source-to-installed board registration remain unresolved.
Remaining fine dimension fractions and witness endpoint classes require targeted master crops; standard inventory does not certify exhaustive extraction.
All notes, material-code keys, schedules, approval/date/revision fields and companion references need complete transcription and reconciliation.
Exact installed quantities, room/bay placement, source-to-building registration, physical layer/profiles and as-built correspondence remain unresolved.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

38 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

f1-public-lobby-postal-wall-systemunreviewed · observed
