← Back to the building1933 reconstruction · research preview

The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

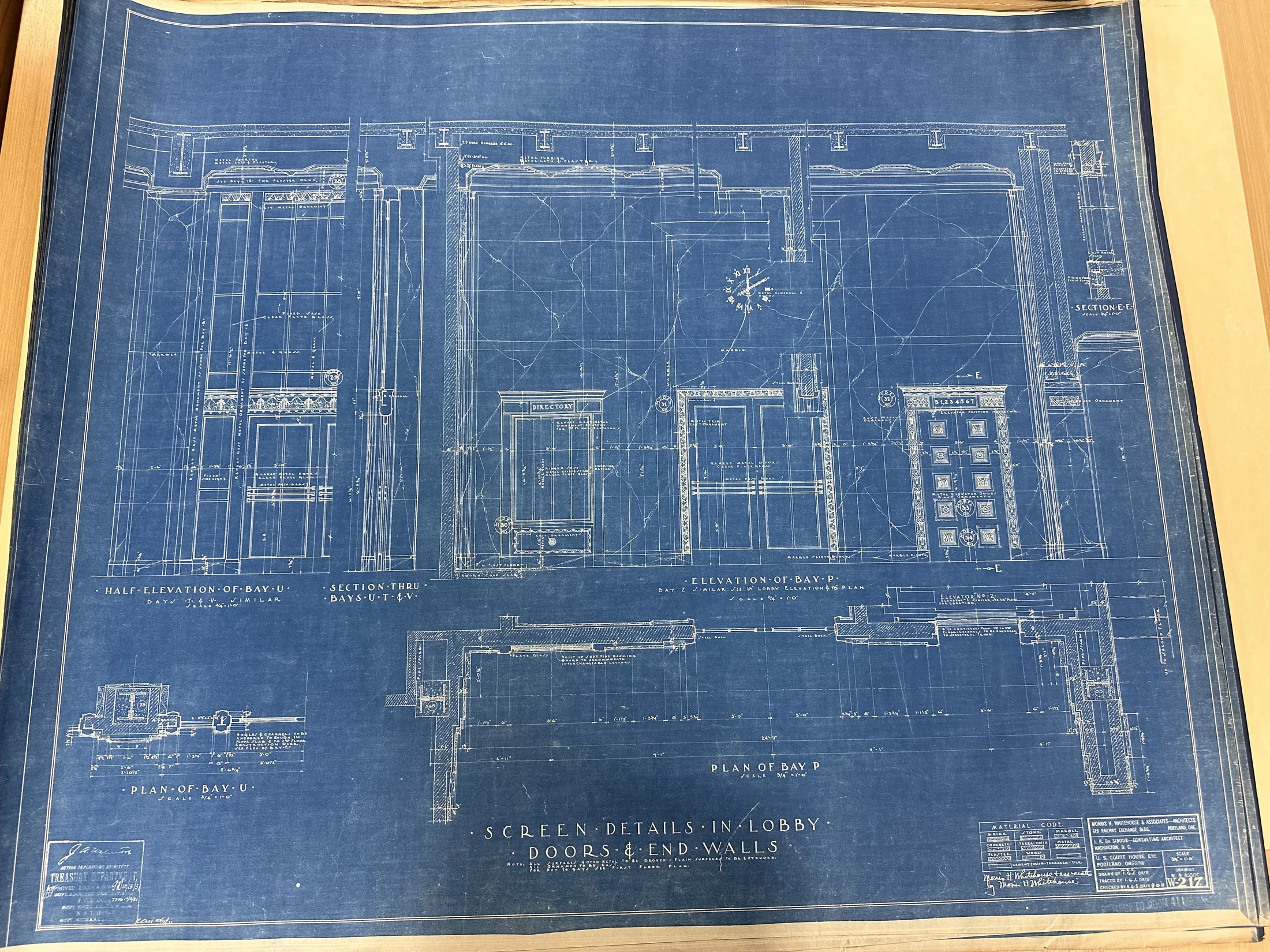

IMG_1305 · Folder 187

SCREEN DETAILS IN LOBBY — DOORS & END WALLS

Sheet W217

Extraction: Reviewed · extraction partial. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays. Normalized from an existing text re-audit; this import did not reopen the source image. Partial timed visual review: undefined Partial timed visual review: Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Source-local regional inventory and bounded companion findings; architecture and exhaustive extraction unapproved.

Unresolved extraction work
  • Complete drawing-note transcription
  • Every dimension and bay placement
  • Detailed hardware/fastener schedule
  • Exact cross-sheet bay correspondence
  • Cross-photo physical deduplication
  • Complete surviving-object inventory
  • Exact dimensions
  • Construction/alteration chronology
  • Condition assessment
  • P-6 component extraction
  • Installed fixture schedule and positions
  • As-built correspondence
  • Fixture finish and glass color
  • The small channel-size numeral remains uncertified; lobbyprofiles1013q-1305-004 stays open.
  • Remaining uninspected notes, dimensions, schedules, details and companion sheets require separate review.
  • Original versus revision authority, installed instance correspondence and source-to-building registration remain unresolved.
  • No closed physical profile or architectural/model acceptance established.
  • All other fine dimensions and endpoint classes remain to be reviewed
  • Installed instance quantity, exact room/bay coordinates and source-to-building registration unresolved
  • Original approval/revision fields and cleaner companion captures require separate reconciliation
  • Unmeasured curve radii, moulding endpoints and closed physical profiles remain null; photographic tracing is not a dimension.
  • Original versus revision authority, installed quantities and source-to-room/bay registration remain unresolved.
  • Companion details, fixing schedules, actual installed finishes and as-built correspondence remain open.
  • Bay P channel, directory dimensions and door scope remain unresolved. The newly reread IMG1306 Sixth Street directory cannot resolve this separate Bay P directory.
  • Remaining dimensions, fine fractions, notes, schedules and companion details are not exhaustively extracted.
  • Installed quantities, accepted room/bay placement and source-to-building registration remain unresolved.
  • Original/revision authority, actual finish and physical profile applicability remain unresolved; modeling/checking unchecked.
  • Remaining fine dimension fractions and witness endpoint classes require targeted master crops; standard inventory does not certify exhaustive extraction.
  • All notes, material-code keys, schedules, approval/date/revision fields and companion references need complete transcription and reconciliation.
  • Exact installed quantities, room/bay placement, source-to-building registration, physical layer/profiles and as-built correspondence remain unresolved.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

23 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

f1-public-lobby-w217-bay-p-door-pairunreviewed · observed

leaf_count

2 leaves

2 count

Authoring eligibility: eligible-local-type. Report transcription; verify the cited drawing before promoting physical geometry.

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: paired glazed-metal doors

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: paired glazed-metal doors

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: paired glazed-metal doors

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: paired glazed-metal doors

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

f1-public-lobby-w217-bay-p-door-pairunreviewed · printed

leaf_width

3'-0"

3 ft

Per-leaf width at the W-217 Bay P central paired door only. Authoring eligibility: eligible-local-type. Report transcription; verify the cited drawing before promoting physical geometry.

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: 3'-0"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: 3'-0"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: 3'-0"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: 3'-0"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

f1-public-lobby-w217-bay-p-door-pairunreviewed · printed

door_height

7'-6"

7.5 ft

W-217 Bay P central paired door only. Authoring eligibility: eligible-local-type. Report transcription; verify the cited drawing before promoting physical geometry.

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: 7'-6"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: 7'-6"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: 7'-6"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: 7'-6"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

f1-public-lobby-w217-bay-p-door-pairunreviewed · observed

horizontal_push_bar_count

3 horizontal push bars

3 count

Count across the documented Bay P door composition; exact assignment to individual leaves and bar profiles remains unresolved. Authoring eligibility: eligible-composition-only. Report transcription; verify the cited drawing before promoting physical geometry.

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: three horizontal metal push bars

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: three horizontal metal push bars

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: three horizontal metal push bars

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: three horizontal metal push bars

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

f1-public-lobby-w217-bay-p-elevator-no2-entranceverified · printed

finished_entrance_width_between_inner_jamb_faces

3'-6"

3.5 ft

Finished local entrance envelope only; not operating clear or rough opening. Authoring eligibility: eligible-local-finished-envelope. Report transcription; verify the cited drawing before promoting physical geometry.

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: 6" | 3'-6" | 6"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: 6" | 3'-6" | 6"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: 6" | 3'-6" | 6"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: 6" | 3'-6" | 6"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

f1-public-lobby-w217-bay-p-elevator-no2-entranceverified · printed

finished_entrance_height_floor_to_head

6'-9 3/4"

6.8125 ft

Finished floor/sill to underside of head/indicator band; not operating clear or rough opening. Authoring eligibility: eligible-local-finished-envelope. Report transcription; verify the cited drawing before promoting physical geometry.

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: 6'-9 3/4"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: 6'-9 3/4"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: 6'-9 3/4"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: 6'-9 3/4"

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

f1-public-lobby-w217-bay-p-end-wall-assemblyunreviewed · observed

overall_run

approximately 24 feet 10 inches

The re-audit explicitly marks the reading approximate and requiring master confirmation.

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: approximately 24 feet 10 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: approximately 24 feet 10 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: approximately 24 feet 10 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: approximately 24 feet 10 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

f1-public-lobby-w217-bay-p-directoryunreviewed · observed

case_width

about 3 feet 6 inches

The re-audit says about rather than verified exact.

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: about 3 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: about 3 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: about 3 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: about 3 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

f1-public-lobby-postal-wall-systemunreviewed · observed

typical_service_module_width

customer counter modules repeatedly read about 7 feet 6 inches

The report describes a repeated approximate reading without accepted station assignments.

IMG_1202 · sheet-W3 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing verified package; image not reopened. Named PUBLIC LOBBY and printed ceiling-height reading

IMG_1204 · sheet-W3 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only; image not reopened. First-floor public-lobby plan, reported 18'-3" ceiling-height reading and repeated 14'/15' structural dimensions

IMG_1089 · sheet-W214 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Lobby overview, floor/ceiling bay grid, Panels A-D and service-wall sequence

IMG_1302 · sheet-W214 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Lobby overview, floor/ceiling bay grid, Panels A-D and service-wall sequence

IMG_1090 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1091 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1092 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1303 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1093 · sheet-W216 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1094 · sheet-W216 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1304 · sheet-W216 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1099 · sheet-W-218 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing writing-desk packages; images not reopened. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family

IMG_1306 · sheet-W-218 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing writing-desk packages; images not reopened. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family

IMG_1289 · sheet-WLF-246 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing verified package plus re-audit report; image not reopened. P-5 Public Lobby and P-6 Registry/Box/Parcel Post alcove fixture types

f1-public-lobby-w217-bay-p-directoryunreviewed · observed

possible_directory_board_schedule_dimensions

Legible nominal face-piece sizes include 1 inch x 2 feet 8 1/2 inches x 4 feet 8 1/2 inches, 1 inch x 3 feet 6 inches x about 4 feet 10 inches, and 1 inch x 1 foot 6 inches x 2 feet 0 inches; red-pencil corrections obscure several final 1/8-inch values and location-to-size mapping is unresolved.

The schedule covers multiple lobbies and the final corrected fractions and Public Lobby size assignment are not established.

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: Legible nominal face-piece sizes include 1 inch x 2 feet 8 1/2 inches x 4 feet 8 1/2 inches, 1 inch x 3 feet 6 inches x about 4 feet 10 inches, and 1 inch x 1 foot 6 inches x 2 feet 0 inches; red-pencil corrections obscure several final 1/8-inch values and location-to-size mapping is unresolved.

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: Legible nominal face-piece sizes include 1 inch x 2 feet 8 1/2 inches x 4 feet 8 1/2 inches, 1 inch x 3 feet 6 inches x about 4 feet 10 inches, and 1 inch x 1 foot 6 inches x 2 feet 0 inches; red-pencil corrections obscure several final 1/8-inch values and location-to-size mapping is unresolved.

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: Legible nominal face-piece sizes include 1 inch x 2 feet 8 1/2 inches x 4 feet 8 1/2 inches, 1 inch x 3 feet 6 inches x about 4 feet 10 inches, and 1 inch x 1 foot 6 inches x 2 feet 0 inches; red-pencil corrections obscure several final 1/8-inch values and location-to-size mapping is unresolved.

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: Legible nominal face-piece sizes include 1 inch x 2 feet 8 1/2 inches x 4 feet 8 1/2 inches, 1 inch x 3 feet 6 inches x about 4 feet 10 inches, and 1 inch x 1 foot 6 inches x 2 feet 0 inches; red-pencil corrections obscure several final 1/8-inch values and location-to-size mapping is unresolved.

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

material-postal-screen-plate-glassunreviewed · printed

Applications and finish

tall postal-screen upper fields; registry/service openings; paired lobby doors and fixed panels; directory access glazing · clear where explicitly described; otherwise unresolved

printed material identification transcribed in re-audits. Report transcription; physical thickness, joint layout and finish samples remain unresolved.

IMG_1090 · sheet-W215 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1091 · sheet-W215 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1092 · sheet-W215 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1303 · sheet-W215 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1093 · sheet-W216 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1094 · sheet-W216 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1304 · sheet-W216 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1099 · sheet-W-218 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing writing-desk packages; images not reopened. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family

IMG_1306 · sheet-W-218 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing writing-desk packages; images not reopened. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family

detail-img1305-bay-u-screenverified · printed

glazing

CLEAR PLATE GLASS

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

IMG_1305 · W-217 · Locate on drawing ↗

Drawing notation: CLEAR PLATE GLASS

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

detail-img1305-bay-u-screenverified · printed

sheet-local-similarity

BAYS T & V SIMILAR

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

IMG_1305 · W-217 · Locate on drawing ↗

Drawing notation: BAYS T & V SIMILAR

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

detail-img1305-bay-u-screenverified · printed

plaster-substrate

WIRE FURRING & LATH

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

IMG_1305 · W-217 · Locate on drawing ↗

Drawing notation: WIRE FURRING & LATH

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

detail-img1305-bay-u-screenverified · printed

wall-finish

MARBLE

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

IMG_1305 · W-217 · Locate on drawing ↗

Drawing notation: MARBLE

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

detail-img1305-bay-p-clockverified · observed

clock-presence

Clock face drawn above central door composition

1 drawn-detail

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

IMG_1305 · W-217 · Locate on drawing ↗

Drawing notation: Clock face drawn above central door composition

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

detail-img1305-bay-p-clockverified · printed

wall-finish

MARBLE

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

IMG_1305 · W-217 · Locate on drawing ↗

Drawing notation: MARBLE

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

detail-img1305-bay-p-elevator2verified · printed

opening-mark

ELEVATOR NO. 2

2 identifier

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

IMG_1305 · W-217 · Locate on drawing ↗

Drawing notation: ELEVATOR NO. 2

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

detail-img1305-bay-p-elevator2verified · printed

metal-ornament-fabrication

CAST METAL ORNAMENT

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

IMG_1305 · W-217 · Locate on drawing ↗

Drawing notation: CAST METAL ORNAMENT

Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed.

lobbyprofiles1013q-w217-bay-utv-ornament-model20verified · printed

model-mark

MODEL NO. 20

20 model-number

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

IMG_1305 · W-217 · Locate on drawing ↗

Drawing notation: MODEL NO. 20

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

lobbyprofiles1013q-w217-bay-utv-ornament-model29verified · printed

model-mark

MODEL NO. 29

29 model-number

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

IMG_1305 · W-217 · Locate on drawing ↗

Drawing notation: MODEL NO. 29

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

detail-img1305-bay-u-screenverified · printed

adjacent-wall-local-horizontal-witness

1′-1½″

13.5 in

Right-hand horizontal section chain segment beside marble wall in cropped U/T/V section; finish-face/axis endpoint identity remains open. Not Bay P overall width or directory size.

IMG_1305 · W-217 · Locate on drawing ↗

Drawing notation: 1′-1½″

Right-hand horizontal section chain segment beside marble wall in cropped U/T/V section; finish-face/axis endpoint identity remains open. Not Bay P overall width or directory size.

detail-img1305-bay-u-screenillegible · printed

horizontal-channel-size-unresolved

[size not certified] CHANNEL

Numeric value unresolved

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

IMG_1305 · W-217 · Locate on drawing ↗

Drawing notation: [size not certified] CHANNEL

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

View all source photographs →
