The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

IMG_1304 · Folder 187

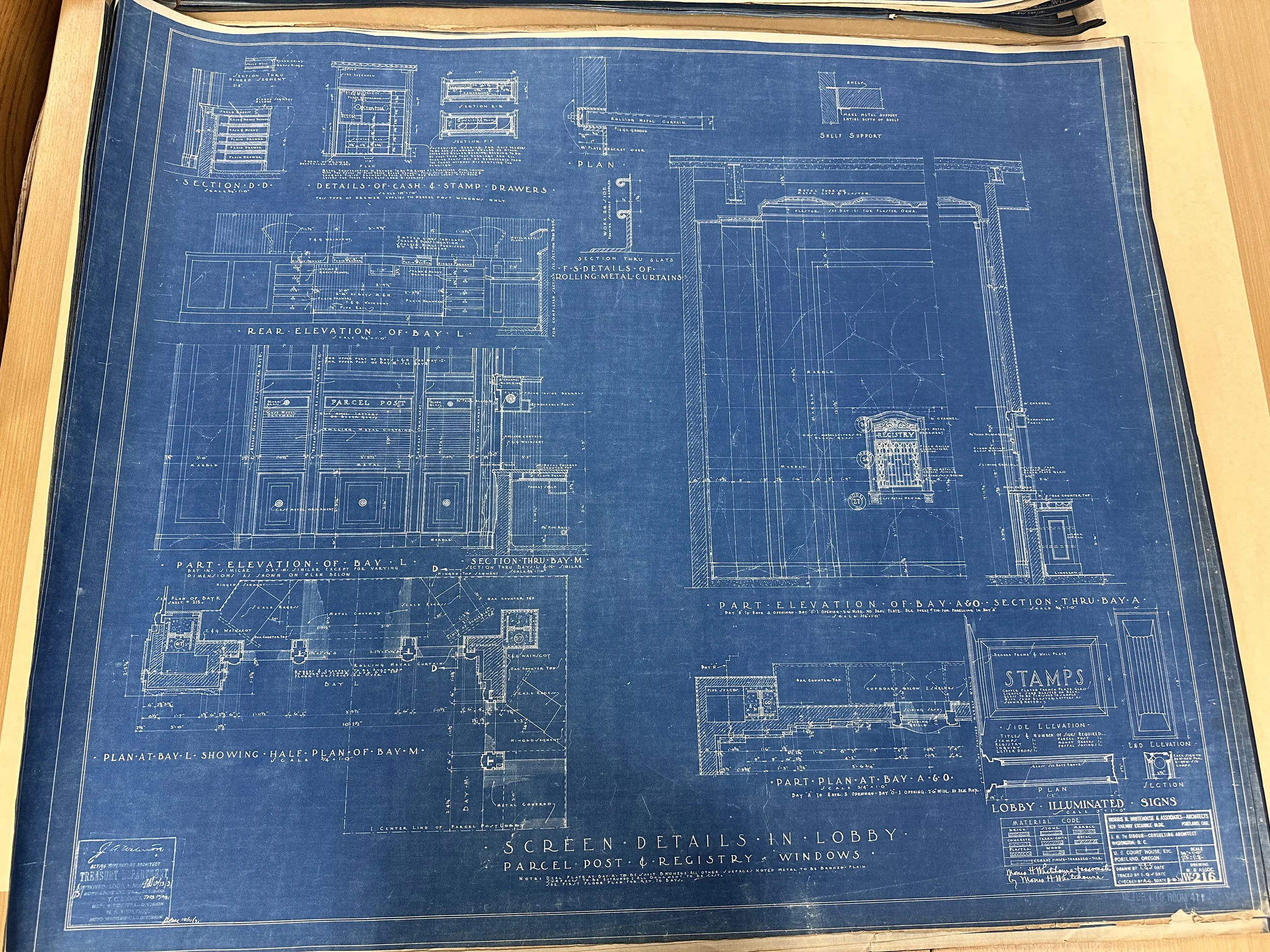

Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

Sheet W-216

Extraction: Reviewed · extraction partial. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign. Normalized from an existing text re-audit; this import did not reopen the source image. Partial timed visual review: undefined Partial timed visual review: Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed. Partial timed visual review: Printed source-local construction/detail only. Dimension witnesses remain local; no accepted geometry, installed placement or revision precedence established. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Source-local regional inventory and bounded companion findings; architecture and exhaustive extraction unapproved.

Unresolved extraction work

Complete drawing-note transcription
Every dimension and bay placement
Detailed hardware/fastener schedule
Exact cross-sheet bay correspondence
Cross-photo physical deduplication
Complete surviving-object inventory
Exact dimensions
Construction/alteration chronology
Condition assessment
P-6 component extraction
Installed fixture schedule and positions
As-built correspondence
Fixture finish and glass color
Drawer fastener microtext remains too small for exact gauge/fastener schedule; no complete schedule inferred.
Channel blocking numeral could not be securely distinguished even in nearest-neighbor enlargement; lobbyprofiles1013q-1304-008 remains open.
Remaining uninspected notes, dimensions, schedules, details and companion sheets require separate review.
Original versus revision authority, installed instance correspondence and source-to-building registration remain unresolved.
No closed physical profile or architectural/model acceptance established.
All other fine dimensions and endpoint classes remain to be reviewed
Installed instance quantity, exact room/bay coordinates and source-to-building registration unresolved
Original approval/revision fields and cleaner companion captures require separate reconciliation
Unreviewed fine dimensions, fractions, witness endpoints and construction notes
Companion detail/revision reconciliation and installed-instance registration
Modeling and whole-building acceptance checks outstanding
Unmeasured curve radii, moulding endpoints and closed physical profiles remain null; photographic tracing is not a dimension.
Original versus revision authority, installed quantities and source-to-room/bay registration remain unresolved.
Companion details, fixing schedules, actual installed finishes and as-built correspondence remain open.
Prior native channel and drawer-fastener failures have no better witness selected; retain unresolved gauge/schedule rather than repeat the same crop.
Remaining dimensions, fine fractions, notes, schedules and companion details are not exhaustively extracted.
Installed quantities, accepted room/bay placement and source-to-building registration remain unresolved.
Original/revision authority, actual finish and physical profile applicability remain unresolved; modeling/checking unchecked.
Remaining fine dimension fractions and witness endpoint classes require targeted master crops; standard inventory does not certify exhaustive extraction.
All notes, material-code keys, schedules, approval/date/revision fields and companion references need complete transcription and reconciliation.
Exact installed quantities, room/bay placement, source-to-building registration, physical layer/profiles and as-built correspondence remain unresolved.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

34 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

f1-public-lobby-postal-wall-systemunreviewed · observed
