← Back to the building1933 reconstruction · research preview

The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters
IMG_1302 · Folder 187

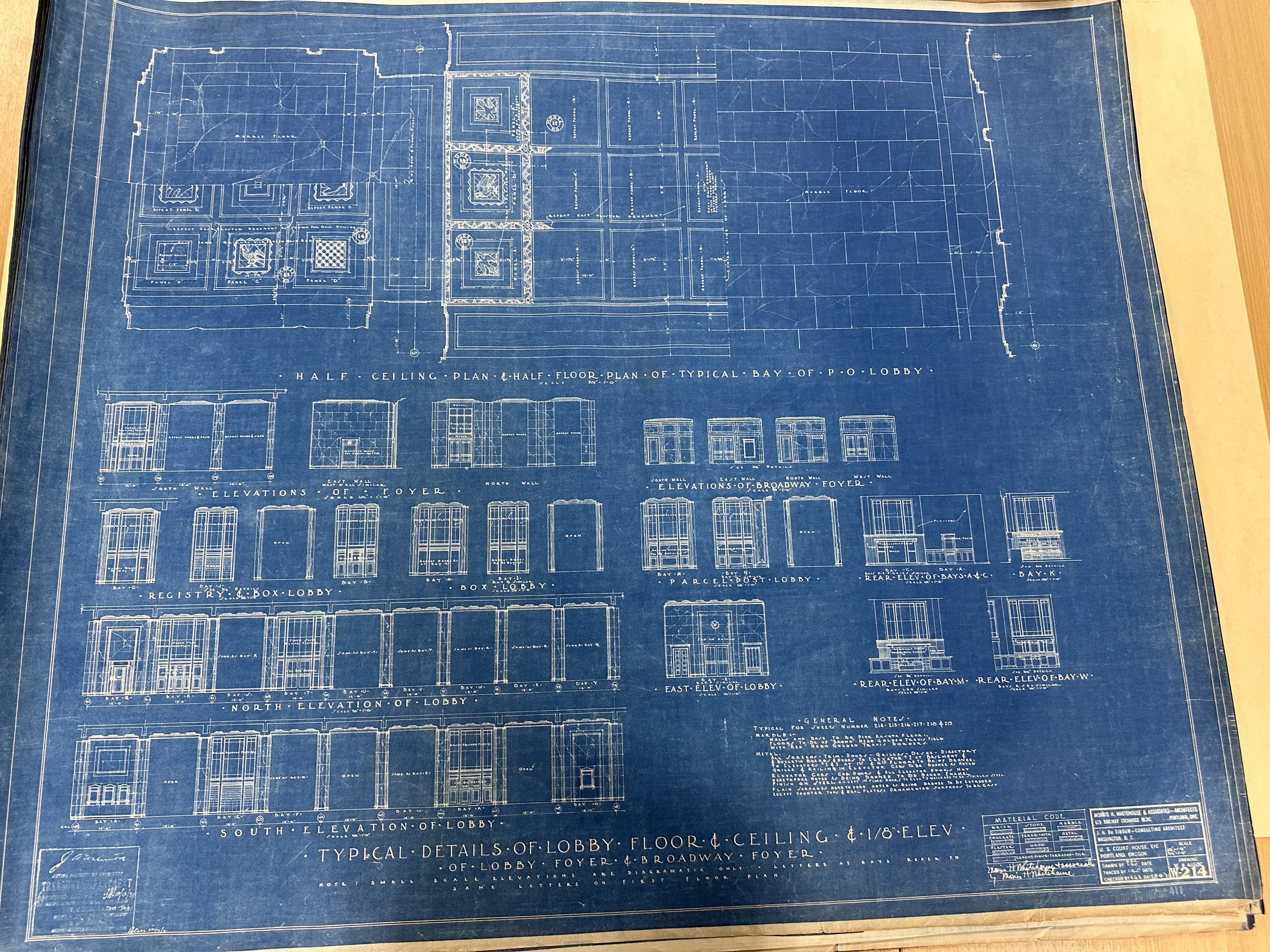

TYPICAL DETAILS OF LOBBY FLOOR & CEILING & 1/8" ELEV. / OF LOBBY, FOYER & BROADWAY FOYER

Sheet W214

Extraction: Reviewed · extraction partial. W-214 ceiling-panel types A-D; typical public-lobby coffer pattern; foyer/end-field coffer pattern; transverse-beam and perimeter-cornice identities; readable panel and wall-bay dimensions; source-space regions and relationships; 1933 design evidence separated from 1983 text-only observations Occurrence-level A/B and C/D source grids; centerline; strip/perimeter controls; complete Q–Y bay chain and reuse groups. Lobby overview, floor/ceiling bay grid, Panels A-D and service-wall sequence. Normalized from an existing text re-audit; this import did not reopen the source image. Public lobby W-214/W-4 marble finish-floor gate; typical-bay and room-boundary review partial. Public lobby W-214/W-4 marble finish-floor gate; typical-bay and room-boundary review partial. Public lobby W-214/W-4 marble finish-floor gate; typical-bay and room-boundary review partial. Public lobby W-214/W-4 marble finish-floor gate; typical-bay and room-boundary review partial. Public lobby W-214/W-4 marble finish-floor gate; typical-bay and room-boundary review partial. Public lobby W-214/W-4 marble finish-floor gate; typical-bay and room-boundary review partial. Public lobby W-214/W-4 marble finish-floor gate; typical-bay and room-boundary review partial. Public lobby W-214/W-4 marble finish-floor gate; typical-bay and room-boundary review partial. Public lobby W-214/W-4 marble finish-floor gate; typical-bay and room-boundary review partial. Public lobby W-214/W-4 marble finish-floor gate; typical-bay and room-boundary review partial. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Main/foyer-lobby Bay U screen physical-segment gate; no finite solid authorized. Main/foyer-lobby Bay U screen physical-segment gate; no finite solid authorized. Main/foyer-lobby Bay U screen physical-segment gate; no finite solid authorized. Main/foyer-lobby Bay U screen physical-segment gate; no finite solid authorized. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Source-local regional inventory and bounded companion findings; architecture and exhaustive extraction unapproved.

Unresolved extraction work
  • every lettered wall-bay elevation
  • all small ceiling annotations
  • Panel C/D exact dimensions
  • beam and cornice fabrication profiles
  • complete motif-to-station schedule
  • light-fixture-to-panel station map
  • building registration
  • field or as-built verification
  • complete mirrored or full-room A/B count
  • certified type for C/D top-center cell
  • C/D field dimensions
  • coffer depth and section profile
  • cornice projection and exact boundary faces
  • architectural identity of the 2'-6" outer endpoint
  • exact relationship between C/D end field and named foyer
  • first-floor-plan coordinates for Q-Y boundary lines
  • absolute station coordinates
  • accepted ceiling height
  • 1933 identity of later-observed recessed lights and grilles
  • Complete drawing-note transcription
  • Every dimension and bay placement
  • Detailed hardware/fastener schedule
  • Exact cross-sheet bay correspondence
  • Cross-photo physical deduplication
  • Complete surviving-object inventory
  • Exact dimensions
  • Construction/alteration chronology
  • Condition assessment
  • P-6 component extraction
  • Installed fixture schedule and positions
  • As-built correspondence
  • Fixture finish and glass color
  • closed field polygon
  • stone gauge
  • joint layout and slab count
  • actual top and bottom elevation
  • closed border-strip polygon
  • border width and returns at openings/recesses
  • accepted canonical XZ outer footprint
  • finish-face and border-joint polygons, including counter recesses and door thresholds
  • stone thickness, bedding thickness, substrate build-up and underside elevation
  • room-specific spot elevation or checked threshold continuity
  • accepted W-214 typical-bay to W3 placement
  • individual slab sizes, joints and quantities
  • directly classified W3/W214 corresponding bay-boundary faces or axes
  • an independent dimensioned station tying U or one Q/Y endpoint to the Main column/door grid
  • north-wall Z face and section thickness
  • bay pier/return and opening cuts
  • held-out source check against the same physical edge class rather than 2-foot-tolerance locators
  • classified north/south finished face or axis and world Z control
  • segment-by-segment thickness and joins
  • accepted west/east pier or bay-division edge class
  • finished jamb limits on both faces
  • threshold bottom/top and door head in local Y
  • finished upper screen and pier bounds
  • independent held-out metric registration
  • installed fixture instance/count and W214-panel-to-WLF-246 type correspondence
  • dimensioned A/B ceiling-grid station from a classified W3 or W214 plan control in X
  • dimensioned lobby centerline and panel-row station in Z
  • accepted W214 ceiling-grid to W3 transform with a held-out check
  • actual suspension/ceiling anchor within the panel rather than merely somewhere below it
  • resolved public-lobby height and finished coffer/anchor Y surface
  • P-5 overall diameter and canopy-to-bottom drop, or independently dimensioned P-6 envelope
  • fixture orientation and clearance to beams, cornice, openings and occupied space
  • w214-cd-r01-c02-type-mark remains null: top-center cell has no legible explicit D mark in the inspected portion.
  • Center treatment records describe individual drawn occurrences; physical grille construction and full ceiling stations remain open.
  • Remaining uninspected notes, dimensions, schedules, details and companion sheets require separate review.
  • Original versus revision authority, installed instance correspondence and source-to-building registration remain unresolved.
  • No closed physical profile or architectural/model acceptance established.
  • Unmeasured curve radii, moulding endpoints and closed physical profiles remain null; photographic tracing is not a dimension.
  • Original versus revision authority, installed quantities and source-to-room/bay registration remain unresolved.
  • Companion details, fixing schedules, actual installed finishes and as-built correspondence remain open.
  • Reused resolved lower Panel D treatment. Unmarked top-center cell, full station map, ceiling height and material application remain open.
  • Remaining dimensions, fine fractions, notes, schedules and companion details are not exhaustively extracted.
  • Installed quantities, accepted room/bay placement and source-to-building registration remain unresolved.
  • Original/revision authority, actual finish and physical profile applicability remain unresolved; modeling/checking unchecked.
  • Remaining fine dimension fractions and witness endpoint classes require targeted master crops; standard inventory does not certify exhaustive extraction.
  • All notes, material-code keys, schedules, approval/date/revision fields and companion references need complete transcription and reconciliation.
  • Exact installed quantities, room/bay placement, source-to-building registration, physical layer/profiles and as-built correspondence remain unresolved.
