The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

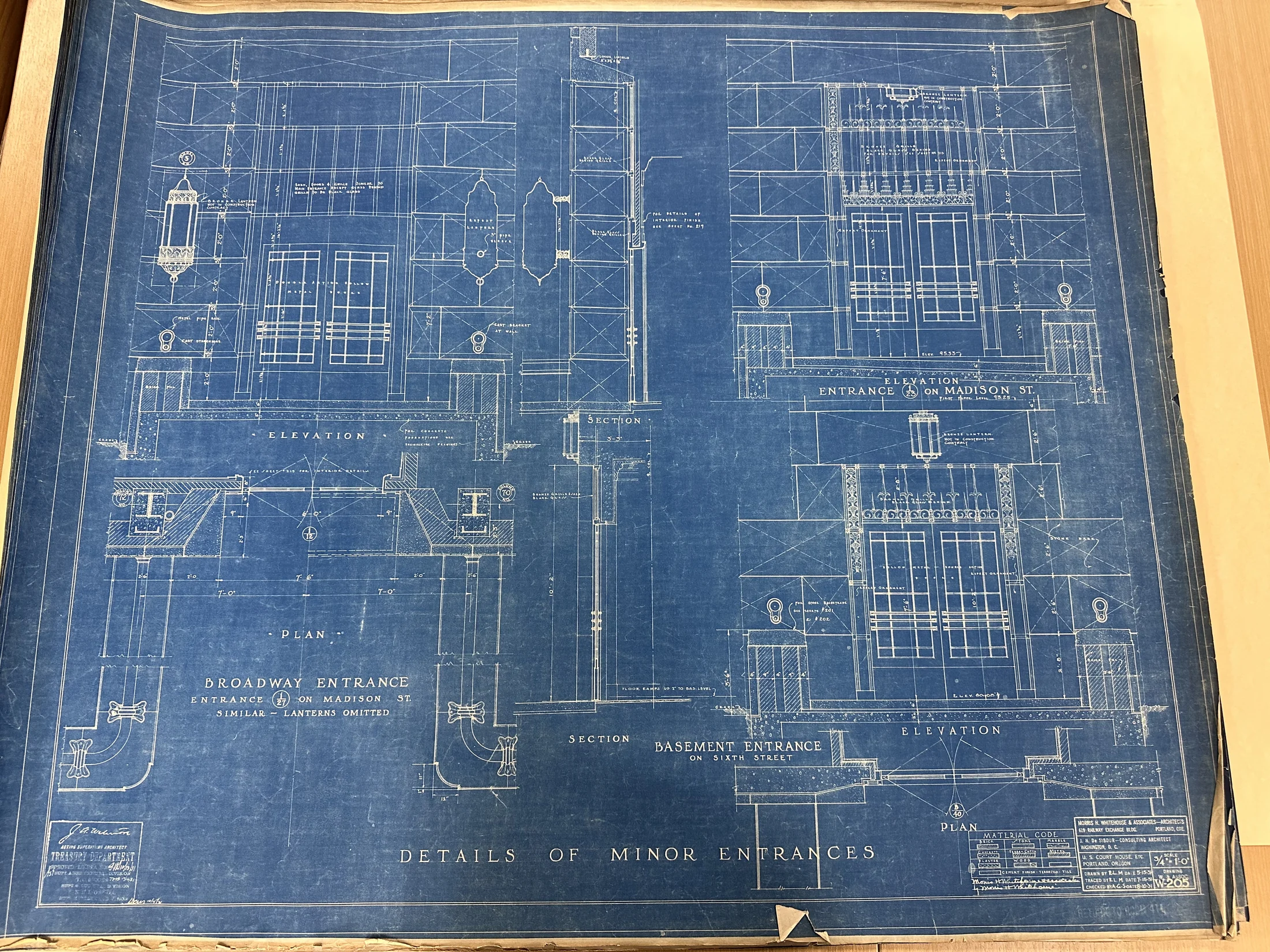

IMG_1299 · Folder 187

Minor Entrances

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass visual review of public/archive/drawings/complete-upright/IMG_1299.webp using <=1000px quality65 JPEG locator after OCR/catalogue. Regions refer to the unchanged orientation access image; actual required reading rotation recorded. Fine notes remain unresolved when locator resolution insufficient. Partial timed visual review: Printed source-local specification/detail only. No installed quantity, accepted room geometry or building transform established; no cross-sheet revision equivalence assumed. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Source-local view inventory and selective notes/individual properties; repeated-photo correspondence does not establish revision equivalence, installed quantity or exact geometry.

Unresolved extraction work

full-sheet completeness
remaining fine notes, dimensions, callouts and annotations
element-to-floor and companion sheet registration
All other fine dimensions and endpoint classes remain to be reviewed
Installed instance quantity, exact room/bay coordinates and source-to-building registration unresolved
Original approval/revision fields and cleaner companion captures require separate reconciliation
Installed instances, quantities, room/floor hosts, mounting and accepted source-to-building registration remain unresolved.
Original/revision authority and companion specifications remain unresolved.
Unvisited regions, dimensions, schedules, margins and notes remain partial; modeling/checking unchecked.
Broad opening-chain placeholder remains open; prior bronze-lantern contract exclusion, metal doors, clear glazing, plain-glass head transom and bronze grille notes reused without transferring materials between objects.
Unmeasured curve radii, moulding endpoints and closed physical profiles remain null; photographic tracing is not a dimension.
Original versus revision authority, installed quantities and source-to-room/bay registration remain unresolved.
Companion details, fixing schedules, actual installed finishes and as-built correspondence remain open.
Reused lantern exclusion and grille/door material clauses. Broad entrance dimension placeholder remains open; no complete opening-chain evidence selected.
Remaining dimensions, fine fractions, notes, schedules and companion details are not exhaustively extracted.
Installed quantities, accepted room/bay placement and source-to-building registration remain unresolved.
Original/revision authority, actual finish and physical profile applicability remain unresolved; modeling/checking unchecked.
Full high-resolution fine-fraction and endpoint review of each inventoried view remains
Handwriting, original/revision dates, approved samples and source precedence remain unclosed
Companion detail matching and source-to-installed-object / room registration remain
Cropped views need corresponding source photographs; missing evidence has not been declared irrecoverable
Individual objects retain specific missing properties; no source or floor completed by this inventory

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

21 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1299-assemblyverified · printed
