The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

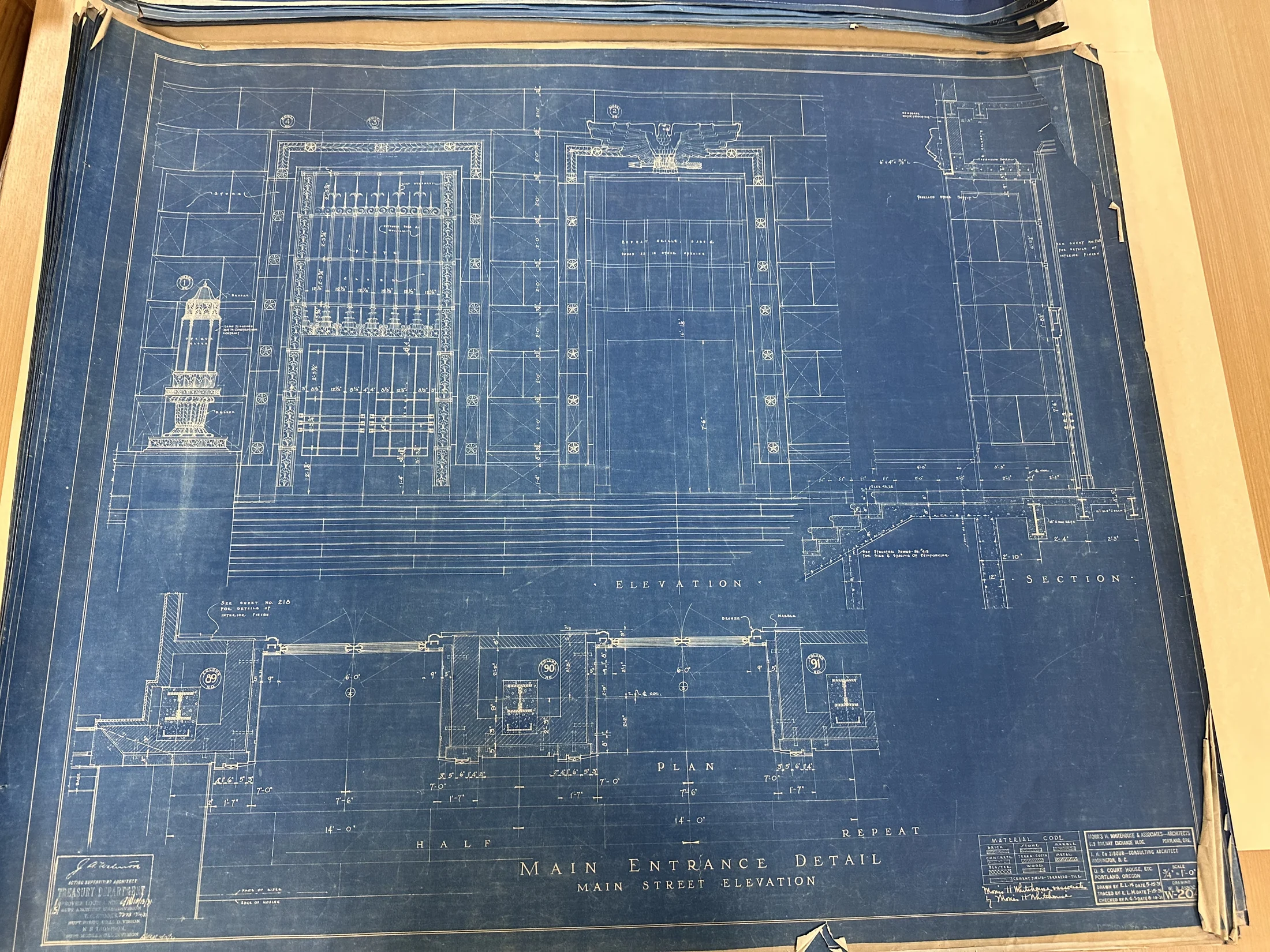

IMG_1298 · Folder 187

Main entrance bronze details

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. One complete upright WebP and sequential elevation, plan, and title-block crops of the same sheet, after OCR/index and existing-package review. Center entrance bronze-leaf physical placement gate; one IMG_1298 region checked against prior entrance packages. Center entrance bronze-leaf physical placement gate; one IMG_1298 region checked against prior entrance packages. Center entrance bronze-leaf physical placement gate; one IMG_1298 region checked against prior entrance packages. Center entrance bronze-leaf physical placement gate; one IMG_1298 region checked against prior entrance packages. Center entrance bronze-leaf physical placement gate; one IMG_1298 region checked against prior entrance packages. Center entrance bronze-leaf physical placement gate; one IMG_1298 region checked against prior entrance packages. Center entrance bronze-leaf physical placement gate; one IMG_1298 region checked against prior entrance packages. Center entrance bronze-leaf physical placement gate; one IMG_1298 region checked against prior entrance packages. Center entrance bronze-leaf physical placement gate; one IMG_1298 region checked against prior entrance packages. Partial timed visual review: One whole access image and one sequential plan crop inspected; measured placement remains unapproved. Partial timed visual review: Interior-finish companion-reference reading only; normalized region is the upright access derivative, not unrotated master coordinates. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Source-local view inventory and selective notes/individual properties; repeated-photo correspondence does not establish revision equivalence, installed quantity or exact geometry.

Unresolved extraction work
  • Complete title-block number and all elevation dimensions
  • Exact leaf height, thickness, closed profile and glazing build-up
  • Threshold and wall section
  • As-built correspondence
  • Exact leaf height from a labeled sill-to-leaf-head chain
  • Leaf thickness or closed section/profile, including the glazed portion
  • Sill/threshold elevation and relation to the 93.24 exterior landing and 93.25 first-floor datum
  • Accepted door-plane Z and host wall-face/reveal depth
  • Leaf hinge/pivot axis and closed-position offset from the bay center
  • Glazing thickness, panel build-up and hardware if detailed physical construction is attempted
  • Full remaining regional note and dimension review
  • Companion installation schedule and original installed quantities
  • Source-to-installed-instance registration and as-built correspondence
  • Companion-sheet identity registration
  • Remaining fine regions
  • Actual installed finishes
  • Installed instances, quantities, room/floor hosts, mounting and accepted source-to-building registration remain unresolved.
  • Original/revision authority and companion specifications remain unresolved.
  • Unvisited regions, dimensions, schedules, margins and notes remain partial; modeling/checking unchecked.
  • Unmeasured curve radii, moulding endpoints and closed physical profiles remain null; photographic tracing is not a dimension.
  • Original versus revision authority, installed quantities and source-to-room/bay registration remain unresolved.
  • Companion details, fixing schedules, actual installed finishes and as-built correspondence remain open.
  • Leaf full height, thickness, sill datum and closed-plane offset remain unclosed; partial glazing chains do not resolve these historical nulls.
  • Reused bronze-door and glazing witnesses. No fresh evidence for complete leaf height/thickness, sill datum or closed-plane offset; partial glazing chain cannot close these.
  • Remaining dimensions, fine fractions, notes, schedules and companion details are not exhaustively extracted.
  • Installed quantities, accepted room/bay placement and source-to-building registration remain unresolved.
  • Original/revision authority, actual finish and physical profile applicability remain unresolved; modeling/checking unchecked.
  • Full high-resolution fine-fraction and endpoint review of each inventoried view remains
  • Handwriting, original/revision dates, approved samples and source precedence remain unclosed
  • Companion detail matching and source-to-installed-object / room registration remain
  • Cropped views need corresponding source photographs; missing evidence has not been declared irrecoverable
  • Individual objects retain specific missing properties; no source or floor completed by this inventory

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

25 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

f1-door-main-exterior-centerverified · printed

Paired bronze door width in plan

6'-0"

6 ft

Pair width only; it does not state an individual leaf width or physical thickness. Physical leaf and building placement withheld.

IMG_1298 · Locate on drawing ↗

Drawing notation: PLAN; 6'-0"; 7'-6"; 14'-0"; COLUMN 89; COLUMN 90; COLUMN 91; REPEAT

The 6-foot dimension spans a paired bronze door opening. Jamb chains are not converted into a leaf thickness or reveal depth. The 7-foot-6-inch callout lies on the transverse frame-width chain, not a vertical leaf-height chain.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 6'-0"; BRONZE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Prior verified entrance-door registration; this pass did not reopen IMG_1073.

f1-door-main-exterior-centerverified · printed

Framed entrance assembly plan width

7'-6"

7.5 ft

This horizontal assembly width is not a 7-foot-6-inch leaf height. Physical leaf and building placement withheld.

IMG_1298 · Locate on drawing ↗

Drawing notation: PLAN; 6'-0"; 7'-6"; 14'-0"; COLUMN 89; COLUMN 90; COLUMN 91; REPEAT

The 6-foot dimension spans a paired bronze door opening. Jamb chains are not converted into a leaf thickness or reveal depth. The 7-foot-6-inch callout lies on the transverse frame-width chain, not a vertical leaf-height chain.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 6'-0"; BRONZE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Prior verified entrance-door registration; this pass did not reopen IMG_1073.

f1-door-main-exterior-centerverified · derived

Parent bay center in canonical building X

Columns 90-91, 14'-0" module

0 ft

Bay center is not an individual leaf hinge or leaf centroid. Physical leaf and building placement withheld.

IMG_1298 · Locate on drawing ↗

Drawing notation: PLAN; 6'-0"; 7'-6"; 14'-0"; COLUMN 89; COLUMN 90; COLUMN 91; REPEAT

The 6-foot dimension spans a paired bronze door opening. Jamb chains are not converted into a leaf thickness or reveal depth. The 7-foot-6-inch callout lies on the transverse frame-width chain, not a vertical leaf-height chain.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 6'-0"; BRONZE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Prior verified entrance-door registration; this pass did not reopen IMG_1073.

Calculated from: column-90-registered-world-x, column-91-registered-world-x, main-entrance-img1073-bay-spacing

main-north-center-exterior-bronze-door-leaf-page-leftunreviewed · observed

Door-leaf construction identity

BRONZE

The leaf is drawn with panel/glazing subdivisions and push bars; no exact material build-up or thickness is assigned. Physical leaf and building placement withheld.

IMG_1298 · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; BRONZE

Elevation shows the page-left pair and paneled/glazed divisions. The title-block number is partly hidden by the photographed fold; W-20? is not promoted to a sheet ID. Access image is 2200 x 1650.

IMG_1298 · Locate on drawing ↗

Drawing notation: PLAN; 6'-0"; 7'-6"; 14'-0"; COLUMN 89; COLUMN 90; COLUMN 91; REPEAT

The 6-foot dimension spans a paired bronze door opening. Jamb chains are not converted into a leaf thickness or reveal depth. The 7-foot-6-inch callout lies on the transverse frame-width chain, not a vertical leaf-height chain.

main-north-center-exterior-bronze-door-leaf-page-leftunreviewed · observed

Leaf height

Unresolved

Numeric value unresolved

The elevation has small component callouts, but this pass found no securely assigned total sill-to-leaf-head dimension. Physical leaf and building placement withheld.

IMG_1298 · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; BRONZE

Elevation shows the page-left pair and paneled/glazed divisions. The title-block number is partly hidden by the photographed fold; W-20? is not promoted to a sheet ID. Access image is 2200 x 1650.

main-north-center-exterior-bronze-door-leaf-page-leftunreviewed · observed

Closed leaf thickness and section

Unresolved

Numeric value unresolved

The jamb/plan chains have unregistered endpoints; no dimension is assigned to the leaf cross-section. Physical leaf and building placement withheld.

IMG_1298 · Locate on drawing ↗

Drawing notation: PLAN; 6'-0"; 7'-6"; 14'-0"; COLUMN 89; COLUMN 90; COLUMN 91; REPEAT

The 6-foot dimension spans a paired bronze door opening. Jamb chains are not converted into a leaf thickness or reveal depth. The 7-foot-6-inch callout lies on the transverse frame-width chain, not a vertical leaf-height chain.

main-north-center-exterior-bronze-door-leaf-page-leftunreviewed · observed

Leaf bottom in canonical building Y

Unresolved

Numeric value unresolved

93.24 exterior landing and 93.25 first-floor finish are distinct controls; neither is identified as the leaf bottom/threshold. Physical leaf and building placement withheld.

IMG_1298 · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; BRONZE

Elevation shows the page-left pair and paneled/glazed divisions. The title-block number is partly hidden by the photographed fold; W-20? is not promoted to a sheet ID. Access image is 2200 x 1650.

main-north-center-exterior-bronze-door-leaf-page-leftunreviewed · observed

Accepted closed-leaf plane in canonical building Z

Unresolved

Numeric value unresolved

The provisional W3 opening trace is not a checked exterior/inner wall-face or reveal-depth control. Physical leaf and building placement withheld.

IMG_1298 · Locate on drawing ↗

Drawing notation: PLAN; 6'-0"; 7'-6"; 14'-0"; COLUMN 89; COLUMN 90; COLUMN 91; REPEAT

The 6-foot dimension spans a paired bronze door opening. Jamb chains are not converted into a leaf thickness or reveal depth. The 7-foot-6-inch callout lies on the transverse frame-width chain, not a vertical leaf-height chain.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Three Main exterior door groups with swing arcs

Prior W3 trace and provisional first-floor registration; this pass did not reopen IMG_1202.

followup1011n-img1298-entrance-planverified · printed

interior_finish_companion_sheet

SEE SHEET No. 218 FOR DETAILS OF INTERIOR FINISH

218 identifier

Focused crop reads final digit 8; earlier whole-image/summary reading 210 remains a conflict needing parent-sheet comparison. Reference is not itself evidence of finish geometry.

IMG_1298 · Locate on drawing ↗

Drawing notation: SEE SHEET No. 218 FOR DETAILS OF INTERIOR FINISH

Focused crop reads final digit 8; earlier whole-image/summary reading 210 remains a conflict needing parent-sheet comparison. Reference is not itself evidence of finish geometry.

followup1011n-img1298-entrance-planverified · printed

column_mark_left

COLUMN No. 89

89 identifier

Printed source-local property; nominal sizes are not measured outside diameters, local dimensions do not establish overall fixture envelope or accepted world placement.

IMG_1298 · Locate on drawing ↗

Drawing notation: COLUMN No. 89

Printed source-local property; nominal sizes are not measured outside diameters, local dimensions do not establish overall fixture envelope or accepted world placement.

followup1011n-img1298-entrance-planverified · printed

column_mark_center

COLUMN No. 90

90 identifier

Printed source-local property; nominal sizes are not measured outside diameters, local dimensions do not establish overall fixture envelope or accepted world placement.

IMG_1298 · Locate on drawing ↗

Drawing notation: COLUMN No. 90

Printed source-local property; nominal sizes are not measured outside diameters, local dimensions do not establish overall fixture envelope or accepted world placement.

followup1011n-img1298-entrance-planverified · printed

column_mark_right

COLUMN No. 91

91 identifier

Printed source-local property; nominal sizes are not measured outside diameters, local dimensions do not establish overall fixture envelope or accepted world placement.

IMG_1298 · Locate on drawing ↗

Drawing notation: COLUMN No. 91

Printed source-local property; nominal sizes are not measured outside diameters, local dimensions do not establish overall fixture envelope or accepted world placement.

followup1011n-img1298-entrance-planverified · printed

plan_bronze_material

BRONZE

Printed source-local property; nominal sizes are not measured outside diameters, local dimensions do not establish overall fixture envelope or accepted world placement.

IMG_1298 · Locate on drawing ↗

Drawing notation: BRONZE

Printed source-local property; nominal sizes are not measured outside diameters, local dimensions do not establish overall fixture envelope or accepted world placement.

followup1011n-img1298-entrance-planverified · printed

plan_marble_material

MARBLE

Printed source-local property; nominal sizes are not measured outside diameters, local dimensions do not establish overall fixture envelope or accepted world placement.

IMG_1298 · Locate on drawing ↗

Drawing notation: MARBLE

Printed source-local property; nominal sizes are not measured outside diameters, local dimensions do not establish overall fixture envelope or accepted world placement.

followup1011n-img1298-entrance-planverified · printed

half_repeat_plan_chain_interval

14'-0"

14 ft

Printed long bottom plan dimension under HALF/REPEAT portions, retained drawing-local. Endpoints require precise control registration before assigning bay-center pitch or physical door width.

IMG_1298 · Locate on drawing ↗

Drawing notation: 14'-0"

Printed long bottom plan dimension under HALF/REPEAT portions, retained drawing-local. Endpoints require precise control registration before assigning bay-center pitch or physical door width.

followup1011n-img1298-entrance-planverified · printed

interior_finish_companion_reference_reading_resolution

SEE SHEET No. 218 FOR DETAILS OF INTERIOR FINISH

Targeted access crop resolves final digit as 8 with closed upper and lower lobes. Reuse prior numeric identifier 218; earlier OCR/whole-image 210 is a reading error. Reference establishes a requested companion, not finish geometry or proof that its drawing survives.

IMG_1298 · Locate on drawing ↗

Drawing notation: SEE SHEET No. 218 FOR DETAILS OF INTERIOR FINISH

Targeted access crop resolves final digit as 8 with closed upper and lower lobes. Reuse prior numeric identifier 218; earlier OCR/whole-image 210 is a reading error. Reference establishes a requested companion, not finish geometry or proof that its drawing survives.

lightmount1014j-img1298-page-right-door-outlineverified · printed

page_right_door_outline_vertical_witness

7′-6″

7.5 ft

Printed vertical witness inside the page-right simplified door outline, from local sill line to head line. Source-local opening outline height only; not transferred to the page-left bronze leaf height, building Y or closed-leaf Z.

IMG_1298 · Locate on drawing ↗

Drawing notation: 7′-6″

Printed vertical witness inside the page-right simplified door outline, from local sill line to head line. Source-local opening outline height only; not transferred to the page-left bronze leaf height, building Y or closed-leaf Z.

main-north-center-exterior-bronze-door-leaf-page-leftunreviewed · printed

page_left_bronze_leaf_height_still_unassigned

[Page-left leaf overall height not independently dimensioned in inspected crop]

Numeric value unresolved

Inspected detailed page-left door and separate page-right7′-6″ outline. No accepted equivalence or endpoints makes the right outline the exact left leaf height. Existing component chains and bronze plan leader do not establish leaf thickness or world coordinates.

IMG_1298 · Locate on drawing ↗

Drawing notation: [Page-left leaf overall height not independently dimensioned in inspected crop]

Inspected detailed page-left door and separate page-right7′-6″ outline. No accepted equivalence or endpoints makes the right outline the exact left leaf height. Existing component chains and bronze plan leader do not establish leaf thickness or world coordinates.

Calculated from: main-center-bronze-leaf-height

main-north-center-exterior-bronze-door-leaf-page-leftverified · printed

upper-glazing-chain-left

0′-8½″

8.5 in

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

IMG_1298 · Locate on drawing ↗

Drawing notation: 0′-8½″

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

main-north-center-exterior-bronze-door-leaf-page-leftverified · printed

upper-glazing-chain-middle

12½″

12.5 in

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

IMG_1298 · Locate on drawing ↗

Drawing notation: 12½″

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

main-north-center-exterior-bronze-door-leaf-page-leftverified · printed

upper-glazing-chain-right

0′-8½″

8.5 in

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

IMG_1298 · Locate on drawing ↗

Drawing notation: 0′-8½″

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

main-north-center-exterior-bronze-door-leaf-page-leftverified · printed

meeting-stile-chain-page-left

4″

4 in

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

IMG_1298 · Locate on drawing ↗

Drawing notation: 4″

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

main-north-center-exterior-bronze-door-leaf-page-leftverified · printed

upper-left-vertical-glazing-witness

2′-3½″

27.5 in

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

IMG_1298 · Locate on drawing ↗

Drawing notation: 2′-3½″

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

main-north-center-exterior-bronze-door-leaf-page-leftverified · printed

lower-left-vertical-witness

2′-1½″

25.5 in

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

IMG_1298 · Locate on drawing ↗

Drawing notation: 2′-1½″

Printed source-local original photographic layer only. Endpoints remain those of the drawn witness; no operating-clear size, accepted world transform, installed count, revision equivalence or closed profile inferred.

followup1011n-img1298-entrance-planverified · printed

plan-short-nested-interval

1'-7"

19 in

Printed short interval below center pier on plan bottom chain. Endpoint identity is not closed; not leaf thickness, operating clear width, height or installed jamb depth.

IMG_1298 · Locate on drawing ↗

Drawing notation: 1'-7"

Printed short interval below center pier on plan bottom chain. Endpoint identity is not closed; not leaf thickness, operating clear width, height or installed jamb depth.

View all source photographs →
