The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

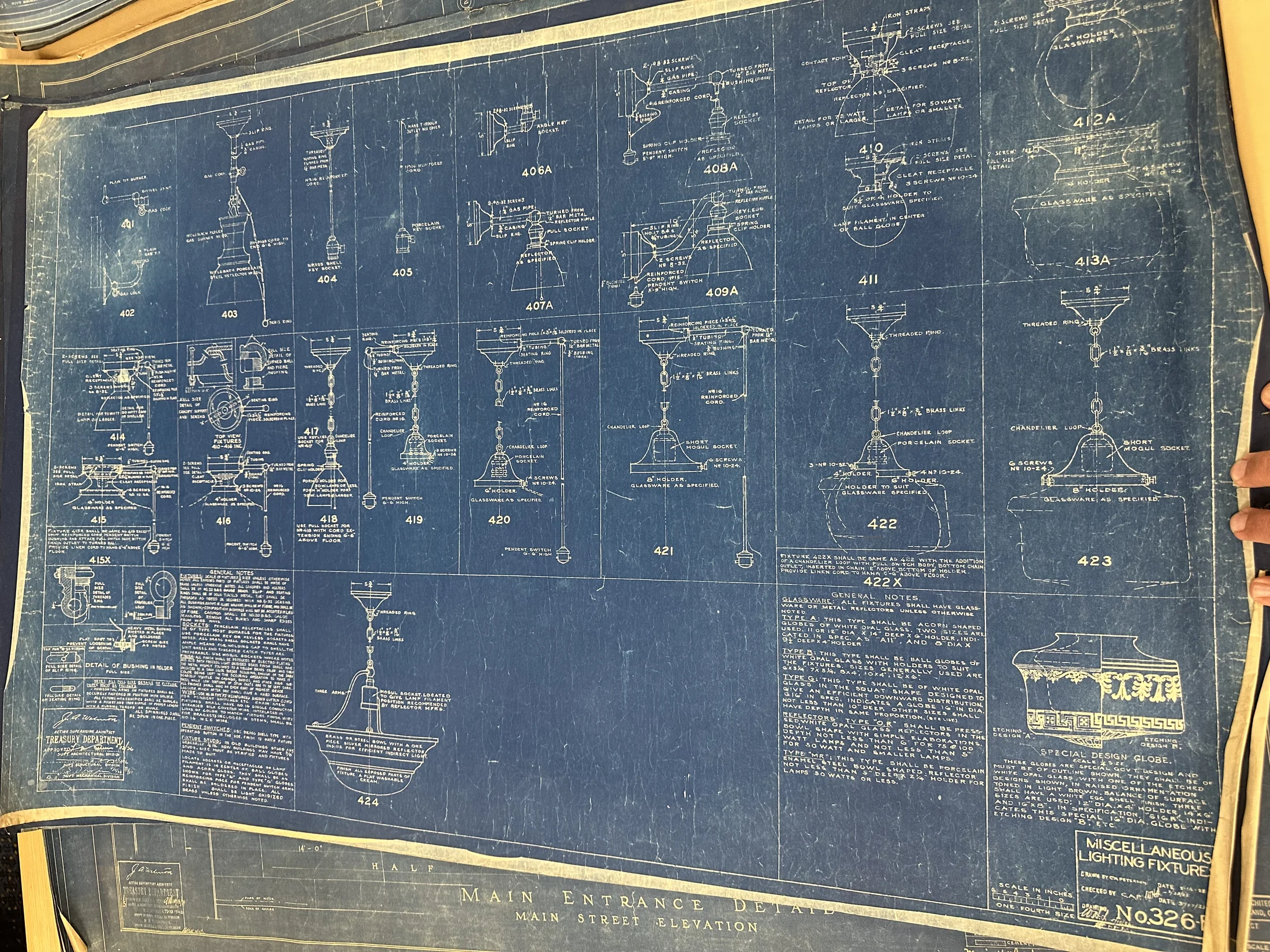

IMG_1292 · Folder 187

Miscellaneous lighting fixtures—schedule and details

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial sequential 1000px JPEG65 locator review after OCR/catalogue and existing reports. Actual clockwise reading rotation 0 degrees; normalized raw access-image regions before rotation. No complete extraction claimed. Partial timed visual review: Additive bounded follow-up after queue, OCR and prior packages; prior verified readings reused without duplication. No full-sheet completion or model acceptance. Partial timed visual review: Additive detailed review of selected regions following OCR and prior packages. Type-level evidence only; no installed position or quantity established. Other fine regions remain partial. Partial timed visual review: Bounded additive fine-note review of upright WebP, one sequential image inspection. Prior packages and OCR consulted first; no full coverage claim. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: undefined

Unresolved extraction work
  • Partial 1000px locator review only: full fine-region dimensions, notes, callouts and companion details remain unreviewed
  • Physical instance quantities and spatial relationships not established
  • Original drawing and handwritten/archive annotations require separate reconciliation
  • Individual marked fixture instance/type objects and general notes not fully extracted
  • Full remaining regional note and dimension review
  • Companion installation schedule and original installed quantities
  • Source-to-installed-instance registration and as-built correspondence
  • remaining unreadable fractions and dimensional endpoints
  • complete companion installation schedule and original quantities
  • source-to-installed-instance registration
  • Remaining small fractions and profile dimensions
  • Companion installation schedule and installed quantities
  • Installed physical instances, original quantities, room/floor hosts, anchors and checked source-to-building registration unresolved.
  • Original/revision and as-built applicability require companion review; no layer selected.
  • Remaining profile dimensions, glass thickness, envelope/endpoints, notes, schedules, cutoffs and companion details remain partial; modeling unchecked.
  • Installed quantities, room/floor hosts, mounting stations, checked registration and as-built correspondence remain unresolved.
  • Revision authority, remaining fine notes, dimensions and companion schedules require review.
  • Glass thickness, physical endpoints and overall envelopes remain unestablished; no modeling/checking or architectural acceptance.
  • Native master attempts already failed arm-process/nipple/intermediate finish and second stud option; no higher-quality exposure found. Single3/8 stud clause does not establish a second option.
  • Full regional coverage and independent dimensional checks.
  • Installed schedule, original/as-built correspondence, floor/room hosts, stations and checked source transforms.
  • Historical issue/revision authority and whole-building modeling checks.
  • Installed source-to-element registration, actual quantities, floor/room hosts and as-built correspondence
  • Governing issue/revision authority and original versus archive annotation reconciliation
  • All residual fine profiles, dimensions, callouts, schedules, companion details and clipped margins remain partial
  • Arm-tubing manufacturing clause, socket-nipple/catch wording and residual finish/scouring grain clauses unresolved
  • Second new-building stud option earlier placeholder is not established by visible single3/8 clause; keep numeric null
  • Actual old/new fixture studs require field verification; PF designation is not installed conductor selection
  • Fine drawing dimensions/profile endpoints not exhaustively extracted; no physical thickness inferred from gauges.
  • Installed fixture key, room/station assignment, quantity, host/anchor and checked registration remain unresolved.
  • Original versus annotated revision authority and clipped sheet edges require review.
  • Most upper views were outside master crops; each401–418 canopy/socket/thread/link and A/X variant needs individual review.
  • No installation schedule key found.
  • Existing socket,holder,screw and cord gauge records reused.
  • 422X source at crop top clearly hangs linen cord6ft6in above floor; not newly accepted until complete variant note/endpoints checked.
  • Type row envelopes and top portions absent from focused notes crops.
  • Existing cast bowl/brass-or-steel,filament placement,cream finish reused.
  • Three-arm drawing marker seen but not extracted as installed quantity; small link triplet still requires targeted crop.
  • Recorded individual general requirements; arm-tubing process words,plating/color grain clauses and stud fractions remain explicit nulls.
  • No numeric sheet thickness inferred from20gauge; prescribed wire gauges not diameters.
  • A large specification-code suffix and two B-holder fractions remain undecided.
  • Glass wall thickness not printed in inspected note; full outlines/companion glass profiles still require review.
  • No original/revised alternatives detected in these printed note blocks; earlier wrong letters/material/rating treated as same-note transcription errors.
  • Use IMG1294 existing S14A/sizes/finish notes; no repeated measurements.
  • Outline/etching relief depths and globe-to-fixture installed correspondence unresolved.
  • Installed instances, quantities, room/floor hosts, mounting and accepted source-to-building registration remain unresolved.
  • Original/revision authority and companion specifications remain unresolved.
  • Unvisited regions, dimensions, schedules, margins and notes remain partial; modeling/checking unchecked.
  • Installed quantities, floor/room hosts, mounting stations and accepted source-to-building registration remain unresolved.
  • Governing issue/revision and installed/as-built correspondence require companion schedule evidence.
  • Remaining fine dimensions, profiles, notes and margins are partial; modeling/checking unchecked.
  • Arm-tubing and nipple clauses remain unlocated in repeated prior review; no reconstructed wording. Broad general-note question remains open; selected clauses do not close it.
  • Remaining intermediate finish wording, stud-option scope and original sheet suffix remain unverified.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

139 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1292-detailneeds-review · printed

sheet_mark

No.326-[suffix cropped]

Partial source-region evidence only; not installed geometry or quantity.

IMG_1292 · Locate on drawing ↗

Drawing notation: No.326-[suffix cropped]

Partial source-region evidence only; not installed geometry or quantity.

parallel-img1292-detailverified · printed

fixture_marks

401, 402, 403, 404, 405, 406A, 407A, 408A, 409A, 410, 411, 412A, 413A, 414, 415, 415X, 416, 417, 418, 419, 420, 421, 422, 422X, 423, 424

Partial source-region evidence only; not installed geometry or quantity.

IMG_1292 · Locate on drawing ↗

Drawing notation: 401, 402, 403, 404, 405, 406A, 407A, 408A, 409A, 410, 411, 412A, 413A, 414, 415, 415X, 416, 417, 418, 419, 420, 421, 422, 422X, 423, 424

Partial source-region evidence only; not installed geometry or quantity.

parallel-img1292-detailverified · observed

fixture_component_views

Switch, receptacle, socket, canopy and chain/loop component illustrations

Partial source-region evidence only; not installed geometry or quantity.

IMG_1292 · Locate on drawing ↗

Drawing notation: Switch, receptacle, socket, canopy and chain/loop component illustrations

Partial source-region evidence only; not installed geometry or quantity.

parallel-img1292-detailverified · printed

special_globe_view

SPECIAL DESIGN GLOBE; separate close-up IMG_1294

Partial source-region evidence only; not installed geometry or quantity.

IMG_1292 · Locate on drawing ↗

Drawing notation: SPECIAL DESIGN GLOBE; separate close-up IMG_1294

Partial source-region evidence only; not installed geometry or quantity.

parallel-img1292-detailunreviewed · printed

component_dimensions

Fine numeric component dimensions unresolved

Numeric value unresolved

Partial source-region evidence only; not installed geometry or quantity.

IMG_1292 · Locate on drawing ↗

Drawing notation: Fine numeric component dimensions unresolved

Partial source-region evidence only; not installed geometry or quantity.

parallel-img1292-detailunreviewed · observed

general_notes

Fine general lighting and glassware notes require targeted review

Partial source-region evidence only; not installed geometry or quantity.

IMG_1292 · Locate on drawing ↗

Drawing notation: Fine general lighting and glassware notes require targeted review

Partial source-region evidence only; not installed geometry or quantity.

detail-lighting-img1292-422xverified · printed

variant_parent

FIXTURE 422X SHALL BE SAME AS 422

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

IMG_1292 · Locate on drawing ↗

Drawing notation: FIXTURE 422X SHALL BE SAME AS 422

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

detail-lighting-img1292-422xverified · printed

switch_addition

PULL SWITCH BODY BOTTOM CHAIN OUTLET INSERTED IN CHAIN ABOVE BOTTOM OF HOLDER

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

IMG_1292 · Locate on drawing ↗

Drawing notation: PULL SWITCH BODY BOTTOM CHAIN OUTLET INSERTED IN CHAIN ABOVE BOTTOM OF HOLDER

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

detail-lighting-img1292-422xunreviewed · printed

pendant_cord_length

PROVIDE LINEN CORD TO HANG 6'-0 ABOVE FLOOR

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level. Review correction review-correction-20261014c-422x-hanging-level-clause: Fresh native same IMG1292 original422X note reads PROVIDE LINEN CORD TO HANG6'-6 ABOVE FLOOR, not6'-0. Retain the prior text and misnamed cord-length property as history, withdrawn from verified authoring.78in is a prescribed hanging level, not actual cord length, installed position or accepted world elevation; host and termination ownership remain unresolved.

IMG_1292 · Locate on drawing ↗

Drawing notation: PROVIDE LINEN CORD TO HANG 6'-0 ABOVE FLOOR

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

detail-lighting-img1292-424verified · printed

socket_location

MOGUL SOCKET LOCATED TO GIVE LAMP FILAMENT POSITION RECOMMENDED BY REFLECTOR MF'R

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

IMG_1292 · Locate on drawing ↗

Drawing notation: MOGUL SOCKET LOCATED TO GIVE LAMP FILAMENT POSITION RECOMMENDED BY REFLECTOR MF'R

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

detail-lighting-img1292-424verified · printed

bowl_material

BRASS OR STEEL BOWL WITH A ONE PIECE SILVER MIRRORED REFLECTOR INSIDE FOR EFFICIENT INDIRECT LIGHT

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

IMG_1292 · Locate on drawing ↗

Drawing notation: BRASS OR STEEL BOWL WITH A ONE PIECE SILVER MIRRORED REFLECTOR INSIDE FOR EFFICIENT INDIRECT LIGHT

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

detail-lighting-img1292-424verified · printed

exposed_finish

FINISH ALL EXPOSED PARTS OF FIXTURE A FLAT WASHABLE CREAM

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

IMG_1292 · Locate on drawing ↗

Drawing notation: FINISH ALL EXPOSED PARTS OF FIXTURE A FLAT WASHABLE CREAM

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

detail-lighting-img1292-glassnotesverified · printed

type_a_material

TYPE A: WHITE OPAL GLASS

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

IMG_1292 · Locate on drawing ↗

Drawing notation: TYPE A: WHITE OPAL GLASS

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

detail-lighting-img1292-glassnotesverified · printed

type_b_material

TYPE B: WHITE OPAL GLASS

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

IMG_1292 · Locate on drawing ↗

Drawing notation: TYPE B: WHITE OPAL GLASS

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

detail-lighting-img1292-glassnotesunreviewed · printed

type_c_material

TYPE C: WHITE OPAL GLASS

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level. Review correction review-correction-20261013e-glassware-g-label: The same glassware paragraph on IMG1292 reads TYPE G, not TYPE C. White-opal material is consistent but the prior type attribution is withdrawn. Separate general-construction TYPE C clauses are not corrected or relabeled.

IMG_1292 · Locate on drawing ↗

Drawing notation: TYPE C: WHITE OPAL GLASS

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

detail-lighting-img1292-glassnotesunreviewed · printed

type_d_material

TYPE D: PRESSED SODA SILICATE GLASS

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level. Review correction review-correction-20261013e-glassware-or-material: The same paragraph specifies REFLECTORS TYPE OR and pressed white-opal glass. The earlier TYPE D/pressed soda-silicate attribution is a transcription error, not a competing material revision.

IMG_1292 · Locate on drawing ↗

Drawing notation: TYPE D: PRESSED SODA SILICATE GLASS

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

detail-lighting-img1292-glassnotesunreviewed · printed

type_d_lamp_small_power

50 WATT LAMPS

50 W

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level. Review correction review-correction-20261013e-glassware-or-small-lamp-scope: The numeric 50W token remains correct but the earlier TYPE D attribution is not. This historic record is withdrawn from type-assigned authoring; the new OR-scoped properties retain the same lamp option. No installed lamp rating follows.

IMG_1292 · Locate on drawing ↗

Drawing notation: 50 WATT LAMPS

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

detail-lighting-img1292-glassnotesunreviewed · printed

type_d_lamp_large_power

75 & 100 WATT LAMPS

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level. Review correction review-correction-20261013e-glassware-or-large-lamp-scope: The 75 and100W tokens remain correct but belong to the OR reflector paragraph, not TYPE D. Original wording and values remain in this withdrawn attribution record; corrected OR-specific properties are separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: 75 & 100 WATT LAMPS

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

detail-lighting-img1292-glassnotesunreviewed · printed

type_m_material

TYPE M: PORCELAIN ENAMEL STEEL BOWL SHAPED REFLECTOR

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level. Review correction review-correction-20261013e-glassware-mr-label: The same paragraph header is TYPE MR, not TYPE M. Porcelain-enamel steel itself remains materially consistent; only the prior type attribution is withdrawn.

IMG_1292 · Locate on drawing ↗

Drawing notation: TYPE M: PORCELAIN ENAMEL STEEL BOWL SHAPED REFLECTOR

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

detail-lighting-img1292-glassnotesunreviewed · printed

type_m_lamp_limit

NOT LESS THAN 75 WATTS

75 W

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level. Review correction review-correction-20261013e-glassware-mr-lamp-limit: The same TYPE MR paragraph reads LAMPS50 WATTS OR LESS. The older at-least75W transcription has the wrong number and reverses the limit. Retain it solely as an extraction audit record, not a historical specification alternative.

IMG_1292 · Locate on drawing ↗

Drawing notation: NOT LESS THAN 75 WATTS

Selected source-access normalized region; printed/type-local property. Nominal pipe/casing sizes are not measured outside diameters. Assignment labels establish intended type use only. Source access orientation recorded at image level.

detail-lighting-img1292-419verified · printed

socket_material

PORCELAIN SOCKET

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: PORCELAIN SOCKET

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

detail-lighting-img1292-419verified · printed

holder_nominal_diameter

4" HOLDER

4 in

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: 4" HOLDER

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

detail-lighting-img1292-419verified · printed

holder_screw_quantity

2 SCREWS No 10-24

2 count

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: 2 SCREWS No 10-24

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

detail-lighting-img1292-419verified · printed

holder_screw_designation

No 10-24

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: No 10-24

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

detail-lighting-img1292-419verified · printed

suspension_cord_gauge

No 16 REINFORCED CORD

16 gauge

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: No 16 REINFORCED CORD

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

detail-lighting-img1292-420verified · printed

holder_nominal_diameter

4" HOLDER

4 in

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: 4" HOLDER

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

detail-lighting-img1292-420verified · printed

holder_screw_quantity

2 SCREWS No 10-24

2 count

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: 2 SCREWS No 10-24

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

detail-lighting-img1292-420verified · printed

socket_material

PORCELAIN SOCKET

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: PORCELAIN SOCKET

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

detail-lighting-img1292-421verified · printed

socket_type

SHORT MOGUL SOCKET

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: SHORT MOGUL SOCKET

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

detail-lighting-img1292-421verified · printed

holder_nominal_diameter

6" HOLDER

6 in

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: 6" HOLDER

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

detail-lighting-img1292-423verified · printed

socket_type

SHORT MOGUL SOCKET

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: SHORT MOGUL SOCKET

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

detail-lighting-img1292-423verified · printed

holder_screw_quantity

6 SCREWS No 10-24

6 count

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: 6 SCREWS No 10-24

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

detail-lighting-img1292-423verified · printed

holder_screw_designation

No 10-24

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: No 10-24

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

detail-lighting-img1292-423verified · printed

holder_nominal_diameter

6" HOLDER

6 in

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: 6" HOLDER

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

detail-lighting-img1292-417needs-review · printed

alternate_socket_requirement

USE KEYLESS CANDELIER SOCKET FOR 50-60W

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

IMG_1292 · Locate on drawing ↗

Drawing notation: USE KEYLESS CANDELIER SOCKET FOR 50-60W

Source-local fixture specimen evidence only. Printed marks are type designations; dimensions describe the indicated component or segment, not installed positions or whole-room geometry. Existing verified data reused; conflicts remain separate.

lightspec1013e-img1292-general-specificationverified · printed

socket_catch_preference_resolved

THE UNIT SHELL AND THREADED CATCH TYPES ARE PREFERABLE

Printed original layer of this source fixture/type or clause only. No installed quantity, physical geometry, accepted outside/inside endpoints, building coordinates, room/floor host, field verification or historical revision authority established. Tight native crop reads UNIT independently; neighboring cap-retention clause already registered, reused. Does not determine nipple material.

IMG_1292 · Locate on drawing ↗

Drawing notation: THE UNIT SHELL AND THREADED CATCH TYPES ARE PREFERABLE

Printed original layer of this source fixture/type or clause only. No installed quantity, physical geometry, accepted outside/inside endpoints, building coordinates, room/floor host, field verification or historical revision authority established. Tight native crop reads UNIT independently; neighboring cap-retention clause already registered, reused. Does not determine nipple material.

detail-lighting-img1292-422xverified · printed

linen_cord_hanging_level_clause_resolved

PROVIDE LINEN CORD TO HANG 6'-6 ABOVE FLOOR

Printed original layer of this source fixture/type or clause only. No installed quantity, physical geometry, accepted outside/inside endpoints, building coordinates, room/floor host, field verification or historical revision authority established. Same422X original note:6ft6 above floor is an installation requirement in clause, not cord length. Complete added chandelier-loop/pull-switch clause visible; retains parent422 relationship.

IMG_1292 · Locate on drawing ↗

Drawing notation: PROVIDE LINEN CORD TO HANG 6'-6 ABOVE FLOOR

Printed original layer of this source fixture/type or clause only. No installed quantity, physical geometry, accepted outside/inside endpoints, building coordinates, room/floor host, field verification or historical revision authority established. Same422X original note:6ft6 above floor is an installation requirement in clause, not cord length. Complete added chandelier-loop/pull-switch clause visible; retains parent422 relationship.

detail-lighting-img1292-422xverified · printed

linen_cord_hanging_level_above_floor

6'-6 ABOVE FLOOR

78 in

Printed original layer of this source fixture/type or clause only. No installed quantity, physical geometry, accepted outside/inside endpoints, building coordinates, room/floor host, field verification or historical revision authority established. Printed mixed feet/inches normalized to78in; hanging-level requirement abovefloor. No cord length calculated; exact terminating reference/host and original installed height still require checking.

IMG_1292 · Locate on drawing ↗

Drawing notation: 6'-6 ABOVE FLOOR

Printed original layer of this source fixture/type or clause only. No installed quantity, physical geometry, accepted outside/inside endpoints, building coordinates, room/floor host, field verification or historical revision authority established. Printed mixed feet/inches normalized to78in; hanging-level requirement abovefloor. No cord length calculated; exact terminating reference/host and original installed height still require checking.

Calculated from: fixtureclosures1014c-img1292-linen_cord_hanging_level_clause_resolved

detail-lighting-img1292-417verified · printed

417_keyless_socket_clause_reread

USE KEYLESS SOCKET FOR NO. 417

Printed type/component specification only; no installed selection, quantity, world geometry or governing revision. Same left type417 socket witness. Nearby CHANDELIER LOOP annotation and holder rating notes are separate clauses.

IMG_1292 · Locate on drawing ↗

Drawing notation: USE KEYLESS SOCKET FOR NO. 417

Printed type/component specification only; no installed selection, quantity, world geometry or governing revision. Same left type417 socket witness. Nearby CHANDELIER LOOP annotation and holder rating notes are separate clauses.

detail-lighting-img1292-417verified · printed

417_holder_retention

SPRING CLIP HOLDER

Printed type/component specification only; no installed selection, quantity, world geometry or governing revision. Holder retention designation, not fastener count.

IMG_1292 · Locate on drawing ↗

Drawing notation: SPRING CLIP HOLDER

Printed type/component specification only; no installed selection, quantity, world geometry or governing revision. Holder retention designation, not fastener count.

View all source photographs →
