The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

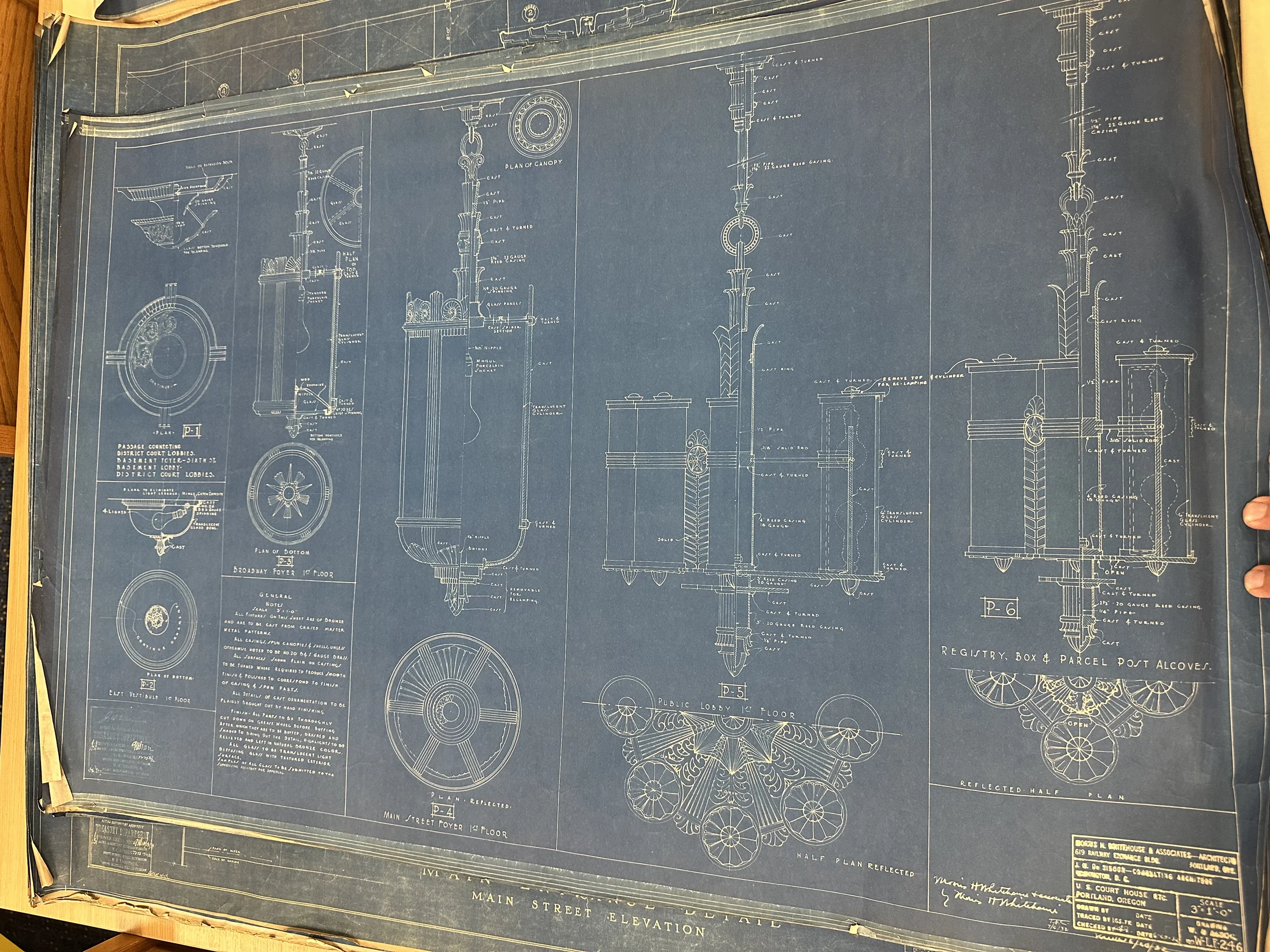

IMG_1289 · Folder 187

Entrance and public lobby lighting fixtures

Sheet WLF-246

Extraction: Reviewed · extraction partial. P-5 elevation, reflected half-plan and shared general notes inspected; selected component sizes, gauges, materials, finish and assembly relationships extracted. P-1 through P-4/P-6 and sheet margins are outside the bounded extraction. P-5 Public Lobby and P-6 Registry/Box/Parcel Post alcove fixture types. Normalized from an existing text re-audit; this import did not reopen the source image. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. Partial timed visual review: Additive bounded follow-up after queue, OCR and prior packages; prior verified readings reused without duplication. No full-sheet completion or model acceptance. Partial timed visual review: Additive detailed review of selected regions following OCR and prior packages. Type-level evidence only; no installed position or quantity established. Other fine regions remain partial. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Additive bounded lighting-key review. Source regions refer to raw raster/access-image orientation, ignoring JPEG EXIF display rotation; accepted building registration remains null. Partial timed visual review: undefined

Unresolved extraction work
  • Overall drop/span and glass-cylinder dimensions remain unestablished.
  • Upper suspension casing fraction remains null.
  • Unreviewed small component notes and lamp specifications remain.
  • No photograph homography, full profile trace or independent dimensional check performed.
  • Drawing issue/revision date and companion installation schedule are unreviewed.
  • Original installed quantity, positions and surviving-as-built differences remain unverified.
  • Complete drawing-note transcription
  • Every dimension and bay placement
  • Detailed hardware/fastener schedule
  • Exact cross-sheet bay correspondence
  • Cross-photo physical deduplication
  • Complete surviving-object inventory
  • Exact dimensions
  • Construction/alteration chronology
  • Condition assessment
  • P-6 component extraction
  • Installed fixture schedule and positions
  • As-built correspondence
  • Fixture finish and glass color
  • installed fixture instance/count and W214-panel-to-WLF-246 type correspondence
  • dimensioned A/B ceiling-grid station from a classified W3 or W214 plan control in X
  • dimensioned lobby centerline and panel-row station in Z
  • accepted W214 ceiling-grid to W3 transform with a held-out check
  • actual suspension/ceiling anchor within the panel rather than merely somewhere below it
  • resolved public-lobby height and finished coffer/anchor Y surface
  • P-5 overall diameter and canopy-to-bottom drop, or independently dimensioned P-6 envelope
  • fixture orientation and clearance to beams, cornice, openings and occupied space
  • Full remaining regional note and dimension review
  • Companion installation schedule and original installed quantities
  • Source-to-installed-instance registration and as-built correspondence
  • remaining unreadable fractions and dimensional endpoints
  • complete companion installation schedule and original quantities
  • source-to-installed-instance registration
  • Original versus revision authority and installed/as-built applicability unresolved.
  • Installed quantity, floor/room host, anchors and accepted source-to-building transform unresolved.
  • Remaining fine dimensions, schedules, notes and companion sections require review; modeling unchecked.
  • Full regional coverage and independent dimensional checks.
  • Installed schedule, original/as-built correspondence, floor/room hosts, stations and checked source transforms.
  • Historical issue/revision authority and whole-building modeling checks.
  • Fine drawing dimensions/profile endpoints not exhaustively extracted; no physical thickness inferred from gauges.
  • Installed fixture key, room/station assignment, quantity, host/anchor and checked registration remain unresolved.
  • Original versus annotated revision authority and clipped sheet edges require review.
  • Selected component/assignment records retained; all tiny gauges/fractions, full envelope/profile and installation stations still require detailed review.
  • Existing whole-sheet material/finish requirement carried through P5 extraction; do not respecify as a different historical alloy.
  • No independently read lamp schedule or original installed count.
  • Remaining fine regions, notes, schedules, callouts and colored revisions require review.
  • Governing installation schedule, original quantities, room registration and as-built correspondence unresolved.
  • Modeling/checking unchecked; no accepted world coordinates.
  • P-6 independent overall envelope, glass cylinder dimensions, wattage per lamp and installation station schedule.
  • Installed physical instances, original quantities, room/floor hosts, anchors and checked source-to-building registration unresolved.
  • Original/revision and as-built applicability require companion review; no layer selected.
  • Remaining profile dimensions, glass thickness, envelope/endpoints, notes, schedules, cutoffs and companion details remain partial; modeling unchecked.
  • Installed quantities, room/floor hosts, mounting stations, checked registration and as-built correspondence remain unresolved.
  • Revision authority, remaining fine notes, dimensions and companion schedules require review.
  • Glass thickness, physical endpoints and overall envelopes remain unestablished; no modeling/checking or architectural acceptance.
  • P5 glass dimensions, radial pitch and overall drop/diameter remain null.
  • Installed quantities, floor/room hosts, mounting stations and accepted source-to-building registration remain unresolved.
  • Governing issue/revision and installed/as-built correspondence require companion schedule evidence.
  • Remaining fine dimensions, profiles, notes and margins are partial; modeling/checking unchecked.
  • P5 overall drop includes a drawn break; no image-scale measurement or inferred drop. Envelope, glass sizes and installed counts remain null.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

73 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

fixture-p5-detail-01verified · printed

sheet_scale_paper_inches_per_building_foot

3" = 1′-0"

3 in

Paper scale only; not a pixel calibration and not a fixture dimension.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: SCALE 3" = 1′-0"

fixture-p5-detail-01verified · printed

general_cast_fixture_material

Bronze; cast from chased master metal patterns

Preserve the separate brass-casing note; do not silently turn all constituent metals into a single alloy.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: ALL FIXTURES ON THIS SHEET ARE OF BRONZE AND ARE TO BE CAST FROM CHASED MASTER METAL PATTERNS.

fixture-p5-detail-01verified · printed

general_casing_spun_canopy_shell_material

Brass unless otherwise noted
IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: ALL CASINGS, SPUN CANOPIES & SHELLS, UNLESS OTHERWISE NOTED TO BE No 20 B & S GAUGE BRASS.

fixture-p5-detail-01verified · printed

general_casing_spun_canopy_shell_default_gauge

No. 20 B & S gauge; unless otherwise noted

20 gauge

Default only. Explicit 16- and 22-gauge P-5 callouts override locally. No thickness conversion performed.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: No 20 B & S GAUGE BRASS

fixture-p5-detail-01verified · printed

metal_finish_process

Grease-wheel cut-down; buff; brush and shade to bring out detail; renewed highlights left natural bronze color

Natural bronze highlight color is specified, but no overall patina color or numeric rendering roughness is established.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: FINISH — ALL PARTS TO BE THOROUGHLY CUT DOWN ON GREASE WHEEL BEFORE BUFFING AFTER WHICH THEY ARE TO BE BUFFED, BRUSHED AND SHADED TO BRING OUT THE DETAIL, HIGHLIGHTS TO BE RELIEVED AND LEFT IN NATURAL BRONZE COLOR.

fixture-p5-detail-01-underside-ornamentverified · printed

ornament_finish_method

Cast ornament details brought out by hand finishing
IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: ALL DETAILS OF CAST ORNAMENTATION TO BE PLAINLY BROUGHT OUT BY HAND FINISHING.

fixture-p5-detail-01-lamp-prototypeverified · printed

glass_exterior_surface

Textured exterior; sample subject to approval
IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: WITH TEXTURED EXTERIOR SURFACE. SAMPLES OF ALL GLASS TO BE SUBMITTED TO THE SUPERVISING ARCHITECT FOR APPROVAL.

fixture-p5-detail-01-upper-suspensionillegible · printed

upper_reed_casing_nominal_size

Fraction before 22 GAUGE REED CASING unresolved

Numeric value unresolved

Do not promote the possible 1-1/4-inch reading without another focused check.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: [unread fraction] 22 GAUGE REED CASING

fixture-p5-detail-01-arm-prototypeverified · printed

solid_radial_rod_size

3/8" SOLID ROD

0.375 in

Section shows a radial rod from axial core to lamp collar. The callout does not establish rod length or lamp radial pitch.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: 3/8" SOLID ROD

fixture-p5-detail-01-coreverified · printed

core_reed_casing_nominal_size

4" REED CASING

4 in

Printed nominal casing size. Cylindrical section is depicted, but exact outside/inside diameter convention is not separately resolved.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: 4" REED CASING 16 GAUGE

fixture-p5-detail-01-bottom-pendantverified · printed

bottom_reed_casing_nominal_size

3" 20 GAUGE REED CASING

3 in

Printed nominal casing size; neither casing length nor sheet thickness established.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: 3" 20 GAUGE REED CASING

fixture-p5-detail-01-lamp-prototypeverified · printed

glass_form

Vertical translucent glass cylinder between cast/turned top and bottom fittings
IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: TRANSLUCENT GLASS CYLINDER; CAST & TURNED

fixture-p5-detail-01verified · observed

cylinders_wholly_inside_reflected_half_plan

3 interior cylinder centers in reflected half-plan

3 count

Visual count, not a printed quantity or installed fixture count.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: HALF PLAN REFLECTED

fixture-p5-detail-01verified · observed

cylinders_on_reflected_half_plan_boundary

2 boundary cylinder centers

2 count

Visual count of centers on the cutting/center line, counted once when completing the half-plan.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: HALF PLAN REFLECTED

fixture-p5-detail-01-upper-suspensionverified · observed

profile_and_connection_sequence

Stepped canopy/collars → reed-cased pipe → flared collar → cast ring → nested flared collars → axial core

Visible assembly order; profile control points and component lengths are not measured.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: CAST; CAST & TURNED

fixture-p5-detail-01-arm-prototypeverified · observed

connection_relationship

Radial solid rod connects central axial fitting to collar near cylinder mid-height

Relative drawing relationship only; no connection dimensions or strength claim.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: 3/8" SOLID ROD; CAST & TURNED

fixture-p5-detail-01-underside-ornamentverified · observed

underside_pattern

Radial ribbed arms and interstitial scrolling foliate openwork; lobed/fan-like cylinder bottoms

Do not label this an eagle without further evidence. No arbitrary repeated leaf mesh is an exact reproduction of this contour.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: OPEN; HALF PLAN REFLECTED

fixture-p5-detail-01unreviewed · observed

overall_drop

Unresolved

Numeric value unresolved

No legible overall dimension established; upper pipe includes a break, so apparent drawn length cannot establish drop.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗
fixture-p5-detail-01unreviewed · observed

installed_quantity

Unresolved

Numeric value unresolved

The type drawing and later photograph counts do not establish the total original installation schedule.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: PUBLIC LOBBY 1ST FLOOR

f1-public-lobby-p5-design-specimenverified · derived

cylinder_stations_per_fixture_type

8 cylinder stations

8 count

Type-level lamp-station count, not installed fixture quantity. Authoring eligibility: eligible-type-topology. Report transcription; verify the cited drawing before promoting physical geometry.

IMG_1289 · sheet-WLF-246 · View drawing ↗

Drawing notation: HALF PLAN REFLECTED

Existing verified package plus re-audit report; image not reopened. P-5 Public Lobby and P-6 Registry/Box/Parcel Post alcove fixture types

f1-public-lobby-postal-wall-systemunreviewed · observed

typical_service_module_width

customer counter modules repeatedly read about 7 feet 6 inches

The report describes a repeated approximate reading without accepted station assignments.

IMG_1202 · sheet-W3 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing verified package; image not reopened. Named PUBLIC LOBBY and printed ceiling-height reading

IMG_1204 · sheet-W3 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only; image not reopened. First-floor public-lobby plan, reported 18'-3" ceiling-height reading and repeated 14'/15' structural dimensions

IMG_1089 · sheet-W214 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Lobby overview, floor/ceiling bay grid, Panels A-D and service-wall sequence

IMG_1302 · sheet-W214 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Lobby overview, floor/ceiling bay grid, Panels A-D and service-wall sequence

IMG_1090 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1091 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1092 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1303 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1093 · sheet-W216 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1094 · sheet-W216 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1304 · sheet-W216 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1099 · sheet-W-218 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing writing-desk packages; images not reopened. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family

IMG_1306 · sheet-W-218 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing writing-desk packages; images not reopened. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family

IMG_1289 · sheet-WLF-246 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing verified package plus re-audit report; image not reopened. P-5 Public Lobby and P-6 Registry/Box/Parcel Post alcove fixture types

fixture-p5-detail-01verified · printed

printed public-lobby fixture type assignment

P-5 PUBLIC LOBBY 1ST FLOOR

Panel note/type evidence only; installed P5/P6 identity, fixture center and anchor height are not accepted.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: P-5 PUBLIC LOBBY 1ST FLOOR

prior direct inspection; reused this pass; verified type assignment; installed quantity and stations unresolved. Reused research/reconstruction/lobby-fixture-first.json.

f1-public-lobby-p6-design-specimenunreviewed · inferred

reported alcove fixture type assignment

P-6 Registry, Box and Parcel Post alcoves

Panel note/type evidence only; installed P5/P6 identity, fixture center and anchor height are not accepted.

IMG_1289 · sheet-WLF-246 · View drawing ↗

Drawing notation: P-6 Registry, Box and Parcel Post alcoves

report-level assignment; P-6 detail not reopened; assignment supported at report level; not a public-lobby hall station. Reused research/reconstruction/lobby-architectural-assemblies-first.json.

fixture-p5-detail-01unreviewed · inferred

installed first-floor public-lobby P-5 quantity

Unresolved

Numeric value unresolved

Panel note/type evidence only; installed P5/P6 identity, fixture center and anchor height are not accepted.

IMG_1289 · sheet-WLF-246 · Locate on drawing ↗

Drawing notation: P-5 PUBLIC LOBBY 1ST FLOOR

prior direct inspection; reused this pass; unresolved; eight glass cylinders per type are not eight installed fixtures. Reused research/reconstruction/lobby-fixture-first.json.

Calculated from: light-gate-fixture-type-p5

View all source photographs →
