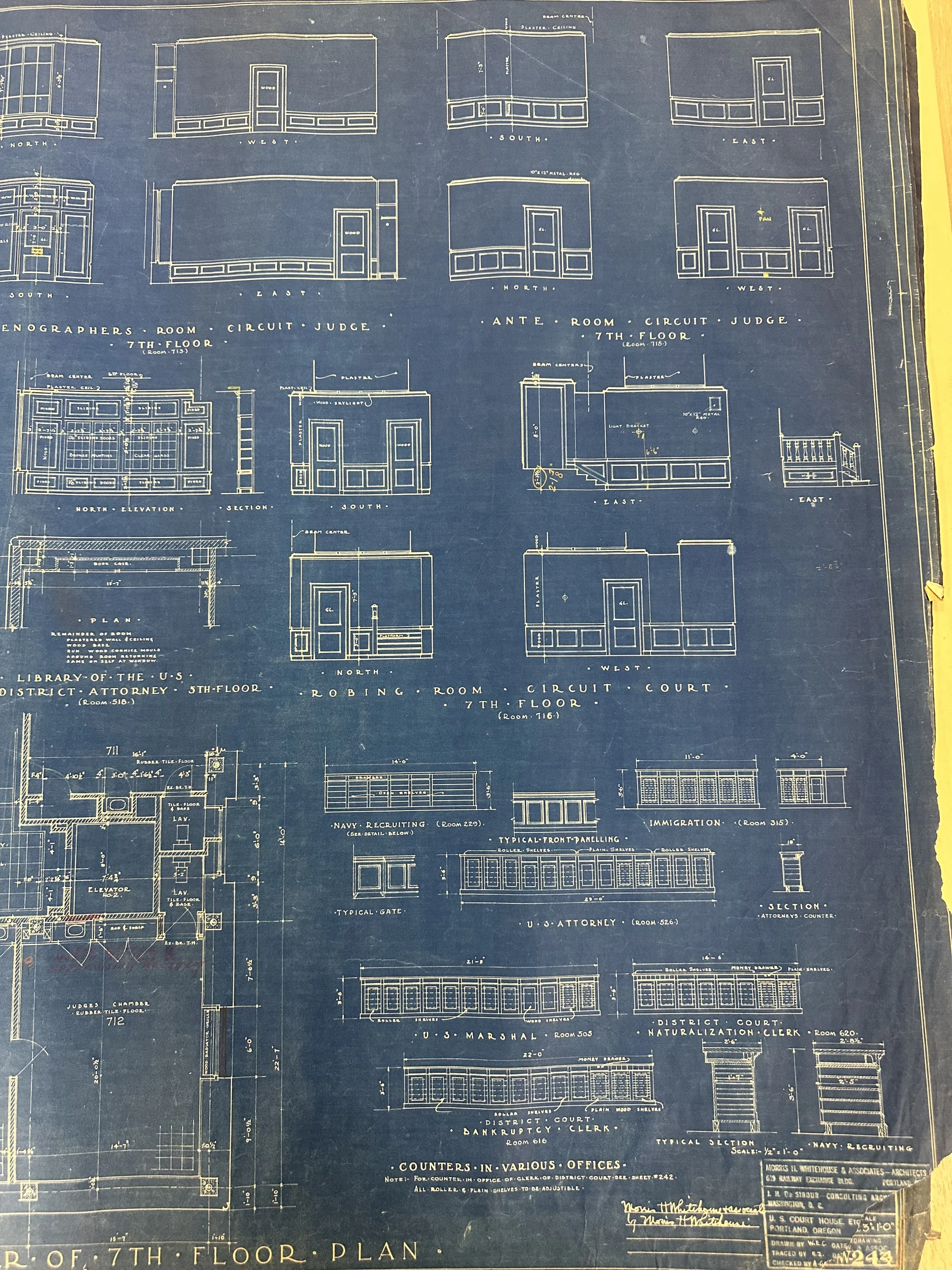

Drawing notation: NORTHWEST CORNER OF 7TH FLOOR PLAN
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: NOTE: SCALE 1/4"=1'-0" UNLESS OTHERWISE NOTED
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: LIBRARY OF THE U.S. DISTRICT ATTORNEY 5TH FLOOR (ROOM 518)
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: NAVY RECRUITING ROOM 229
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: IMMIGRATION ROOM 315
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: U.S. ATTORNEY ROOM 526
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: U.S. MARSHAL ROOM 505
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: DISTRICT COURT NATURALIZATION CLERK ROOM 620
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: DISTRICT COURT BANKRUPTCY CLERK ROOM 616
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: ALL ROLLER & PLAIN SHELVES TO BE ADJUSTABLE
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: For counter in office of Clerk of Courts see drawing W-242 [small reference]
Selected source evidence only; partial locator review, applies to depicted assembly.
Numeric value unresolved
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Complete printed note directly below COUNTERS IN VARIOUS OFFICES. Source reference only; companion content and installed placement remain open.
Drawing notation: NOTE: FOR COUNTER IN OFFICE OF CLERK OF DISTRICT COURT SEE SHEET #242.
Complete printed note directly below COUNTERS IN VARIOUS OFFICES. Source reference only; companion content and installed placement remain open.
168 in
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Drawing notation: 14'-0"
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
132 in
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Drawing notation: 11'-0"
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
48 in
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Drawing notation: 4'-0"
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
276 in
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Drawing notation: 23'-0"
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
261 in
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Drawing notation: 21'-9"
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
168 in
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Drawing notation: 14'-0"
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
264 in
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Drawing notation: 22'-0"
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Drawing notation: REMAINDER OF ROOM: PLASTER WALL & CEILING; WOOD BASE; RUN WOOD CORNICE MOULD AROUND ROOM RETURNING SAME ON SIDE AT WINDOWS.
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
Drawing notation: WOOD SKYLIGHT
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
Drawing notation: LIGHT BRACKET
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
10 in
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
Drawing notation: 10" x 12" METAL REG.
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
12 in
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
Drawing notation: 10" x 12" METAL REG.
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
10 in
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
Drawing notation: 10" x 12" METAL REG.
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
12 in
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
Drawing notation: 10" x 12" METAL REG.
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
42 in
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
Drawing notation: 3'-6"
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
42 in
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
Drawing notation: 3'-6"
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
42 in
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
Drawing notation: 3'-6"
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
42 in
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
Drawing notation: 3'-6"
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
42 in
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
Drawing notation: 3'-6"
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
42 in
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
Drawing notation: 3'-6"
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
174 in
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
Drawing notation: 14'-6"
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
Conflicting readings: detail-20261011e-img_1282-6
18 in
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
Drawing notation: 18"
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
30 in
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
Drawing notation: 2'-6"
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
19 in
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
Drawing notation: 1'-7"
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
32.5 in
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
Drawing notation: 2'-8 1/2"
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
29 in
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
Drawing notation: 2'-5"
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
Drawing notation: WOOD TOP
Printed source-local detail or dimension-line evidence only; no accepted room geometry, installed quantity or placement. Nominal pipe sizes do not establish outside diameters. Conflicting readings retained separately.
