Extraction: Reviewed · extraction partial. Partial timed visual review: Partial text-first then one sequential <=1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1280.webp. Coordinates normalized in unrotated access image; principal lettering upright. Selected regions only, not full extraction; no model geometry authorized. Partial timed visual review: Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels. Partial timed visual review: Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected source evidence only; partial locator review, applies to depicted assembly.

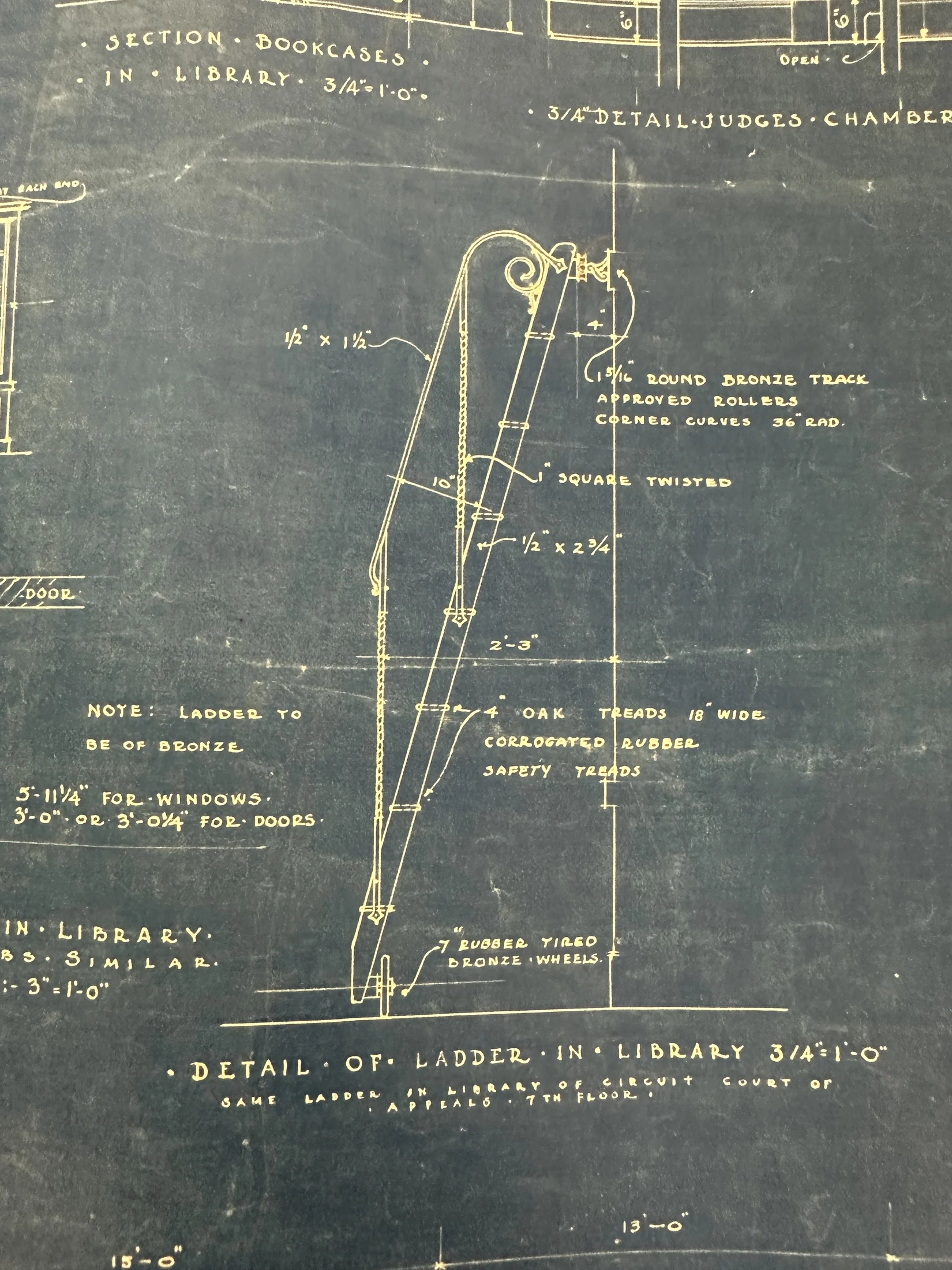

Drawing notation: DETAIL OF LADDER IN LIBRARY
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: SAME LADDER IN LIBRARY OF CIRCUIT COURT OF APPEALS 7TH FLOOR
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: NOTE: LADDER TO BE OF BRONZE
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 3/4"=1'-0"
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 1 1/2 x 1 1/2"
Selected source evidence only; partial locator review, applies to depicted assembly.
1.5 in
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 1 1/2"
Selected source evidence only; partial locator review, applies to depicted assembly.
1.5 in
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 1 1/2"
Selected source evidence only; partial locator review, applies to depicted assembly.
1 in
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 1" SQUARE TWISTED
Selected source evidence only; partial locator review, applies to depicted assembly.
0.5 in
First section dimension; companion width separately recorded.
Drawing notation: 1/2 x 2 3/4"
First section dimension; companion width separately recorded.
2.75 in
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 1/2 x 2 3/4"
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: OAK TREADS
Selected source evidence only; partial locator review, applies to depicted assembly.
4 in
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 4" OAK TREADS
Selected source evidence only; partial locator review, applies to depicted assembly.
18 in
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 18" WIDE
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: CORRUGATED RUBBER SAFETY TREADS
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: ROUND BRONZE TRACK
Selected source evidence only; partial locator review, applies to depicted assembly.
Numeric value unresolved
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 1 5/16 [fraction unresolved]
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: APPROVED ROLLERS
Selected source evidence only; partial locator review, applies to depicted assembly.
36 in
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: CORNER CURVES 36" RAD.
Selected source evidence only; partial locator review, applies to depicted assembly.
7 in
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 7" RUBBER TIRED BRONZE WHEELS
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: BRONZE WHEELS
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: RUBBER TIRED
Selected source evidence only; partial locator review, applies to depicted assembly.
27 in
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 2'-3"
Selected source evidence only; partial locator review, applies to depicted assembly.
1.3125 in
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Drawing notation: 1 5/16" ROUND BRONZE TRACK
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
4 in
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Drawing notation: 4"
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
10 in
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Drawing notation: 10"
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
71.25 in
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Drawing notation: 5'-11 1/4" FOR WINDOWS
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
36 in
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Drawing notation: 3'-0" OR 3'-0 1/4" FOR DOORS
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
36.25 in
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
Drawing notation: 3'-0" OR 3'-0 1/4" FOR DOORS
Printed source-local detail evidence only; no accepted room geometry, installed quantity or placement. Floor and room assignments follow printed labels.
0.5 in
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
Drawing notation: 1/2 x 1 1/2"
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
Drawing notation: 1/2 x 1 1/2"
Printed source-local component or finish evidence only; no installed quantity, placement or accepted geometry. Nominal nipple sizes are not outside diameters.
