Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.

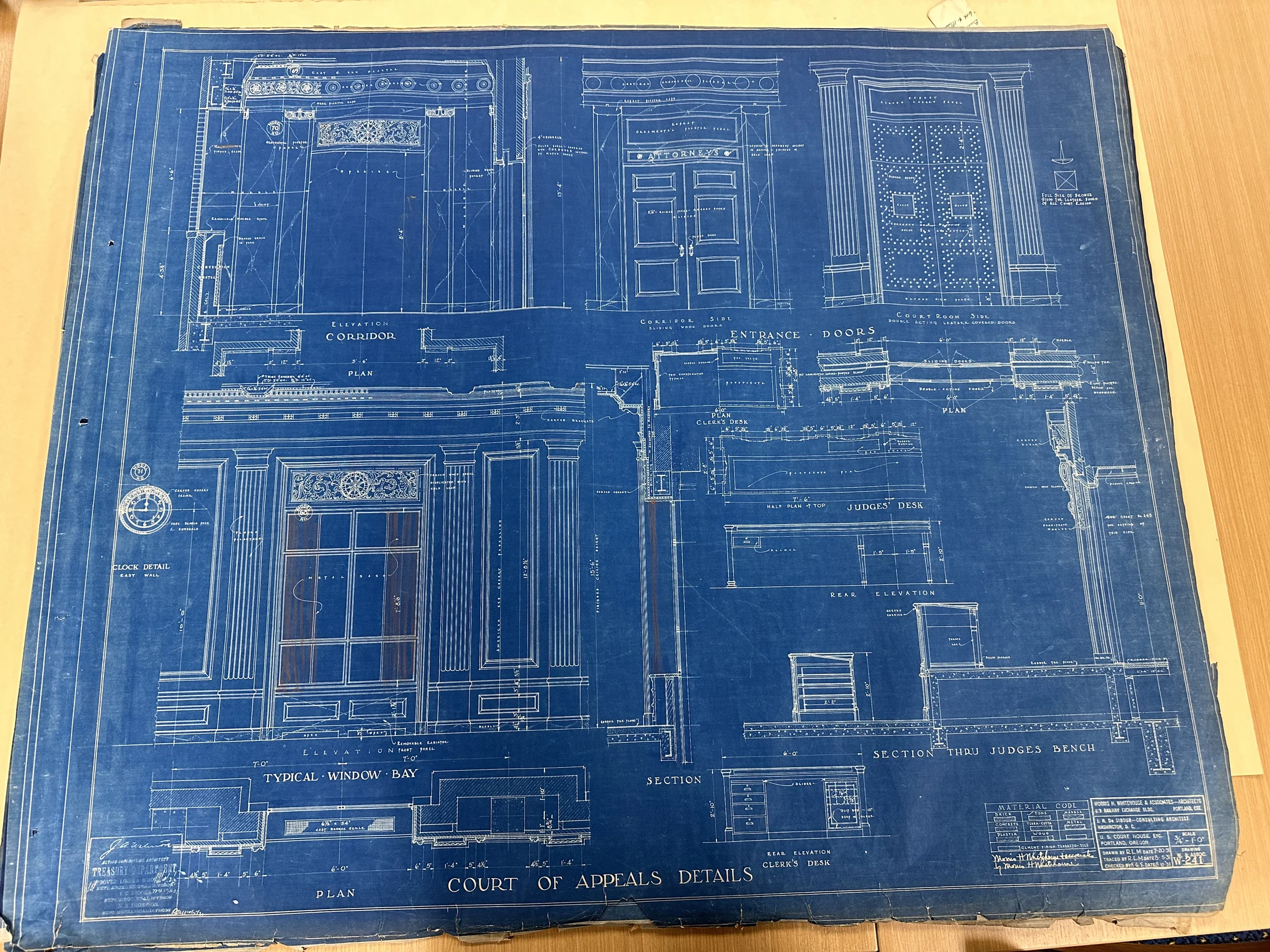

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial text-first then one sequential <=1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1278.webp. Coordinates normalized in unrotated access image; principal lettering upright. Selected regions only, not full extraction; no model geometry authorized. Partial timed visual review: Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established. Partial timed visual review: Bench section cropped from raw master [2520,1870,1100,710],4032x3024 rotation0; source-local construction labels. Room registration remains unresolved.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: ENTRANCE DOORS
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: CORRIDOR SIDE / COURT ROOM SIDE
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: TYPICAL WINDOW BAY
Selected source evidence only; partial locator review, applies to depicted assembly.
72 in
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 6'-0"
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: Fluted pilasters, ornamental frieze and paneling around divided window
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: CLOCK DETAIL EAST WALL
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: JUDGES' DESK
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: SECTION THRU JUDGES BENCH
Selected source evidence only; partial locator review, applies to depicted assembly.
Numeric value unresolved
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: CLERKS DESK
Selected source evidence only; partial locator review, applies to depicted assembly.
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
Drawing notation: SLIDING WOOD DOORS
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
Drawing notation: DOUBLE ACTING LEATHER COVERED DOORS
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
Drawing notation: BRONZE KICK PLATES
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
72 in
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
Drawing notation: 6'-0"
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
Leader targets judges' desk support leg in section.
Drawing notation: TURNED LEG
Leader targets judges' desk support leg in section.
Leader identifies ferrule at foot of turned leg; separate from bronze entrance-door kickplate material.
Drawing notation: BRASS FERRULE
Leader identifies ferrule at foot of turned leg; separate from bronze entrance-door kickplate material.
Leader targets desk top edge in section; shape dimensions and exact species unextracted.
Drawing notation: CARVED CORNICE
Leader targets desk top edge in section; shape dimensions and exact species unextracted.
Section label establishes finish on raised bench floor; source W240 general courtroom finish reused separately.
Drawing notation: RUBBER TILE FLOOR
Section label establishes finish on raised bench floor; source W240 general courtroom finish reused separately.
