Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.

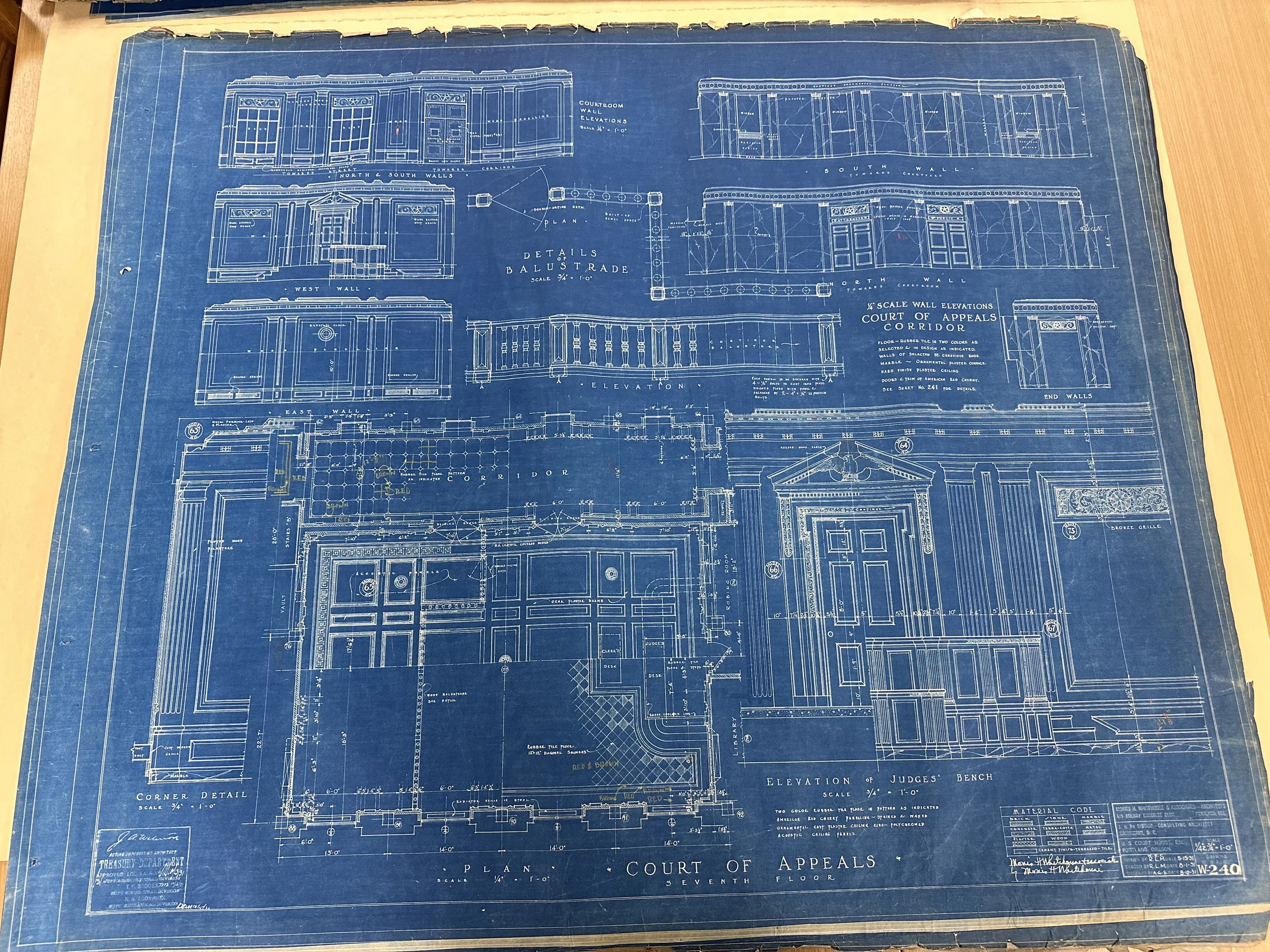

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial text-first then one sequential <=1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1277.webp. Coordinates normalized in unrotated access image; principal lettering upright. Selected regions only, not full extraction; no model geometry authorized. Partial timed visual review: Normalized regions refer to the 2200x1650 upright access derivative. Fresh compact crop extracted directly from raw stored pixels without EXIF auto-orientation; lettering visibly upright. Crop is a bounded finish-note witness, not complete source coverage. Partial timed visual review: Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established. Partial timed visual review: Upright derivative plus raw master note crop [2420,2515,850,270]. Raw master lettering in this crop requires 270 degrees clockwise to read, unlike upright derivative; normalized regions refer to access derivative. Crop contains complete four-line courtroom finish note.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: COURT OF APPEALS SEVENTH FLOOR
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: TWO COLOR RUBBER TILE FLOOR PATTERN AS INDICATED
Selected source evidence only; partial locator review, applies to depicted assembly.
2 count
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: TWO COLOR
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: WEST WALL
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: EAST WALL
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: NORTH & SOUTH WALLS
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 1/4" SCALE WALL ELEVATIONS COURT OF APPEALS CORRIDOR
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: FLOOR RUBBER TILE TWO COLORS
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: GENEVIEVE ROSE RED [exact marble specification unresolved]
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: DETAILS BALUSTRADE
Selected source evidence only; partial locator review, applies to depicted assembly.
Numeric value unresolved
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: ELEVATION OF JUDGES BENCH
Selected source evidence only; partial locator review, applies to depicted assembly.
Selected source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: SCALE 3/4"=1'-0"
Selected source evidence only; partial locator review, applies to depicted assembly.
Full first two lines of the corridor specification block; separate from the courtroom floor note at the bottom of W-240.
Drawing notation: FLOOR - RUBBER TILE IN TWO COLORS AS SELECTED & IN DESIGN AS INDICATED.
Full first two lines of the corridor specification block; separate from the courtroom floor note at the bottom of W-240.
2 count
Explicit printed color count within corridor floor clause. Count of specified colors, not tiles, rooms or installed components.
Drawing notation: TWO COLORS
Explicit printed color count within corridor floor clause. Count of specified colors, not tiles, rooms or installed components.
Conditional color selection and depicted design govern the corridor rubber-tile note; actual colors and dimensioned tile pattern remain unspecified here.
Drawing notation: AS SELECTED & IN DESIGN AS INDICATED.
Conditional color selection and depicted design govern the corridor rubber-tile note; actual colors and dimensioned tile pattern remain unspecified here.
Complete corridor doors/trim clause. The source reads American red cherry and names trim explicitly; prior LIGHT AMERICAN ELM GREY transcription is disproved at this same locus. Does not establish installed material or a stain/finish process.
Drawing notation: DOORS & TRIM OF AMERICAN RED CHERRY.
Complete corridor doors/trim clause. The source reads American red cherry and names trim explicitly; prior LIGHT AMERICAN ELM GREY transcription is disproved at this same locus. Does not establish installed material or a stain/finish process.
Conflicting readings: detail-1269-1278-20261011e-1277-m4
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
Drawing notation: WALLS OF SELECTED ST. GENEVIEVE ROSE MARBLE
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
Drawing notation: ORNAMENTAL PLASTER CORNICE
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
Drawing notation: HARD FINISH PLASTER CEILING
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established. Review correction review-correction-20261014v-corridor-door-species: Same IMG1277 W240 corridor clause reads DOORS & TRIM OF AMERICAN RED CHERRY, not DOORS LIGHT AMERICAN ELM GREY. New[.684,.396,.785,.408] overlaps prior[.68,.398,.79,.413], same corridor target. Preserve old text, not a revision choice or installed finish approval. Separate valid courtroom cherry record stays verified; its old narrative comparison to corridor elm is superseded, not evidence against courtroom cherry.
Drawing notation: DOORS LIGHT AMERICAN ELM GREY
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
241 number
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
Drawing notation: SEE SHEET No. 241 FOR DETAILS
Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.
Printed courtroom note; corridor elm finish is a different assignment.
Drawing notation: AMERICAN RED CHERRY PANELLING
Printed courtroom note; corridor elm finish is a different assignment.
Finish attached to American red cherry courtroom paneling.
Drawing notation: STAINED & WAXED
Finish attached to American red cherry courtroom paneling.
Ceiling ornament material/process; no ornament dimensions inferred.
Drawing notation: ORNAMENTAL CAST PLASTER CEILING - POLYCHROMED
Ceiling ornament material/process; no ornament dimensions inferred.
Separate panel type within ceiling; thickness, product and exact panel boundary remain unresolved.
Drawing notation: ACOUSTIC CEILING PANELS
Separate panel type within ceiling; thickness, product and exact panel boundary remain unresolved.
