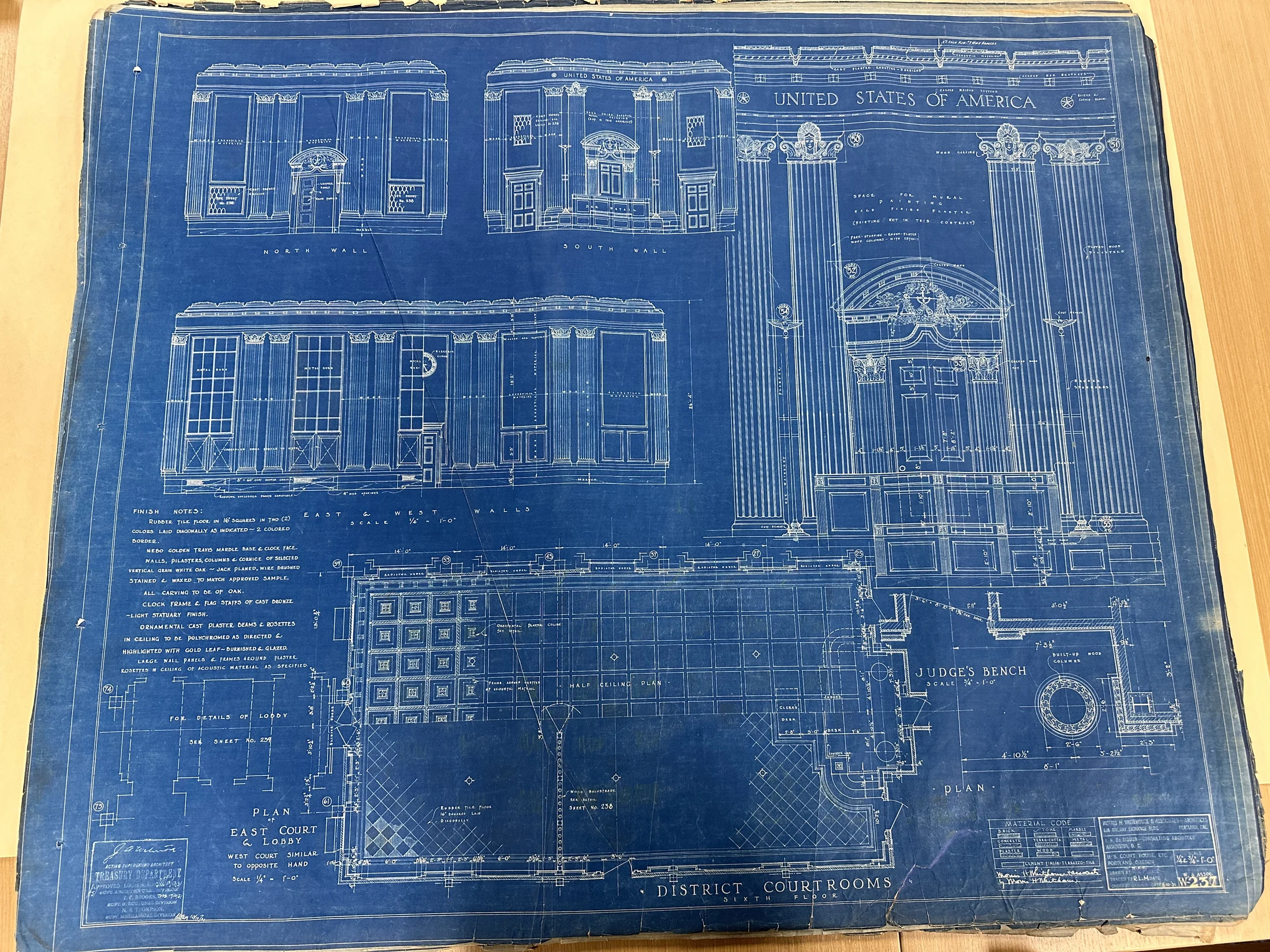

The measured building.

drawing_scale_paper_inches_per_building_foot

0.25 in

Drawing scale only; not a pixel calibration.

drawing_scale_paper_inches_per_building_foot

0.75 in

Drawing scale only; not a pixel calibration.

overall_plan_control

8.083333 ft

Bottom dimension line in enlarged bench plan. It is a local plan control; the incomplete outline prevents treating it as a complete 3D bounding box.

plan_chain_left_segment

4.875 ft

Left segment of the same bottom dimension chain; endpoint appears at the built-up-column centerline. Preserve independently from any inferred radius.

plan_chain_right_segment

3.208333 ft

Right segment of the bottom dimension chain. The two segment values sum to the printed 8'-1" overall control.

outside_diameter

2.5 ft

Dimension spans the drawn outside circle in the enlarged judge's-bench plan.

top_inside_plan_control

5.041667 ft

Horizontal dimension across the upper inside run of the enlarged bench plan; it is not an overall bench width.

right_return_plan_width

2.25 ft

Horizontal width printed below the right L-shaped return in the enlarged bench plan.

typical_wall_bay_span

14 ft

Repeated plan-section dimension above several bays with radiator-under notes. It establishes a bay module on W257 but does not independently establish the window opening width.

rubber_tile_square_size

16 in

rubber_tile_color_count

2 count

rubber_tile_layout

base_and_clock_face_material

wood_species_and_selection

wood_surface_finish

carving_material

clock_frame_and_flagstaff_material

general_light_statuary_finish

The exact surfaces governed by this isolated note require companion specification review.

beam_and_rosette_material

ornamental_ceiling_color_finish

panel_and_infill_relationship

ceiling_rosette_material

sash_material

overall_height

Numeric value unresolved

raised_floor_height

Numeric value unresolved

finished_opening_width

Numeric value unresolved

The printed 14'-0" bay module is not a window opening width.

finished_opening_height

Numeric value unresolved

finished_door_envelope

Numeric value unresolved

Companion sheet 238 is explicitly required; no apparent elevation measurement is promoted.

Physical courtroom component geometry gate

W257 is not registered to the accepted W8 room transform. The judge's bench lacks complete plan contour, height, profiles and dais relationship. Dais/raised-floor elevation is unresolved. Judge, clerk and counsel desk fabrication dimensions are unresolved. Witness stand, jury seating and public seating are not positively established in the reviewed W257 regions. Door and window finished envelopes are unresolved and companion details are unreviewed. Lighting symbols lack a verified fixture type, count and installation geometry. Wall, ceiling and carving profiles require companion detail/model sheets.

Source-linked analytical 2D control study permitted

1 count

Author a non-exported analytical 2D W257 bench-control study carrying every measurement ID.

W257 to W8 placement registration gate

No W257 component receives a building transform. W238 now independently classifies the W257 north wall as the W8 public-foyer face, but the remaining lateral hand, south/bench boundary, and metric controls are insufficient. The four-corner projective diagnostic remains non-authoring because its fitted controls are provisional and its bench-zone checks are circular. Only the north/public-foyer face is independently classified; the lateral side hand and the remaining fitted intersections are not independently identified finish-face controls. The W8 Room 602 south boundary is a coarse provisional trace through the bench/dais composition rather than a verified room-wall face chain. W257 combines the east and west wall elevation subject; W238 resolves the north/public face but does not resolve the lateral east/west hand. The four fitted controls have zero residual by construction and therefore do not validate the correspondence. The four candidate bench-zone comparisons were selected using the same interpreted bench/dais geometry and are not independent held-out checks. The diagnostic residuals are below the W8 trace uncertainty but cannot overcome incorrect or circular feature classification. No printed coordinate chain shared by both W257 and W8 has been reconciled.

Circular candidate bench-zone diagnostic RMS

1.521957 ft

No W257 component receives a building transform. W238 now independently classifies the W257 north wall as the W8 public-foyer face, but the remaining lateral hand, south/bench boundary, and metric controls are insufficient. The four-corner projective diagnostic remains non-authoring because its fitted controls are provisional and its bench-zone checks are circular. Only the north/public-foyer face is independently classified; the lateral side hand and the remaining fitted intersections are not independently identified finish-face controls. The W8 Room 602 south boundary is a coarse provisional trace through the bench/dais composition rather than a verified room-wall face chain. W257 combines the east and west wall elevation subject; W238 resolves the north/public face but does not resolve the lateral east/west hand. The four fitted controls have zero residual by construction and therefore do not validate the correspondence. The four candidate bench-zone comparisons were selected using the same interpreted bench/dais geometry and are not independent held-out checks. The diagnostic residuals are below the W8 trace uncertainty but cannot overcome incorrect or circular feature classification. No printed coordinate chain shared by both W257 and W8 has been reconciled.

Circular candidate bench-zone diagnostic maximum residual

2.239989 ft

No W257 component receives a building transform. W238 now independently classifies the W257 north wall as the W8 public-foyer face, but the remaining lateral hand, south/bench boundary, and metric controls are insufficient. The four-corner projective diagnostic remains non-authoring because its fitted controls are provisional and its bench-zone checks are circular. Only the north/public-foyer face is independently classified; the lateral side hand and the remaining fitted intersections are not independently identified finish-face controls. The W8 Room 602 south boundary is a coarse provisional trace through the bench/dais composition rather than a verified room-wall face chain. W257 combines the east and west wall elevation subject; W238 resolves the north/public face but does not resolve the lateral east/west hand. The four fitted controls have zero residual by construction and therefore do not validate the correspondence. The four candidate bench-zone comparisons were selected using the same interpreted bench/dais geometry and are not independent held-out checks. The diagnostic residuals are below the W8 trace uncertainty but cannot overcome incorrect or circular feature classification. No printed coordinate chain shared by both W257 and W8 has been reconciled.

W257 north wall to W8 public-foyer face identity

1 count

No W257 component receives a building transform. W238 now independently classifies the W257 north wall as the W8 public-foyer face, but the remaining lateral hand, south/bench boundary, and metric controls are insufficient. The four-corner projective diagnostic remains non-authoring because its fitted controls are provisional and its bench-zone checks are circular. Only the north/public-foyer face is independently classified; the lateral side hand and the remaining fitted intersections are not independently identified finish-face controls. The W8 Room 602 south boundary is a coarse provisional trace through the bench/dais composition rather than a verified room-wall face chain. W257 combines the east and west wall elevation subject; W238 resolves the north/public face but does not resolve the lateral east/west hand. The four fitted controls have zero residual by construction and therefore do not validate the correspondence. The four candidate bench-zone comparisons were selected using the same interpreted bench/dais geometry and are not independent held-out checks. The diagnostic residuals are below the W8 trace uncertainty but cannot overcome incorrect or circular feature classification. No printed coordinate chain shared by both W257 and W8 has been reconciled.

W238 7'-6-inch candidate control minus W8 traced public-door span

0.429 ft

No W257 component receives a building transform. W238 now independently classifies the W257 north wall as the W8 public-foyer face, but the remaining lateral hand, south/bench boundary, and metric controls are insufficient. The four-corner projective diagnostic remains non-authoring because its fitted controls are provisional and its bench-zone checks are circular. Only the north/public-foyer face is independently classified; the lateral side hand and the remaining fitted intersections are not independently identified finish-face controls. The W8 Room 602 south boundary is a coarse provisional trace through the bench/dais composition rather than a verified room-wall face chain. W257 combines the east and west wall elevation subject; W238 resolves the north/public face but does not resolve the lateral east/west hand. The four fitted controls have zero residual by construction and therefore do not validate the correspondence. The four candidate bench-zone comparisons were selected using the same interpreted bench/dais geometry and are not independent held-out checks. The diagnostic residuals are below the W8 trace uncertainty but cannot overcome incorrect or circular feature classification. No printed coordinate chain shared by both W257 and W8 has been reconciled.
