The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

IMG_1272 · Folder 189

SPECIAL TOILETS

Sheet W-235

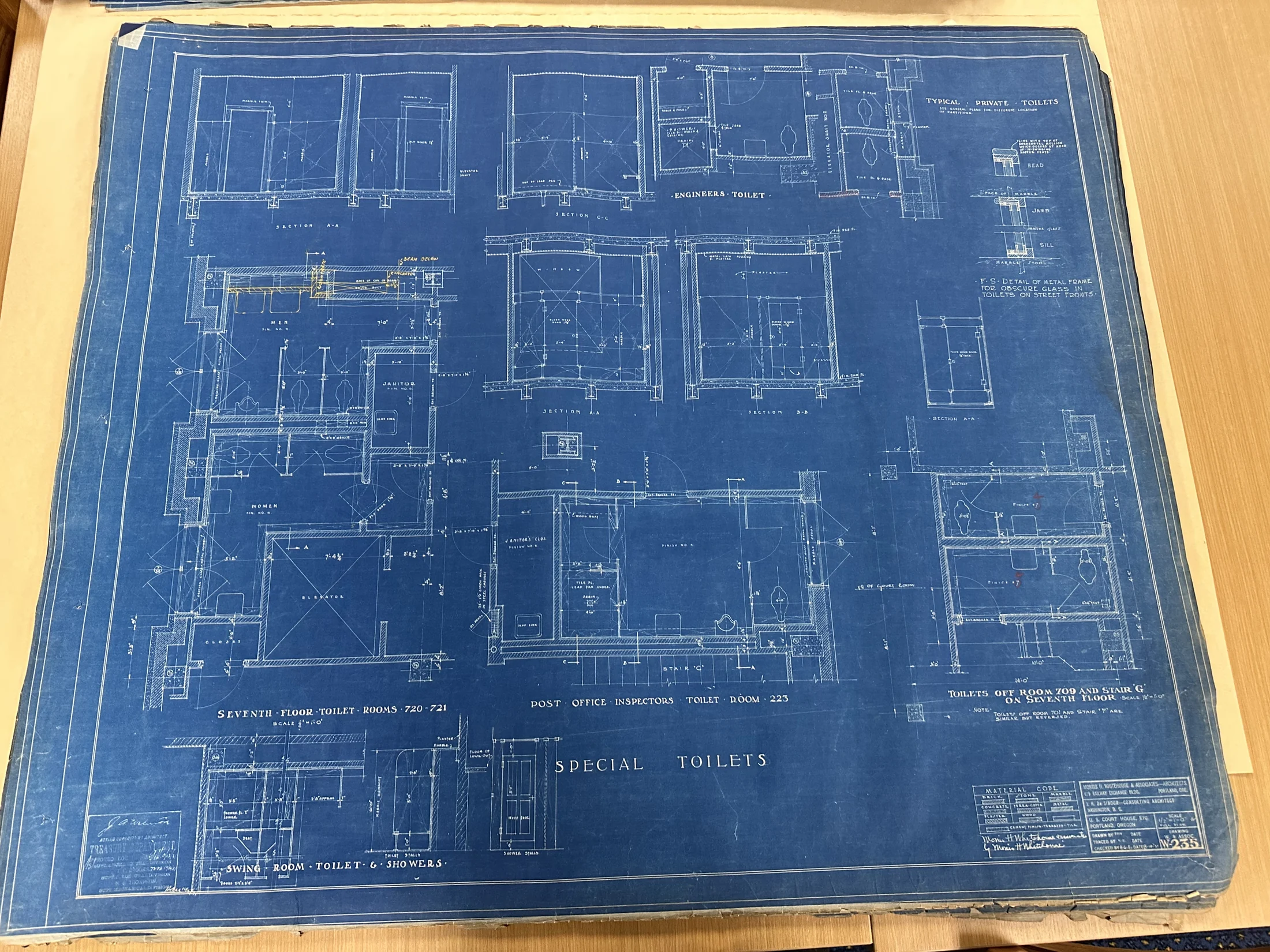

Extraction: Reviewed · extraction partial. Bounded W-235 review of Rooms 720–721, fixture symbols, compartment partitions, entries, janitor closet and toilet street-window detail. Bounded W-235 to seventh-floor-plan registration gate; component identities remain valid while all source-to-building placements are withheld. Partial timed visual review: Source-local swing-room toilet/shower details, bottom of upright W235. Crop [290,1250,950,1525] on 2200x1650 derivative; no installed floor or room assignment established. Partial timed visual review: Source-local design detail only; numeric controls refer to depicted endpoints, no world placement or installed quantity established.

Unresolved extraction work

W-235-to-IMG_1221 registration and accepted local/world transform
Exact finished-face polygons for Rooms 720 and 721
All room overall dimensions and ceiling heights
Secure printed type labels for every unlabeled fixture symbol
Fixture dimensions, manufacturers, elevations and rough-in offsets
Compartment construction, heights, doors and hardware
Room-entry door sizes, jambs, leaf counts, types and hardware
Finish No. 4 and Finish No. 6 material schedule decoding
Supply, waste, vent, floor-drain and cleanout connections
Exact window assembly instances for the full-size toilet street-front frame detail
All section dimensions, finish layers and material-code references
Revision, date and approval history
Accepted like-for-like endpoint classification on W-235 and IMG_1221: finish face, structural face or centerline
At least four independently recognizable controls distributed around the complete 720/721 block with reviewed point coordinates
At least two held-out controls with residuals within the adopted tolerance
Rectified or orthogonally scanned W-235 source, or a registered dimension network sufficient to avoid photographed line scaling
Accepted seventh-floor finished-face polygons for Rooms 720 and 721
Accepted Elevator No.1 shaft-face or clear-hatch geometry usable as an independent asymmetrical check
Printed offsets locating each fixture and partition from classified room faces
Private toilets, engineers toilet, Room223 and roof/stair-G toilet regions remain incomplete
Toilet finish schedule applicability and installed registrations unresolved
No full-sheet extraction completion
Remaining fine dimensions, fractions, notes and revisions require targeted review
Register installed instances and companion sheets; source-local properties do not establish accepted geometry
