Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
f1-elevator-2-clear-hatchverified · printed
clear_hatch_width
7'-0" CLEAR HATCH7 ft
Authoring eligibility: local-dimension-only. Placement eligibility: not-registered-to-W3. Source audit state: verified.
f1-elevator-2-clear-hatchverified · printed
clear_hatch_depth
10'-0" CLEAR HATCH10 ft
Authoring eligibility: local-dimension-only. Placement eligibility: not-registered-to-W3. Source audit state: verified.
f1-elevator-2-clear-hatchunreviewed · printed
secondary_horizontal_witness
7'-5 3/4"7.479167 ft
Authoring eligibility: none. Placement eligibility: none. Dependency: Confirm whether endpoints are cab, clear hatch, rail or enclosure faces. Source audit state: conditional.
f1-elevator-2verified · printed
designed_levels_served

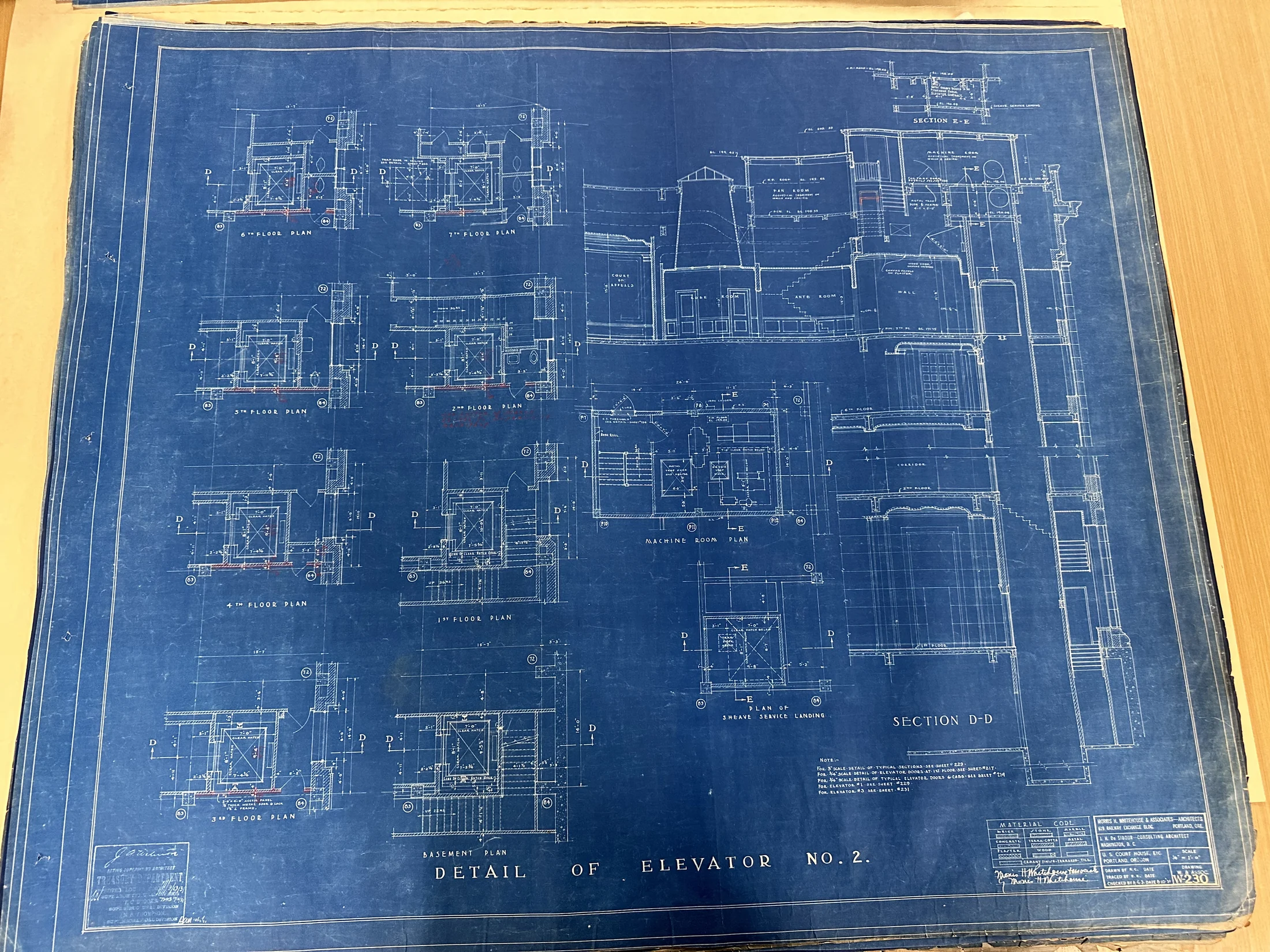

Basement through 7th floor plans on W230; B 1 2 3 4 5 6 7 indicatorAuthoring eligibility: route-inventory-only. Placement eligibility: no-common-shaft-yet. Source audit state: verified.
IMG_1097 · sheet-W217-candidate · Locate on drawing ↗Drawing notation: B 1 2 3 4 5 6 7; ELEVATOR POSITION INDICATOR; 3'-6"; 6'-9 3/4"; METAL ELEVATOR DOORS; CAST ORNAMENT; MARBLE PLINTH
W229 directs the first-floor Elevators 1 and 2 detail to W217, and the photographed elevation matches that subject, but this close-up does not include a readable title block. Numeric door records remain conditional until the W217 sheet identity and dimension endpoints are checked. Circled MODEL NO. 32/33/34 marks are detail-part model numbers, not elevator identities.
f1-elevator-2verified · printed
adjacent_printed_column_marks
72, 83, 84Authoring eligibility: cross-reference-only. Placement eligibility: none. Dependency: Accepted column-center registration not established for this detail sheet. Source audit state: verified.
f1-elevator-2unreviewed · printed
wall_or_enclosure_offset_witness_candidate
2'-0 1/4"2.020833 ft
Authoring eligibility: none. Placement eligibility: none. Dependency: Identify both witness endpoints and rough/finish faces. Source audit state: conditional.
f1-elevator-2unreviewed · printed
wall_or_enclosure_offset_witness_candidate
3'-1"3.083333 ft
Authoring eligibility: none. Placement eligibility: none. Dependency: Identify both witness endpoints and rough/finish faces. Source audit state: conditional.
f1-elevator-2verified · derived
detail_u_axis_world_vector
+u = +X west/BroadwayExact symbolic vector [1,0] retained in display metadata; the scalar value remains null.
f1-elevator-2verified · derived
detail_v_axis_world_vector
+v = +Z north/MainExact symbolic vector [0,1] retained in display metadata; the scalar value remains null.
f1-elevator-2unreviewed · observed
independent_registration_check_residual
Not availableThe three column controls close exactly because they define the frame. The independently classified 2-foot-0-1/4-inch and 3-foot-1-inch witnesses add east enclosure-face and clear-hatch world-X controls, but no independently accepted W3 corresponding face exists for a residual check.
f1-elevator-2-clear-hatchunreviewed · observed
world_transform
East-west edges accepted; complete transform not acceptedThe 3-foot-1-inch Column 83 witness and 7-foot clear width establish the east/west clear-hatch edges at world X = 66.083333/73.083333 feet. The verified 10-foot depth remains unplaced because both world-Z clear-hatch edges lack accepted named-axis offsets, so the complete transform remains null.
elevator-w229-w231-to-w3-registration-gateverified · observed
Physical elevator placement gate
FAIL — all three physical transforms withheldW229 and W230 retain defensible unit-scale symbolic column frames. W229 establishes the west outside Elevator 1 enclosure face at world X = -65.020833 ft and the 10-foot clear hatch's south/north edges at world Z = 46/56 ft, but its world-X hatch edges remain unresolved. W230 establishes the east outside Elevator 2 enclosure face at X = 65.020833 ft and its 7-foot clear hatch's east/west edges at X = 66.083333/73.083333 ft, but its world-Z hatch edges remain unresolved. Neither detail supplies a complete bounded hatch or shaft. W231 has no exact non-collinear frame, and W3's elevator polygons remain provisional traces with unknown boundary classes. Therefore every physical transform remains null.
elevator-w229-w231-to-w3-registration-gateverified · observed
Accepted symbolic detail-column frames
2 of 3; W229 and W230 only2 count
These unit-scale frames apply only to explicitly dimensioned coordinates tied to named columns; they do not place shaft, hatch, cab, door or landing faces.
elevator-w229-w231-to-w3-registration-gateverified · observed
Accepted physical elevator transforms
00 count
No physical transform is accepted for Elevator 1, 2 or 3.
elevator-w229-w231-to-w3-registration-gateverified · observed
Elevator 2 symbolic detail-column frame
Accepted for explicitly dimensioned local coordinates only1 count
Dimensioned coordinates explicitly tied to named W230 column axes only.
elevator-w229-w231-to-w3-registration-gateverified · observed
Elevator 2 accepted physical transform
Nonefail-physical-placement-hatch-z-edges-unresolved
f1-elevator-2-w230-east-enclosure-face-controlverified · derived
W230 Column 83 control world X
X = 63 ft63 ft
Column-axis control only, inherited from registration-W230-first-floor-column-frame-to-W3.
f1-elevator-2-w230-east-enclosure-face-controlverified · printed
Column 83 centerline to east outside enclosure face
2′0¼″2.020833 ft
One horizontal face-to-axis witness only; it does not establish the face length, wall thickness, shaft polygon or physical transform.
f1-elevator-2-w230-east-enclosure-face-controlverified · derived
East outside enclosure face world X
X = 65.020833 ft65.020833 ft
Accepted world coordinate for a zero-thickness analytical face datum only.
Calculated from: w230-control-column83-world-x, w230-e2-east-enclosure-face-to-column83-axis
f1-elevator-2-clear-hatchverified · printed
Column 83 centerline to east clear-hatch edge
3′1″3.083333 ft
First-floor clear-hatch world-X registration only; no world-Z edge is established.
f1-elevator-2-clear-hatchverified · derived
East clear-hatch edge world X
X = 66.083333 ft66.083333 ft
Accepted world coordinate for one clear-hatch edge only; world-Z limits remain unresolved.
Calculated from: w230-control-column83-world-x, w230-e2-clear-hatch-east-edge-to-column83-axis
f1-elevator-2-clear-hatchverified · derived
West clear-hatch edge world X
X = 73.083333 ft73.083333 ft
Accepted world coordinate for the opposite clear-hatch edge only; world-Z limits remain unresolved.
Calculated from: w230-e2-clear-hatch-east-edge-world-x, elevator-bank-first-e2-clear-hatch-width
f1-elevator-2-clear-hatchverified · derived
East outside enclosure face to east clear-hatch edge
1′0¾″1.0625 ft
One horizontal relationship between accepted zero-thickness controls; not a wall thickness.
Calculated from: w230-e2-clear-hatch-east-edge-to-column83-axis, w230-e2-east-enclosure-face-to-column83-axis
f1-elevator-2-clear-hatchunreviewed · observed
South clear-hatch edge world Z
UnresolvedNumeric value unresolved
Missing named-axis-to-edge witness.
f1-elevator-2-clear-hatchunreviewed · observed
North clear-hatch edge world Z
UnresolvedNumeric value unresolved
Missing named-axis-to-edge witness.
f1-elevator-2-w230-east-enclosure-face-controlunreviewed · observed
East outside enclosure face north endpoint world Z
UnresolvedNumeric value unresolved
No accepted endpoint witness.
f1-elevator-2-w230-east-enclosure-face-controlunreviewed · observed
East outside enclosure face south endpoint world Z
UnresolvedNumeric value unresolved
No accepted endpoint witness.
f1-elevator-2-w230-east-enclosure-face-controlunreviewed · observed
Elevator 2 enclosure wall thickness
UnresolvedNumeric value unresolved
No classified opposite-face witness.
f1-elevator-2-w230-east-enclosure-face-controlunreviewed · observed
Elevator 2 physical shaft transform
WithheldAccepted X coordinates are insufficient for a polygon or 3D transform.
f1-door-elevator-1unreviewed · inferred
exact_physical_front_to_back_depth
UnresolvedNumeric value unresolved
No classified section or plan chain bounds a physical front component's front and back faces. The W217 6-inch jamb widths and adjacent 2-inch witness are not depth measurements. Physical front and wall cut remain withheld.
f1-door-elevator-2unreviewed · inferred
exact_physical_front_to_back_depth
UnresolvedNumeric value unresolved
No classified section or plan chain bounds a physical front component's front and back faces. The W217 6-inch jamb widths and adjacent 2-inch witness are not depth measurements. Physical front and wall cut remain withheld.
f1-door-elevator-2unreviewed · inferred
accepted_host_face_and_wall_thickness
UnresolvedNumeric value unresolved
Bay P plan station and W230 east enclosure X datum do not classify a complete physical host face, wall thickness or construction return. Physical front and wall cut remain withheld.
