drawing_title

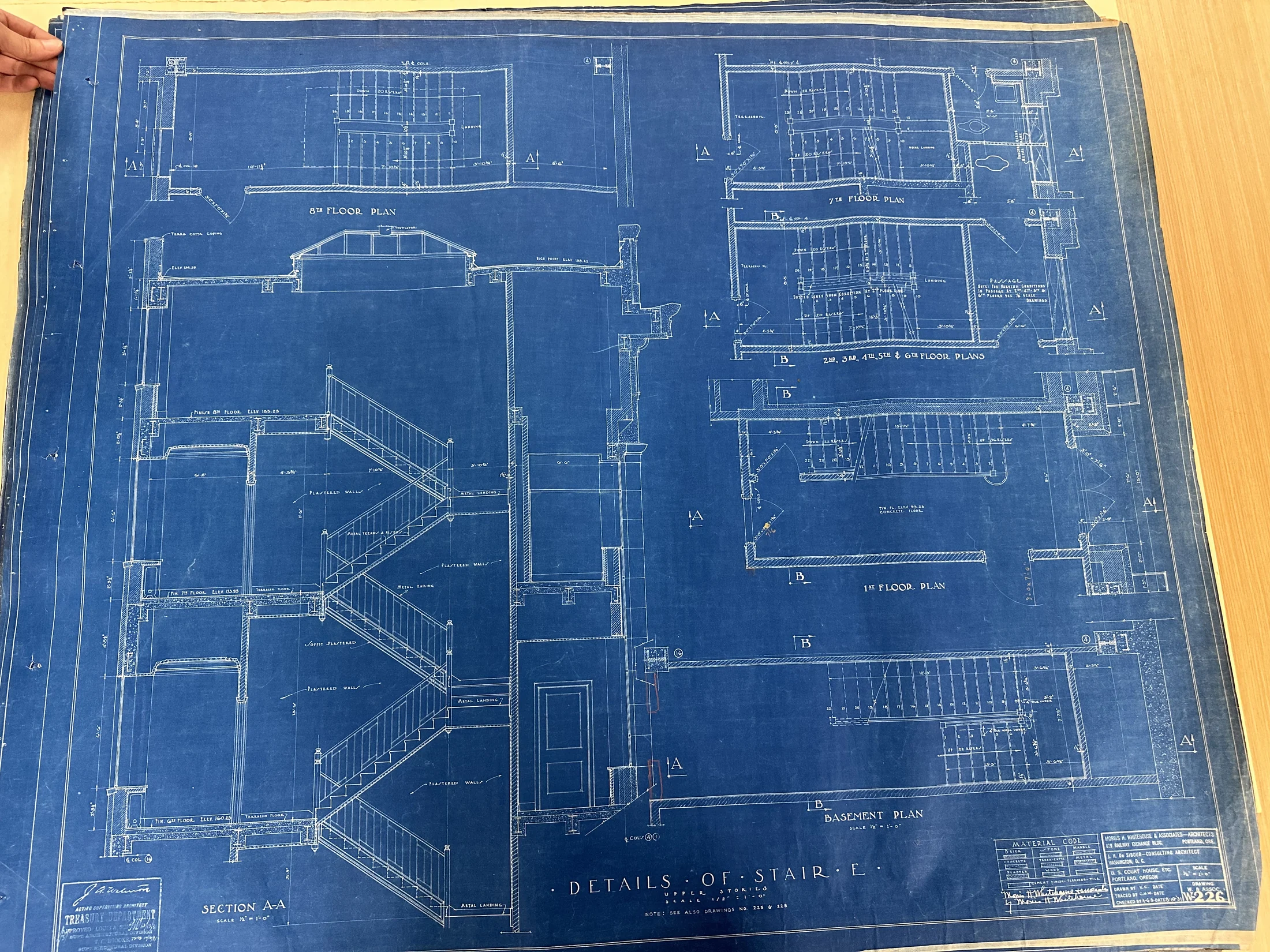

DETAILS OF STAIR EPartial drawing/detail evidence only; no installed geometry or count established.
Drawing notation: DETAILS OF STAIR E
Partial drawing/detail evidence only; no installed geometry or count established.
Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial sequential 1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1263.webp after OCR/catalogue and existing reports. Actual clockwise reading rotation 0 degrees. Normalized access-image regions before rotation. Full fine-region extraction remains outstanding. Partial timed visual review: Text-first OCR/queue/prior-package audit only; existing verified properties reused without duplication. Orientation not rechecked where null. Partial timed visual review: Text reuse only: prior verified evidence retained without duplication; no new visual review or completeness claim. Partial timed visual review: Bounded endpoint/profile regions only; no complete-sheet extraction or physical geometry approval. Partial timed visual review: undefined Partial timed visual review: Text reuse only; no fresh pixel evidence or exhaustive-review claim.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Partial drawing/detail evidence only; no installed geometry or count established.
Drawing notation: DETAILS OF STAIR E
Partial drawing/detail evidence only; no installed geometry or count established.
Partial drawing/detail evidence only; no installed geometry or count established.
Drawing notation: BASEMENT PLAN
Partial drawing/detail evidence only; no installed geometry or count established.
Partial drawing/detail evidence only; no installed geometry or count established.
Drawing notation: 1ST FLOOR PLAN
Partial drawing/detail evidence only; no installed geometry or count established.
Partial drawing/detail evidence only; no installed geometry or count established.
Drawing notation: 2nd,3rd,4th,5th & 6th floor plans
Partial drawing/detail evidence only; no installed geometry or count established.
Partial drawing/detail evidence only; no installed geometry or count established.
Drawing notation: 7TH FLOOR PLAN
Partial drawing/detail evidence only; no installed geometry or count established.
Partial drawing/detail evidence only; no installed geometry or count established.
Drawing notation: 8TH FLOOR PLAN
Partial drawing/detail evidence only; no installed geometry or count established.
Partial drawing/detail evidence only; no installed geometry or count established.
Drawing notation: SECTION A-A
Partial drawing/detail evidence only; no installed geometry or count established.
Partial drawing/detail evidence only; no installed geometry or count established.
Drawing notation: SEE ALSO DRAWINGS NO.225 & 228
Partial drawing/detail evidence only; no installed geometry or count established.
Partial drawing/detail evidence only; no installed geometry or count established.
Drawing notation: PLASTER WALL
Partial drawing/detail evidence only; no installed geometry or count established.
Partial drawing/detail evidence only; no installed geometry or count established.
Drawing notation: Orange marks in plans/sections [not transcribed]
Partial drawing/detail evidence only; no installed geometry or count established.
Numeric value unresolved
Partial drawing/detail evidence only; no installed geometry or count established.
Drawing notation: Riser counts, flight widths, storey-level controls, landing dimensions and 6th/7th exceptions unresolved
Partial drawing/detail evidence only; no installed geometry or count established.
147 in
Printed basement upper-flight horizontal projection from left terminal station22 to right turn station8. Independent printed witness, not inherited from the earlier7′0″+5′3″ candidate sum.
Drawing notation: 12′3″
Printed basement upper-flight horizontal projection from left terminal station22 to right turn station8. Independent printed witness, not inherited from the earlier7′0″+5′3″ candidate sum.
Calculated from: stair-closeout1013a-img_1116-m016
42.75 in
Basement lower-flight transverse source span. Outer wall/rail/string endpoint planes are unclassified; no physical clear width.
Drawing notation: 3′6¾″
Basement lower-flight transverse source span. Outer wall/rail/string endpoint planes are unclassified; no physical clear width.
42.75 in
Right turn-landing span between short-flight junction and inner drawn wall line. Endpoint class is source wall reference, not a registered finish face.
Drawing notation: 3′6¾″
Right turn-landing span between short-flight junction and inner drawn wall line. Endpoint class is source wall reference, not a registered finish face.
Endpoint review of the prior63-in projection. Existing lower drawn tread count reused; no recount or computed going.
Drawing notation: [5′3″ is between the left short-flight start line and the right numbered7 turn station]
Endpoint review of the prior63-in projection. Existing lower drawn tread count reused; no recount or computed going.
Calculated from: stair-closeout1013a-img_1116-m010
Source-local plan progression and bend only; exact landing elevation and 15-ft regional rise remain unresolved.
Drawing notation: [lower numbered strip proceeds page-right toward7; connector rises at right; upper strip proceeds page-left from8 toward22]
Source-local plan progression and bend only; exact landing elevation and 15-ft regional rise remain unresolved.
No universal180-degree building yaw or full landing walking-line geometry established.
Drawing notation: [counterclockwise reversal from right-going lower strip to left-going upper strip across the right landing in paper x-right/y-up frame]
No universal180-degree building yaw or full landing walking-line geometry established.
Numeric value unresolved
Printed local spans retained; accepted clear width withheld.
Drawing notation: [3′6¾″ strip/landing references do not classify railing intrusions or finished wall planes]
Printed local spans retained; accepted clear width withheld.
