Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Sheet W225
Extraction: Reviewed · extraction partial. Text-first review followed by one complete upright source and sequential crops from the same photograph. Reviewed title block, intermediate-landing plan, Sections A-A/B-B/C-C, gate detail, railing detail and major finish/component callouts. A later sequential Section A-A crop verified the depicted two-flight basement-to-first topology, three-flight first-to-second topology, associated landing counts, handrail-at-beam brace, flush wood block, terrazzo-floor/marble-base interface and unplastered basement joint. Duplicate/companion photographs IMG_1115 and IMG_1116 were identified but not opened. Partial timed visual review: Text-first OCR/queue/prior-package audit only; existing verified properties reused without duplication. Orientation not rechecked where null. Partial timed visual review: Section A-A basement-to-first independent tread recount. Two crops; upper dashed/hidden portion remains a candidate. Partial timed visual review: Bounded endpoint/profile regions only; no complete-sheet extraction or physical geometry approval. Partial timed visual review: Selected fine closure only; not exhaustive source extraction. Partial timed visual review: undefined Partial timed visual review: Text reuse only; no fresh pixel evidence or exhaustive-review claim.
Loading the selected drawing…

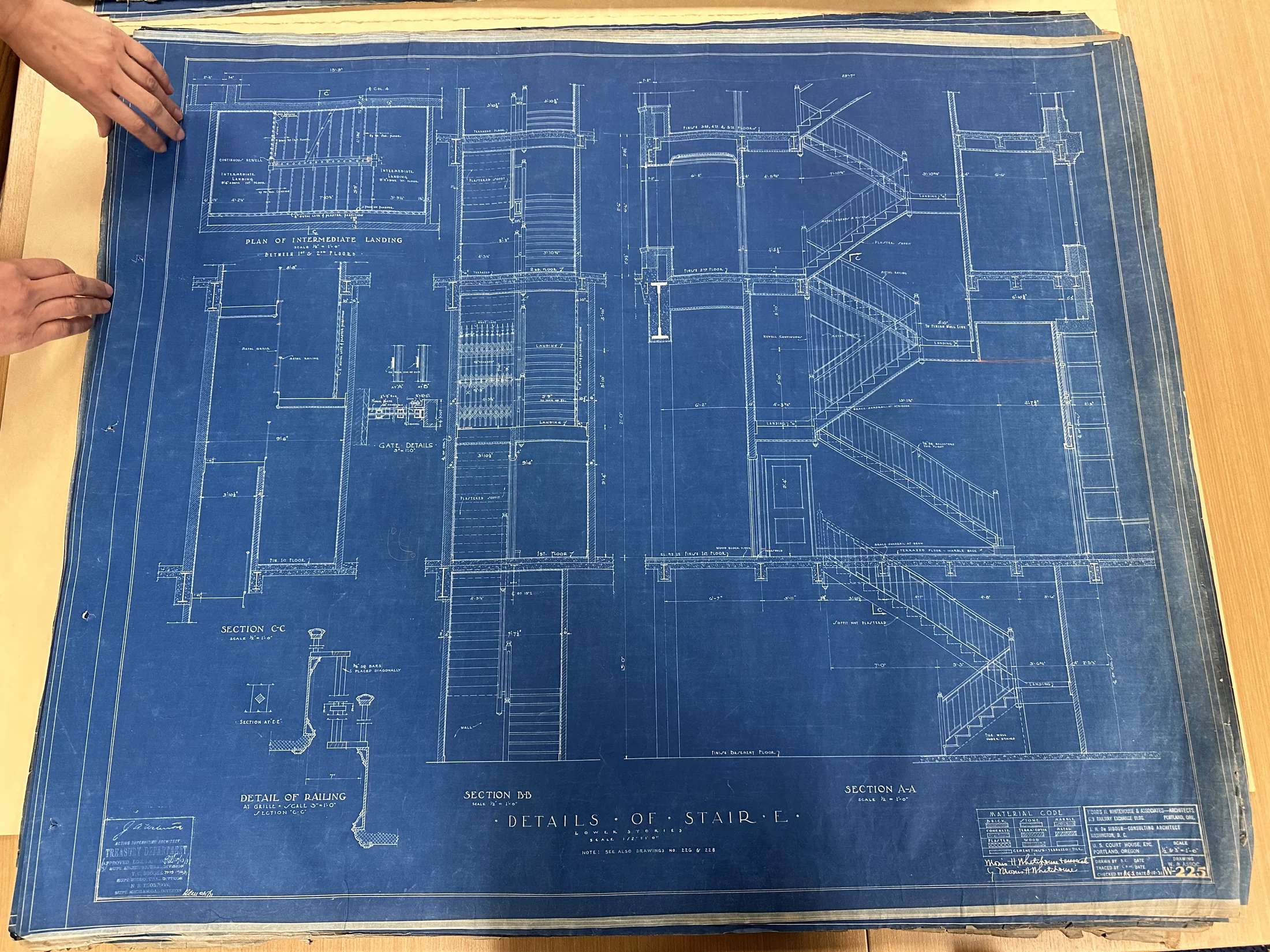

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Title and drawing number read from IMG_1262.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
0.5 in-per-ft
Printed beneath the lower-stories title; detail subviews carry their own scales.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
W226 is required for the continuation/other storeys and must be reviewed separately.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
W228 supplies common stair construction details; it does not establish W225 placement.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
21 ft
Printed vertical chain in Section B-B; agrees with the accepted local floor datums.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
15 ft
Printed vertical chain in Section B-B. It conflicts with the generic -13 ft basement reference and is therefore not applied to current geometry.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
93.25 ft-drawing-datum
Original drawing datum retained; local model datum conversion remains a separate property.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
Explicit caption below the intermediate-landing plan.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
3 storeys
W225 groups these finished-floor conditions; exact flight geometry and storey exceptions remain unresolved.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
1 boolean
Plan callout; exact vertical and horizontal extent remains unresolved.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
Repeated W225 section callout; material code and member sizes require detail transcription.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
Finish identity only.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
Finish/interface identity only.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
2 flights
Section A-A visibly depicts two stair flights separated by one intermediate landing. Individual riser counts and exact runs remain unresolved.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
1 landings
Topology observed in Section A-A; landing polygon, elevation and construction remain unresolved.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
3 flights
Section A-A visibly depicts three stair flights with two intermediate landings. Individual riser counts and exact runs remain unresolved.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
2 landings
Topology observed in Section A-A; landing polygons, elevations and construction remain unresolved.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
1 boolean
Printed construction relationship; no member size, fastener or exact beam identity is inferred.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
Printed material relationship; species, mix, profiles and thicknesses remain unresolved.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
1 boolean
Printed component/relationship; dimensions and host construction remain unresolved.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
0 plaster-applied-boolean
Printed finish omission; joint type and extent remain unresolved.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
No non-collinear source-to-plan control set has passed an overlay/residual check.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
Small dimension strings and companion W226/W228 details are not yet exhaustively reconciled; no treads, risers, landings or openings are physically authored from W225.
Drawing notation: DETAILS OF STAIR E / LOWER STORIES / W225
One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.
6 count
Master crop independently resolves six horizontals; includes the tread surfaces, excludes intermediate landing. No pixel distances used.
Drawing notation: [six separate horizontal tread surfaces below intermediate landing]
Master crop independently resolves six horizontals; includes the tread surfaces, excludes intermediate landing. No pixel distances used.
7 count
Conventional endpoint interpretation; retain as candidate pending explicit numbered/printed flight quantity.
Drawing notation: 6 drawn treads + 1 terminal rise
Conventional endpoint interpretation; retain as candidate pending explicit numbered/printed flight quantity.
Calculated from: stair-companion1013b-img_1262-m020
14 count
Consistent with prior IMG_1116 candidate14, but hidden/dashed first-floor continuation prevents full certified recount.
Drawing notation: [apparent fourteen horizontals including dashed/hidden continuation near first-floor slab]
Consistent with prior IMG_1116 candidate14, but hidden/dashed first-floor continuation prevents full certified recount.
15 count
7+15 remains candidate; printed 15-ft rise versus generic13-ft reference is unresolved and count agreement with22 does not resolve it.
Drawing notation: 14 candidate drawn treads + 1 terminal rise
7+15 remains candidate; printed 15-ft rise versus generic13-ft reference is unresolved and count agreement with22 does not resolve it.
Calculated from: stair-companion1013b-img_1262-m022
165 in
Top overall intermediate-landing plan source witness. Covers multiple flight/landing intervals; endpoints are exterior witness projections and not rail-to-rail clear distance. Review correction review-correction-20261013e-w225-plan-top: The targeted IMG1262 master re-read corroborates the previously recorded IMG1117 15ft9in witness. The earlier 13ft9in/165in transcription is retained but withdrawn from verified use; no handwritten revision or different witness is established. Neither reading certifies clear widths or physical landing geometry.
Drawing notation: 13′9″
Top overall intermediate-landing plan source witness. Covers multiple flight/landing intervals; endpoints are exterior witness projections and not rail-to-rail clear distance.
2 in
Printed partition thickness below intermediate plan. Assembly/source notation only, not a measured clear-width deduction.
Drawing notation: 2″ METAL LATH & PLASTER PARTITION
Printed partition thickness below intermediate plan. Assembly/source notation only, not a measured clear-width deduction.
Applies only to the indicated intermediate-plan boundary partition; no whole-enclosure finish assignment.
Drawing notation: METAL LATH & PLASTER PARTITION
Applies only to the indicated intermediate-plan boundary partition; no whole-enclosure finish assignment.
Numeric value unresolved
Left intermediate-landing annotation is present; exact digit/fraction reading withheld. Do not derive a landing elevation from flight count.
Drawing notation: 9′[remaining digits not certified] ABOVE1ST FLOOR
Left intermediate-landing annotation is present; exact digit/fraction reading withheld. Do not derive a landing elevation from flight count.
Numeric value unresolved
Right landing annotation is separately preserved; no implied equality with left landing.
Drawing notation: [digits not certified] ABOVE1ST FLOOR
Right landing annotation is separately preserved; no implied equality with left landing.
Observed boundaries are source drawn assembly references. Landing top elevations, finish/rough equivalence and complete polygon remain unresolved.
Drawing notation: [side landings join the two stacked horizontal flight strips; outer border has wall hatching and lower metal-lath/plaster partition note]
Observed boundaries are source drawn assembly references. Landing top elevations, finish/rough equivalence and complete polygon remain unresolved.
112 in
Left landing in W225 between-first-and-second plan; relative to first floor, not absolute building datum. No equal-rise interpolation.
Drawing notation: 9′4″ ABOVE 1ST FLOOR
Left landing in W225 between-first-and-second plan; relative to first floor, not absolute building datum. No equal-rise interpolation.
182 in
Right intermediate landing label in same plan; separate elevation from left landing. Source projection and physical registration remain distinct.
Drawing notation: 15′2″ ABOVE 1ST FLOOR
Right intermediate landing label in same plan; separate elevation from left landing. Source projection and physical registration remain distinct.
The current original printed token is unequivocally15′9″ in the same top-witness locus and extension-line chain previously recorded as13′9″ at region[0.16,0.072,0.346,0.1]. The second digit is5, not3; no different station or revision line is evident. This directly contradicts the older transcription while corroborating189in already preserved under stairs1012a-1117-m005. Keep old165in property intact with explicit conflict provenance; no duplicate189in property or automatic canonical correction.
Drawing notation: 15′9″ [current master crop]; prior IMG1117 15′9″ versus1013d IMG1262 13′9″
The current original printed token is unequivocally15′9″ in the same top-witness locus and extension-line chain previously recorded as13′9″ at region[0.16,0.072,0.346,0.1]. The second digit is5, not3; no different station or revision line is evident. This directly contradicts the older transcription while corroborating189in already preserved under stairs1012a-1117-m005. Keep old165in property intact with explicit conflict provenance; no duplicate189in property or automatic canonical correction.
Calculated from: stairs1012a-1117-m005, stair-endpoint1013d-img_1262-m023
Conflicting readings: stairs1012a-1117-m005 stair-endpoint1013d-img_1262-m023
70 in
Section B-B vertical witness from lower landing walking-surface line to upper landing walking-surface line. Distinct from top interval with same printed value.
Drawing notation: 5′10″
Section B-B vertical witness from lower landing walking-surface line to upper landing walking-surface line. Distinct from top interval with same printed value.
70 in
Section B-B witness from upper intermediate landing to second-floor finished walking-surface line.
Drawing notation: 5′10″
Section B-B witness from upper intermediate landing to second-floor finished walking-surface line.
B-B lower interval independently reads9′4″, matching plan left elevation; middle interval leads to plan15′2″. Existing21ft overall reused. Relationship only; no riser recipe or building transform.
Drawing notation: 9′4″ + 5′10″ + 5′10″ between1ST FLOOR and2ND FLOOR
B-B lower interval independently reads9′4″, matching plan left elevation; middle interval leads to plan15′2″. Existing21ft overall reused. Relationship only; no riser recipe or building transform.
Calculated from: stair-fine1013e-img_1262-m005, stair-fine1013e-img_1262-m006, w225-f1-f2-vertical-interval
