The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

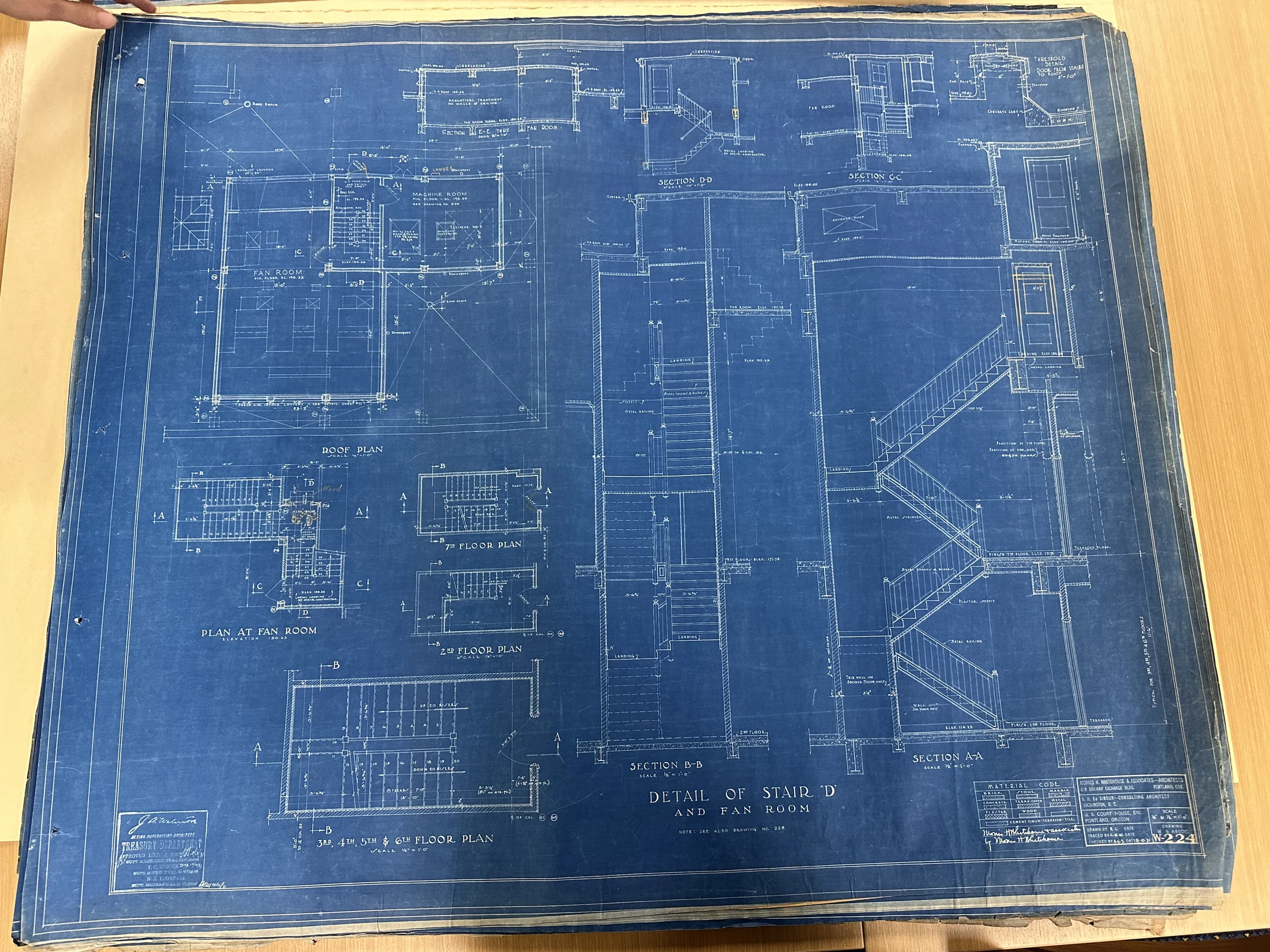

IMG_1261 · Folder 189

Detail of Stair D and Fan Room

Sheet W224

Extraction: Reviewed · extraction partial. Bounded duplicate-source review of W224's ordinary third-through-sixth-floor Stair D plan and its two placement witness chains. Partial timed visual review: Text-first OCR/queue/prior-package audit only; existing verified properties reused without duplication. Orientation not rechecked where null. Partial timed visual review: Whole access locator inspected to confirm reading orientation; diagnostic placement and fan-room acoustic evidence reused, no duplicate properties added. Partial timed visual review: Text reuse only: prior verified evidence retained without duplication; no new visual review or completeness claim. Partial timed visual review: Text reuse only: preserve existing verified stair counts/width controls and unresolved endpoint classes without new visual review or duplicate numeric readings. Partial timed visual review: Text reuse only; no fresh pixel evidence or exhaustive-review claim.

Unresolved extraction work

Independent proof that Columns 82 and 68 lie exactly on the candidate framing-line coordinates rather than at nonzero connection offsets
Rough-wall versus finish-wall classification for the 1-foot-4-inch witness endpoint
Exact wall line referenced by the 9-foot ordinate
Reconciliation of the non-closing provisional fourth-floor trace and the residual fifth-floor trace
Rough-versus-finish classification and independent plan reconciliation of the 4-foot-4-inch sixth-floor wall-witness variant
Accepted host wall, entry jamb, threshold and slab-opening geometry
Printed individual riser heights, construction thicknesses, stringers, rails, nosings, headroom and landing support
Remaining fractional dimensions and endpoint classes
Host wall, opening, landing and component profiles
Companion sheet registration and revision reconciliation
Independent placement/model checking
Non-closing plan traces and column/wall endpoint reconciliation
Host opening and threshold geometry
Full fabrication extraction
Independent model checking
Complete fine dimension chains and classified rough/finish endpoints
Source-to-building registration, landing polygons, slab openings and installed instances
Companion detail/revision authority and independent physical checks
Rail-to-rail clear width and rough/finish face classification remain unaccepted
Closed landing/slab-opening boundaries, physical elevations and headroom
Checked source-to-building transform and installed instance applicability
Full unreviewed notes, fine profiles, connections and revision authority
Complete fine dimension/profile chains, fasteners, connection details, material and finish extents remain partial.
Installed instances, floor applicability, governing revisions, closed landings/shaft boundaries, headroom, accepted registration and independent physical checks remain unresolved.
No pending source-reading IDs does not mean exhaustive review; unrecorded notes, profiles and structural interfaces still require coverage.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

28 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

f3-stair-d-w224-img1261-diagnostic-placementverified · printed

Alternate photograph sheet identity

DRAWING W224 / DETAIL OF STAIR D AND FAN ROOM

Corrects the locator-only catalog title; IMG_1261 is another photograph of W224, not merely a roof plan.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

f3-stair-d-w224-img1261-diagnostic-placementverified · printed

Ordinary-floor plan applicability

3RD, 4TH, 5TH & 6TH FLOOR PLAN

The candidate placement uses only the ordinary third-through-sixth-floor type; second, seventh, roof and fan-room variants remain separate.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

f3-stair-d-w224-img1261-diagnostic-placementverified · observed

1-foot-4-inch right-wall witness face classification

1'-4" (4'-4" 6TH FL.)

The clearer photograph corroborates the witness and its stair-side wall endpoint but still does not distinguish the rough wall line from the applied finish line; epsilonX remains null.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

f3-stair-d-w224-img1261-diagnostic-placementverified · observed

9-foot lower-wall witness face classification

9'-0" TO CL OF COL. 82

The alternate photograph corroborates the scalar and Column 82 endpoint, but the wall-side extension terminates among multiple wall/finish lines; epsilonZ remains null.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

f3-stair-d-w224-img1261-diagnostic-placementunreviewed · derived

Conditional diagnostic origin X

34.5 ft

34.5 ft

Display candidate only. Arithmetic precision does not establish either zero-valued assumption.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: interior-68-82-column-82-candidate-x, f3-stair-d-placement-axis-to-right-boundary, stair-d-w224-overall-length, assumption-interior-longitudinal-framing-line-equals-column-control, stair-d-wall-witness-correction-x

f3-stair-d-w224-img1261-diagnostic-placementverified · derived

Conditional diagnostic origin Y

32.5 ft

32.5 ft

The vertical datum is accepted; individual riser elevations remain conditional because equal 6.9-inch risers are inferred.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: f3-stair-d-placement-canonical-base-y

f3-stair-d-w224-img1261-diagnostic-placementunreviewed · derived

Conditional diagnostic origin Z

39 ft

39 ft

Display candidate only. Arithmetic precision does not establish either zero-valued assumption.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: interior-68-82-column-82-candidate-z, f3-stair-d-placement-lower-wall-to-column82, stair-d-w224-overall-width, assumption-column-82-transverse-line-equals-column-control, stair-d-wall-witness-correction-z

f3-stair-d-w224-img1261-diagnostic-placementverified · observed

Accepted Stair D building transform

Unresolved

Withheld until Column 82 center coordinates and both wall-face corrections are independently established.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

f3-stair-d-w224-img1261-diagnostic-placementverified · observed

Accepted physical Stair D geometry

Unresolved

The 41 zero-thickness analytical faces are not tread/landing construction, stringers, soffits, rails or a validated slab opening.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

f4-stair-d-w224-img1261-diagnostic-placementunreviewed · derived

Conditional diagnostic origin X

34.5 ft

34.5 ft

Display candidate only. The existing fourth-floor traced footprint does not close against this placement and remains a separate unresolved control.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: img1261-w224-diagnostic-origin-x, img1261-w224-ordinary-plan-applicability

f4-stair-d-w224-img1261-diagnostic-placementverified · derived

Conditional diagnostic origin Y

44 ft

44 ft

The floor datum is accepted; the individual equal-riser elevations remain inferred.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: env-sixth-F4-level, frame-first-floor-finish

f4-stair-d-w224-img1261-diagnostic-placementunreviewed · derived

Conditional diagnostic origin Z

39 ft

39 ft

Display candidate only. Arithmetic precision does not establish the unresolved column and wall-face corrections.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: img1261-w224-diagnostic-origin-z, img1261-w224-ordinary-plan-applicability

f4-stair-d-w224-img1261-diagnostic-placementverified · traced

Fourth-floor provisional trace coordination

Unresolved

The provisional fourth-floor trace spans approximately X 38.7–60 and Z 33.9–46.4 feet, while the W224 zero-offset candidate spans X 34.5–50.3333 and Z 39–47 feet. The mismatch is exposed in preview and is not averaged away.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: f4-stair-d-footprint-trace, img1261-w224-f4-diagnostic-origin-x, img1261-w224-f4-diagnostic-origin-z

f4-stair-d-w224-img1261-diagnostic-placementverified · observed

Accepted fourth-floor Stair D building transform

Unresolved

Withheld until the column/wall offsets and the conflicting fourth-floor trace are reconciled.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

f5-stair-d-w224-img1261-diagnostic-placementunreviewed · derived

Conditional diagnostic origin X

34.5 ft

34.5 ft

Display candidate only. The nearby provisional fifth-floor trace is corroborative but not an accepted metric transform.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: img1261-w224-diagnostic-origin-x, img1261-w224-ordinary-plan-applicability

f5-stair-d-w224-img1261-diagnostic-placementverified · derived

Conditional diagnostic origin Y

55.5 ft

55.5 ft

The floor datum is accepted; the individual equal-riser elevations remain inferred.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: env-sixth-F5-level, frame-first-floor-finish

f5-stair-d-w224-img1261-diagnostic-placementunreviewed · derived

Conditional diagnostic origin Z

39 ft

39 ft

Display candidate only. Arithmetic precision does not establish the unresolved column and wall-face corrections.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: img1261-w224-diagnostic-origin-z, img1261-w224-ordinary-plan-applicability

f5-stair-d-w224-img1261-diagnostic-placementverified · traced

Fifth-floor provisional trace coordination

Unresolved

The provisional fifth-floor trace spans approximately X 34.578–49.937 and Z 37.674–46.531 feet, close to but not coincident with the W224 zero-offset candidate X 34.5–50.3333 and Z 39–47 feet. The residual is retained for review.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: f5-stair-d-footprint-trace, img1261-w224-f5-diagnostic-origin-x, img1261-w224-f5-diagnostic-origin-z

f5-stair-d-w224-img1261-diagnostic-placementverified · observed

Accepted fifth-floor Stair D building transform

Unresolved

Withheld until the column/wall offsets and the provisional fifth-floor trace are reconciled.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

f6-stair-d-w224-img1261-diagnostic-placementverified · printed

Sixth-floor right-wall witness

4'-4" ON 6TH FL.

4.333333 ft

The parenthetical is attached to the same plan witness used for 1 foot 4 inches on the lower ordinary floors. Rough-versus-finish classification remains unresolved.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: img1261-w224-right-wall-witness-status

f6-stair-d-w224-img1261-diagnostic-placementverified · printed

Sixth-floor floor-landing depth

6'-1 1/4" ON 6TH FL.

6.104167 ft

IMG_1261 independently corroborates the sixth-floor landing exception already extracted from duplicate W224 photograph IMG_1114. Only the zero-thickness landing surface is changed in the diagnostic recipe.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: stair-d-w224-floor-landing-sixth-exception

f6-stair-d-w224-img1261-diagnostic-placementverified · derived

Sixth-floor floor-landing local start U

9.729166666666668 ft

9.729167 ft

Asset-local analytical coordinate only; it does not establish landing thickness, edge construction or world placement.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: stair-d-w224-overall-length, img1261-w224-f6-floor-landing-depth

f6-stair-d-w224-img1261-diagnostic-placementunreviewed · derived

Conditional sixth-floor diagnostic origin X

37.5 ft

37.5 ft

Display candidate only. The distinct sixth-floor witness moves the literal zero-offset candidate three feet relative to the lower-floor candidate; that shift is not accepted.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: interior-68-82-column-82-candidate-x, img1261-w224-f6-wall-witness, stair-d-w224-overall-length, assumption-interior-longitudinal-framing-line-equals-column-control, stair-d-wall-witness-correction-x

f6-stair-d-w224-img1261-diagnostic-placementverified · derived

Conditional sixth-floor diagnostic origin Y

67 ft

67 ft

The floor datum is accepted; the individual equal-riser elevations remain inferred.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: frame-sixth-floor-finish, frame-first-floor-finish

f6-stair-d-w224-img1261-diagnostic-placementunreviewed · derived

Conditional sixth-floor diagnostic origin Z

39 ft

39 ft

Display candidate only. Arithmetic precision does not establish the unresolved column and wall-face corrections.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: img1261-w224-diagnostic-origin-z, img1261-w224-ordinary-plan-applicability

f6-stair-d-w224-img1261-diagnostic-placementverified · traced

Sixth-floor provisional trace coordination

Unresolved

The provisional sixth-floor trace spans approximately X 34.064–51.605 and Z 38.224–46.887 feet, while the literal W224 zero-offset exception candidate spans X 37.5–53.3333 and Z 39–47 feet. The disagreement remains visible and is not averaged away.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

Calculated from: f6-stair-d-footprint-trace, img1261-w224-f6-diagnostic-origin-x, img1261-w224-f6-diagnostic-origin-z

f6-stair-d-w224-img1261-diagnostic-placementverified · observed

Accepted sixth-floor Stair D building transform

Unresolved

Withheld until the sixth-floor wall face, column offsets and conflicting plan trace are reconciled.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

f6-stair-d-w224-img1261-diagnostic-placementverified · observed

Accepted physical sixth-floor Stair D geometry

Unresolved

The diagnostic changes only the printed floor-landing surface depth. It does not establish construction thickness, stringers, soffits, rails, stair-hall walls or the slab opening.

IMG_1261 · sheet-W224 · Locate on drawing ↗

Drawing notation: W224 / DETAIL OF STAIR D AND FAN ROOM / 3RD, 4TH, 5TH & 6TH FLOOR PLAN / 1'-4" (4'-4" ON 6TH FL.) / 6'-1 1/4" ON 6TH FL. / 9'-0" TO CL OF COL. 82

Alternate W224 photograph. Printed controls and the sixth-floor landing exception are corroborated; every candidate building transform remains conditional on explicit column and wall-face offsets.

View all source photographs →
