The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

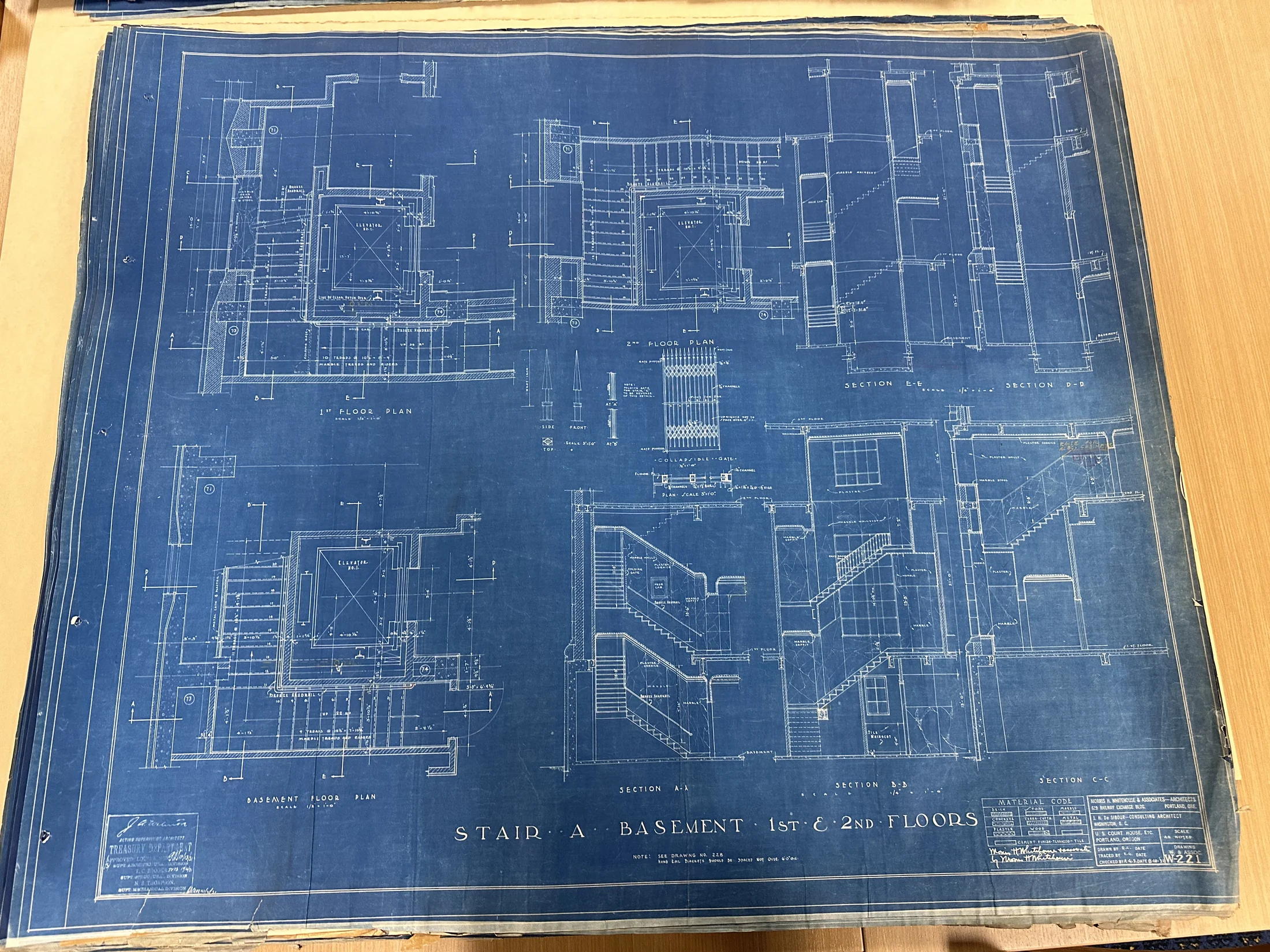

IMG_1258 · Folder 189

Stair A Basement 1St & 2Nd: Floors

Sheet number unresolved

Extraction: Reviewed · extraction partial. Bounded review of W221: basement, first- and second-floor Stair A plans; Sections A-A, C-C, D-D and E-E; collapsible-gate detail; finish callouts; title and handrail note. The duplicate photograph IMG_1110 was identified from text metadata but was not opened. Stair A first-floor flight/landing/slab-cut physical gate; no solid authorized. Stair A first-floor flight/landing/slab-cut physical gate; no solid authorized. Stair A first-floor flight/landing/slab-cut physical gate; no solid authorized. Stair A first-floor flight/landing/slab-cut physical gate; no solid authorized. Stair A first-floor flight/landing/slab-cut physical gate; no solid authorized. Stair A first-floor flight/landing/slab-cut physical gate; no solid authorized. Stair A first-floor flight/landing/slab-cut physical gate; no solid authorized. Stair A first-floor flight/landing/slab-cut physical gate; no solid authorized. Stair A first-floor flight/landing/slab-cut physical gate; no solid authorized. Stair A first-floor flight/landing/slab-cut physical gate; no solid authorized. Stair A first-floor flight/landing/slab-cut physical gate; no solid authorized. Stair A first-floor flight/landing/slab-cut physical gate; no solid authorized. Stair A first-floor flight/landing/slab-cut physical gate; no solid authorized. Partial timed visual review: Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established. Partial timed visual review: Source-local printed detail only; no installed registration or accepted geometry. Partial timed visual review: Text reuse only: prior verified evidence retained without duplication; no new visual review or completeness claim. Partial timed visual review: Text reuse only: preserve existing verified stair counts/width controls and unresolved endpoint classes without new visual review or duplicate numeric readings. Partial timed visual review: Text reuse only; no fresh pixel evidence or exhaustive-review claim.

Unresolved extraction work
  • Exhaustive transcription of every dimension, wall build-up and detail callout
  • Accepted local-to-building registration of W221
  • Exact clear stair width and rough/finish face classification
  • Landing construction, stringers, nosings, soffits and slab openings
  • Handrail profile, bracket detail from W228 and exact start/termination geometry
  • Elevator shaft, hatch and enclosure-wall construction
  • Door, folding-gate, hose-cabinet and tile-wainscot dimensions
  • Independent source-overlay residual checks
  • exact start/end XZ
  • clear/structural width
  • first and last tread edge classification
  • nosing/profile
  • riser-by-flight allocation
  • landing interface
  • structural thickness
  • underside/soffit
  • headroom
  • intermediate landing boundary/elevation
  • closed physical polygon
  • finish and structural faces
  • thickness
  • checked landing elevation
  • flight connection edges
  • enclosure-wall interface
  • closed slab-cut polygon
  • classified slab edge versus wall or tread
  • edge elevations
  • slab thickness
  • beam/landing-bearing interfaces
  • checked W221/W3 registration
  • Remaining small dimension fractions, profile boundaries, fasteners and dense notes require targeted master/clearer companion review
  • Installed instances, quantities, room registration and revisions remain unresolved
  • All-region measured extraction and architectural acceptance remain incomplete
  • Full dimension/profile chains and remaining notes
  • Installed registration, quantities and revision/companion authority
  • Complete fine dimension chains and classified rough/finish endpoints
  • Source-to-building registration, landing polygons, slab openings and installed instances
  • Companion detail/revision authority and independent physical checks
  • Rail-to-rail clear width and rough/finish face classification remain unaccepted
  • Closed landing/slab-opening boundaries, physical elevations and headroom
  • Checked source-to-building transform and installed instance applicability
  • Full unreviewed notes, fine profiles, connections and revision authority
  • Complete fine dimension/profile chains, fasteners, connection details, material and finish extents remain partial.
  • Installed instances, floor applicability, governing revisions, closed landings/shaft boundaries, headroom, accepted registration and independent physical checks remain unresolved.
  • No pending source-reading IDs does not mean exhaustive review; unrecorded notes, profiles and structural interfaces still require coverage.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

46 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

f1-f2-stair-a-w221-diagnostic-placementverified · printed

Drawing identity

W221 · STAIR A BASEMENT 1ST & 2ND FLOORS

Title and drawing number read from the inspected IMG_1258 sheet.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: STAIR A BASEMENT 1ST & 2ND FLOORS / W221

One complete source and sequential crops from this same photograph were inspected after OCR/index review. Pixel distances were not treated as printed dimensions.

b1-stair-a-w221-diagnostic-placementverified · printed

Basement-to-first total risers

UP 22 R

22 count

Total marked rise from the basement plan.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: BASEMENT FLOOR PLAN / UP 22 R / 9 TREADS @ 10 1/2" = 7'-10 1/2" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

Basement Stair A plan around Elevator No. 1.

b1-stair-a-w221-diagnostic-placementunreviewed · inferred

Equal-riser analytical height

0.590909 ft (13 ft / 22; inferred)

0.590909 ft

Analytical subdivision only. Individual risers were not dimensioned separately on the reviewed regions.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: BASEMENT FLOOR PLAN / UP 22 R / 9 TREADS @ 10 1/2" = 7'-10 1/2" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

Basement Stair A plan around Elevator No. 1.

Calculated from: w221-b1-rise, w221-b1-total-risers

stair-a-w221-b1-flight-01verified · printed

Tread count

9 treads

9 count

North flight in the basement plan.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: BASEMENT FLOOR PLAN / UP 22 R / 9 TREADS @ 10 1/2" = 7'-10 1/2" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

Basement Stair A plan around Elevator No. 1.

stair-a-w221-b1-flight-01verified · printed

Tread going

10 1/2 in

0.875 ft

Printed tread going converted to feet.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: BASEMENT FLOOR PLAN / UP 22 R / 9 TREADS @ 10 1/2" = 7'-10 1/2" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

Basement Stair A plan around Elevator No. 1.

stair-a-w221-b1-flight-02verified · printed

Tread count

11 treads

11 count

East flight in the basement plan; the two-flight tread total reconciles with 22 risers.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: BASEMENT FLOOR PLAN / UP 22 R / 9 TREADS @ 10 1/2" = 7'-10 1/2" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

Basement Stair A plan around Elevator No. 1.

stair-a-w221-b1-flight-02verified · printed

Tread going

10 1/2 in

0.875 ft

Printed tread going converted to feet.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: BASEMENT FLOOR PLAN / UP 22 R / 9 TREADS @ 10 1/2" = 7'-10 1/2" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

Basement Stair A plan around Elevator No. 1.

f1-f2-stair-a-w221-diagnostic-placementverified · printed

First-to-second total risers

UP 36 R

36 count

Total marked rise from the first-floor plan.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 1ST FLOOR PLAN / UP 36 R / 10 TREADS @ 10 1/2" = 8'-9" / 12 TREADS @ 10 1/2" = 10'-6" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

First-floor Stair A plan around Elevator No. 1.

f1-f2-stair-a-w221-diagnostic-placementverified · derived

Equal-riser analytical height

7 in (21 ft / 36)

0.583333 ft

Exact arithmetic from verified floor datums and the printed total count; local finish thickness remains unresolved.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 1ST FLOOR PLAN / UP 36 R / 10 TREADS @ 10 1/2" = 8'-9" / 12 TREADS @ 10 1/2" = 10'-6" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

First-floor Stair A plan around Elevator No. 1.

Calculated from: w221-f1-f2-rise, w221-f1-f2-total-risers

stair-a-w221-f1-f2-flight-01verified · printed

Tread count

10 treads

10 count

North flight in the first-floor plan.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 1ST FLOOR PLAN / UP 36 R / 10 TREADS @ 10 1/2" = 8'-9" / 12 TREADS @ 10 1/2" = 10'-6" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

First-floor Stair A plan around Elevator No. 1.

stair-a-w221-f1-f2-flight-01verified · printed

Tread going

10 1/2 in

0.875 ft

Printed tread going converted to feet.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 1ST FLOOR PLAN / UP 36 R / 10 TREADS @ 10 1/2" = 8'-9" / 12 TREADS @ 10 1/2" = 10'-6" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

First-floor Stair A plan around Elevator No. 1.

stair-a-w221-f1-f2-flight-02verified · printed

Tread count

12 treads

12 count

East flight shown through the first-/second-floor plans.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 1ST FLOOR PLAN / UP 36 R / 10 TREADS @ 10 1/2" = 8'-9" / 12 TREADS @ 10 1/2" = 10'-6" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

First-floor Stair A plan around Elevator No. 1.

stair-a-w221-f1-f2-flight-02verified · printed

Tread going

10 1/2 in

0.875 ft

Printed tread going converted to feet.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 1ST FLOOR PLAN / UP 36 R / 10 TREADS @ 10 1/2" = 8'-9" / 12 TREADS @ 10 1/2" = 10'-6" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

First-floor Stair A plan around Elevator No. 1.

stair-a-w221-f1-f2-flight-03verified · printed

Tread count

11 treads

11 count

South flight in the second-floor plan.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 2ND FLOOR PLAN / 11 TREADS @ 10 1/2" = 9'-7 1/2" / BRONZE HANDRAIL

Second-floor Stair A plan and upper flight.

stair-a-w221-f1-f2-flight-03verified · printed

Tread going

10 1/2 in

0.875 ft

Printed tread going converted to feet.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 2ND FLOOR PLAN / 11 TREADS @ 10 1/2" = 9'-7 1/2" / BRONZE HANDRAIL

Second-floor Stair A plan and upper flight.

f1-f2-stair-a-w221-diagnostic-placementunreviewed · traced

Analytical flight display width

4 ft traced display width; not an accepted clear dimension

4 ft · estimated uncertainty ±0.5 ft

Scaled only to keep the analytical tread surfaces inside the independently registered Stair A envelopes. No printed width has yet been accepted.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: BASEMENT FLOOR PLAN / UP 22 R / 9 TREADS @ 10 1/2" = 7'-10 1/2" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

Basement Stair A plan around Elevator No. 1.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 1ST FLOOR PLAN / UP 36 R / 10 TREADS @ 10 1/2" = 8'-9" / 12 TREADS @ 10 1/2" = 10'-6" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

First-floor Stair A plan around Elevator No. 1.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 2ND FLOOR PLAN / 11 TREADS @ 10 1/2" = 9'-7 1/2" / BRONZE HANDRAIL

Second-floor Stair A plan and upper flight.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: SECTION A-A / SECTION C-C / SECTION D-D / SECTION E-E / MARBLE WALLS / MARBLE PANELS / PLASTER CORNICE / BRONZE HANDRAIL / HOSE CAB.

Sections establish the three-storey relationship and finish/component identities; they do not by themselves register the stair in building X/Z.

f1-f2-stair-a-w221-diagnostic-placementunreviewed · derived

Diagnostic X/Z placement uncertainty

2.5 ft conservative trace allowance

2.5 ft

The diagnostic is fitted to the existing W3/W4 source traces. This is not an accepted W221 registration.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: BASEMENT FLOOR PLAN / UP 22 R / 9 TREADS @ 10 1/2" = 7'-10 1/2" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

Basement Stair A plan around Elevator No. 1.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 1ST FLOOR PLAN / UP 36 R / 10 TREADS @ 10 1/2" = 8'-9" / 12 TREADS @ 10 1/2" = 10'-6" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

First-floor Stair A plan around Elevator No. 1.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 2ND FLOOR PLAN / 11 TREADS @ 10 1/2" = 9'-7 1/2" / BRONZE HANDRAIL

Second-floor Stair A plan and upper flight.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: SECTION A-A / SECTION C-C / SECTION D-D / SECTION E-E / MARBLE WALLS / MARBLE PANELS / PLASTER CORNICE / BRONZE HANDRAIL / HOSE CAB.

Sections establish the three-storey relationship and finish/component identities; they do not by themselves register the stair in building X/Z.

Calculated from: f1-stair-a-footprint-trace, f2-stair-a-footprint-trace

stair-a-w221-marble-finish-assemblyverified · printed

Documented finish scope

MARBLE TREADS AND RISERS / MARBLE WALLS / MARBLE PANELS

The callouts establish material categories, not species, thickness, panel joints or complete extents.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 1ST FLOOR PLAN / UP 36 R / 10 TREADS @ 10 1/2" = 8'-9" / 12 TREADS @ 10 1/2" = 10'-6" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

First-floor Stair A plan around Elevator No. 1.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: SECTION A-A / SECTION C-C / SECTION D-D / SECTION E-E / MARBLE WALLS / MARBLE PANELS / PLASTER CORNICE / BRONZE HANDRAIL / HOSE CAB.

Sections establish the three-storey relationship and finish/component identities; they do not by themselves register the stair in building X/Z.

stair-a-w221-bronze-handrail-assemblyverified · printed

Handrail material

BRONZE HANDRAIL

Material callout only.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 1ST FLOOR PLAN / UP 36 R / 10 TREADS @ 10 1/2" = 8'-9" / 12 TREADS @ 10 1/2" = 10'-6" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

First-floor Stair A plan around Elevator No. 1.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: SECTION A-A / SECTION C-C / SECTION D-D / SECTION E-E / MARBLE WALLS / MARBLE PANELS / PLASTER CORNICE / BRONZE HANDRAIL / HOSE CAB.

Sections establish the three-storey relationship and finish/component identities; they do not by themselves register the stair in building X/Z.

stair-a-w221-bronze-handrail-assemblyverified · printed

Maximum handrail-bracket spacing

NOT OVER 6'-0" O.C.

6 ft

W221 directs the bracket detail to W228; the 6-foot maximum is retained without generating a bracket count.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: NOTE: SEE DRAWING NO. 228 HAND RAIL BRACKETS SHOULD BE SPACED NOT OVER 6'-0" O.C.

Printed general note below Section A-A.

stair-a-w221-folding-gateverified · printed

Folding/collapsible gate presence

FOLDING GATE / COLLAPSIBLE GATE detail

1 count

One drawn gate assembly/detail identity; installed quantity and exact opening remain unresolved.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 2ND FLOOR PLAN / 11 TREADS @ 10 1/2" = 9'-7 1/2" / BRONZE HANDRAIL

Second-floor Stair A plan and upper flight.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: SECTION A-A / SECTION C-C / SECTION D-D / SECTION E-E / MARBLE WALLS / MARBLE PANELS / PLASTER CORNICE / BRONZE HANDRAIL / HOSE CAB.

Sections establish the three-storey relationship and finish/component identities; they do not by themselves register the stair in building X/Z.

stair-a-w221-hose-cabinetverified · printed

Hose cabinet presence

HOSE CAB.

1 count

Section callout confirms the component; exact storey instance count and dimensions remain unresolved.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 1ST FLOOR PLAN / UP 36 R / 10 TREADS @ 10 1/2" = 8'-9" / 12 TREADS @ 10 1/2" = 10'-6" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

First-floor Stair A plan around Elevator No. 1.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: SECTION A-A / SECTION C-C / SECTION D-D / SECTION E-E / MARBLE WALLS / MARBLE PANELS / PLASTER CORNICE / BRONZE HANDRAIL / HOSE CAB.

Sections establish the three-storey relationship and finish/component identities; they do not by themselves register the stair in building X/Z.

f1-f2-stair-a-w221-diagnostic-placementverified · observed

Accepted W221 building transform

Unresolved

Withheld until W221 is registered and checked against the plan grid, Elevator No. 1 enclosure and multiple independent controls.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: BASEMENT FLOOR PLAN / UP 22 R / 9 TREADS @ 10 1/2" = 7'-10 1/2" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

Basement Stair A plan around Elevator No. 1.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 1ST FLOOR PLAN / UP 36 R / 10 TREADS @ 10 1/2" = 8'-9" / 12 TREADS @ 10 1/2" = 10'-6" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

First-floor Stair A plan around Elevator No. 1.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 2ND FLOOR PLAN / 11 TREADS @ 10 1/2" = 9'-7 1/2" / BRONZE HANDRAIL

Second-floor Stair A plan and upper flight.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: SECTION A-A / SECTION C-C / SECTION D-D / SECTION E-E / MARBLE WALLS / MARBLE PANELS / PLASTER CORNICE / BRONZE HANDRAIL / HOSE CAB.

Sections establish the three-storey relationship and finish/component identities; they do not by themselves register the stair in building X/Z.

f1-f2-stair-a-w221-diagnostic-placementverified · observed

Accepted physical Stair A geometry

None

Generated surfaces are zero-thickness evidence aids, not physical tread, riser, landing, stringer, soffit, rail or slab-opening construction.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: BASEMENT FLOOR PLAN / UP 22 R / 9 TREADS @ 10 1/2" = 7'-10 1/2" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

Basement Stair A plan around Elevator No. 1.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 1ST FLOOR PLAN / UP 36 R / 10 TREADS @ 10 1/2" = 8'-9" / 12 TREADS @ 10 1/2" = 10'-6" / MARBLE TREADS AND RISERS / BRONZE HANDRAIL

First-floor Stair A plan around Elevator No. 1.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 2ND FLOOR PLAN / 11 TREADS @ 10 1/2" = 9'-7 1/2" / BRONZE HANDRAIL

Second-floor Stair A plan and upper flight.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: SECTION A-A / SECTION C-C / SECTION D-D / SECTION E-E / MARBLE WALLS / MARBLE PANELS / PLASTER CORNICE / BRONZE HANDRAIL / HOSE CAB.

Sections establish the three-storey relationship and finish/component identities; they do not by themselves register the stair in building X/Z.

stair-a-w221-f1-f2-flight-01verified · printed

tread count

10 TREADS

10 count

Printed tread/going evidence and relative form; physical X/Z flight endpoints, widths, landing and slab cut remain unresolved.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 10 TREADS

first-floor plan; verified.

stair-a-w221-f1-f2-flight-01verified · printed

tread going

@ 10 1/2"

10.5 in

Printed tread/going evidence and relative form; physical X/Z flight endpoints, widths, landing and slab cut remain unresolved.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: @ 10 1/2"

first-floor plan; verified.

stair-a-w221-f1-f2-flight-01verified · printed

horizontal tread run

= 8'-9"

8.75 ft

Printed tread/going evidence and relative form; physical X/Z flight endpoints, widths, landing and slab cut remain unresolved.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: = 8'-9"

first-floor plan; verified.

stair-a-w221-f1-f2-flight-02verified · printed

tread count

12 TREADS

12 count

Printed tread/going evidence and relative form; physical X/Z flight endpoints, widths, landing and slab cut remain unresolved.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: 12 TREADS

first-floor plan; verified.

stair-a-w221-f1-f2-flight-02verified · printed

tread going

@ 10 1/2"

10.5 in

Printed tread/going evidence and relative form; physical X/Z flight endpoints, widths, landing and slab cut remain unresolved.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: @ 10 1/2"

first-floor plan; verified.

stair-a-w221-f1-f2-flight-02verified · printed

horizontal tread run

= 10'-6"

10.5 ft

Printed tread/going evidence and relative form; physical X/Z flight endpoints, widths, landing and slab cut remain unresolved.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: = 10'-6"

first-floor plan; verified.

stair-a-w221-f1-f2-flight-01verified · printed

whole-stair first-to-second risers

UP 36 R

36 count

Printed tread/going evidence and relative form; physical X/Z flight endpoints, widths, landing and slab cut remain unresolved.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: UP 36 R

first-floor plan; verified. Whole-system count, not 36 risers assigned to flight 01.

stair-a-w221-f1-f2-flight-01unreviewed · inferred

physical clear width

Unresolved

Numeric value unresolved

Printed tread/going evidence and relative form; physical X/Z flight endpoints, widths, landing and slab cut remain unresolved.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: Unresolved physical bound

first-floor plan; open. Existing 4 ft value is an analytical display width, not this property.

stair-a-w221-f1-f2-flight-02unreviewed · inferred

physical clear width

Unresolved

Numeric value unresolved

Printed tread/going evidence and relative form; physical X/Z flight endpoints, widths, landing and slab cut remain unresolved.

IMG_1258 · sheet-W221 · Locate on drawing ↗

Drawing notation: Unresolved physical bound

first-floor plan; open.

View all source photographs →
