The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters
IMG_1257 · Folder 189

Room & Mailing Vestibule & Mailing

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial sequential 1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1257.webp after OCR/catalogue and existing reports. Actual clockwise reading rotation 0 degrees. Normalized access-image regions before rotation. Full fine-region extraction remains outstanding. Partial timed visual review: Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established. Partial timed visual review: undefined

Unresolved extraction work
  • Partial locator only: review all fine dimensions, specifications, note regions and companion details
  • Reconcile original linework with handwritten annotations/revisions
  • Register physical instances, quantities, element dimensions and spatial relationships
  • Remaining small dimension fractions, profile boundaries, fasteners and dense notes require targeted master/clearer companion review
  • Installed instances, quantities, room registration and revisions remain unresolved
  • All-region measured extraction and architectural acceptance remain incomplete
  • Complete door dimensions, yoke/strap sizes, hinge/gauge details and meeting-stile profiles remain open.
  • Whole-sheet mesh/shelf/pit question remains open; this crop covers the mailing-door family only.
  • Opening-specific deployment and original/revision authority unresolved.
  • Remaining regional dimensions, notes, schedules, fasteners and companion details are not fully extracted.
  • Original/revision authority, installed instances, quantities and room/floor registration remain unresolved.
  • Source-local evidence is excluded from model authoring and architectural release.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

30 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1257-detailverified · printed

drawing_title

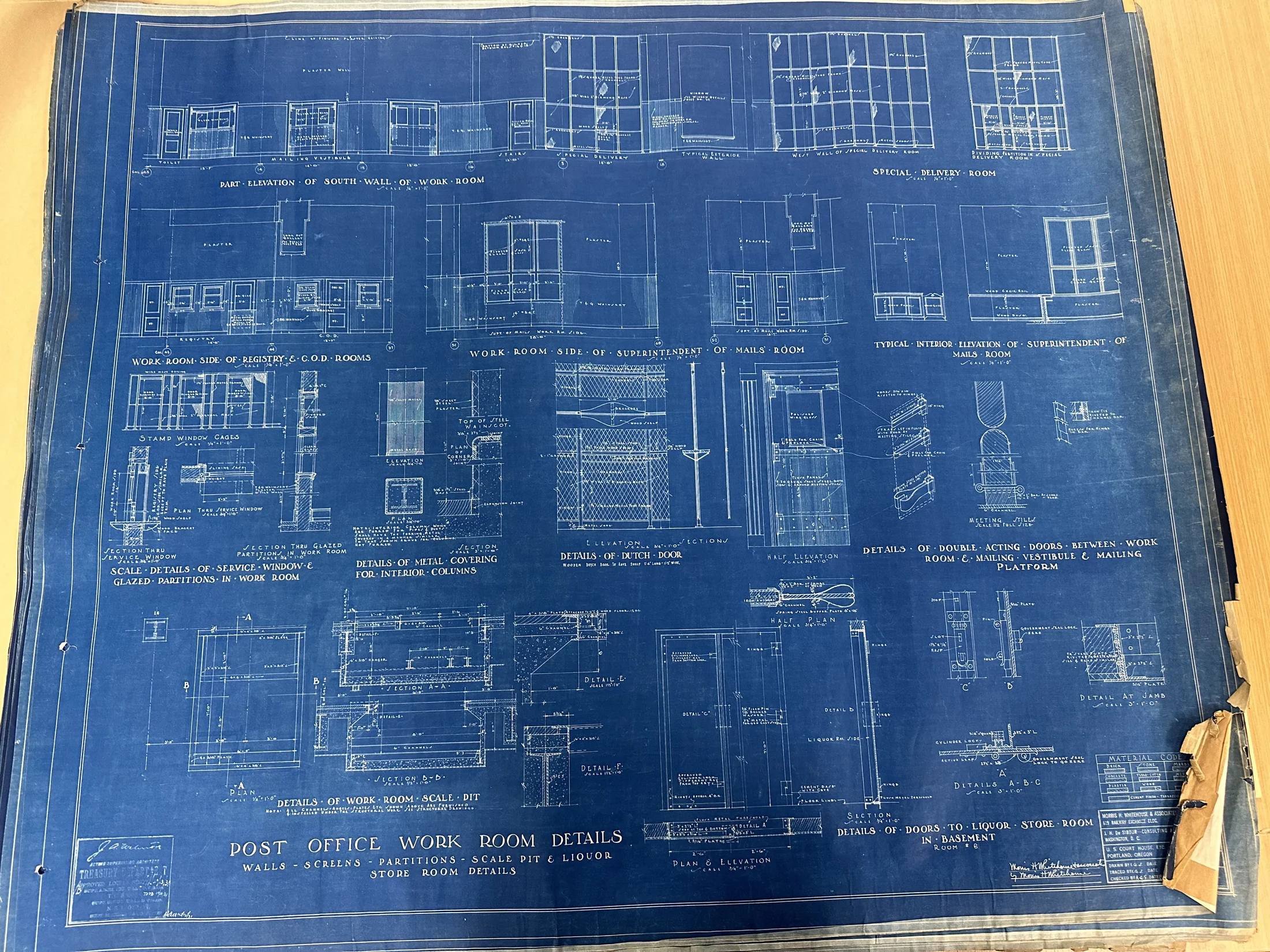

POST OFFICE WORK ROOM DETAILS — WALLS SCREENS PARTITIONS SCALE PIT & LIQUOR STORE ROOM DETAILS

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: POST OFFICE WORK ROOM DETAILS — WALLS SCREENS PARTITIONS SCALE PIT & LIQUOR STORE ROOM DETAILS

Partial drawing/detail evidence only; no installed geometry or count established.

parallel-img1257-detailverified · observed

postal_room_views

Registry & C.O.D.; superintendent of mails; special delivery; south work-room wall

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: Registry & C.O.D.; superintendent of mails; special delivery; south work-room wall

Partial drawing/detail evidence only; no installed geometry or count established.

parallel-img1257-detailverified · printed

service_window_details

SERVICE WINDOW & GLAZED PARTITIONS IN WORK ROOM

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: SERVICE WINDOW & GLAZED PARTITIONS IN WORK ROOM

Partial drawing/detail evidence only; no installed geometry or count established.

parallel-img1257-detailverified · printed

column_material

METAL COVERING FOR INTERIOR COLUMNS

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: METAL COVERING FOR INTERIOR COLUMNS

Partial drawing/detail evidence only; no installed geometry or count established.

parallel-img1257-detailverified · printed

dutch_door

DETAILS OF DUTCH DOOR

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: DETAILS OF DUTCH DOOR

Partial drawing/detail evidence only; no installed geometry or count established.

parallel-img1257-detailverified · printed

double_acting_doors

Between work room & mailing vestibule & mailing platform

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: Between work room & mailing vestibule & mailing platform

Partial drawing/detail evidence only; no installed geometry or count established.

parallel-img1257-detailverified · printed

scale_pit

DETAILS OF WORK ROOM SCALE PIT

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: DETAILS OF WORK ROOM SCALE PIT

Partial drawing/detail evidence only; no installed geometry or count established.

parallel-img1257-detailverified · printed

liquor_store_location

IN BASEMENT — ROOM #6

6 number

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: IN BASEMENT — ROOM #6

Partial drawing/detail evidence only; no installed geometry or count established.

parallel-img1257-detailunreviewed · observed

fine_specs

Mesh, shelf, plate/hardware, door and pit dimensions require crop/companion review

Numeric value unresolved

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: Mesh, shelf, plate/hardware, door and pit dimensions require crop/companion review

Partial drawing/detail evidence only; no installed geometry or count established.

detail-postal-1257-service-windowverified · printed

floor-to-counter-witness

4'-0" FROM FLOOR

48 in

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: 4'-0" FROM FLOOR

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

detail-postal-1257-service-windowverified · printed

wood-shelf

WOOD SHELF

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: WOOD SHELF

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

detail-postal-1257-service-windowverified · printed

shelf-bracket

BRACKET

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: BRACKET

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

detail-postal-1257-column-coveringprovisional · printed

covering-plate-thickness

3/16" STL PLATE

0.1875 in

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: 3/16" STL PLATE

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

detail-postal-1257-column-coveringverified · printed

column-cover-expansion-joint

EXPANSION JOINT

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: EXPANSION JOINT

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

detail-postal-1257-column-coveringverified · printed

top-cover-transition

TOP OF STEEL WAINSCOT / PLASTER

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: TOP OF STEEL WAINSCOT / PLASTER

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

detail-postal-1257-dutch-doorverified · printed

shelf-material

WOOD SHELF

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: WOOD SHELF

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

detail-postal-1257-dutch-doorverified · printed

shelf-support

BRACKETS

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: BRACKETS

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

detail-postal-1257-liquor-doorverified · printed

door-plate-thickness

5/16" PLATE

0.3125 in

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: 5/16" PLATE

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

detail-postal-1257-liquor-doorverified · printed

door-height-witness

7'-0"

84 in

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: 7'-0"

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

detail-postal-1257-liquor-doorverified · printed

security-lock

GOVERNMENT JAIL LOCK

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: GOVERNMENT JAIL LOCK

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

detail-postal-1257-liquor-doorprovisional · printed

exterior-lock

APPROVED CYLINDER LOCKS ... [remaining specification unresolved]

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: APPROVED CYLINDER LOCKS ... [remaining specification unresolved]

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

detail-postal-1257-liquor-doorverified · printed

threshold-interface

CEMENT DAP WITH COVER / FLOOR LINE

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: CEMENT DAP WITH COVER / FLOOR LINE

Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

enveloperoof1014u-img1257-vestibule-doorverified · printed

mailing_door_glazing

POLISHED WIRE GLASS

Source-local witness only; no accepted geometry, installed quantity or governing issue. Upper door panel specification.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: POLISHED WIRE GLASS

Source-local witness only; no accepted geometry, installed quantity or governing issue. Upper door panel specification.

enveloperoof1014u-img1257-vestibule-doorverified · printed

mailing_door_panel_construction

FLUSH PANELS

Source-local witness only; no accepted geometry, installed quantity or governing issue. Lower elevation panel label.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: FLUSH PANELS

Source-local witness only; no accepted geometry, installed quantity or governing issue. Lower elevation panel label.

enveloperoof1014u-img1257-vestibule-doorverified · printed

mailing_door_galvanized_cover_gauge

20 GAUGE GALV STEEL BOTH SIDES & AROUND MEETING STILES

20 gauge

Source-local witness only; no accepted geometry, installed quantity or governing issue. Explicit gauge designation and coverage; not converted to a thickness.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: 20 GAUGE GALV STEEL BOTH SIDES & AROUND MEETING STILES

Source-local witness only; no accepted geometry, installed quantity or governing issue. Explicit gauge designation and coverage; not converted to a thickness.

enveloperoof1014u-img1257-vestibule-doorverified · printed

mailing_door_galvanized_cover_extent

20 GAUGE GALV STEEL BOTH SIDES & AROUND MEETING STILES

Source-local witness only; no accepted geometry, installed quantity or governing issue. Material and extent retained separately from gauge.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: 20 GAUGE GALV STEEL BOTH SIDES & AROUND MEETING STILES

Source-local witness only; no accepted geometry, installed quantity or governing issue. Material and extent retained separately from gauge.

enveloperoof1014u-img1257-vestibule-doorverified · printed

mailing_door_strap_recess_requirement

STRAPS LET IN FLUSH WITH DOOR AT MEETING STILES

Source-local witness only; no accepted geometry, installed quantity or governing issue. Printed installation relationship at meeting-stile strap sketch.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: STRAPS LET IN FLUSH WITH DOOR AT MEETING STILES

Source-local witness only; no accepted geometry, installed quantity or governing issue. Printed installation relationship at meeting-stile strap sketch.

enveloperoof1014u-img1257-vestibule-doorverified · printed

mailing_door_chain_padlock_hole

HOLE FOR CHAIN & PADLOCK

Source-local witness only; no accepted geometry, installed quantity or governing issue. Hole callout beside meeting-stile strap; hole diameter not reliably extracted.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: HOLE FOR CHAIN & PADLOCK

Source-local witness only; no accepted geometry, installed quantity or governing issue. Hole callout beside meeting-stile strap; hole diameter not reliably extracted.

enveloperoof1014u-img1257-vestibule-doorverified · printed

mailing_door_channel_tie_connection

IRON TIE RIVETED TO CHANNEL BAR

Source-local witness only; no accepted geometry, installed quantity or governing issue. Upper-right meeting-stile construction sketch.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: IRON TIE RIVETED TO CHANNEL BAR

Source-local witness only; no accepted geometry, installed quantity or governing issue. Upper-right meeting-stile construction sketch.

enveloperoof1014u-img1257-vestibule-doorverified · printed

mailing_door_hinge_bar_recess

RECESS FOR HINGE IN BAR

Source-local witness only; no accepted geometry, installed quantity or governing issue. Upper-right connection sketch.

IMG_1257 · W-220 · Locate on drawing ↗

Drawing notation: RECESS FOR HINGE IN BAR

Source-local witness only; no accepted geometry, installed quantity or governing issue. Upper-right connection sketch.

View all source photographs →
