← Back to the building1933 reconstruction · research preview

The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

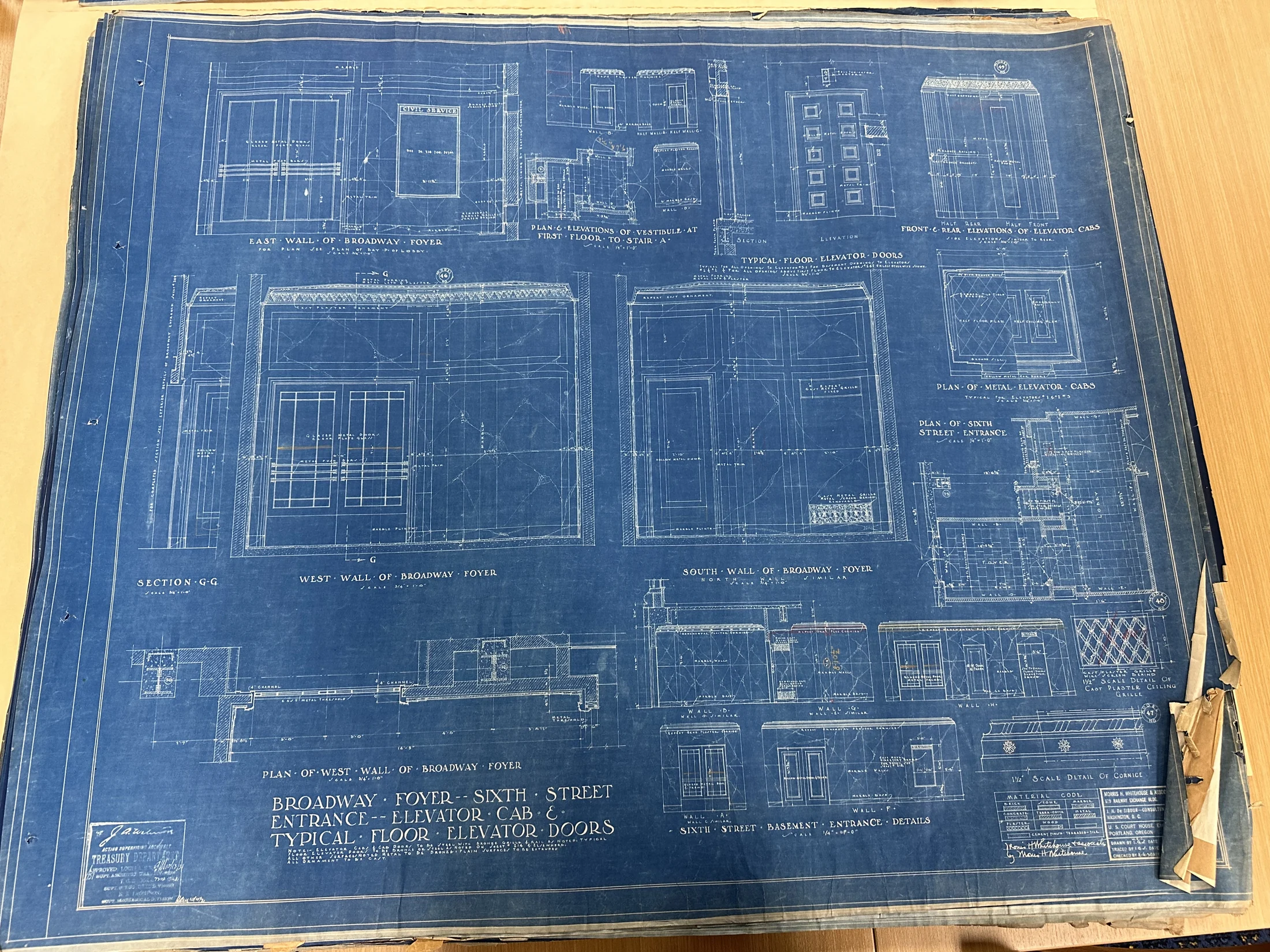

IMG_1256 · Folder 189

Typical Floor Elevator Doors

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial sequential 1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1256.webp after OCR/catalogue and existing reports. Actual clockwise reading rotation 0 degrees. Normalized access-image regions before rotation. Full fine-region extraction remains outstanding. Partial timed visual review: Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established. Partial timed visual review: undefined

Unresolved extraction work
  • Partial locator only: review all fine dimensions, specifications, note regions and companion details
  • Reconcile original linework with handwritten annotations/revisions
  • Register physical instances, quantities, element dimensions and spatial relationships
  • Remaining small dimension fractions, profile boundaries, fasteners and dense notes require targeted master/clearer companion review
  • Installed instances, quantities, room registration and revisions remain unresolved
  • All-region measured extraction and architectural acceptance remain incomplete
  • Right continuation of door elevation and applicability sentence cropped; no complete scope closure.
  • All door/cab dimensions, small fractions, floor/room registration and cleaner IMG1307 correspondence remain open.
  • Printed material clauses belong to distinct door versus cab specimens and are not interchangeable.
  • Remaining regional dimensions, notes, schedules, fasteners and companion details are not fully extracted.
  • Original/revision authority, installed instances, quantities and room/floor registration remain unresolved.
  • Source-local evidence is excluded from model authoring and architectural release.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

16 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1256-detailverified · printed

drawing_title

Broadway Foyer — Sixth Street Entrance — Elevator Cab E — Typical Floor Elevator Doors

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: Broadway Foyer — Sixth Street Entrance — Elevator Cab E — Typical Floor Elevator Doors

Partial drawing/detail evidence only; no installed geometry or count established.

parallel-img1256-detailverified · printed

cab_type_mark

CAB E

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: CAB E

Partial drawing/detail evidence only; no installed geometry or count established.

parallel-img1256-detailverified · printed

cab_plan_construction

PLAN OF METAL ELEVATOR CABS

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: PLAN OF METAL ELEVATOR CABS

Partial drawing/detail evidence only; no installed geometry or count established.

parallel-img1256-detailverified · observed

wall_views

West wall; South wall of Broadway foyer; East wall; Section G-G

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: West wall; South wall of Broadway foyer; East wall; Section G-G

Partial drawing/detail evidence only; no installed geometry or count established.

parallel-img1256-detailverified · printed

basement_entrance

SIXTH STREET BASEMENT ENTRANCE DETAILS

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: SIXTH STREET BASEMENT ENTRANCE DETAILS

Partial drawing/detail evidence only; no installed geometry or count established.

parallel-img1256-detailverified · printed

ceiling_grille_material

CAST PLASTER CEILING GRILLE

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: CAST PLASTER CEILING GRILLE

Partial drawing/detail evidence only; no installed geometry or count established.

parallel-img1256-detailverified · observed

duplicate_report

Existing W219 extraction uses cleaner IMG_1307; no numerical properties transferred from it into this image

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: Existing W219 extraction uses cleaner IMG_1307; no numerical properties transferred from it into this image

Partial drawing/detail evidence only; no installed geometry or count established.

parallel-img1256-detailunreviewed · observed

fine_dimensions

Door/cab/foyer dimensions and fine note applicability unreadable at locator size

Numeric value unresolved

Partial drawing/detail evidence only; no installed geometry or count established.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: Door/cab/foyer dimensions and fine note applicability unreadable at locator size

Partial drawing/detail evidence only; no installed geometry or count established.

enveloperoof1014u-img1256-typical-door-cabverified · printed

typical_floor_elevator_door_material

HOLLOW METAL DOORS

Source-local witness only; no accepted geometry, installed quantity or governing issue. Typical floor elevator-door elevation.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: HOLLOW METAL DOORS

Source-local witness only; no accepted geometry, installed quantity or governing issue. Typical floor elevator-door elevation.

enveloperoof1014u-img1256-typical-door-cabverified · printed

typical_floor_elevator_door_trim

METAL TRIM

Source-local witness only; no accepted geometry, installed quantity or governing issue. Leader at elevator-door surround, not cab lining.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: METAL TRIM

Source-local witness only; no accepted geometry, installed quantity or governing issue. Leader at elevator-door surround, not cab lining.

enveloperoof1014u-img1256-typical-door-cabverified · printed

typical_floor_elevator_door_plinth

MARBLE PLINTH

Source-local witness only; no accepted geometry, installed quantity or governing issue. Door-elevation base condition.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: MARBLE PLINTH

Source-local witness only; no accepted geometry, installed quantity or governing issue. Door-elevation base condition.

enveloperoof1014u-img1256-typical-door-cabverified · printed

typical_floor_elevator_hall_indicator_location

HALL INDICATOR ON CENTER LINE

Source-local witness only; no accepted geometry, installed quantity or governing issue. Indicator drawn above paired doors; no measured mounting height established.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: HALL INDICATOR ON CENTER LINE

Source-local witness only; no accepted geometry, installed quantity or governing issue. Indicator drawn above paired doors; no measured mounting height established.

enveloperoof1014u-img1256-typical-door-cabverified · printed

cab_front_door_material

HOLLOW METAL DOOR

Source-local witness only; no accepted geometry, installed quantity or governing issue. Half-front elevation of cab; distinct from hall elevator doors.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: HOLLOW METAL DOOR

Source-local witness only; no accepted geometry, installed quantity or governing issue. Half-front elevation of cab; distinct from hall elevator doors.

enveloperoof1014u-img1256-typical-door-cabverified · printed

cab_plan_sill_material

BRONZE SILL

Source-local witness only; no accepted geometry, installed quantity or governing issue. Cab plan entrance sill callout.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: BRONZE SILL

Source-local witness only; no accepted geometry, installed quantity or governing issue. Cab plan entrance sill callout.

enveloperoof1014u-img1256-typical-door-cabverified · printed

cab_plan_door_material

HOLLOW METAL CAB DOOR

Source-local witness only; no accepted geometry, installed quantity or governing issue. Cab door in plan.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: HOLLOW METAL CAB DOOR

Source-local witness only; no accepted geometry, installed quantity or governing issue. Cab door in plan.

enveloperoof1014u-img1256-typical-door-cabverified · printed

cab_floor_finish

RUBBER TILE FLOOR & BORDER

Source-local witness only; no accepted geometry, installed quantity or governing issue. Half-floor plan material note; pattern dimensions and tile size unresolved.

IMG_1256 · W-219 · Locate on drawing ↗

Drawing notation: RUBBER TILE FLOOR & BORDER

Source-local witness only; no accepted geometry, installed quantity or governing issue. Half-floor plan material note; pattern dimensions and tile size unresolved.
