Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial text-first then sequential <=1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1254.webp. Selected legible source regions only, not full measured extraction. Coordinates normalized in unrotated access image; principal lettering upright. No model geometry authorized. Partial timed visual review: Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established. Partial timed visual review: Source-local printed detail only; no installed registration or accepted geometry. Partial timed visual review: undefined Partial timed visual review: Source-local printed detail/type evidence. FloorIds remain empty until physical instance registration; no installed quantity, world dimension, geometry or historical revision preference authorized.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible source evidence only; partial locator review, applies to depicted assembly.

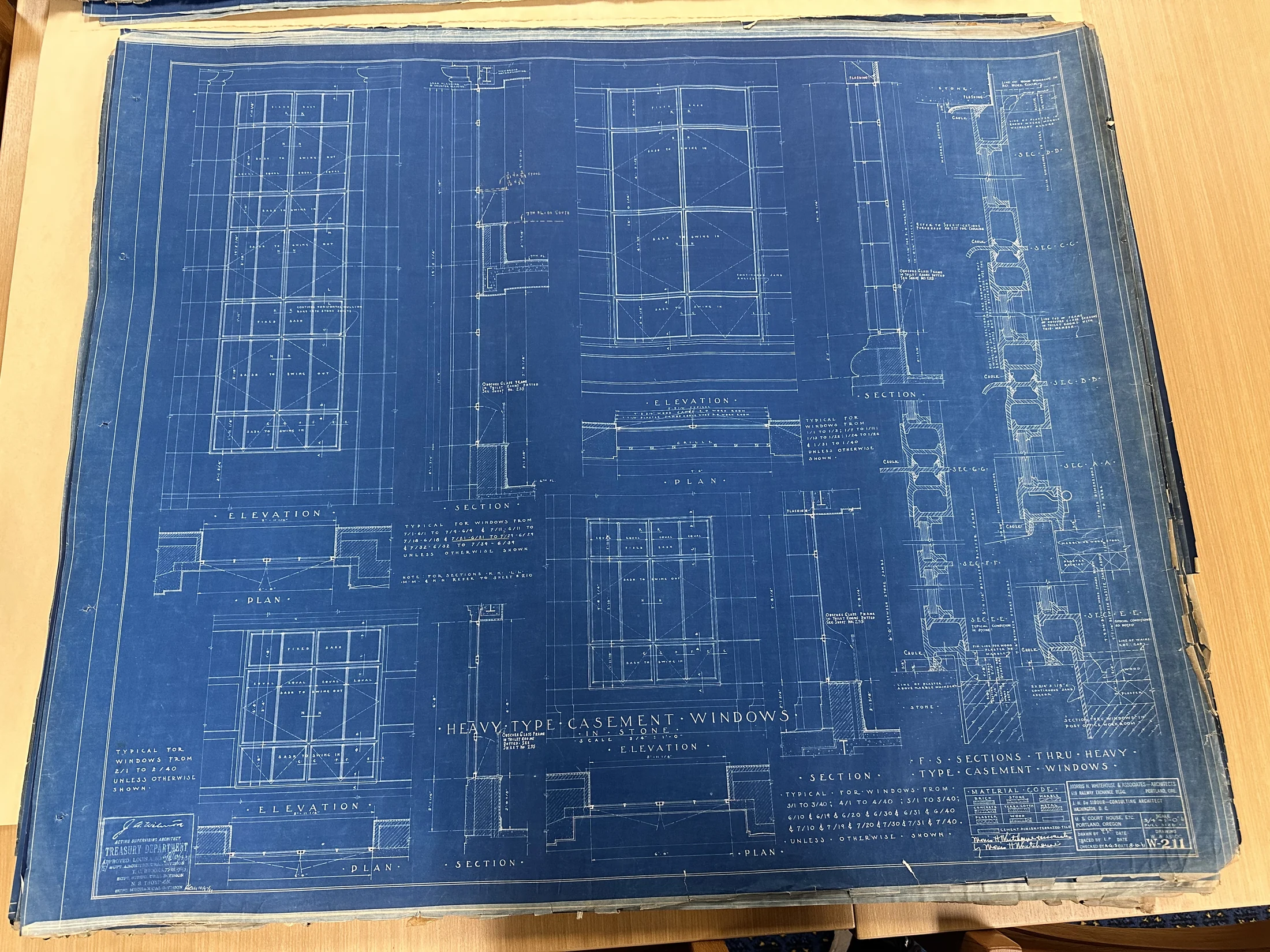

Drawing notation: HEAVY TYPE CASEMENT WINDOWS
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: Elevations, plans, sections and full-size profiles shown for multiple window types
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: Window mark ranges remain too small to verify
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Numeric value unresolved
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: F.S.SECTIONS THRU HEAVY TYPE CASEMENT WINDOWS
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Drawing notation: TYPICAL FOR WINDOWS FROM 2/1 TO 2/40 UNLESS OTHERWISE SHOWN
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Drawing notation: FIXED SASH
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Drawing notation: SASH TO SWING OUT
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Drawing notation: SASH TO SWING IN
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
210 sheet-number
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Drawing notation: NOTE FOR SECTIONS K-K L-L M-M & N-N REFER TO SHEET #210
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Drawing notation: OBSCURE GLASS PANE IN TOILET SEE AS DOTTED ON SHEET No 235
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
235 sheet-number
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Drawing notation: SHEET No 235
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Source-local printed detail only; no installed registration or accepted geometry.
Drawing notation: TYPICAL FOR 7/1-6/1 TO 7/9-6/9 & 7/11-6/11 TO 7/18-6/18 & 7/21-6/21 TO 7/29-6/29 & 7/32-6/32 TO 7/39-6/39 UNLESS OTHERWISE SHOWN
Source-local printed detail only; no installed registration or accepted geometry.
Four middle elevation subdivisions; no fabricated widths inferred.
Drawing notation: EQUAL / EQUAL / EQUAL / EQUAL
Four middle elevation subdivisions; no fabricated widths inferred.
233 sheet-number
Master reads 233; earlier 235 preserved as transcription conflict. Check companion for conditional pane extents. Review correction review-correction-20261013i-closure1011y-postal-1254-toilet-sheet: Same-image upper and lower section note crops read sheet 235. Earlier closure reading 233 is disproved by the two legible 235 inscriptions; earlier 235 original reading retained. No historical revision selection.
Drawing notation: OBSCURE GLASS PANE IN TOILET ROOMS DOTTED. SEE SHEET No 233
Master reads 233; earlier 235 preserved as transcription conflict. Check companion for conditional pane extents.
Source-local witness only; no accepted geometry, installed quantity or governing issue. D–D interior finish condition for post-office work room only.
Drawing notation: LINE OF WOOD WAINSCOT IN P.O. WORK ROOM
Source-local witness only; no accepted geometry, installed quantity or governing issue. D–D interior finish condition for post-office work room only.
Source-local witness only; no accepted geometry, installed quantity or governing issue. D–D mould callout at top of adjacent wood finish.
Drawing notation: WOOD MOULD
Source-local witness only; no accepted geometry, installed quantity or governing issue. D–D mould callout at top of adjacent wood finish.
Source-local witness only; no accepted geometry, installed quantity or governing issue. Conditional marble-wainscot interior finish face; thickness not established.
Drawing notation: LINE OF PLASTER IN ROOMS WHERE MARBLE WAINSCOT OCCURS
Source-local witness only; no accepted geometry, installed quantity or governing issue. Conditional marble-wainscot interior finish face; thickness not established.
Source-local witness only; no accepted geometry, installed quantity or governing issue. Vertical note beside C–C/B–B. Directional rule preserved; not authorization to mirror all installed geometry.
Drawing notation: NOTE THESE SECTIONS ARE SHOWN FOR OUT SWING SASH FOR IN SWING SASH USE THE SAME SECTIONS BUT JUST REVERSED
Source-local witness only; no accepted geometry, installed quantity or governing issue. Vertical note beside C–C/B–B. Directional rule preserved; not authorization to mirror all installed geometry.
Source-local witness only; no accepted geometry, installed quantity or governing issue. B–B local screen/frame alignment requirement only.
Drawing notation: LINE TOP OF FRAMES OF OBSCURE GLASS SCREENS IN TOILET ROOMS WITH THIS MEMBER
Source-local witness only; no accepted geometry, installed quantity or governing issue. B–B local screen/frame alignment requirement only.
277 paragraph-number
Source-local witness only; no accepted geometry, installed quantity or governing issue. Separate W211 witness of specification paragraph; no specification content transferred.
Drawing notation: REFER TO SPECIFICATIONS PARAGRAPH No 277 FOR CAULKING
Source-local witness only; no accepted geometry, installed quantity or governing issue. Separate W211 witness of specification paragraph; no specification content transferred.
71.25 in
Inner upper-type plan witness chain. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 5′-11¼″
Inner upper-type plan witness chain. Source-local detail/type only; no installed quantity or physical placement.
72 in
Independent outer witness chain; no exact masonry/frame/clear authoring classification. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 6′-0″
Independent outer witness chain; no exact masonry/frame/clear authoring classification. Source-local detail/type only; no installed quantity or physical placement.
Fixed band in upper sixth/seventh continuous elevation, distinct from lower second-floor type. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: FIXED SASH
Fixed band in upper sixth/seventh continuous elevation, distinct from lower second-floor type. Source-local detail/type only; no installed quantity or physical placement.
Upper continuous elevation main pair. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: SASH TO SWING OUT
Upper continuous elevation main pair. Source-local detail/type only; no installed quantity or physical placement.
Lower paired sub-band within upper type. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: SASH TO SWING IN
Lower paired sub-band within upper type. Source-local detail/type only; no installed quantity or physical placement.
Printed coordination note, not a measured joint or bar length. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: CONTINUOUS HORIZONTAL MULLION BARS INTO STONE JOINTS
Printed coordination note, not a measured joint or bar length. Source-local detail/type only; no installed quantity or physical placement.
Separate shown line from 7TH FL. below; south-face exception retained as local detail. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 7TH FL. ON SOUTH
Separate shown line from 7TH FL. below; south-face exception retained as local detail. Source-local detail/type only; no installed quantity or physical placement.
235 sheet-number
Upper section reads 235; lower section independently corroborates the same number. Earlier same-image 233 reading preserved pending correction. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: OBSCURE GLASS FRAME IN TOILET ROOMS DOTTED SEE SHEET No 235
Upper section reads 235; lower section independently corroborates the same number. Earlier same-image 233 reading preserved pending correction. Source-local detail/type only; no installed quantity or physical placement.
Calculated from: closure1011y-postal-1254-toilet-sheet, detail-postal-20261011d-1254-m7
Lower second-floor section note; original says frame rather than pane. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: OBSCURE GLASS FRAME IN TOILET ROOMS DOTTED SEE SHEET No 235
Lower second-floor section note; original says frame rather than pane. Source-local detail/type only; no installed quantity or physical placement.
235 sheet-number
Lower independent printed reference. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: SEE SHEET No 235
Lower independent printed reference. Source-local detail/type only; no installed quantity or physical placement.
