Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial text-first then sequential <=1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1253.webp. Selected legible source regions only, not full measured extraction. Coordinates normalized in unrotated access image; principal lettering upright. No model geometry authorized. Partial timed visual review: Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established. Partial timed visual review: Source-local printed detail only; no installed registration or accepted geometry. Partial timed visual review: undefined Partial timed visual review: Source-local printed detail/type evidence. FloorIds remain empty until physical instance registration; no installed quantity, world dimension, geometry or historical revision preference authorized.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible source evidence only; partial locator review, applies to depicted assembly.

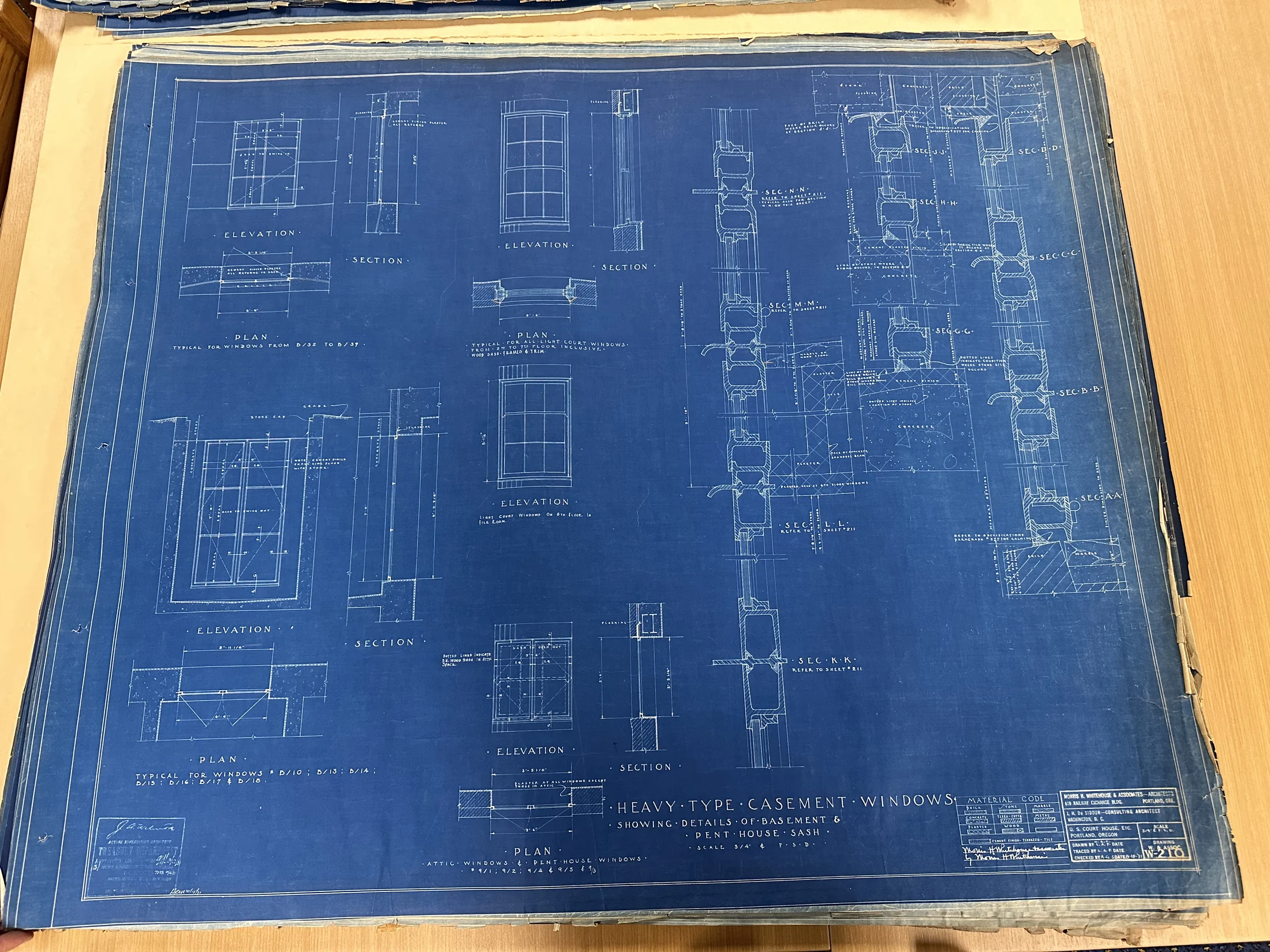

Drawing notation: HEAVY TYPE CASEMENT WINDOWS
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: Elevations, plans, sections and full-size profiles shown for multiple window types
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: Window mark ranges remain too small to verify
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Numeric value unresolved
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: SHOWING DETAILS OF BASEMENT & PENT HOUSE SASH
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: ATTIC WINDOW & PENTHOUSE WINDOWS
Selected visible source evidence only; partial locator review, applies to depicted assembly.
211 sheet-number
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Drawing notation: SEC. K-K REFER TO SHEET #211
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
211 sheet-number
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Drawing notation: SEC. L-L REFER TO SHEET #211
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
211 sheet-number
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Drawing notation: SEC. M-M REFER TO SHEET #211
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Drawing notation: [Fine Section N-N note unresolved]
Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
211 sheet-number
Source-local printed detail only; no installed registration or accepted geometry.
Drawing notation: SEC. N-N REFER TO SHEET 211
Source-local printed detail only; no installed registration or accepted geometry.
Source-local printed detail only; no installed registration or accepted geometry.
Drawing notation: TYPICAL ALSO FOR SECTION N-N ON THIS SHEET
Source-local printed detail only; no installed registration or accepted geometry.
Conditional H-H material note; not unconditional assignment to every window.
Drawing notation: LIME STONE WHERE STONE OCCURS. IN SECTION H-H
Conditional H-H material note; not unconditional assignment to every window.
277 paragraph-number
Source-local witness only; no accepted geometry, installed quantity or governing issue. Leader belongs to upper full-size window profile assembly; specification content not reviewed.
Drawing notation: REFER TO SPECIFICATIONS PARAGRAPH No 277 FOR CAULKING
Source-local witness only; no accepted geometry, installed quantity or governing issue. Leader belongs to upper full-size window profile assembly; specification content not reviewed.
Source-local witness only; no accepted geometry, installed quantity or governing issue. Conditional J–J face; not blanket masonry material assignment.
Drawing notation: FACE OF BRICK WHERE BRICK OCCURS AT SECTION J-J
Source-local witness only; no accepted geometry, installed quantity or governing issue. Conditional J–J face; not blanket masonry material assignment.
Source-local witness only; no accepted geometry, installed quantity or governing issue. Dotted alternate at G–G retained separately from principal cement-finish sill.
Drawing notation: DOTTED LINES INDICATE CONDITION WHEN STONE SILL OCCURS
Source-local witness only; no accepted geometry, installed quantity or governing issue. Dotted alternate at G–G retained separately from principal cement-finish sill.
Source-local witness only; no accepted geometry, installed quantity or governing issue. Local dotted stone location note; not an installed dimension.
Drawing notation: DOTTED LINES INDICATE LOCATION OF STONE
Source-local witness only; no accepted geometry, installed quantity or governing issue. Local dotted stone location note; not an installed dimension.
IMG_1253 exposure explicitly reads B/39; prior IMG_1081 B/37 remains a separate unresolved cross-exposure reading. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: TYPICAL FOR WINDOWS FROM B/32 TO B/39
IMG_1253 exposure explicitly reads B/39; prior IMG_1081 B/37 remains a separate unresolved cross-exposure reading. Source-local detail/type only; no installed quantity or physical placement.
Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: SASH TO SWING IN
Source-local detail/type only; no installed quantity or physical placement.
41.25 in
Inner plan witness chain; exact frame/masonry class unaccepted. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 3′-5¼″
Inner plan witness chain; exact frame/masonry class unaccepted. Source-local detail/type only; no installed quantity or physical placement.
42 in
Outer plan witness chain; endpoints distinct from inner span. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 3′-6″
Outer plan witness chain; endpoints distinct from inner span. Source-local detail/type only; no installed quantity or physical placement.
Return finish only; no thickness inferred. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: CEMENT FINISH PLASTER ALL RETURNS TO SASH
Return finish only; no thickness inferred. Source-local detail/type only; no installed quantity or physical placement.
Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: TYPICAL FOR WINDOWS B/10; B/13; B/14; B/15; B/16; B/17 & B/18
Source-local detail/type only; no installed quantity or physical placement.
Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: SASH TO SWING OUT
Source-local detail/type only; no installed quantity or physical placement.
47.25 in
Plan span between inner returns; rough/frame/clear classification remains unresolved. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 3′-11¼″
Plan span between inner returns; rough/frame/clear classification remains unresolved. Source-local detail/type only; no installed quantity or physical placement.
48 in
Separate outer witness chain; not a derived width. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 4′-0″
Separate outer witness chain; not a derived width. Source-local detail/type only; no installed quantity or physical placement.
84 in
Selected elevation height inside stepped masonry recess; exact sash/rough-opening endpoints remain unaccepted. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 7′-0″
Selected elevation height inside stepped masonry recess; exact sash/rough-opening endpoints remain unaccepted. Source-local detail/type only; no installed quantity or physical placement.
Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: STONE CAP
Source-local detail/type only; no installed quantity or physical placement.
Conditional flush head finish callout, not opening depth. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: PAINT CEMENT FINISH HEAD LINE FLUSH WITH STONE
Conditional flush head finish callout, not opening depth. Source-local detail/type only; no installed quantity or physical placement.
Printed inclusion; registered floorIds withheld until actual instances are established. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: TYPICAL FOR ALL LIGHT COURT WINDOWS FROM 2ND TO 7TH FLOOR INCLUSIVE
Printed inclusion; registered floorIds withheld until actual instances are established. Source-local detail/type only; no installed quantity or physical placement.
Distinct from heavy steel casement system elsewhere on sheet. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: WOOD SASH, FRAMES & TRIM
Distinct from heavy steel casement system elsewhere on sheet. Source-local detail/type only; no installed quantity or physical placement.
42 in
Selected plan witnesses; exact frame/clear class remains unaccepted. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 3′-6″
Selected plan witnesses; exact frame/clear class remains unaccepted. Source-local detail/type only; no installed quantity or physical placement.
Separate eighth-floor exception elevation; no room number inferred. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: LIGHT COURT WINDOWS ON 8TH FLOOR IN FILE ROOM
Separate eighth-floor exception elevation; no room number inferred. Source-local detail/type only; no installed quantity or physical placement.
Lower-right attic elevation only. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: SASH TO OPEN OUT
Lower-right attic elevation only. Source-local detail/type only; no installed quantity or physical placement.
Dotted alternate/companion sash condition; does not authorize two installed overlapping windows. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: DOTTED LINES INDICATE D.H. WOOD SASH IN ATTIC SPACE
Dotted alternate/companion sash condition; does not authorize two installed overlapping windows. Source-local detail/type only; no installed quantity or physical placement.
Literal exception preserved, not blanket plaster assignment. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: PLASTER AT ALL WINDOWS EXCEPT THOSE IN ATTIC
Literal exception preserved, not blanket plaster assignment. Source-local detail/type only; no installed quantity or physical placement.
