The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

IMG_1251 · Folder 189

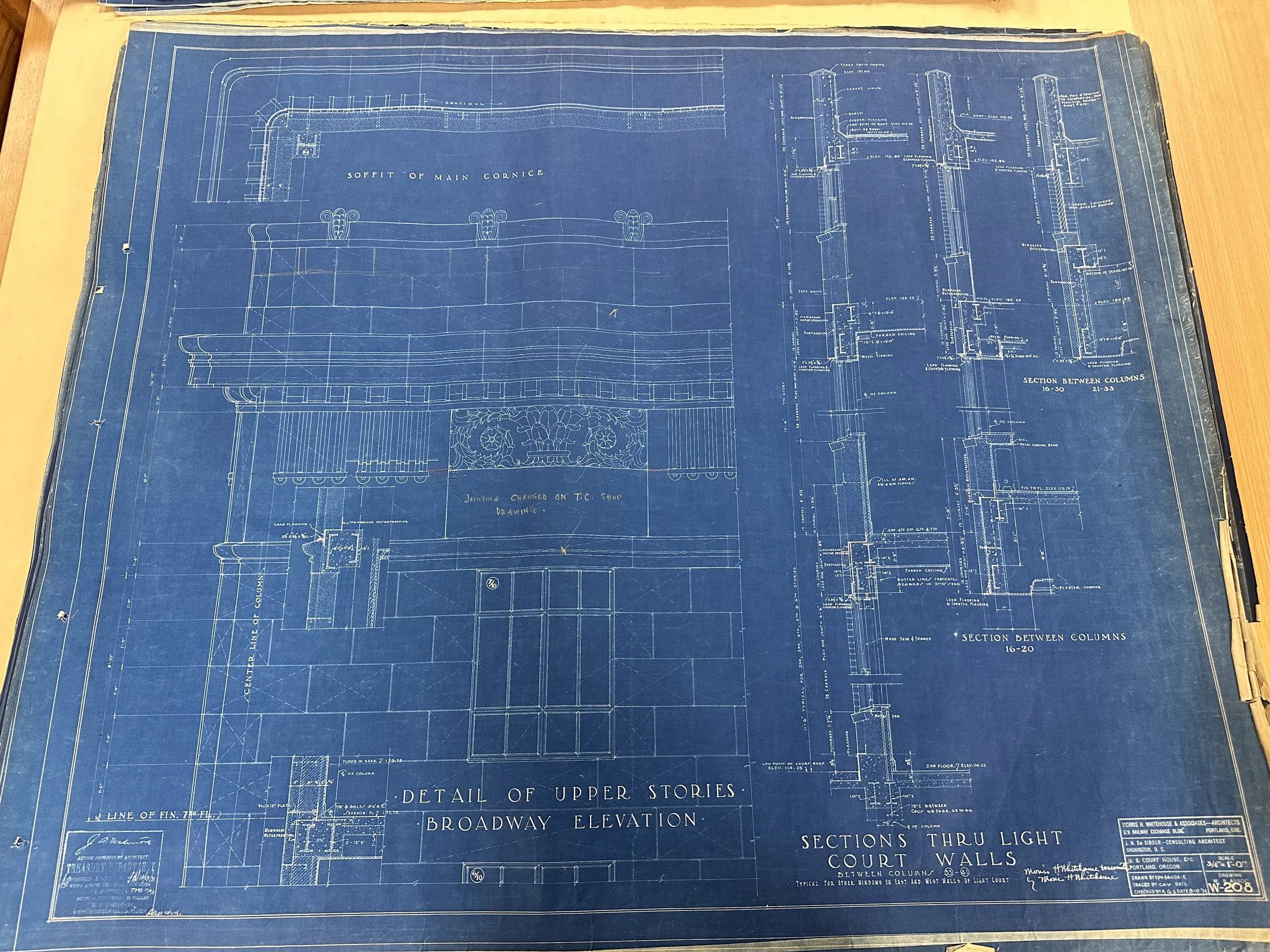

DETAIL OF UPPER STORIES — BROADWAY ELEVATION; SECTIONS THRU LIGHT COURT WALLS

Sheet W208

Extraction: Reviewed · extraction partial. Targeted W208 companion review decoded repeated 6/10 and 7/10 marks at the Main/Broadway corner condition. Partial timed visual review: Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.

Unresolved extraction work

Whole-sheet notes, material codes, revisions and callouts remain partially reviewed
Remaining small dimension fractions, profile boundaries, fasteners and dense notes require targeted master/clearer companion review
Installed instances, quantities, room registration and revisions remain unresolved
All-region measured extraction and architectural acceptance remain incomplete

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

7 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

bway-W207-F4-unique-opening-match-gateverified · derived

Unique opening match gate

RETRACTED — 4/11 to B02 conflicts with oriented W-6 plan

The W207 4/11 and adjacent 4/12 marks remain verified printed readings, but the earlier assignment of 4/11 to elevation B02 is retracted. W-6 independently prints 4/11 on the Broadway/page-right strip near Madison/south; its north arrow points page-bottom. The W-6 position conflicts with B02 near Main/north. B09 is only a nearby station candidate, not an accepted identity.

IMG_1078 · sheet-W207 · Locate on drawing ↗

Drawing notation: 4/11; 4/12

decisive target-mark reading. detailed fourth-floor steel-sash opening marked 4/11 and adjacent opening field marked 4/12

IMG_1251 · sheet-W208 · Locate on drawing ↗

Drawing notation: 6/10; 7/10

split-circle decoder and corner-sequence witness. rounded corner/cornice context, vertically repeated opening and split circles 7/10 and 6/10

Calculated from: opening-broadway-F4-B02-existence

bway-W207-F4-unique-opening-match-gateunreviewed · derived

Remaining fourth-floor candidate openings after key correlation

Unresolved; no unique elevation bay

Numeric value unresolved

IMG_1078 · sheet-W207 · Locate on drawing ↗

Drawing notation: 4/11; 4/12

decisive target-mark reading. detailed fourth-floor steel-sash opening marked 4/11 and adjacent opening field marked 4/12

IMG_1251 · sheet-W208 · Locate on drawing ↗

Drawing notation: 6/10; 7/10

split-circle decoder and corner-sequence witness. rounded corner/cornice context, vertically repeated opening and split circles 7/10 and 6/10

Calculated from: opening-broadway-F4-B02-existence

bway-W207-F4-unique-opening-match-gateverified · derived

Transfer of the separate B05 diagnostic geometry to the W207 target

PROHIBITED — no elevation bay is accepted for 4/11

The B05 horizontal-placement packet is a separate diagnostic built before the W207 split circle was decoded. Its provisional station, traced envelope and candidate wall host do not describe the W207 4/11 instance and must not be copied to B02.

IMG_1078 · sheet-W207 · Locate on drawing ↗

Drawing notation: 4/11; 4/12

decisive target-mark reading. detailed fourth-floor steel-sash opening marked 4/11 and adjacent opening field marked 4/12

IMG_1251 · sheet-W208 · Locate on drawing ↗

Drawing notation: 6/10; 7/10

split-circle decoder and corner-sequence witness. rounded corner/cornice context, vertically repeated opening and split circles 7/10 and 6/10

Calculated from: opening-broadway-F4-B05-existence

detail-postal-1251-cornice-jointingverified · observed
