Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Sheet W207

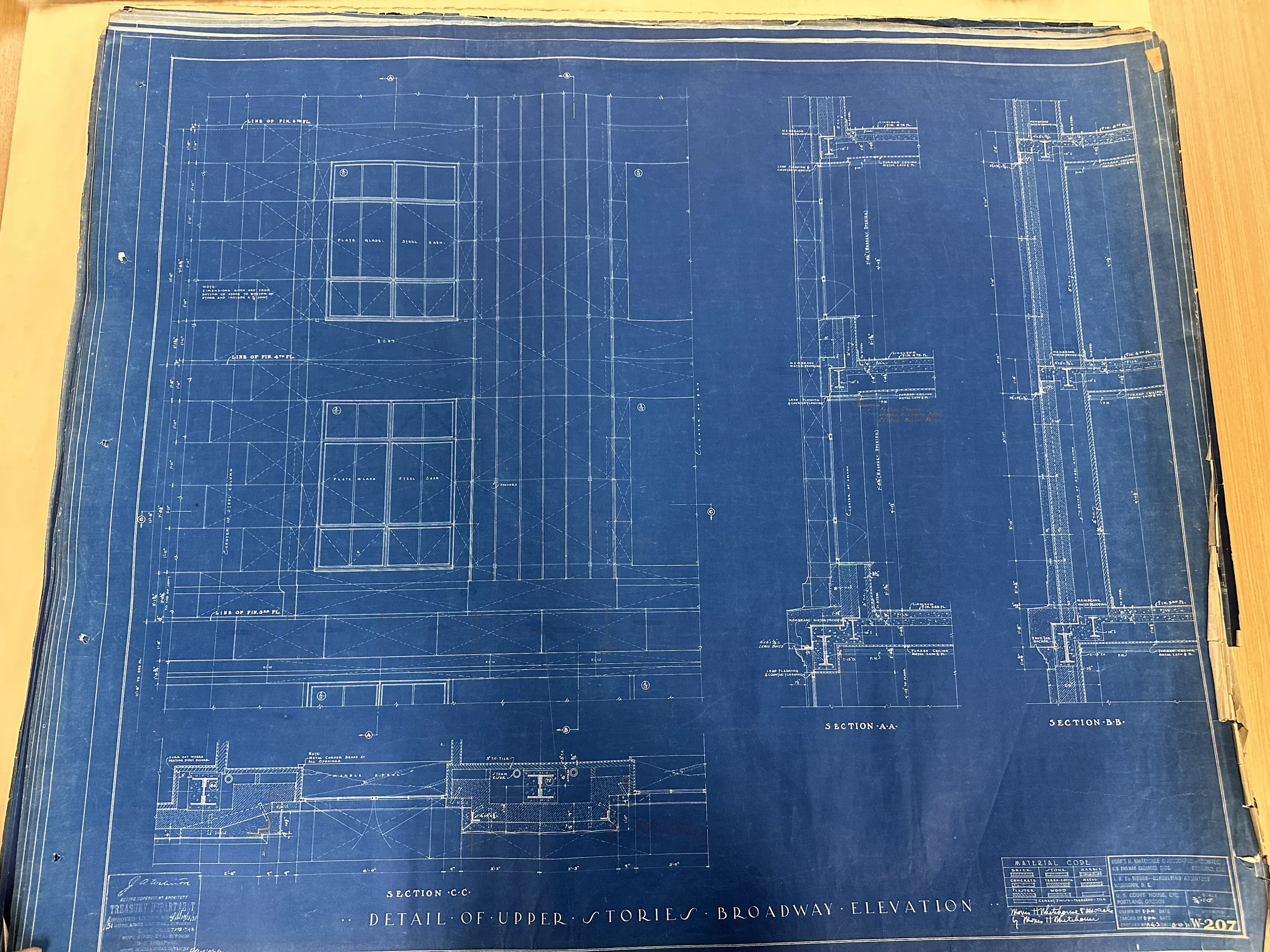

Extraction: Reviewed · extraction partial. Identify and audit the next exact companion detail for the registered Broadway elevation and sectional stone-face controls, preserving printed dimensions and boundary semantics without propagating one photographed detail to every Broadway bay. W207 upper-opening elevation, Sections A-A/B-B/C-C: local dimensions, sash layout and physical authorability reviewed. Partial timed visual review: Printed specification or source-local detail only; no installed quantity, accepted room geometry, host placement or building transform established.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
11.5 ft
Source audit state: verified.
Drawing notation: LINE OF FIN. 3RD FL.; LINE OF FIN. 4TH FL.; 11'-6"
11.5 ft
Source audit state: verified.
Drawing notation: LINE OF FIN. 4TH FL.; LINE OF FIN. 5TH FL.; 11'-6"
2.125 ft
Repeated dimension on the two story intervals drawn on W207; not yet assigned to all Broadway openings. Source audit state: verified.
Drawing notation: 2'-1 1/2"
7.729167 ft
Section A-A and the repeated elevation dimension; not yet attached to a registered opening ID. Boundary semantic: masonry-opening, not steel-sash clear opening and not glass size. Source audit state: verified.
Drawing notation: 7'-8 3/4" (MASONRY OPENING)
1.645833 ft
Arithmetic remainder only; the small photographed head-zone label is not quoted as a separately verified printed value. Source audit state: verified-arithmetic.
Drawing notation: 11'-6"; 2'-1 1/2"; 7'-8 3/4"
Calculated from: bway-W207-F3-F4-floor-to-floor, bway-W207-floor-to-masonry-opening-bottom, bway-W207-masonry-opening-height
6 ft
Boundary semantic: dimension between the two drawn Section C-C jamb boundaries; rough, finished and sash-clear width correspondence to IMG_1231 remains unaccepted. Source audit state: verified-local-detail-only.
Drawing notation: 6'-0"
10.5 in
The local Section C-C left return. The photographed cut is not yet registered to a named Broadway bay, and the endpoint line must not be generalized as a universal sash setback. Source audit state: verified-local-detail-only.
Drawing notation: 10 1/2"
12 in
The local Section C-C right return. The photographed cut is not yet registered to a named Broadway bay, and the endpoint line must not be generalized as a universal sash setback. Source audit state: verified-local-detail-only.
Drawing notation: 1'-0"
1.5 in
Diagnostic evidence that one reveal depth cannot be assumed even within this detail. This difference is not accepted as the distance between the 79 feet 5 inches and 80 feet 5 inches stone-face families and is not a facade-plane step. Source audit state: verified-arithmetic-not-plane-step.
Drawing notation: 10 1/2"; 6'-0"; MARBLE STOOL; FUR OUT WHERE HEATING PIPES OCCUR
Drawing notation: 1'-0"; 3" T.C. TILE; STEAM RISER; 3'-3"; 9"
Calculated from: bway-W207-section-CC-left-local-return-depth, bway-W207-section-CC-right-local-return-depth
3 in
A named local layer in Section C-C; not a complete wall thickness and not assumed at every opening. Source audit state: verified-local-assembly-note.
Drawing notation: 3" T.C. TILE
Numeric value unresolved
W207 draws the build-up in Sections B-B and C-C and names local layers, but the photographed source does not supply a reviewed overall dimension between an exterior stone face and a classified interior finish face. The printed return depths and 3-inch T.C. tile note are not summed into wall thickness. Source audit state: unresolved.
Drawing notation: SECTION B-B; MEMBRANE WATERPROOFING
Numeric value unresolved
Neither the existing 79 feet 5 inches / 80 feet 5 inches exterior stone-face controls nor W207 local return dimensions establish the interior finish plane. Source audit state: unresolved.
Drawing notation: SECTION B-B; MEMBRANE WATERPROOFING; finished-floor lines at third, fourth and fifth floors
W207's section cut locations and local opening condition have not been correlated to a unique IMG_1231 bay/type mark. No broadway-F*-B* opening receives these depths in this package. Source audit state: unresolved.
Drawing notation: SECTION C-C; MARBLE STOOL; NOTE METAL CORNER BEADS AT ALL OPENINGS; 6'-0"; 10 1/2"; 1'-0"
125.75 ft
Source audit state: verified-cross-package.
Drawing notation: LINE OF FIN. 3RD FL.
Calculated from: bway-reg-F3-elevation
148.75 ft
Source audit state: verified-cross-package.
Drawing notation: LINE OF FIN. 5TH FL.
Calculated from: bway-reg-F3-elevation, bway-reg-rise-F3-F4, bway-reg-rise-F4-F5
127.875 ft
Source audit state: verified-arithmetic-unattached.
Drawing notation: LINE OF FIN. 3RD FL.; LINE OF FIN. 4TH FL.; LINE OF FIN. 5TH FL.; 11'-6"; 2'-1 1/2"; 7'-8 3/4"
Drawing notation: SECTION A-A; 7'-8 3/4" (MASONRY OPENING); MEMBRANE WATERPROOFING; LEAD FLASHING & COUNTER FLASHING
Calculated from: bway-reg-F3-elevation, bway-W207-floor-to-masonry-opening-bottom
135.604167 ft
Source audit state: verified-arithmetic-unattached.
Drawing notation: LINE OF FIN. 3RD FL.; LINE OF FIN. 4TH FL.; LINE OF FIN. 5TH FL.; 11'-6"; 2'-1 1/2"; 7'-8 3/4"
Drawing notation: SECTION A-A; 7'-8 3/4" (MASONRY OPENING); MEMBRANE WATERPROOFING; LEAD FLASHING & COUNTER FLASHING
Calculated from: bway-W207-F3-opening-sill-elevation-candidate, bway-W207-masonry-opening-height
139.375 ft
Source audit state: verified-arithmetic-unattached.
Drawing notation: LINE OF FIN. 3RD FL.; LINE OF FIN. 4TH FL.; LINE OF FIN. 5TH FL.; 11'-6"; 2'-1 1/2"; 7'-8 3/4"
Drawing notation: SECTION A-A; 7'-8 3/4" (MASONRY OPENING); MEMBRANE WATERPROOFING; LEAD FLASHING & COUNTER FLASHING
Calculated from: bway-reg-F3-elevation, bway-reg-rise-F3-F4, bway-W207-floor-to-masonry-opening-bottom
147.104167 ft
Source audit state: verified-arithmetic-unattached.
Drawing notation: LINE OF FIN. 3RD FL.; LINE OF FIN. 4TH FL.; LINE OF FIN. 5TH FL.; 11'-6"; 2'-1 1/2"; 7'-8 3/4"
Drawing notation: SECTION A-A; 7'-8 3/4" (MASONRY OPENING); MEMBRANE WATERPROOFING; LEAD FLASHING & COUNTER FLASHING
Calculated from: bway-W207-F4-opening-sill-elevation-candidate, bway-W207-masonry-opening-height
2.125 ft
Local detail only; verified. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Drawing notation: 2′-1½″
Component-local W207 audit; verified. No accepted building placement.
7.729167 ft
Local detail only; verified. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Drawing notation: 7′-8¾″ (MASONRY OPENING)
Component-local W207 audit; verified. No accepted building placement.
6 ft
Local detail only; verified-local-detail; exact rough/clear/masonry-boundary equivalence unresolved. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Drawing notation: 6′-0″
Component-local W207 audit; verified-local-detail; exact rough/clear/masonry-boundary equivalence unresolved. No accepted building placement.
10.5 in
Local detail only; verified-local-detail-only. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Drawing notation: 10½″
Component-local W207 audit; verified-local-detail-only. No accepted building placement.
12 in
Local detail only; verified-local-detail-only. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Drawing notation: 1′-0″
Component-local W207 audit; verified-local-detail-only. No accepted building placement.
3 in
Local detail only; verified-local-layer; not whole-wall thickness. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Drawing notation: 3″ T.C. TILE
Component-local W207 audit; verified-local-layer; not whole-wall thickness. No accepted building placement.
Local detail only; observed. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Drawing notation: STEEL SASH
Component-local W207 audit; observed. No accepted building placement.
Local detail only; observed. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Drawing notation: PLATE GLASS
Component-local W207 audit; observed. No accepted building placement.
4 count
Local detail only; provisional-graphic-count; no individual clear widths. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Drawing notation: four drawn vertical glazed fields
Component-local W207 audit; provisional-graphic-count; no individual clear widths. No accepted building placement.
3 count
Local detail only; provisional-graphic-count; no individual clear heights. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Drawing notation: three drawn horizontal glazed tiers
Component-local W207 audit; provisional-graphic-count; no individual clear heights. No accepted building placement.
Local detail only; missing. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Component-local W207 audit; missing. No accepted building placement.
Local detail only; missing. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Component-local W207 audit; missing. No accepted building placement.
Local detail only; missing. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Component-local W207 audit; missing. No accepted building placement.
Local detail only; missing-closed-profile. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Drawing notation: MARBLE STOOL
Component-local W207 audit; missing-closed-profile. No accepted building placement.
Local detail only; missing. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Component-local W207 audit; missing. No accepted building placement.
Local detail only; missing. The steel sash lacks all finite frame/mullion/glass sections and fabrication offsets; the marble stool lacks a closed profile; the tile has thickness only, with no bounded patch; the opening lacks a classified rough width and host depth. The 4/11 building bay, wall X and checked plan/elevation station are also unresolved.
Component-local W207 audit; missing. No accepted building placement.
