Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Sheet number unresolved
Extraction: Reviewed · extraction partial. Reviewed: third-floor corner plan; second-floor corner plan; first-floor sash-jamb section; first-floor corner plan; Section A-A; partial title block. Partial timed visual review: Source-local photographed design detail; no installed quantity, accepted geometry or world placement authorized. Partial timed visual review: Source-local photographed drawing evidence only; stacked marks are interpreted as drawing references, not historical entrance identifiers. No installed quantities or accepted geometry.
Loading the selected drawing…

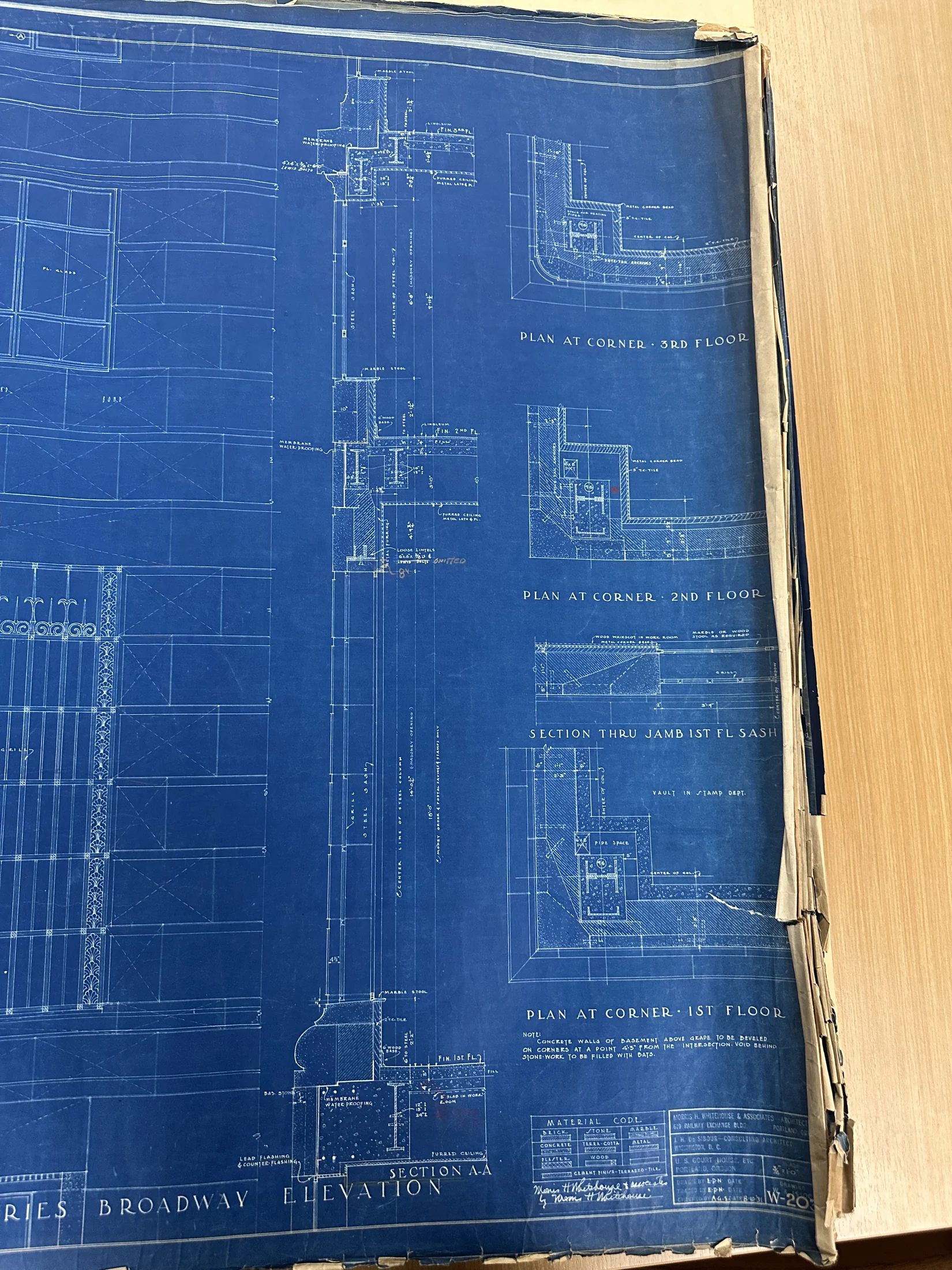

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
1.833333 ft
Dimension endpoints span the drawn straight exterior-wall build-up. They are not world coordinates and must not be centered on Column 96.
Drawing notation: 1'-10"
IMG_1247 lower-story northwest-corner evidence; physical geometry remains gated.
2.25 ft
Dimension endpoints span the drawn straight exterior-wall build-up. It is a different construction depth from the third-floor 1'-10" value.
Drawing notation: 2'-3"
IMG_1247 lower-story northwest-corner evidence; physical geometry remains gated.
3 in
Local interior corner finish/back-up layer label; T.C. abbreviation is preserved rather than expanded.
Drawing notation: 3" T.C. TILE
IMG_1247 lower-story northwest-corner evidence; physical geometry remains gated.
3 in
Local interior corner finish/back-up layer label; T.C. abbreviation is preserved rather than expanded.
Drawing notation: 3" T.C. TILE
IMG_1247 lower-story northwest-corner evidence; physical geometry remains gated.
96 count
The mark repeats in all three corner plans and maps to registered element column-96; it is not a room number or a quantity.
Drawing notation: 96
IMG_1247 lower-story northwest-corner evidence; physical geometry remains gated.
78.583333 ft
Identity anchor only; no wall face is assigned this X coordinate.
Drawing notation: 96
IMG_1247 lower-story northwest-corner evidence; physical geometry remains gated.
Calculated from: column-96-registered-world-x, img1247-corner-column-mark
78.583333 ft
Identity anchor only; no wall face is assigned this Z coordinate.
Drawing notation: 96
IMG_1247 lower-story northwest-corner evidence; physical geometry remains gated.
Calculated from: column-96-registered-world-z, img1247-corner-column-mark
2 in
Segment endpoints are visible but their full material/boundary classification remains unresolved; not a wall thickness.
Drawing notation: 2"
IMG_1247 lower-story northwest-corner evidence; physical geometry remains gated.
3.75 ft
The right endpoint is marked CENTER OF ... but the final word is obscured by the photographed page edge; no opening or wall-face assignment is made.
Drawing notation: 3'-9"
IMG_1247 lower-story northwest-corner evidence; physical geometry remains gated.
4.25 ft
Applies to basement walls above grade at the depicted corner; exact material word BATS is preserved as printed/legible and not silently normalized.
Drawing notation: CONCRETE WALLS OF BASEMENT ABOVE GRADE TO BE BEVELED ON CORNERS AT A POINT 4'-3" FROM THE INTERSECTION. VOID BEHIND STONE WORK TO BE FILLED WITH BATS.
IMG_1247 lower-story northwest-corner evidence; physical geometry remains gated.
2 in
Local Section A-A finish layer; not propagated to other floors.
Drawing notation: 2" T.C. TILE
IMG_1247 lower-story northwest-corner evidence; physical geometry remains gated.
6 in
Local work-room side base condition.
Drawing notation: 6" WOOD BASE
IMG_1247 lower-story northwest-corner evidence; physical geometry remains gated.
6 in
Local floor section only; no universal first-floor slab thickness is inferred.
Drawing notation: 6" SLAB IN WORK ROOM
IMG_1247 lower-story northwest-corner evidence; physical geometry remains gated.
PASSED for instance identity: Main/Broadway northwest corner. This is not a full geometric transform.
Drawing notation: COLUMN 96; VAULT IN STAMP DEPT.
IMG_1247 lower-story northwest-corner evidence; physical geometry remains gated.
Calculated from: img1247-corner-column-mark, column-96-registered-world-x, column-96-registered-world-z, f1-vault-stamps-footprint-trace
NOT PASSED: curve radii, tangent points, wall-face offsets and independently checked two-axis registration remain unresolved.
Drawing notation: PLAN AT CORNER
IMG_1247 lower-story northwest-corner evidence; physical geometry remains gated.
