Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Sheet number unresolved

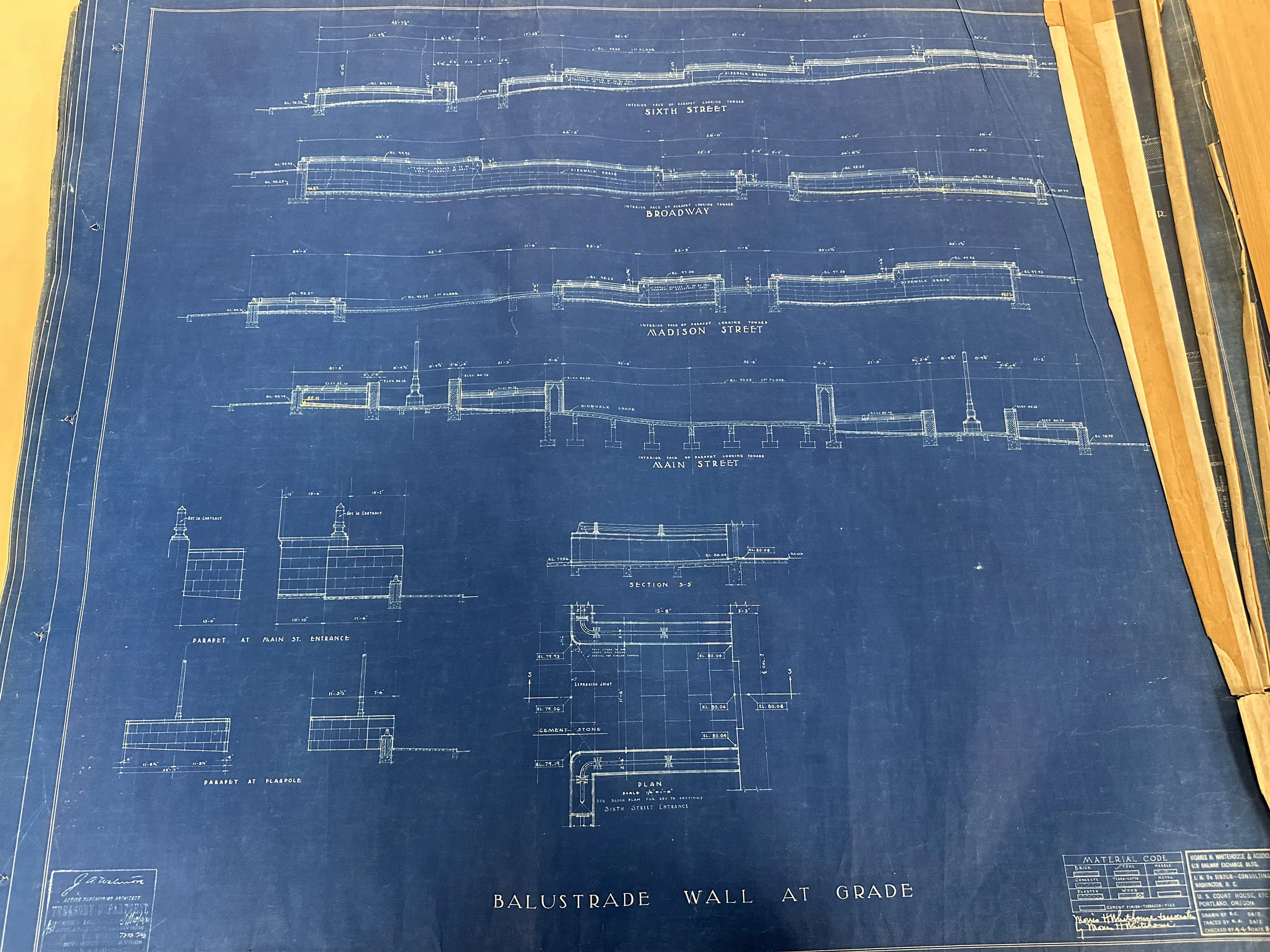

Extraction: Reviewed · extraction partial. Selected Main Street printed elevations and chain dimensions; Main entrance and flagpole parapet dimensions; one labeled Sixth Street entrance retaining-wall/ramp section as a site-wall construction witness. Partial timed visual review: Source-local photographed design detail; no installed quantity, accepted geometry or world placement authorized. Partial timed visual review: Source-local photographed drawing evidence only; stacked marks are interpreted as drawing references, not historical entrance identifiers. No installed quantities or accepted geometry. Partial timed visual review: Interior face of parapet looking toward Main Street; page-left/right only. Raw pixel content is upright despite stored EXIF 6. New readings are independent receipts, not silent corrections to prior package.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
91.79 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: EL. 91.79
Printed at the page-left exterior grade line.
76.75 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: EL. 76.75
Printed at the page-right exterior grade line.
15.04 ft
91.79 - 76.75 = 15.04 feet. This is an endpoint difference, not a uniform slope.
Drawing notation: EL. 91.79; EL. 76.75
Direction is page-left to page-right only pending plan registration.
Calculated from: site-main-grade-page-left-elevation, site-main-grade-page-right-elevation
Numeric value unresolved
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: SIDEWALK GRADE
Elevation view does not establish clear sidewalk width.
Numeric value unresolved
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: SIDEWALK GRADE
No secure curb section on the selected source.
Numeric value unresolved
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: SIDEWALK GRADE
No secure curb section on the selected source.
Numeric value unresolved
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: SIDEWALK GRADE
Property line and curb plan relationship are not resolved in this elevation.
92.79 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: ELEV 92.79
Leader lands at the wall/rail top zone; precise construction surface requires detail correlation.
94.13 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: ELEV 94.13
Printed beside the page-left pier adjacent to the flagpole field.
94.75 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: ELEV 94.75
Printed at the next pier toward the central field.
21.166667 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 21'-2"
Printed chain segment; exact endpoint objects require plan registration.
93.25 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: EL. 93.25 1ST FLOOR
Floor datum, not a universal sidewalk elevation. OCR rendered this poorly as EL. 9325 10 FLOOD.
32.5 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 32'-6"
Page-left half of the paired central chain; not called stair width.
32.5 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 32'-6"
Page-right half of the paired central chain; not called stair width.
4.5 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 4'-6"
Printed immediately outside the page-left 32'-6" segment.
4.5 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 4'-6"
Printed immediately outside the page-right 32'-6" segment.
21.25 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 21'-3"
Page-left outer segment in the central chain.
21.25 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 21'-3"
Page-right outer segment in the central chain.
89.42 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: ELEV 89.42
Leader lands at the upper wall/rail assembly.
88.33 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: ELEV 88.33
Printed at the pier beyond the page-right flagpole.
80.7 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: ELEV 80.70
Leader lands at the lower page-right wall/rail assembly.
13 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 13'-0"
Dimension beneath the separate front elevation.
10.833333 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 10'-10"
Page-left run beneath the profile elevation.
17.5 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 17'-6"
Page-right run beneath the profile elevation.
6.791667 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 6'-9 1/2"
Printed on one side of the pole axis; endpoint semantics unresolved.
6.791667 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 6'-9 1/2"
Printed on the other side of the pole axis; endpoint semantics unresolved.
6.791667 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 6'-9 1/2"
Printed on one side of the pole axis; endpoint semantics unresolved.
6.791667 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 6'-9 1/2"
Printed on the other side of the pole axis; endpoint semantics unresolved.
Numeric value unresolved
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Flagpoles are drawn but no secure height dimension is present.
Numeric value unresolved
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Base silhouettes are visible; dimensions require a dedicated flagpole detail.
11.291667 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 11'-3 1/2"
Printed in the profile elevation to the pole axis.
7.5 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 7'-6"
Printed in the profile elevation from the pole axis.
79.56 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: EL. 79.56
Printed at the page-left base/sidewalk surface in Section 3-3.
80.04 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: EL. 80.04
Printed at the wall/ramp junction.
80.08 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: EL. 80.08; RAMP
Printed on the ramp beyond the wall junction.
15.666667 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 15'-8"
Top horizontal plan chain.
3.25 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: 3'-3"
Printed page-right plan return dimension.
79.93 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: EL. 79.93
Plan point at upper page-left curved return.
79.56 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: EL. 79.56
Plan point at the middle page-left edge.
79.19 ft
Bounded IMG_1245 site/entrance source audit; no pixel scaling or world registration.
Drawing notation: EL. 79.19
Plan point at the lower page-left curved return.
