Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
site-main-street-sidewalkverified · printed
drawn_half_sidewalk_grade_elevation
EL. 83.14 AT SIDEWALK83.14 ft
This is a local design-grade point, not a uniform sidewalk elevation or a registered Blender world-coordinate station.

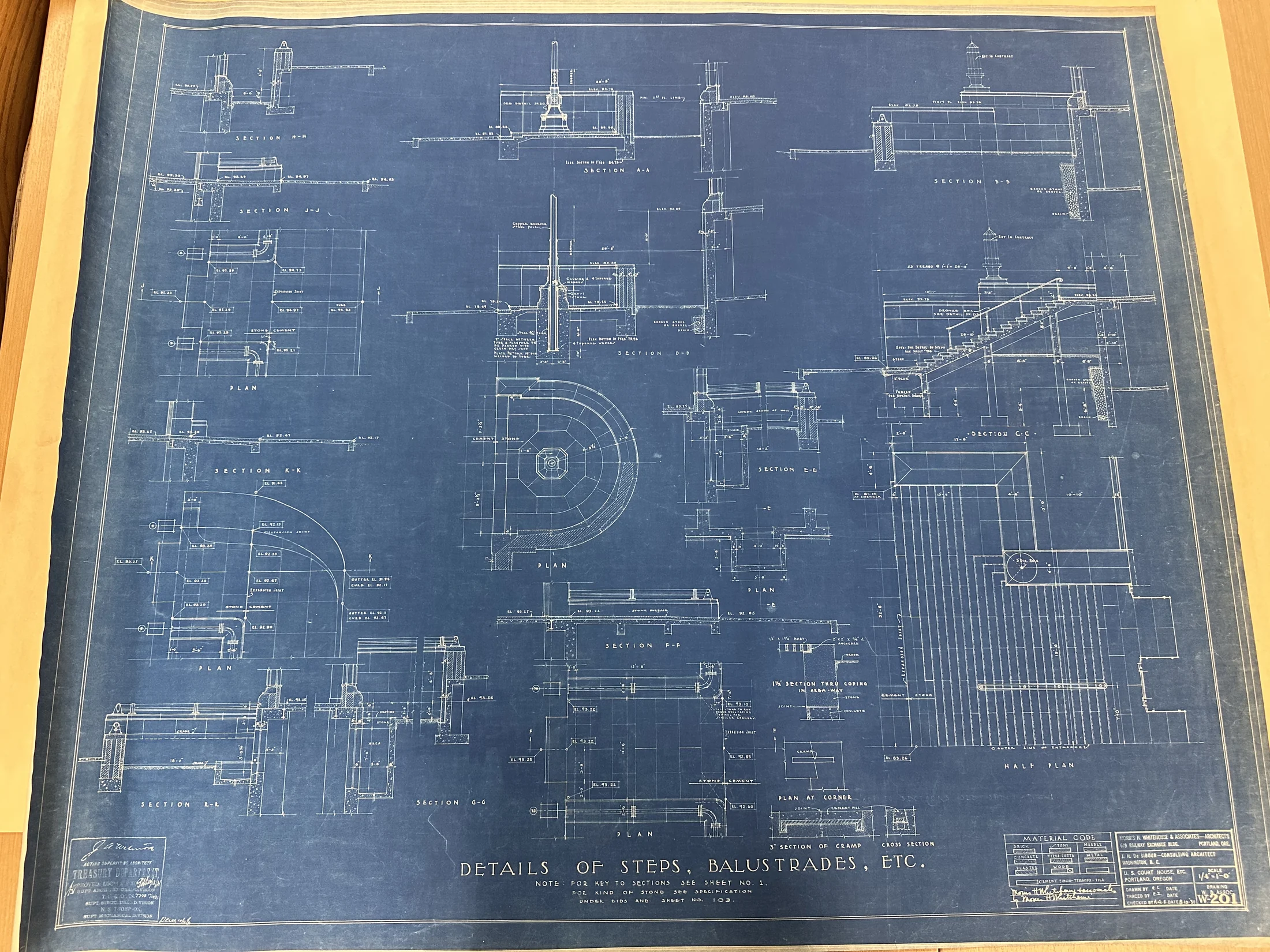

IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: EL. 83.14 AT SIDEWALK; HALF PLAN
The leader touches the lower sidewalk/step-approach line near the page-upper side of the drawn half. This point is separated in plan from the EL. 83.26 witness near the entrance centerline; their 0.12-foot difference is not a measured cross slope. W-201 local arrangement evidence only; no canonical world insertion is established.
main-north-entrance-bronze-railverified · printed
location_arrangement_sheet_number
DRAWING NO. W-201Recorded text value: W-201.
main-north-entrance-bronze-railverified · printed
rail_axis_offset_from_entrance_centerline
7'-0"; CENTER LINE OF ENTRANCE; HALF PLAN7 ft
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: 7'-0"; CENTER LINE OF ENTRANCE; HALF PLAN
The printed 7-foot dimension runs from CENTER LINE OF ENTRANCE to the rail axis on the drawn half. No world-axis sign is assigned. W-201 local arrangement evidence only; no canonical world insertion is established.
main-north-entrance-bronze-railverified · derived
mirrored_rail_axis_separation
2 x 7'-0" (HALF PLAN about CENTER LINE OF ENTRANCE)14 ft
This is a local symmetric separation between mirrored rail axes, not a world-coordinate placement.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: BRONZE RAIL; SEE DETAIL SH. 213; HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"
Section C-C establishes the stair-following profile; the HALF PLAN establishes the local centerline offset. W-201 local arrangement evidence only; no canonical world insertion is established.
Calculated from: main-north-w201-rail-half-offset
main-north-entrance-bronze-railverified · derived
mirrored_rail_run_count
One rail run in HALF PLAN, mirrored about CENTER LINE OF ENTRANCE2 count
Each run receives the W-213 Model No. 10 DOUBLE RAIL fabrication; this count does not reinterpret DOUBLE RAIL as the project run count.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: BRONZE RAIL; SEE DETAIL SH. 213; HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"
Section C-C establishes the stair-following profile; the HALF PLAN establishes the local centerline offset. W-201 local arrangement evidence only; no canonical world insertion is established.
Calculated from: main-north-w201-rail-half-offset
main-north-entrance-bronze-railverified · printed
fabrication_detail_sheet
BRONZE RAIL / SEE DETAIL SH. 213Recorded text value: W-213.
main-north-entrance-bronze-railunreviewed · observed
overall_length
UnresolvedW-201 shows a stair-following run and upper return, but no secure dimension is assigned to the complete rail path. Stair run or pixel length is not substituted.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: BRONZE RAIL; SEE DETAIL SH. 213; HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"
Section C-C establishes the stair-following profile; the HALF PLAN establishes the local centerline offset. W-201 local arrangement evidence only; no canonical world insertion is established.
main-north-entrance-bronze-railunreviewed · observed
post_count_per_run
UnresolvedGraphic circles/posts in the plan and elevation are not counted as an exact project quantity.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: BRONZE RAIL; SEE DETAIL SH. 213; HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"
Section C-C establishes the stair-following profile; the HALF PLAN establishes the local centerline offset. W-201 local arrangement evidence only; no canonical world insertion is established.
main-north-entrance-bronze-railunreviewed · observed
post_spacing
UnresolvedNo secure printed post-spacing dimension is identified on W-201. W-213's 12-inch-on-center note applies to countersunk machine screws, not post spacing.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: BRONZE RAIL; SEE DETAIL SH. 213; HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"
Section C-C establishes the stair-following profile; the HALF PLAN establishes the local centerline offset. W-201 local arrangement evidence only; no canonical world insertion is established.
main-north-entrance-bronze-railunreviewed · observed
world_x
UnresolvedThe entrance centerline has not been registered to an accepted facade or building-grid world X station, and the drawn half is not labeled east or west.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: BRONZE RAIL; SEE DETAIL SH. 213; HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"
Section C-C establishes the stair-following profile; the HALF PLAN establishes the local centerline offset. W-201 local arrangement evidence only; no canonical world insertion is established.
main-north-entrance-bronze-railunreviewed · observed
world_z
UnresolvedNo accepted building-face, property-line or sidewalk station ties the local W-201 rail path to canonical world Z.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: BRONZE RAIL; SEE DETAIL SH. 213; HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"
Section C-C establishes the stair-following profile; the HALF PLAN establishes the local centerline offset. W-201 local arrangement evidence only; no canonical world insertion is established.
main-north-entrance-bronze-railunreviewed · observed
drawn_half_east_or_west
UnresolvedNo compass or east/west label is securely printed in the reviewed region.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: BRONZE RAIL; SEE DETAIL SH. 213; HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"
Section C-C establishes the stair-following profile; the HALF PLAN establishes the local centerline offset. W-201 local arrangement evidence only; no canonical world insertion is established.
main-north-entrance-bronze-railunreviewed · observed
lower_and_upper_rail_extension_lengths
UnresolvedNearby stair and landing dimensions do not securely terminate on the full rail path.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: BRONZE RAIL; SEE DETAIL SH. 213; HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"
Section C-C establishes the stair-following profile; the HALF PLAN establishes the local centerline offset. W-201 local arrangement evidence only; no canonical world insertion is established.
main-north-entrance-bronze-railunreviewed · observed
as_built_correspondence
UnresolvedNo construction or present-day photograph was inspected.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: BRONZE RAIL; SEE DETAIL SH. 213; HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"
Section C-C establishes the stair-following profile; the HALF PLAN establishes the local centerline offset. W-201 local arrangement evidence only; no canonical world insertion is established.
sheet-W201verified · printed
Printed checked date
8-10-31Normalized as 1931-08-10 for W-201 only.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: DRAWING NO. W-201; CHECKED 8-10-31
Section C-C establishes the stair-following profile; the HALF PLAN establishes the local centerline offset. W-201 local arrangement evidence only; no canonical world insertion is established.
Conflicting readings: W201-prior-design-state-classification
sheet-W201disputed · observed
Prior unsourced design-state classification
1933-designRetained as a cross-package conflict; the printed W-201 checked date is preferred for this sheet.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: BRONZE RAIL; SEE DETAIL SH. 213; HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"
Section C-C establishes the stair-following profile; the HALF PLAN establishes the local centerline offset. W-201 local arrangement evidence only; no canonical world insertion is established.
Conflicting readings: W201-checked-date
main-north-entrance-bronze-rail-run-negative-xunreviewed · derived
Signed rail-axis offset from entrance centerline
-7′0″ along W3 width axis-7 ft
The pair is symmetric; negative-X is a canonical-coordinate label, not a historical east/west mark.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
IMG_1087 · sheet-W213 · Locate on drawing ↗Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w201-rail-half-offset, main-north-w3-run-axis-x, main-north-w3-run-axis-z
main-north-entrance-bronze-rail-run-negative-xunreviewed · derived
Registered upper run endpoint X
-7.202762 ft-7.202762 ft
Analytical axis endpoint only.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
IMG_1087 · sheet-W213 · Locate on drawing ↗Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w3-top-center-world-x, main-north-w3-top-center-world-z, main-north-w201-rail-half-offset
main-north-entrance-bronze-rail-run-negative-xunreviewed · derived
Registered upper rail-axis elevation
+2.823333 ft local2.823333 ft
W213 rail height added to the 93.24 exterior landing; not a member top/bottom or physical section.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
IMG_1087 · sheet-W213 · Locate on drawing ↗Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-steps-upper-elevation, frame-first-floor-finish, main-north-w213-rail-height
main-north-entrance-bronze-rail-run-negative-xunreviewed · derived
Registered upper run endpoint Z
84.641320 ft84.64132 ft
Analytical axis endpoint only.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
IMG_1087 · sheet-W213 · Locate on drawing ↗Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w3-top-center-world-x, main-north-w3-top-center-world-z, main-north-w201-rail-half-offset
main-north-entrance-bronze-rail-run-negative-xunreviewed · derived
Registered lower run endpoint X
-7.234656 ft-7.234656 ft
Analytical axis endpoint only.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
IMG_1087 · sheet-W213 · Locate on drawing ↗Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w3-bottom-center-world-x, main-north-w3-bottom-center-world-z, main-north-w201-rail-half-offset
main-north-entrance-bronze-rail-run-negative-xunreviewed · derived
Registered lower rail-axis elevation
-7.156667 ft local-7.156667 ft
W213 rail height added to the 83.26 lower surface; not a physical endpoint extension.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
IMG_1087 · sheet-W213 · Locate on drawing ↗Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-steps-lower-elevation, frame-first-floor-finish, main-north-w213-rail-height
main-north-entrance-bronze-rail-run-negative-xunreviewed · derived
Registered lower run endpoint Z
109.557966 ft109.557966 ft
Analytical axis endpoint only.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
IMG_1087 · sheet-W213 · Locate on drawing ↗Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w3-bottom-center-world-x, main-north-w3-bottom-center-world-z, main-north-w201-rail-half-offset
main-north-entrance-bronze-rail-run-positive-xunreviewed · derived
Signed rail-axis offset from entrance centerline
+7′0″ along W3 width axis7 ft
The pair is symmetric; positive-X is a canonical-coordinate label, not a historical east/west mark.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
IMG_1087 · sheet-W213 · Locate on drawing ↗Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w201-rail-half-offset, main-north-w3-run-axis-x, main-north-w3-run-axis-z
main-north-entrance-bronze-rail-run-positive-xunreviewed · derived
Registered upper run endpoint X
6.797226 ft6.797226 ft
Analytical axis endpoint only.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
IMG_1087 · sheet-W213 · Locate on drawing ↗Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w3-top-center-world-x, main-north-w3-top-center-world-z, main-north-w201-rail-half-offset
main-north-entrance-bronze-rail-run-positive-xunreviewed · derived
Registered upper rail-axis elevation
+2.823333 ft local2.823333 ft
W213 rail height added to the 93.24 exterior landing; not a member top/bottom or physical section.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
IMG_1087 · sheet-W213 · Locate on drawing ↗Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-steps-upper-elevation, frame-first-floor-finish, main-north-w213-rail-height
main-north-entrance-bronze-rail-run-positive-xunreviewed · derived
Registered upper run endpoint Z
84.659240 ft84.65924 ft
Analytical axis endpoint only.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
IMG_1087 · sheet-W213 · Locate on drawing ↗Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w3-top-center-world-x, main-north-w3-top-center-world-z, main-north-w201-rail-half-offset
main-north-entrance-bronze-rail-run-positive-xunreviewed · derived
Registered lower run endpoint X
6.765332 ft6.765332 ft
Analytical axis endpoint only.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
IMG_1087 · sheet-W213 · Locate on drawing ↗Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w3-bottom-center-world-x, main-north-w3-bottom-center-world-z, main-north-w201-rail-half-offset
main-north-entrance-bronze-rail-run-positive-xunreviewed · derived
Registered lower rail-axis elevation
-7.156667 ft local-7.156667 ft
W213 rail height added to the 83.26 lower surface; not a physical endpoint extension.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
IMG_1087 · sheet-W213 · Locate on drawing ↗Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-steps-lower-elevation, frame-first-floor-finish, main-north-w213-rail-height
main-north-entrance-bronze-rail-run-positive-xunreviewed · derived
Registered lower run endpoint Z
109.575886 ft109.575886 ft
Analytical axis endpoint only.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
IMG_1087 · sheet-W213 · Locate on drawing ↗Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w3-bottom-center-world-x, main-north-w3-bottom-center-world-z, main-north-w201-rail-half-offset
main-north-entrance-w415-p1-page-left-slabunreviewed · inferred
top surface historic elevation
UnresolvedNumeric value unresolved
W-415 says the ground-slab elevation suits stone finish; W-201's 83.26 and 93.24 refer to finished approach/landing surfaces, not the P1 concrete top.
IMG_1329 · sheet-W415 · Locate on drawing ↗Drawing notation: PLAN; P1 (page-left lower slab field); DETAILS OF FRAMING FOR FRONT ENTRANCE STEPS
P1 is a printed slab mark; page-left is a photographic position, not an east/west assignment. The perimeter of this P1 field has not been independently picked or dimensioned.
IMG_1329 · sheet-W415 · Locate on drawing ↗Drawing notation: 6" SLABS LAID ON GROUND ... ELEV. TO SUIT STONE FINISH
A separate six-inch ground-slab note. Its leader/field has not been proven to denote the marked P1 slab, so six inches is not substituted for P1's scheduled eight inches. The mesh notation between these phrases is not securely transcribed.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: SECTION C-C; 23 TREADS @ 1'-1" = 24'-11"; EL. 83.26; ELEV. 93.24; 4'-0" upper landing
These are finished-stair/landing controls, not a P1 structural-slab elevation or tread/riser profile.
main-north-center-exterior-framed-assemblyunreviewed · printed
adjacent upper exterior landing elevation, historical datum
ELEV. 93.2493.24 historic-datum ft
previously-reviewed-context-only. Printed bay control and provisional W3 line do not complete frame XYZ extents or host.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: ELEV. 93.24
local entrance stair section; historical elevation datum; previously-reviewed-exterior-landing-datum. Not established as threshold top, frame bottom or foyer floor.
main-north-center-exterior-framed-assemblyunreviewed · inferred
accepted threshold top canonical Y
UnresolvedNumeric value unresolved
unresolved. Printed bay control and provisional W3 line do not complete frame XYZ extents or host.
IMG_1099 · sheet-W218 · Locate on drawing ↗Drawing notation: PLAN AT MAIN ST. DOORS; METAL THRESHOLD
upright Main Street exterior door plan; page directions not used as canonical stations; targeted-identity-and-threshold-label-review; depth-chain-endpoints-unresolved. Neither 93.24 nor 93.25 can be substituted for this contact elevation without a checked section.
IMG_1242 · sheet-W201 · Locate on drawing ↗Drawing notation: ELEV. 93.24
local entrance stair section; historical elevation datum; previously-reviewed-exterior-landing-datum. Neither 93.24 nor 93.25 can be substituted for this contact elevation without a checked section.
IMG_1314 · sheet-W400 · Locate on drawing ↗Drawing notation: FIRST FLOOR 93.25
historical elevation datum; previously-verified-floor-datum. Neither 93.24 nor 93.25 can be substituted for this contact elevation without a checked section.
detail-stone-1242-construction-notesverified · printed
stone-specification-reference
FOR KIND OF STONE SEE SPECIFICATION / UNDER BIDS AND SHEET NO. 103Source-local photographed design detail; no installed quantity, accepted geometry or world placement authorized.
IMG_1242 · W-201 · Locate on drawing ↗Drawing notation: FOR KIND OF STONE SEE SPECIFICATION / UNDER BIDS AND SHEET NO. 103
Source-local photographed design detail; no installed quantity, accepted geometry or world placement authorized.
detail-stone-1242-construction-notesverified · printed
cramp-detail-existence
3" SECTION OF CRAMP / CROSS SECTIONSource-local photographed design detail; no installed quantity, accepted geometry or world placement authorized.
IMG_1242 · W-201 · Locate on drawing ↗Drawing notation: 3" SECTION OF CRAMP / CROSS SECTION
Source-local photographed design detail; no installed quantity, accepted geometry or world placement authorized.
detail-stone-1242-construction-notesverified · printed
joint-fill
JOINT (CEMENT FILL)Source-local photographed design detail; no installed quantity, accepted geometry or world placement authorized.
stone-closure-img1242-documentverified · printed
title
DETAILS OF STEPS, BALUSTRADES, ETC.Source-local photographed drawing evidence only; stacked marks are interpreted as drawing references, not historical entrance identifiers. No installed quantities or accepted geometry.
IMG_1242 · W-201 · Locate on drawing ↗Drawing notation: DETAILS OF STEPS, BALUSTRADES, ETC.
Source-local photographed drawing evidence only; stacked marks are interpreted as drawing references, not historical entrance identifiers. No installed quantities or accepted geometry.
stone-closure-img1242-documentverified · printed
sheet-number
W-201Source-local photographed drawing evidence only; stacked marks are interpreted as drawing references, not historical entrance identifiers. No installed quantities or accepted geometry.
IMG_1242 · W-201 · Locate on drawing ↗Drawing notation: W-201
Source-local photographed drawing evidence only; stacked marks are interpreted as drawing references, not historical entrance identifiers. No installed quantities or accepted geometry.
stone-closure-img1242-documentverified · printed
section-key-reference
NOTE: FOR KEY TO SECTIONS SEE SHEET NO. 1.1 sheet-number
Source-local photographed drawing evidence only; stacked marks are interpreted as drawing references, not historical entrance identifiers. No installed quantities or accepted geometry.
IMG_1242 · W-201 · Locate on drawing ↗Drawing notation: NOTE: FOR KEY TO SECTIONS SEE SHEET NO. 1.
Source-local photographed drawing evidence only; stacked marks are interpreted as drawing references, not historical entrance identifiers. No installed quantities or accepted geometry.
stone-closure-img1242-documentverified · printed
drawing-scale
1/4" = 1'-0"Source-local photographed drawing evidence only; stacked marks are interpreted as drawing references, not historical entrance identifiers. No installed quantities or accepted geometry.
IMG_1242 · W-201 · Locate on drawing ↗Drawing notation: 1/4" = 1'-0"
Source-local photographed drawing evidence only; stacked marks are interpreted as drawing references, not historical entrance identifiers. No installed quantities or accepted geometry.
