env-main-F1-levelverified · printed
floor elevation
FIRST FL 93.2593.25 ft
Main Street lower-corner datum
The measured building.
Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
- Source photographs
- 464
- Identified objects
- 4872
- Verified printed values
- 12046
- Disputed values
- 20
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)IMG_1241 · Folder 190

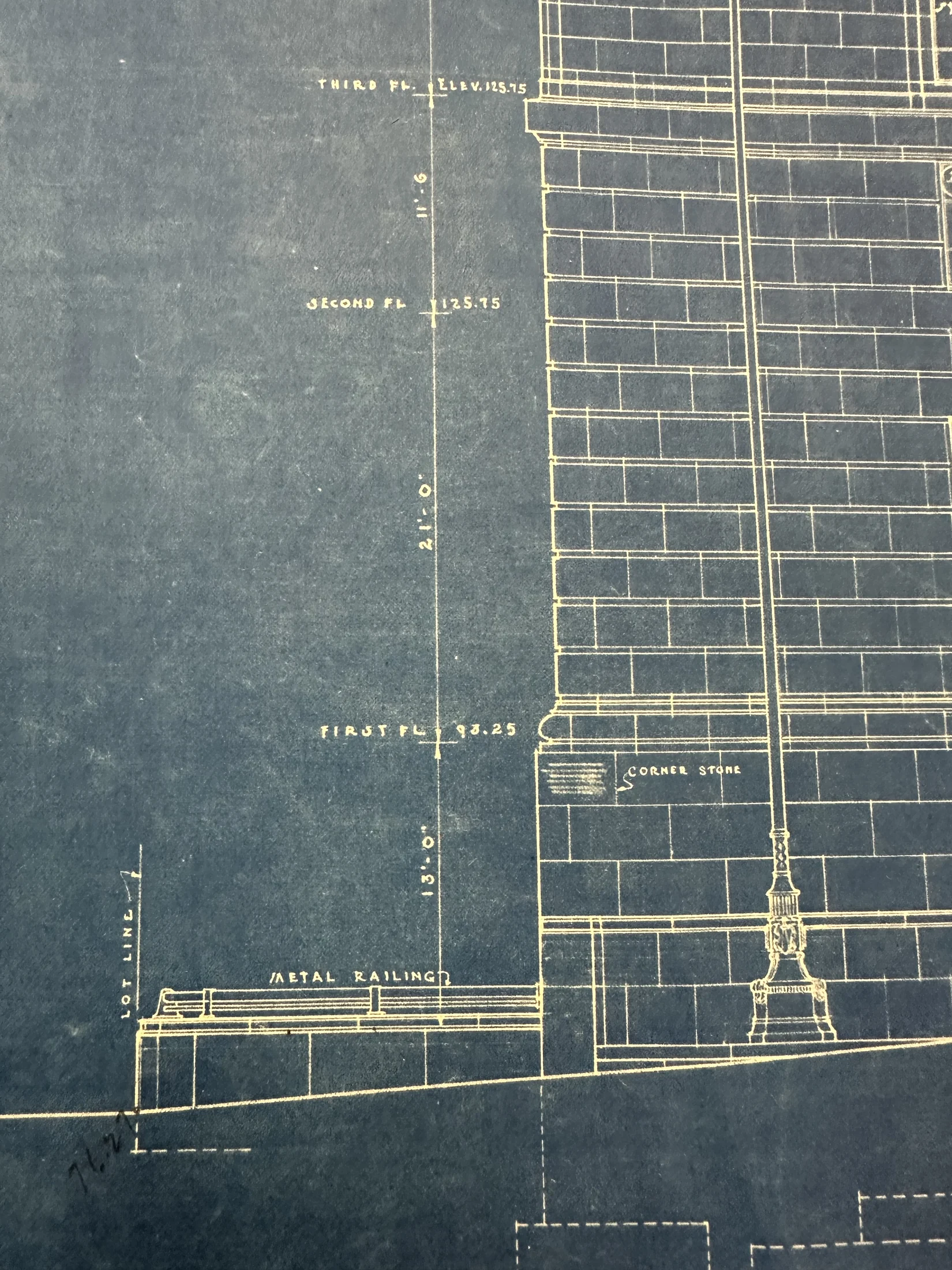

Main Street elevation—cornerstone and grade detail
Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial: façade opening identities/counts and selected printed datums. Drawing number, registration and opening dimensions still unresolved. Partial timed visual review: Source-local photographed design detail; no installed quantity, accepted geometry or world placement authorized. Partial timed visual review: Source-local photographed drawing evidence only; stacked marks are interpreted as drawing references, not historical entrance identifiers. No installed quantities or accepted geometry. Partial timed visual review: Three sequential views: sips locator displayed sideways because of EXIF handling, then correct raw raster rotation90 clockwise lower region and targeted handwritten grade glyph. New regions refer to correct 3024×4032 upright raster; no historic grade digit guessed. Partial timed visual review: One sideways master locator only; lettering requires 90 degrees clockwise. Intended grade/parapet region not reached within ten-call budget. Existing envelope text reused; no new numeric receipt. Partial timed visual review: Source-local derivative corroboration only.
Unresolved extraction work
- Physical plan registration: No readable horizontal station chain or overall width occurs in the three assigned full elevation photographs. All station_ft, width_ft, height_ft, sill/head values remain null. Register traces to separately extracted foundation/floor-plan controls before 3D physical placement.
- Main full-elevation count: Assigned IMG_1241 is a lower corner crop. Inspect candidate full Main source separately; archive index titles may be wrong.
- Sheet numbers: Title blocks omitted or cropped in assigned views. Sheet numbers cannot be responsibly invented from image sequence.
- Upper level variation: Left-edge F7 chain is 171.75; Madison upper-opening reference is 173.75. Preserve both; do not impose a single universal F7 floor slab. Ambiguous secondary annotation on IMG_1233 not used as separate numeric measurement.
- Main second-floor label conflict: IMG_1241 prints 125.75 at both second and third floors. Its 21′0″ and 11′6″ chain and IMG_1233's explicit second114.25 contradict the second-floor label.
- Opening dimension schedules: OCR identifies IMG1250–1252 as upper-story Broadway details, IMG1253–1254 as heavy-type casement windows including basement/penthouse sash. These have not been visually measured in this bounded pass. No exact opening width/height can be inferred from elevation scale alone.
- Lower envelope and attachment profiles: OCR/index companions identify lower elevations/grilles, balustrades, steps, Broadway/Madison entries. Numeric profile projections remain null pending these details.
- Rooftop and small ancillary openings: Main-volume counts exclude rooftop stair/penthouse openings, vents, grille subpanels, door leaves, and facade lighting. Separate records required for an exhaustive whole-building object inventory.
- Sill/head datums: The drawn opening rectangles support approximate image bboxes only. Floor datums are not opening sills or heads. Do not replace missing sill/head values with floor lines.
- Unreadable minor marks: Some parapet/grade spot levels, window schedule circles, and faint marginal annotations remain unreadable within the four-full-image/eight-crop visual budget. This dataset is a bounded extraction, not a claim that every number in the archive has been transcribed.
- Remaining fine dimension chains, fractions, material schedules and revision annotations need targeted review
- Floor/room and installed-instance registration, quantities, finishes and companion callout reconciliation unresolved
- Full-region extraction and architectural acceptance remain incomplete
- Remaining dimensions, fractions, all notes, revisions and material hatch application need region-by-region review
- Reference sheet correspondence, historical instance/floor/room registration and independent checks unresolved
- Extraction partial; modeling/checking not accepted
- Remaining fine dimensions, notes, callouts, revisions and physical instance registration; no completeness or acceptance claim.
- Grade and parapet numeric glyphs
- Railing profile and material
- Sheet identity and physical registration
- Fine grade/parapet glyphs and full sheet identity
- Railing profile, material specificity and instance registration
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗10 matching properties
Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
env-main-F2-conflicting-labeldisputed · printed
floor elevation
SECOND FL 125.75125.75 ft
IMG_1241 · Locate on drawing ↗
Drawing notation: SECOND FL 125.75
Literal printed label repeats third-floor value; preserve as source conflict, not corrected transcription.
Conflicting readings: env-sixth-F2-level env-main-F1-F2-rise
env-main-F3-levelverified · printed
floor elevation
THIRD FL ELEV.125.75125.75 ft
IMG_1241 · Locate on drawing ↗
Drawing notation: THIRD FL ELEV.125.75
env-main-B-F1-riseverified · printed
floor interval
13′-0″13 ft
Upper is first-floor datum; lower chain endpoint corresponds basement datum, not a universal sidewalk height.
IMG_1241 · Locate on drawing ↗
Drawing notation: 13′-0″
Upper is first-floor datum; lower chain endpoint corresponds basement datum, not a universal sidewalk height.
env-main-F1-F2-riseverified · printed
floor interval
21′-0″21 ft
IMG_1241 · Locate on drawing ↗
Drawing notation: 21′-0″
env-main-F2-F3-riseverified · printed
floor interval
11′-6″11.5 ft
IMG_1241 · Locate on drawing ↗
Drawing notation: 11′-6″
detail-stone-1241-lower-cornerillegible · observed
handwritten_grade_annotation_followup
77.2[terminal glyph uncertain]Numeric value unresolved
Dark handwritten token adjacent to LOT LINE and sloping sidewalk is not a secure numeric elevation. Date, author and revision authority unestablished; no grade or wall height derived.
IMG_1241 · Locate on drawing ↗
Drawing notation: 77.2[terminal glyph uncertain]
Dark handwritten token adjacent to LOT LINE and sloping sidewalk is not a secure numeric elevation. Date, author and revision authority unestablished; no grade or wall height derived.
detail-stone-1241-lower-cornerverified · printed
railing_material_class
METAL RAILINGPrinted generic metal class over railing on low retaining wall, between lot-line end and building plinth. Exact alloy/finish, member dimensions and installed count remain unresolved.
IMG_1241 · Locate on drawing ↗
Drawing notation: METAL RAILING
Printed generic metal class over railing on low retaining wall, between lot-line end and building plinth. Exact alloy/finish, member dimensions and installed count remain unresolved.
detail-stone-1241-lower-cornerverified · observed
grade_and_railing_host_relationship
LOT LINE / METAL RAILINGHorizontal railing top and coping sit over a retaining wall; sloping sidewalk/grade line meets its outside lower edge and building plinth. The lot-line witness passes through page-left wall end; no world station assigned.
IMG_1241 · Locate on drawing ↗
Drawing notation: LOT LINE / METAL RAILING
Horizontal railing top and coping sit over a retaining wall; sloping sidewalk/grade line meets its outside lower edge and building plinth. The lot-line witness passes through page-left wall end; no world station assigned.
detail-stone-1241-lower-cornerunreviewed · observed
retaining_wall_height_at_lot_line
[no secure printed height in lower crop]Numeric value unresolved
No subtraction from uncertain grade or scaling from the 13'-0" first-floor-to-coping chain used to establish wall height.
IMG_1241 · Locate on drawing ↗
Drawing notation: [no secure printed height in lower crop]
No subtraction from uncertain grade or scaling from the 13'-0" first-floor-to-coping chain used to establish wall height.
