The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

IMG_1239 · Folder 190

Window Grille

Original sheet identity has not yet been reconciled.

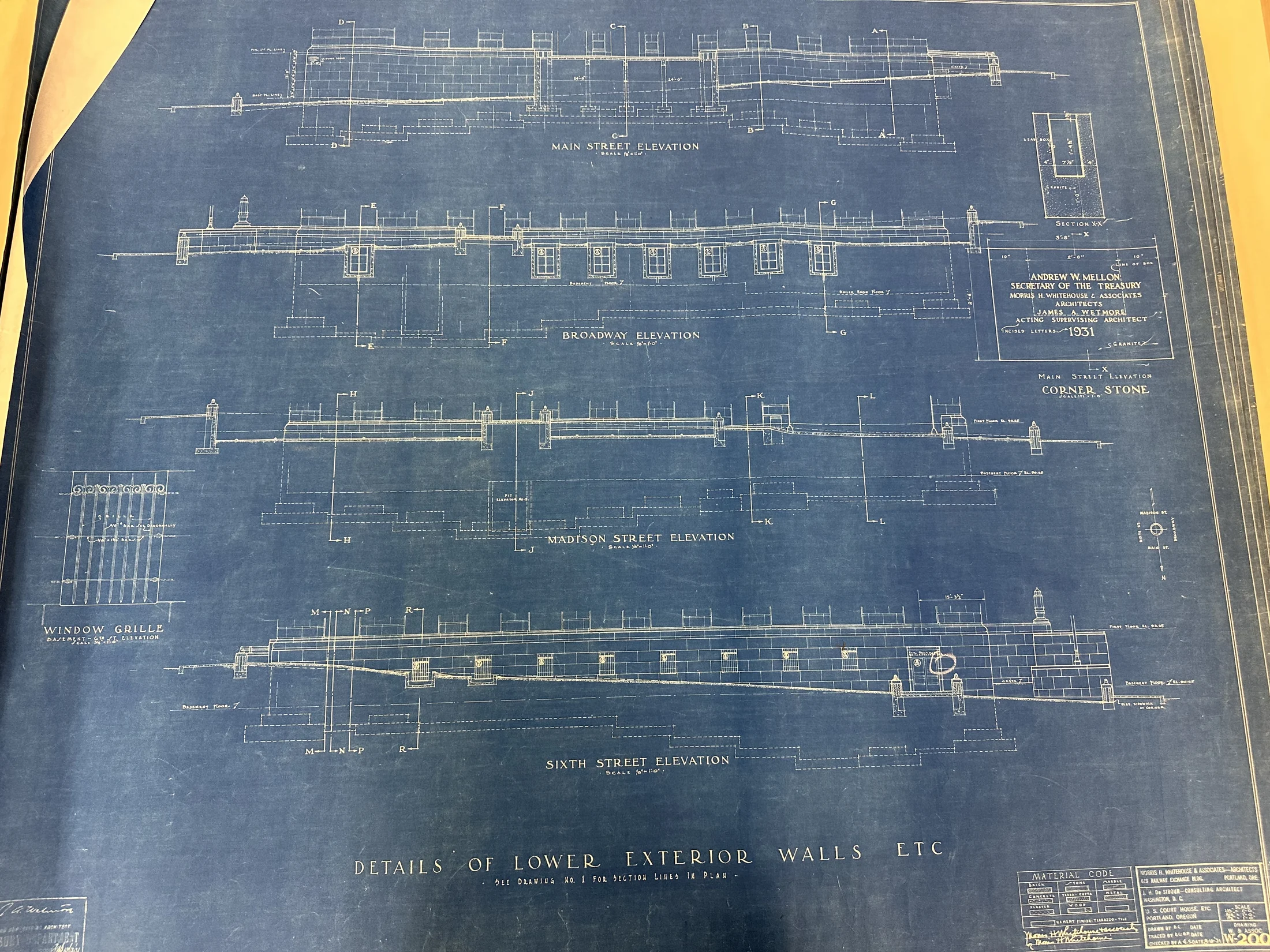

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial text-first then sequential <=1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1239.webp. Selected legible source regions only, not full measured extraction. Coordinates normalized in unrotated access image; principal lettering upright. No model geometry authorized. Partial timed visual review: Text-only prior evidence inventory; catalogue labels are discovery-only and prior verified identity retained. Partial timed visual review: Source-local photographed design detail; no installed quantity, accepted geometry or world placement authorized. Partial timed visual review: Source-local photographed drawing evidence only; stacked marks are interpreted as drawing references, not historical entrance identifiers. No installed quantities or accepted geometry. Partial timed visual review: Targeted grille bar annotation review. Native crop is upright, but bar fractions and unit marks remain insufficiently distinct; no duplicate unresolved measurement added.

Unresolved extraction work

locator review only; full region coverage, remaining dimension chains, fine fractions and dense notes outstanding
material-code schedules, revisions, annotations and companion detail reconciliation
historical building instance/room registration, quantities and missing finishes
Finished/rough/structural boundary classes and physical source-to-plan registration remain unaccepted.
Remaining fine dimensions, all material/finish schedules, notes and historical revisions need regional and companion review.
No installed quantity, geometry, as-built state or architectural release is accepted.
Each dimensional chain, finish layer and witness boundary requires fine review
All bar fractions, fabrication sections, opening endpoints and installed instance crosswalk
All physical profile/lead-box controls and drawing references
Material hatch extent, full revision record, companion No.1 section-line registration
Remaining fine dimension chains, fractions, material schedules and revision annotations need targeted review
Floor/room and installed-instance registration, quantities, finishes and companion callout reconciliation unresolved
Full-region extraction and architectural acceptance remain incomplete
Remaining dimensions, fractions, all notes, revisions and material hatch application need region-by-region review
Reference sheet correspondence, historical instance/floor/room registration and independent checks unresolved
Extraction partial; modeling/checking not accepted
Vertical and horizontal bar sizes; complete grille dimensions
Fabrication/anchorage, installed instance correspondence and full sheet review

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

19 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1239-wallverified · printed
