Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial text-first then sequential <=1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1238.webp. Selected legible source regions only, not full measured extraction. Coordinates normalized in unrotated access image; principal lettering upright. No model geometry authorized. Partial timed visual review: Source-local printed/observed section controls, independent local ceiling/roof and finish scopes; no building geometry approval. Partial timed visual review: Source-local architectural evidence only; no physical registration, installed quantity or accepted geometry. Existing verified measurements omitted; conflicting locator readings preserved. Partial timed visual review: D-D targeted conflict and reciprocal section-reference review; prior records retained. Partial timed visual review: Interior Section D-D local ceiling/light-well relationship. Raw pixel content upright despite EXIF 6. Prior room 606 transcription resolution reused.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible source evidence only; partial locator review, applies to depicted assembly.

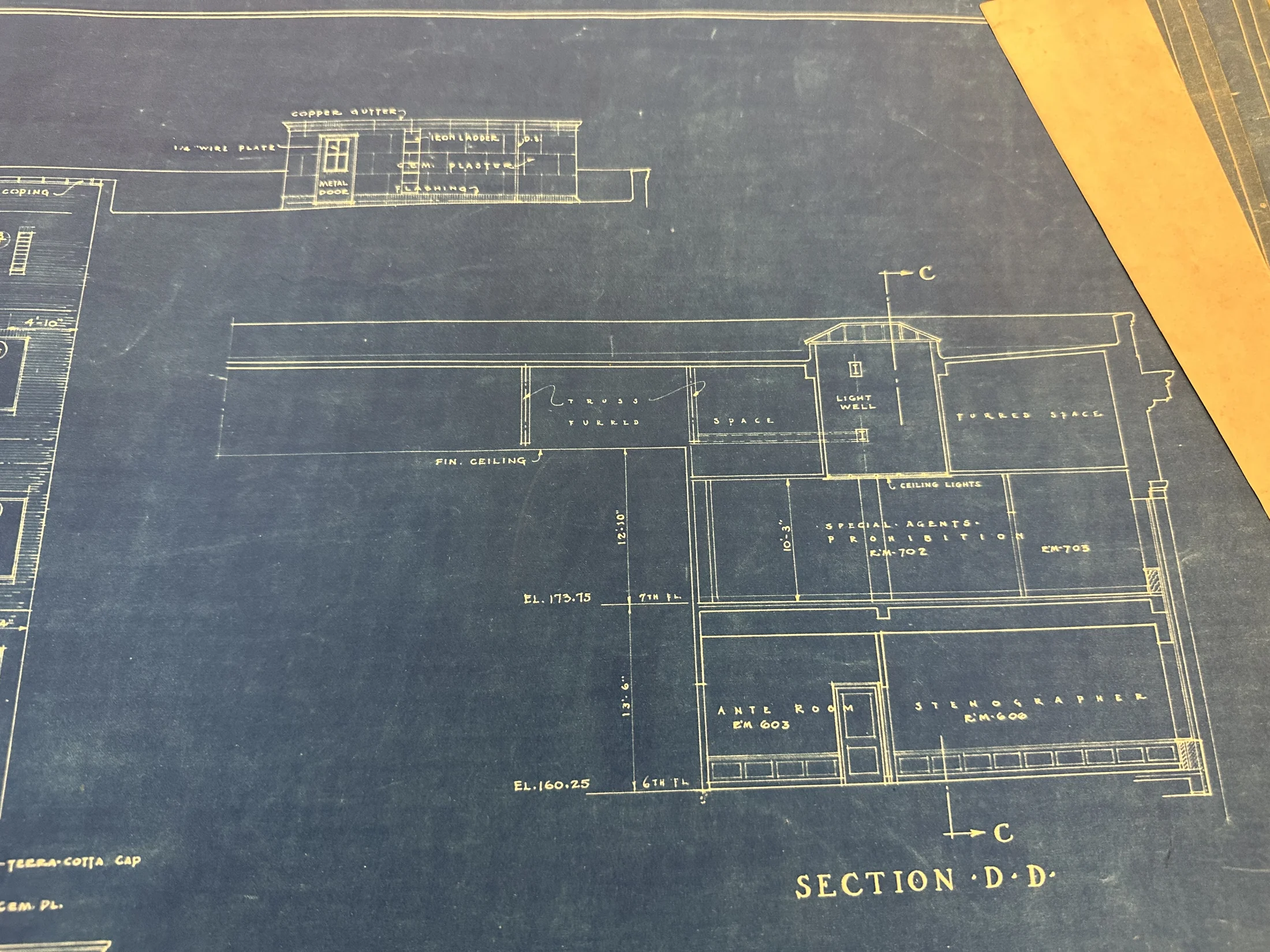

Drawing notation: SECTION D-D
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: EL.173.75 7TH FL.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: EL.160.25 6TH FL.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
162 in
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 13'-6"
Selected visible source evidence only; partial locator review, applies to depicted assembly.
154 in
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 12'-10"
Selected visible source evidence only; partial locator review, applies to depicted assembly.
123 in
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: 10'-3"
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: FURRED SPACE
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: LIGHT WELL
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: CEILING LIGHTS
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: ANTE ROOM RM.603
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: STENOGRAPHER RM.604
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: SPECIAL AGENTS PROHIBITION RM.702
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: COPPER GUTTER
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: IRON LADDER
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Drawing notation: METAL DOOR
Selected visible source evidence only; partial locator review, applies to depicted assembly.
Selected visible source evidence only; partial locator review, applies to depicted assembly. Review correction review-correction-20261013j-parallel-img1238-m016: Verified raw-master same-image rooftop crop shows CEM.PLASTER, a leader to penthouse wall, in the same source note region [.324,.171,.414,.189] earlier attributed to CEM.PLATFORM. detail-facade-20261011d-1238-m1 independently preserves CEM.PLASTER. Demonstrable transcription error only; no historical revision precedence or geometry accepted.
Drawing notation: CEM.PLATFORM
Selected visible source evidence only; partial locator review, applies to depicted assembly.
0.25 in
Leader points to upper panel of METAL DOOR in penthouse depiction. Printed quarter-inch thickness now confirmed at raw-master resolution; no door width or plate area inferred.
Drawing notation: ¼″ WIRE PLATE
Leader points to upper panel of METAL DOOR in penthouse depiction. Printed quarter-inch thickness now confirmed at raw-master resolution; no door width or plate area inferred.
WIRE PLATE leader ends at metal door upper rectangular panel. Wired glazing/plate terminology is literal; mesh, glass formulation and hardware remain unresolved.
Drawing notation: ¼″ WIRE PLATE / METAL DOOR
WIRE PLATE leader ends at metal door upper rectangular panel. Wired glazing/plate terminology is literal; mesh, glass formulation and hardware remain unresolved.
Calculated from: section1013j-dd-wire-plate-thickness, parallel-img1238-m015
Same-image master crop clearly reads CEM.PLASTER, with a leader to penthouse wall at page-right of ladder. Earlier CEM.PLATFORM transcription in parallel-img1238-m016 occupies this same note region and is not an independently printed platform.
Drawing notation: CEM. PLASTER
Same-image master crop clearly reads CEM.PLASTER, with a leader to penthouse wall at page-right of ladder. Earlier CEM.PLATFORM transcription in parallel-img1238-m016 occupies this same note region and is not an independently printed platform.
Conflicting readings: parallel-img1238-m016
D.S. leader touches vertical pipe/line at page-right of rooftop ladder. Abbreviation retained; no pipe diameter, material, installed count or drainage route inferred.
Drawing notation: D.S.
D.S. leader touches vertical pipe/line at page-right of rooftop ladder. Abbreviation retained; no pipe diameter, material, installed count or drainage route inferred.
173.75 ft
Numeric normalization of previously text-only D-D regional floor label; belongs to depicted upper-floor reference. No universal F7 floor plate and no conversion to fan-room190.35/190.53.
Drawing notation: EL.173.75 / 7TH FL.
Numeric normalization of previously text-only D-D regional floor label; belongs to depicted upper-floor reference. No universal F7 floor plate and no conversion to fan-room190.35/190.53.
Calculated from: parallel-img1238-m002
Outer12′10″ arrow starts at EL173.75 seventh-floor reference and ends on FIN.CEILING line under trussed furred space left of special-agents bay. It is a different ceiling reference from10′3″ room702. Neither is truss depth or slab thickness.
Drawing notation: 12′10″ / FIN. CEILING
Outer12′10″ arrow starts at EL173.75 seventh-floor reference and ends on FIN.CEILING line under trussed furred space left of special-agents bay. It is a different ceiling reference from10′3″ room702. Neither is truss depth or slab thickness.
Calculated from: parallel-img1238-m005, section1013j-dd-local-seventh-reference
10′3″ internal arrow joins depicted room702 floor top/reference to lower ceiling line continuing under adjacent furred space and CEILING LIGHTS below LIGHT WELL. It does not join the higher left FIN.CEILING line.
Drawing notation: 10′3″ / SPECIAL AGENTS PROHIBITION R′M702
10′3″ internal arrow joins depicted room702 floor top/reference to lower ceiling line continuing under adjacent furred space and CEILING LIGHTS below LIGHT WELL. It does not join the higher left FIN.CEILING line.
Calculated from: parallel-img1238-m006, section1013j-dd-local-seventh-reference, site1013a-w105-dd-ceiling-lights-host
186.583333 ft
Derived labeled FIN.CEILING reference left of room702 only; no minimum clear height or cross-room slab assigned.
Drawing notation: 173.75 + 12′10″ = 186.583333…
Derived labeled FIN.CEILING reference left of room702 only; no minimum clear height or cross-room slab assigned.
Calculated from: section1013j-dd-local-seventh-reference, parallel-img1238-m005, section1013j-dd-left-ceiling-witness
184 ft
Derived lower room702 ceiling/base-of-light-well reference, physically distinct from left FIN.CEILING datum and from file-room185.25. No ceiling-light assembly thickness inferred.
Drawing notation: 173.75 + 10′3″ = 184.00
Derived lower room702 ceiling/base-of-light-well reference, physically distinct from left FIN.CEILING datum and from file-room185.25. No ceiling-light assembly thickness inferred.
Calculated from: section1013j-dd-local-seventh-reference, parallel-img1238-m006, section1013j-dd-room702-ceiling-witness
31 in
Two independently printed vertical witnesses on same depicted regional floor reference differ31in. This is an elevation-reference check; it does not establish a continuous ceiling transition/profile.
Drawing notation: 12′10″ − 10′3″ = 2′7″
Two independently printed vertical witnesses on same depicted regional floor reference differ31in. This is an elevation-reference check; it does not establish a continuous ceiling transition/profile.
Calculated from: parallel-img1238-m005, parallel-img1238-m006, section1013j-dd-left-finish-ceiling-level, section1013j-dd-room702-ceiling-level
LIGHT WELL lies between vertical enclosing boundaries above ceiling-light line over room702, adjoining furred space. No occupied eighth-floor slab is drawn filling this particular well. Graphic line alone cannot establish glazing, fixtures, light-well footprint or roof aperture dimensions.
Drawing notation: LIGHT WELL / CEILING LIGHTS
LIGHT WELL lies between vertical enclosing boundaries above ceiling-light line over room702, adjoining furred space. No occupied eighth-floor slab is drawn filling this particular well. Graphic line alone cannot establish glazing, fixtures, light-well footprint or roof aperture dimensions.
Calculated from: site1013a-w105-dd-ceiling-lights-host, parallel-img1238-m008, detail-facade-20261011d-1238-m6
Source-local architectural evidence only; no physical registration, installed quantity or accepted geometry. Existing verified measurements omitted; conflicting locator readings preserved.
Drawing notation: CEM. PLASTER
Source-local architectural evidence only; no physical registration, installed quantity or accepted geometry. Existing verified measurements omitted; conflicting locator readings preserved.
Source-local architectural evidence only; no physical registration, installed quantity or accepted geometry. Existing verified measurements omitted; conflicting locator readings preserved.
Drawing notation: FLASHING
Source-local architectural evidence only; no physical registration, installed quantity or accepted geometry. Existing verified measurements omitted; conflicting locator readings preserved.
0.25 in
Source-local architectural evidence only; no physical registration, installed quantity or accepted geometry. Existing verified measurements omitted; conflicting locator readings preserved.
Drawing notation: 1/4" WIRE PLATE
Source-local architectural evidence only; no physical registration, installed quantity or accepted geometry. Existing verified measurements omitted; conflicting locator readings preserved.
Source-local architectural evidence only; no physical registration, installed quantity or accepted geometry. Existing verified measurements omitted; conflicting locator readings preserved.
Drawing notation: STENOGRAPHER RM.606
Source-local architectural evidence only; no physical registration, installed quantity or accepted geometry. Existing verified measurements omitted; conflicting locator readings preserved.
Conflicting readings: parallel-img1238-m011
703 room-number
Source-local architectural evidence only; no physical registration, installed quantity or accepted geometry. Existing verified measurements omitted; conflicting locator readings preserved.
Drawing notation: RM-703
Source-local architectural evidence only; no physical registration, installed quantity or accepted geometry. Existing verified measurements omitted; conflicting locator readings preserved.
Source-local architectural evidence only; no physical registration, installed quantity or accepted geometry. Existing verified measurements omitted; conflicting locator readings preserved.
Drawing notation: TRUSS / FURRED SPACE
Source-local architectural evidence only; no physical registration, installed quantity or accepted geometry. Existing verified measurements omitted; conflicting locator readings preserved.
606 room-number
Expanded upright derivative clearly reads 606. Resolves source transcription disagreement in favor of 606; historical floor-plan assignment remains unregistered.
Drawing notation: RM-606
Expanded upright derivative clearly reads 606. Resolves source transcription disagreement in favor of 606; historical floor-plan assignment remains unregistered.
Conflicting readings: parallel-img1238-m011
C marker above light well is reciprocal reference to IMG_1237 Section C-C.
Drawing notation: C
C marker above light well is reciprocal reference to IMG_1237 Section C-C.
Lower C marker passes stenographer bay; reciprocal printed section link, no spatial registration.
Drawing notation: C
Lower C marker passes stenographer bay; reciprocal printed section link, no spatial registration.
Observed rectangular low wall panels, also seen in C-C stenographer bay. Material and exact panel dimensions unreadable.
Drawing notation: [rectangular base panels below stenographer wall]
Observed rectangular low wall panels, also seen in C-C stenographer bay. Material and exact panel dimensions unreadable.
Leader points at ceiling below light well over special-agents area. Adds source-local host relationship to prior lighting-location text.
Drawing notation: CEILING LIGHTS
Leader points at ceiling below light well over special-agents area. Adds source-local host relationship to prior lighting-location text.
Leader points to ceiling zone directly under LIGHT WELL and over room 702. The neighboring R'M-703 mark remains separate; callout does not identify the W201 exterior pier fixture.
Drawing notation: LIGHT WELL / CEILING LIGHTS / SPECIAL AGENTS PROHIBITION R'M-702
Leader points to ceiling zone directly under LIGHT WELL and over room 702. The neighboring R'M-703 mark remains separate; callout does not identify the W201 exterior pier fixture.
Terminology may denote a luminous/glazed opening; an artificial lamp identity, installed count, depth or material is not inferred from graphic symbols.
Drawing notation: CEILING LIGHTS [no type/material specification legible in reviewed crop]
Terminology may denote a luminous/glazed opening; an artificial lamp identity, installed count, depth or material is not inferred from graphic symbols.
