finish floor elevation
EL. 80.2580.25 ft
Basement reference at section left; does not cover locally lowered boiler floor
Drawing notation: EL. 80.25
Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Sheet W105
Extraction: Reviewed · extraction partial. W105 overview plus four targeted crops (level chain, upper court, lower boiler band, C–C/D–D); selected printed levels and void topology. Partial timed visual review: Source-local printed/observed section controls, independent local ceiling/roof and finish scopes; no building geometry approval. Partial timed visual review: Source-local architectural evidence only; no physical registration, installed quantity or accepted geometry. Existing verified measurements omitted; conflicting locator readings preserved. Partial timed visual review: Text-only existing main-sections and prior parallel reports reused; no new visual call.
Loading the selected drawing…

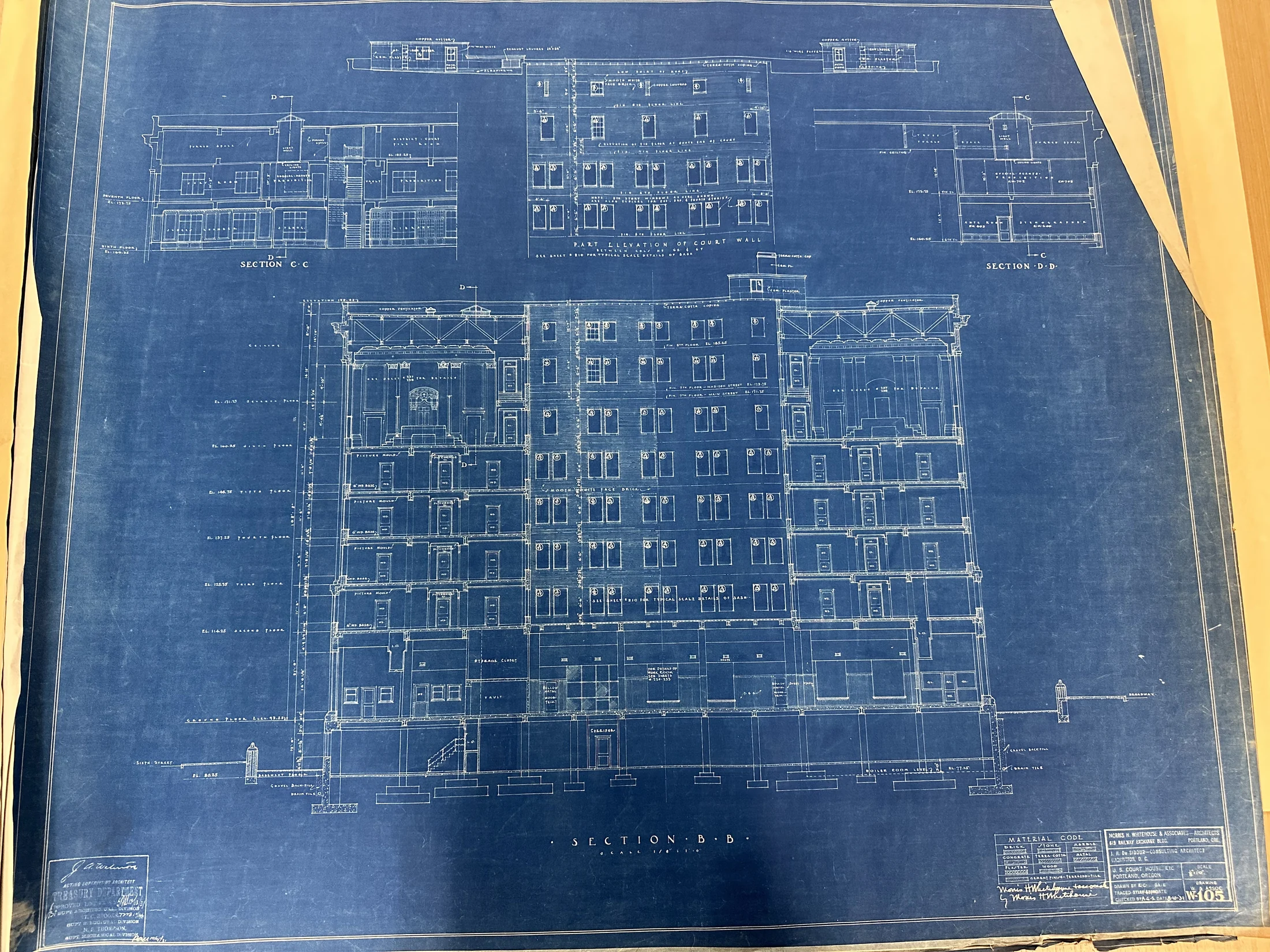

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
80.25 ft
Basement reference at section left; does not cover locally lowered boiler floor
Drawing notation: EL. 80.25
93.25 ft
First/ground floor finish datum, not sidewalk grade
Drawing notation: GROUND FLOOR ELEV. 93.25
114.25 ft
Floor reference for occupied wings; court roof/skylight is a separate assembly
Drawing notation: EL. 114.25 SECOND FLOOR
125.75 ft
Floor reference for occupied wings; preserve light-court void
Drawing notation: EL. 125.75 THIRD FLOOR
137.25 ft
Floor reference for occupied wings; preserve light-court void
Drawing notation: EL. 137.25 FOURTH FLOOR
148.75 ft
Floor reference for occupied wings; preserve light-court void
Drawing notation: EL. 148.75 FIFTH FLOOR
160.25 ft
Courtroom base and occupied wings; preserve light-court void
Drawing notation: EL. 160.25 SIXTH FLOOR
171.75 ft
Main/north seventh-floor region, not universal plate; B–B courtroom interiors continue through this elevation
Drawing notation: FIN. 7TH FLOOR – MAIN STREET EL. 171.75
173.75 ft
Madison/south seventh-floor region; corroborates W409 schedule-derived datum and C–C/D–D local floors
Drawing notation: FIN. 7TH FLOOR – MADISON STREET EL. 173.75
185.25 ft
Eighth-floor local service/room reference; not a whole-building slab
Drawing notation: FIN. 8TH FLOOR EL. 185.25
195.42 ft
Section reference / roof high point corroborated by W409; do not use as one flat roof slab or parapet top everywhere.
Drawing notation: ELEVATION 195.42
Drawing notation: ELEVATION 195.42
77.25 ft
Section B–B right/Broadway boiler reference only. Literal printed value corroborates envelope; foundations.md retains a competing 77.75 reading.
Drawing notation: BOILER ROOM LEVEL EL. 77.25
2 ft
Confirms two regional floor controls; does not locate the transition in plan.
Drawing notation: FIN. 7TH FLOOR – MADISON STREET EL. 173.75; FIN. 7TH FLOOR – MAIN STREET EL. 171.75
Calculated from: ms-frame-seventh-floor-schedule-finish-printed, ms-datum-F7-main-street-printed
13 ft
Printed section interval; floor lines apply only where a physical floor is shown.
Drawing notation: 13′0″
21 ft
Printed section interval; floor lines apply only where a physical floor is shown.
Drawing notation: 21′0″
11.5 ft
Printed section interval; floor lines apply only where a physical floor is shown.
Drawing notation: 11′6″
11.5 ft
Printed section interval; floor lines apply only where a physical floor is shown.
Drawing notation: 11′6″
11.5 ft
Printed section interval; floor lines apply only where a physical floor is shown.
Drawing notation: 11′6″
11.5 ft
Printed section interval; floor lines apply only where a physical floor is shown.
Drawing notation: 11′6″
11.5 ft
Printed section interval; floor lines apply only where a physical floor is shown.
Drawing notation: 11′6″
14.833333 ft
Section B–B left/east dimension chain; ceiling reference shown above ornate sixth-floor courtroom.
Drawing notation: 14′10″
8.833333 ft
Section B–B left/east dimension chain; ceiling reference shown above ornate sixth-floor courtroom.
Drawing notation: 8′10″
3 ft
Local boiler depression, not general basement elevation.
Drawing notation: 3′0″
Only the courtroom interior shown in this section; adjacent circulation and service rooms retain floors.
The F7 reference crosses open room volume; stacked small rooms/corridor at inner edge retain separate floors.
160.25 ft
Section B–B east courtroom base; bench/dais steps are separate raised surfaces.
Drawing notation: EL.160.25 SIXTH FLOOR
Only the courtroom interior shown in this section; adjacent circulation and service rooms retain floors.
The F7 reference crosses open room volume; stacked small rooms/corridor at inner edge retain separate floors.
160.25 ft
Section B–B west courtroom base; bench/dais steps are separate raised surfaces.
Drawing notation: EL.160.25 SIXTH FLOOR
26.333333 ft
East courtroom nominal floor-to-ceiling reference. Coffers, cornices and ornament project below; this is not a uniform minimum clear height.
Drawing notation: 11′6″; 14′10″; CEILING
Calculated from: ms-rise-sixth-main-seventh, ms-rise-main-seventh-bb-ceiling
186.583333 ft
Section B–B east ceiling reference only, below roof trusses.
Drawing notation: EL.171.75;14′10″;CEILING
Calculated from: ms-datum-F7-main-street-printed, ms-rise-main-seventh-bb-ceiling
185.25 ft
Local upper room in C–C, not evidence for a full eighth-floor plate.
Drawing notation: DISTRICT COURT FILE ROOM; EL.185.25
Openings through courtroom wall are not a reason to remove adjacent circulation floors.
The central windowed field is a far court-wall elevation, not occupied floor plates filling the void. The lower roof/skylight is separate from surrounding F2 slab.
Numeric value unresolved
No thickness inferred from unrectified photograph line spacing.
Numeric value unresolved
No thickness inferred from unrectified photograph line spacing.
137.25 ft
Drawing notation: EL. 137.25 FOURTH FLOOR
Previously reviewed main-sections.json measurement ms-frame-fourth-floor-schedule-finish-printed. This is a floor reference, not ceiling height.
Printed leaders at trussed-roof tops on B-B, independent source scope from A-A ventilator note; no count, capacity or complete item geometry.
Drawing notation: COPPER VENTILATOR
Printed leaders at trussed-roof tops on B-B, independent source scope from A-A ventilator note; no count, capacity or complete item geometry.
Cap of small court-wall rooftop/penthouse representation in B-B, distinguished from long court-wall coping and low roof line.
Drawing notation: TERRA-COTTA CAP
Cap of small court-wall rooftop/penthouse representation in B-B, distinguished from long court-wall coping and low roof line.
Printed wall-finish leader on small rooftop/penthouse representation, no floor assigned from drawing alone. Earlier CEM.PL abbreviation on upper shaft remains separate.
Drawing notation: CEM. PLASTER
Printed wall-finish leader on small rooftop/penthouse representation, no floor assigned from drawing alone. Earlier CEM.PL abbreviation on upper shaft remains separate.
Coping over central projected court wall. Not a physical roof elevation or terrace finish.
Drawing notation: TERRA-COTTA COPING
Coping over central projected court wall. Not a physical roof elevation or terrace finish.
Outer vertical8′10″ witness joins labeled roof-high extension and labeled east courtroom CEILING extension. It is not a truss depth or a slab thickness. Existing ms-rise-bb-ceiling-roof-high is reused; ornament projects below labeled ceiling.
Drawing notation: 8′10″ / CEILING / ELEVATION195.42
Outer vertical8′10″ witness joins labeled roof-high extension and labeled east courtroom CEILING extension. It is not a truss depth or a slab thickness. Existing ms-rise-bb-ceiling-roof-high is reused; ornament projects below labeled ceiling.
Calculated from: ms-rise-bb-ceiling-roof-high, ms-east-courtroom-ceiling-elevation, ms-roof-high-point-printed
