IMG_1220 · Folder 190

Entry Hall Between Ante-Room And Judges Chamber

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial text-first sequential locator review using <=1000px JPEG derivative of public/archive/drawings/complete-upright/IMG_1220.webp. Access-image normalized regions before rotation; rotationDegrees is clockwise turn required for primary lettering. Locator coverage does not mean complete regional extraction. No modeling. Partial timed visual review: Sequential 2200px WebP review; additive selected remaining properties only. No geometry acceptance. Partial timed visual review: Additional source-local room identity and dimension endpoint review only; no geometry acceptance. Partial timed visual review: Text-only reuse checkpoint; no image reopened. Prior evidence and unresolved work retained. Partial timed visual review: Notes panel visually checked once against prior transcriptions; no duplicate readings added. Printed first companion reference appears 237, existing conflicting 234 reading retained. Partial timed visual review: Selected source questions and verified prior property crosswalk only; no exhaustive region or source completion claimed. Partial timed visual review: Full architectural region inventory by existing object/property sources, with explicit pending work. Reused bounding regions do not certify exhaustive visual coverage.

Unresolved extraction work

full review of all regions, dimensions, schedules, callouts and notes
floor/object registration
cropped or faint evidence and companion sheets
Remaining dimensions and endpoint classification
Materials, schedules and companion details not yet completely reconciled
Accepted source registration and geometry checking
Closed boundary and exact finish/rough/structural face classification
Opening size, head/sill level, hardware and schedule correlation
Companion details and installed/revised state
Accepted source-to-building registration
Remaining fine dimensions, notes, schedules and callouts require targeted full-resolution crops
Closed geometry and finish/rough/structural endpoint classification
Complete quantities, schedules, companion details and revision reconciliation
Accepted source registration and held-out geometry checks
First companion number conflict 234 versus 237 retained; no new resolution
Remaining source-local chains, opening marks and quantities
Companion sheets and revision/finish schedule reconciliation
Accepted registration and geometry checks remain separate
Exact finish/rough/structural endpoints and closed physical boundaries remain unresolved.
Complete opening/fixture quantities, schedules, companion details and historical revision authority remain unresolved.
Source registration, installed condition, clear heights and held-out geometry checks remain unaccepted.
All other unrecorded regions, fine dimensions, notes and callouts require further review.
No new visual source reading in this pass; prior fine numeric chains and geometry questions remain open.
All remaining fine dimensions, notes, callouts, schedules and revision authority need regional review.
Accepted finished/rough/structural faces, material extents and closed physical bounds remain unresolved.
Source registration, held-out checks, companion applicability and installed quantities remain unaccepted.
Existing finish/roof controls reused textually; no new visual source call in this bounded pass.

Download OCR observations (unverified)

Loading the selected drawing…

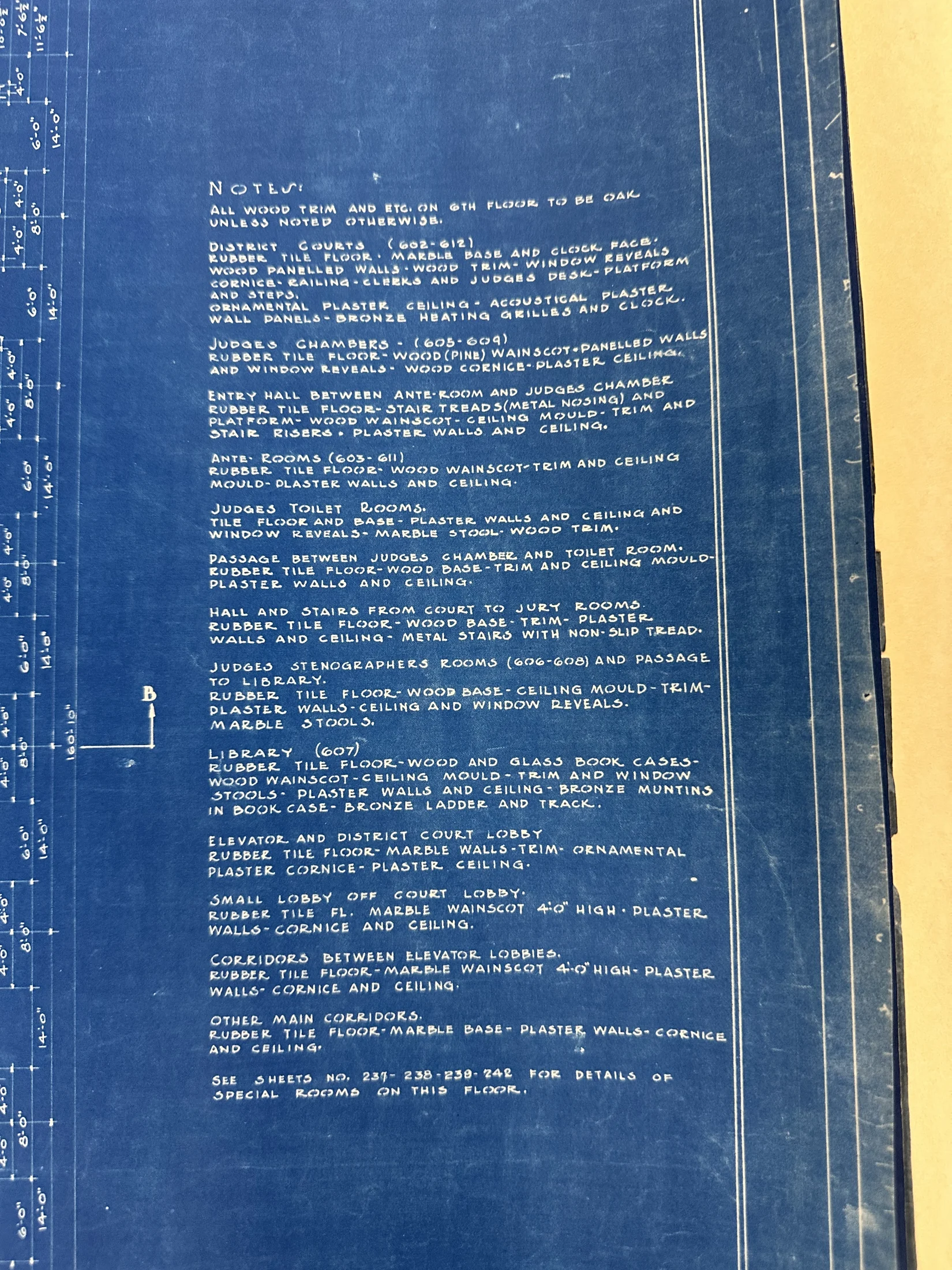

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
