← Back to the building1933 reconstruction · research preview

The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

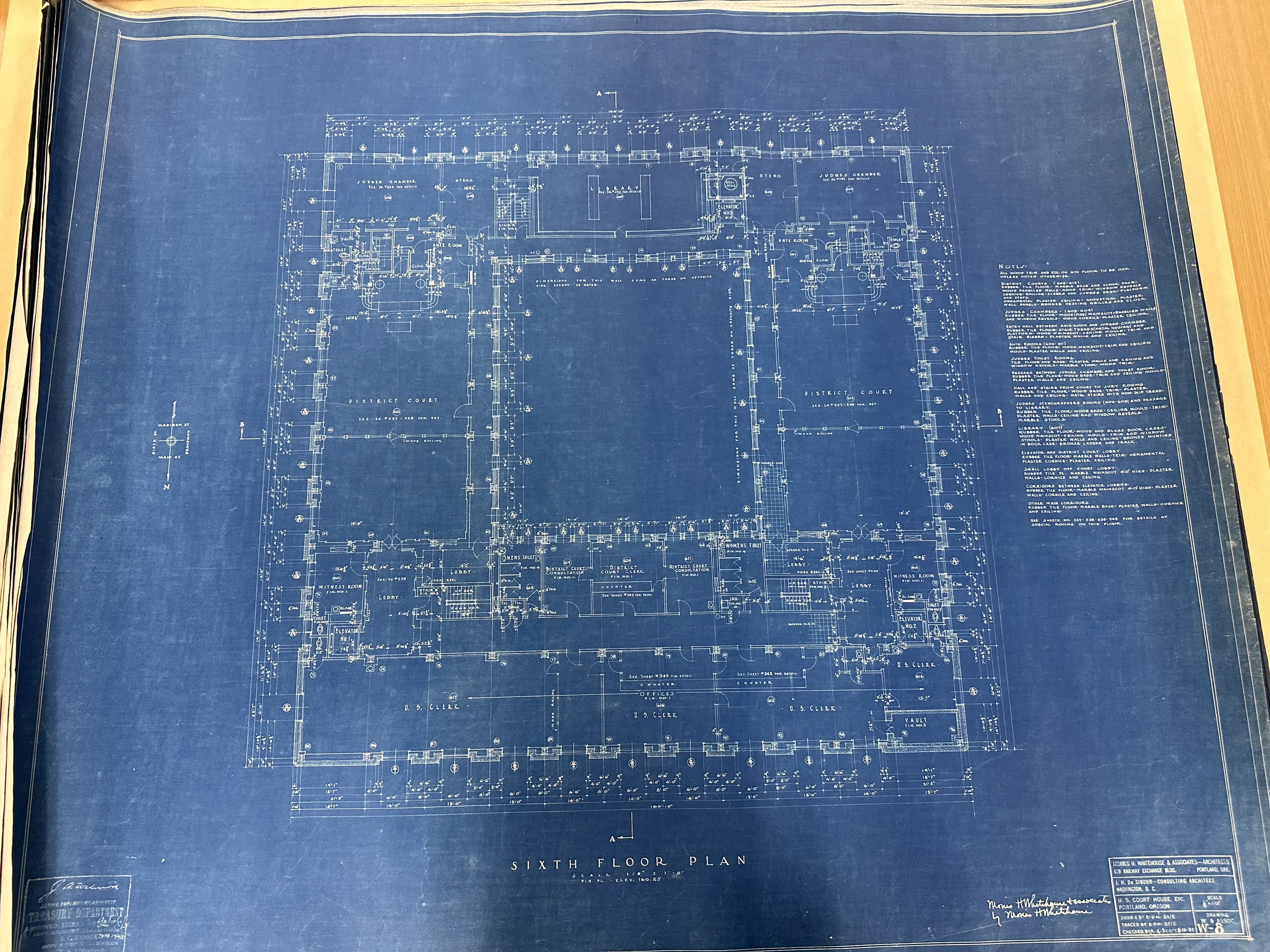

IMG_1219 · Folder 190

SIXTH FLOOR PLAN

Sheet W8

Extraction: Reviewed · extraction partial. Coarse room, court, shaft, stair and visible-door topology with independent provisional registration. 29nominal rooms/circulation regions,4shafts (3elevators plus steel stack),5stair envelopes and28selected openings. Sixth-floor outer trace reused only as a parent of the analytical registration curtain. Reuse of existing text/registered property data only; no new image review. Reused the provisional level-6 Stair E plan envelope as one input to a cross-floor median diagnostic envelope. Text-first Room 607 plan-to-millwork wall-elevation registration gate; existing reviewed sources reused without reopening archival images. Partial timed visual review: Sequential 2200px WebP review; additive selected remaining properties only. No geometry acceptance. Partial timed visual review: Additional source-local room identity and dimension endpoint review only; no geometry acceptance. Partial timed visual review: Text-only reuse checkpoint; no image reopened. Prior evidence and unresolved work retained. Partial timed visual review: Sixth-floor Halls604/610 private stair local interfaces, compared text-first with seventh-floor candidates. Partial timed visual review: Selected source questions and verified prior property crosswalk only; no exhaustive region or source completion claimed. Partial timed visual review: Full architectural region inventory by existing object/property sources, with explicit pending work. Reused bounding regions do not certify exhaustive visual coverage.

Show coordinated geometry overlay →
Registration: provisional · 4 independent checks · maximum residual 1.407 ft.

Unresolved extraction work
  • Every note and dimension has not been transcribed
  • Exact wall thicknesses and construction layers
  • All doors and hardware schedules
  • Small closets/services and fixture instances
  • Ceiling relief, clear heights and local raised floors
  • Original title-block revisions
  • Companion room/stair details
  • Precise floor openings and overlay checks
  • Plan source capture includes3full views including rejectedIMG_1214;8targeted crops total, as parent-approved.
  • No architectural-completeness percentage is claimed.
  • Exact outside wall face, wall thickness, openings and local facade projections
  • Remaining details and notes
  • Vertical stone-face continuation and local projections
  • Full wall construction thickness
  • Architectural reveal/window sections
  • Accepted wall faces
  • Exact stair opening
  • Held-out registration checks
  • Accepted Room 607 finish-face or clear-room wall geometry with printed dimensions and room-specific held-out checks.
  • For each millwork wall elevation, classified total-width endpoints and at least one asymmetric opening or return tied to the plan.
  • A verified match between a millwork door/open section and plan opening f6-door-library, including comparable jamb endpoints.
  • Horizontal viewing direction/handedness and a stable local origin for every wall elevation.
  • Classified floor baseline, millwork-top/ceiling datum and all vertical dimension endpoints.
  • Rectified source coordinates or another reproducible local coordinate frame for IMG_0884/IMG_0885.
  • One independent held-out plan/elevation check with like-for-like endpoints, a numeric residual and an acceptance tolerance.
  • Complete type-mark-to-profile and type-mark-to-instance mapping plus opening, panel, shelf, grille and sliding-leaf quantities.
  • Field/as-built corroboration sufficient to resolve the shop drawing's explicit verification requirement.
  • Remaining dimensions and endpoint classification
  • Materials, schedules and companion details not yet completely reconciled
  • Accepted source registration and geometry checking
  • Closed boundary and exact finish/rough/structural face classification
  • Opening size, head/sill level, hardware and schedule correlation
  • Companion details and installed/revised state
  • Accepted source-to-building registration
  • Remaining fine dimensions, notes, schedules and callouts require targeted full-resolution crops
  • Closed geometry and finish/rough/structural endpoint classification
  • Complete quantities, schedules, companion details and revision reconciliation
  • Accepted source registration and held-out geometry checks
  • Accepted source-to-building transform and like-for-like finished/rough/structural face classification
  • Exact closed slab opening, landing perimeter and headroom
  • Construction/rail/nosing detail and revision/as-built reconciliation
  • All remaining unreviewed regions, notes, schedules and companion details
  • Exact finish/rough/structural endpoints and closed physical boundaries remain unresolved.
  • Complete opening/fixture quantities, schedules, companion details and historical revision authority remain unresolved.
  • Source registration, installed condition, clear heights and held-out geometry checks remain unaccepted.
  • All other unrecorded regions, fine dimensions, notes and callouts require further review.
  • No new visual source reading in this pass; prior fine numeric chains and geometry questions remain open.
  • All remaining fine dimensions, notes, callouts, schedules and revision authority need regional review.
  • Accepted finished/rough/structural faces, material extents and closed physical bounds remain unresolved.
  • Source registration, held-out checks, companion applicability and installed quantities remain unaccepted.
  • Known topology/terminal stairs/court voids/ceiling doors reused without reopening. No new transform, slab or ascent accepted.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

765 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

f6-enclosed-floor-outlineunreviewed · traced

Registered footprint trace

4 boundary vertices; provisional, ±3.25 ft

Nominal upper-floor wall-witness outline. Local exterior pilaster/rounded-corner projections are unresolved.

IMG_1219 · sheet-W8 · Locate on drawing ↗

Drawing notation: Sixth-floor enclosed outer wall envelope

Coarse manual trace on upright master; coordinates are provisional.

f6-room-605unreviewed · traced

Registered footprint trace

4 boundary vertices; provisional, ±3.25 ft

Room boundary trace; not a printed clear dimension.

IMG_1219 · sheet-W8 · Locate on drawing ↗

Drawing notation: JUDGES CHAMBER

Coarse manual trace on upright master; coordinates are provisional.

f6-room-606unreviewed · traced

Registered footprint trace

6 boundary vertices; provisional, ±3.25 ft

Room boundary trace; not a printed clear dimension.

IMG_1219 · sheet-W8 · Locate on drawing ↗

Drawing notation: STENO.

Coarse manual trace on upright master; coordinates are provisional.

f6-room-607unreviewed · traced

Registered footprint trace

4 boundary vertices; provisional, ±3.25 ft

Room boundary trace; not a printed clear dimension.

IMG_1219 · sheet-W8 · Locate on drawing ↗

Drawing notation: LIBRARY

Coarse manual trace on upright master; coordinates are provisional.

View all source photographs →
