The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

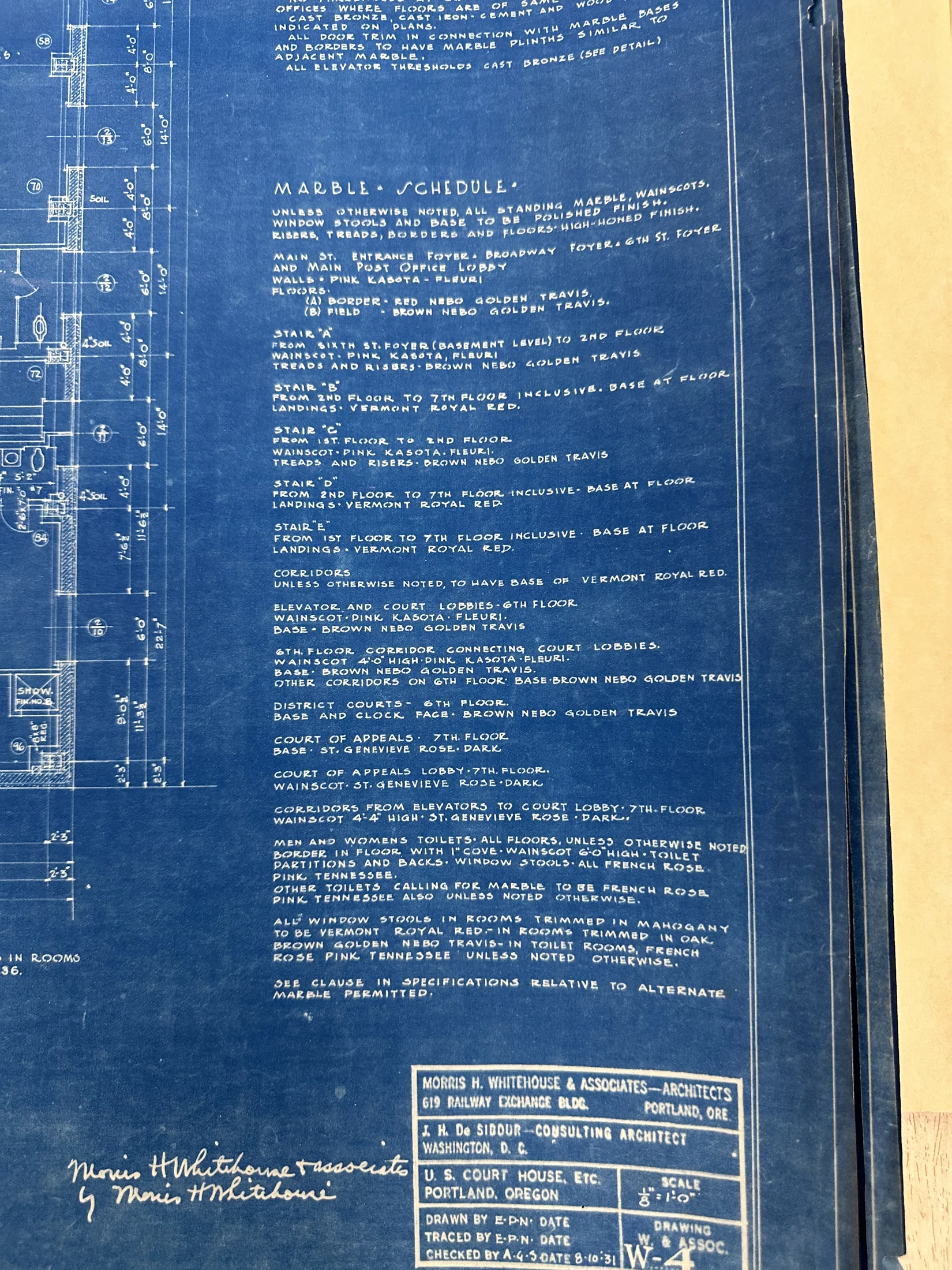

IMG_1210 · Folder 190

SECOND FLOOR PLAN

Sheet W4

Extraction: Reviewed · extraction partial. Stone species, finish sheen and threshold rules. Normalized from an existing text re-audit; this import did not reopen the source image. Partial timed visual review: Additive companion recovery for IMG1209 W-4 schedule; no universal second-floor assignment. Source access image1650x2200, actualrotation0. Prior IMG1209 cells retained; demonstrated corrections linked by stable prior measurement IDs. Partial timed visual review: Bounded text-first follow-up; ten sequential inspections total across nine derivatives including one W-6 same-source core crop. No accepted physical geometry. Existing verified readings omitted. IMG_1209 uses prior closeout text only. Partial timed visual review: Prior verified extraction reused without duplication; selected new properties only. No full-coverage or physical geometry claim. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Text reuse only of W4 marble/threshold schedule and title. Printed seventh-floor scopes remain clause-local. Partial timed visual review: undefined

Unresolved extraction work
  • Complete drawing-note transcription
  • Every dimension and bay placement
  • Detailed hardware/fastener schedule
  • Exact cross-sheet bay correspondence
  • Cross-photo physical deduplication
  • Complete surviving-object inventory
  • Exact dimensions
  • Construction/alteration chronology
  • Condition assessment
  • P-6 component extraction
  • Installed fixture schedule and positions
  • As-built correspondence
  • Fixture finish and glass color
  • general finish rows1-9 not recovered by these schedule crops
  • terrazzo top cropped outside selected1208region
  • title identity reused from1207; original source date/revision pending
  • all plan instances/quantities
  • All unreviewed local dimensions, exact faces/jambs, room applicability, schedules and companion details remain pending; no full-image extraction claim.
  • Full room/opening/fixture inventory and property extraction
  • Exact witness endpoints, wall faces and closed polygons
  • Companion details, schedules and revision authority
  • Installed quantities, materials and accepted building registration
  • Exact finished/rough/structural/clear face classification and closed boundaries
  • Complete local dimension, door/window/type/detail inventory
  • Applicable companion construction, finish exceptions and chronology
  • Checked physical registration and installed quantities
  • Each physical wall/room/opening still needs classified finish/rough/structural faces, closed boundaries, build-up, levels, installed quantity and checked building registration; source glyph closure does not supply these.
  • Exact finished/rough/structural/clear endpoint classes, closed boundaries and physical dimensions remain unresolved.
  • Installed quantities, construction build-up, fixture/material schedules, original/revision authority and companion applicability remain unresolved.
  • Source-to-building registration, datum continuity, independent checks and architectural acceptance remain unaccepted.
  • All remaining unreviewed notes, regions, callouts and schedules require further review.
  • Exact finish/rough/structural face classification, closed boundaries and source-to-building registration remain unresolved.
  • Installed quantities, construction build-ups, applicable exceptions, companion details and revision authority remain unaccepted.
  • All other unreviewed regions, notes, schedules and dimensions remain open; this package does not complete any image.
  • Broad material-pink-kasota-fleuri-polished-standing-applications-and-finish remains open: piers/stools/bases are not collectively assigned Pink Kasota by this witness; separate base/stool rows name other stones.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

20 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

material-pink-kasota-fleuri-polished-standingunreviewed · printed

Applications and finish

Main Post Office Lobby walls; Main Street entrance foyer walls; marble piers, wall stone, wainscot, stools and bases where scheduled · polished

printed schedule transcribed in re-audit. Report transcription; physical thickness, joint layout and finish samples remain unresolved.

IMG_1208 · sheet-W4 · View drawing ↗

Drawing notation: Pink Kasota Fleuri standing marble

Existing text re-audit only. Stone species, finish sheen and threshold rules

IMG_1210 · sheet-W4 · View drawing ↗

Drawing notation: Pink Kasota Fleuri standing marble

Existing text re-audit only. Stone species, finish sheen and threshold rules

material-brown-nebo-golden-travis-floor-fieldunreviewed · printed

Applications and finish

Main Post Office Lobby floor field · high-honed

printed schedule transcribed in re-audit. Report transcription; physical thickness, joint layout and finish samples remain unresolved.

IMG_1208 · sheet-W4 · View drawing ↗

Drawing notation: Brown Nebo Golden Travis marble floor field

Existing text re-audit only. Stone species, finish sheen and threshold rules

IMG_1210 · sheet-W4 · View drawing ↗

Drawing notation: Brown Nebo Golden Travis marble floor field

Existing text re-audit only. Stone species, finish sheen and threshold rules

material-red-nebo-golden-travis-floor-borderunreviewed · printed

Applications and finish

Main Post Office Lobby floor border · high-honed

printed schedule transcribed in re-audit. Report transcription; physical thickness, joint layout and finish samples remain unresolved.

IMG_1208 · sheet-W4 · View drawing ↗

Drawing notation: Red Nebo Golden Travis marble floor border

Existing text re-audit only. Stone species, finish sheen and threshold rules

IMG_1210 · sheet-W4 · View drawing ↗

Drawing notation: Red Nebo Golden Travis marble floor border

Existing text re-audit only. Stone species, finish sheen and threshold rules

img1209-schedule-thresholdverified · printed

elevator_threshold_material_corroboration

ALL ELEVATOR THRESHOLDS CAST BRONZE (SEE DETAIL)

Corroborates correction of closeout-img1209-threshold-lavatory_threshold_material. Crop courthouse-1210-threshold.jpg source x350,y50,w800,h650. Right/upper text cropped; original reading retained separately.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: ALL ELEVATOR THRESHOLDS CAST BRONZE (SEE DETAIL)

Corroborates correction of closeout-img1209-threshold-lavatory_threshold_material. Crop courthouse-1210-threshold.jpg source x350,y50,w800,h650. Right/upper text cropped; original reading retained separately.

img1209-schedule-marble-foyersverified · printed

floor_field_corroboration

(B) FIELD - BROWN NEBO GOLDEN TRAVIS

Companion corroboration; source crop x350,y50,w800,h650, actualrotation0. Printed wording literal.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: (B) FIELD - BROWN NEBO GOLDEN TRAVIS

Companion corroboration; source crop x350,y50,w800,h650, actualrotation0. Printed wording literal.

w4-img1210-title-registerverified · printed

printed_sheet_number

W-4

Inspected title crop x680,y1820,w650,h380 on 1650x2200 access image. Date remains literal; not assigned as issue/revision/installation date. Scale identifies drawing notation and does not authorize pixel-derived geometry.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: W-4

Inspected title crop x680,y1820,w650,h380 on 1650x2200 access image. Date remains literal; not assigned as issue/revision/installation date. Scale identifies drawing notation and does not authorize pixel-derived geometry.

w4-img1210-title-registerverified · printed

drawing_scale

1/8″ = 1′-0″

0.125 in/ft

Inspected title crop x680,y1820,w650,h380 on 1650x2200 access image. Date remains literal; not assigned as issue/revision/installation date. Scale identifies drawing notation and does not authorize pixel-derived geometry.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: 1/8″ = 1′-0″

Inspected title crop x680,y1820,w650,h380 on 1650x2200 access image. Date remains literal; not assigned as issue/revision/installation date. Scale identifies drawing notation and does not authorize pixel-derived geometry.

w4-img1210-title-registerverified · printed

checked_date

CHECKED BY A.G.S. DATE 8-10-31

Inspected title crop x680,y1820,w650,h380 on 1650x2200 access image. Date remains literal; not assigned as issue/revision/installation date. Scale identifies drawing notation and does not authorize pixel-derived geometry.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: CHECKED BY A.G.S. DATE 8-10-31

Inspected title crop x680,y1820,w650,h380 on 1650x2200 access image. Date remains literal; not assigned as issue/revision/installation date. Scale identifies drawing notation and does not authorize pixel-derived geometry.

img1210-schedule-marble-generalverified · printed

standing_marble_finish_exception

UNLESS OTHERWISE NOTED ALL STANDING MARBLE, WAINSCOTS, WINDOW STOOLS AND BASE TO BE POLISHED FINISH

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: UNLESS OTHERWISE NOTED ALL STANDING MARBLE, WAINSCOTS, WINDOW STOOLS AND BASE TO BE POLISHED FINISH

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

img1210-schedule-marble-foyersverified · printed

foyer_lobby_applicability

MAIN ST. ENTRANCE FOYER, BROADWAY FOYER, 6TH ST. FOYER AND MAIN POST OFFICE LOBBY

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: MAIN ST. ENTRANCE FOYER, BROADWAY FOYER, 6TH ST. FOYER AND MAIN POST OFFICE LOBBY

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

img1210-schedule-marble-foyersverified · printed

foyer_lobby_wall_material

WALLS - PINK KASOTA - FLEURI

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: WALLS - PINK KASOTA - FLEURI

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

img1210-schedule-marble-stair-averified · printed

stair_a_material_applicability

FROM SIXTH ST. FOYER (BASEMENT LEVEL) TO 2ND FLOOR

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: FROM SIXTH ST. FOYER (BASEMENT LEVEL) TO 2ND FLOOR

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

img1210-schedule-marble-stair-averified · printed

stair_a_wainscot_material

WAINSCOT - PINK KASOTA FLEURI

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: WAINSCOT - PINK KASOTA FLEURI

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

img1210-schedule-marble-stair-cverified · printed

stair_c_material_applicability

FROM 1ST FLOOR TO 2ND FLOOR

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: FROM 1ST FLOOR TO 2ND FLOOR

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

img1210-schedule-marble-stair-cverified · printed

stair_c_wainscot_material

WAINSCOT - PINK KASOTA FLEURI

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: WAINSCOT - PINK KASOTA FLEURI

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

img1210-schedule-marble-sixth-lobbiesverified · printed

sixth_lobby_applicability

ELEVATOR AND COURT LOBBIES - 6TH FLOOR

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: ELEVATOR AND COURT LOBBIES - 6TH FLOOR

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

img1210-schedule-marble-sixth-lobbiesverified · printed

sixth_lobby_wainscot_material

WAINSCOT - PINK KASOTA FLEURI

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: WAINSCOT - PINK KASOTA FLEURI

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

img1210-schedule-marble-sixth-connectingverified · printed

sixth_connecting_corridor_applicability

6TH FLOOR CORRIDOR CONNECTING COURT LOBBIES

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: 6TH FLOOR CORRIDOR CONNECTING COURT LOBBIES

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

img1210-schedule-marble-sixth-connectingverified · printed

sixth_connecting_corridor_wainscot_material

WAINSCOT 4'-0" HIGH - PINK KASOTA FLEURI

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: WAINSCOT 4'-0" HIGH - PINK KASOTA FLEURI

Same original IMG1210 schedule clause only. Does not assign this material to unscheduled piers, stools or bases, establish physical geometry, or resolve the broader report-only material claim.

img1210-schedule-marble-sixth-connectingverified · printed

sixth_connecting_corridor_wainscot_height

4'-0" HIGH

48 in

Printed scheduled wainscot height, separate from stone material. Does not establish actual top/bottom datum or installed extent.

IMG_1210 · W-4 · Locate on drawing ↗

Drawing notation: 4'-0" HIGH

Printed scheduled wainscot height, separate from stone material. Does not establish actual top/bottom datum or installed extent.
