The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters
IMG_1208 · Folder 190

SECOND FLOOR PLAN

Sheet W4

Extraction: Reviewed · extraction partial. Stone species, finish sheen and threshold rules. Normalized from an existing text re-audit; this import did not reopen the source image. Public lobby W-214/W-4 marble finish-floor gate; typical-bay and room-boundary review partial. Public lobby W-214/W-4 marble finish-floor gate; typical-bay and room-boundary review partial. Public lobby W-214/W-4 marble finish-floor gate; typical-bay and room-boundary review partial. Public lobby W-214/W-4 marble finish-floor gate; typical-bay and room-boundary review partial. Partial timed visual review: Additive companion recovery for IMG1209 W-4 schedule; no universal second-floor assignment. Source access image1650x2200, actualrotation0. Prior IMG1209 cells retained; demonstrated corrections linked by stable prior measurement IDs. Partial timed visual review: Bounded text-first follow-up; ten sequential inspections total across nine derivatives including one W-6 same-source core crop. No accepted physical geometry. Existing verified readings omitted. IMG_1209 uses prior closeout text only. Partial timed visual review: Prior verified extraction reused without duplication; selected new properties only. No full-coverage or physical geometry claim. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Reused W4 multi-floor threshold/marble schedule exposure; seventh-floor headings do not classify the entire photograph as a seventh-floor plan. No visual reopening. Partial timed visual review: Threshold and marble notes checked against existing text; all verified readings already present, no duplicate extraction.

Unresolved extraction work
  • Complete drawing-note transcription
  • Every dimension and bay placement
  • Detailed hardware/fastener schedule
  • Exact cross-sheet bay correspondence
  • Cross-photo physical deduplication
  • Complete surviving-object inventory
  • Exact dimensions
  • Construction/alteration chronology
  • Condition assessment
  • P-6 component extraction
  • Installed fixture schedule and positions
  • As-built correspondence
  • Fixture finish and glass color
  • closed field polygon
  • stone gauge
  • joint layout and slab count
  • actual top and bottom elevation
  • closed border-strip polygon
  • border width and returns at openings/recesses
  • accepted canonical XZ outer footprint
  • finish-face and border-joint polygons, including counter recesses and door thresholds
  • stone thickness, bedding thickness, substrate build-up and underside elevation
  • room-specific spot elevation or checked threshold continuity
  • accepted W-214 typical-bay to W3 placement
  • individual slab sizes, joints and quantities
  • general finish rows1-9 not recovered by these schedule crops
  • terrazzo top cropped outside selected1208region
  • title identity reused from1207; original source date/revision pending
  • all plan instances/quantities
  • All unreviewed local dimensions, exact faces/jambs, room applicability, schedules and companion details remain pending; no full-image extraction claim.
  • Full room/opening/fixture inventory and property extraction
  • Exact witness endpoints, wall faces and closed polygons
  • Companion details, schedules and revision authority
  • Installed quantities, materials and accepted building registration
  • Exact finished/rough/structural/clear face classification and closed boundaries
  • Complete local dimension, door/window/type/detail inventory
  • Applicable companion construction, finish exceptions and chronology
  • Checked physical registration and installed quantities
  • Finish schedule instance mapping
  • Installed quantities and construction build-ups
  • Companion specifications and chronology
  • Remaining regions and accepted geometry
  • Each physical wall/room/opening still needs classified finish/rough/structural faces, closed boundaries, build-up, levels, installed quantity and checked building registration; source glyph closure does not supply these.
  • Exact finished/rough/structural/clear endpoint classes, closed boundaries and physical dimensions remain unresolved.
  • Installed quantities, construction build-up, fixture/material schedules, original/revision authority and companion applicability remain unresolved.
  • Source-to-building registration, datum continuity, independent checks and architectural acceptance remain unaccepted.
  • All remaining unreviewed notes, regions, callouts and schedules require further review.
  • Pink Kasota Fleuri material application/finish record remains pending: complete same-image wall-material witness has not been established by this package.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

43 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

material-pink-kasota-fleuri-polished-standingunreviewed · printed

Applications and finish

Main Post Office Lobby walls; Main Street entrance foyer walls; marble piers, wall stone, wainscot, stools and bases where scheduled · polished

printed schedule transcribed in re-audit. Report transcription; physical thickness, joint layout and finish samples remain unresolved.

IMG_1208 · sheet-W4 · View drawing ↗

Drawing notation: Pink Kasota Fleuri standing marble

Existing text re-audit only. Stone species, finish sheen and threshold rules

IMG_1210 · sheet-W4 · View drawing ↗

Drawing notation: Pink Kasota Fleuri standing marble

Existing text re-audit only. Stone species, finish sheen and threshold rules

material-brown-nebo-golden-travis-floor-fieldunreviewed · printed

Applications and finish

Main Post Office Lobby floor field · high-honed

printed schedule transcribed in re-audit. Report transcription; physical thickness, joint layout and finish samples remain unresolved.

IMG_1208 · sheet-W4 · View drawing ↗

Drawing notation: Brown Nebo Golden Travis marble floor field

Existing text re-audit only. Stone species, finish sheen and threshold rules

IMG_1210 · sheet-W4 · View drawing ↗

Drawing notation: Brown Nebo Golden Travis marble floor field

Existing text re-audit only. Stone species, finish sheen and threshold rules

material-red-nebo-golden-travis-floor-borderunreviewed · printed

Applications and finish

Main Post Office Lobby floor border · high-honed

printed schedule transcribed in re-audit. Report transcription; physical thickness, joint layout and finish samples remain unresolved.

IMG_1208 · sheet-W4 · View drawing ↗

Drawing notation: Red Nebo Golden Travis marble floor border

Existing text re-audit only. Stone species, finish sheen and threshold rules

IMG_1210 · sheet-W4 · View drawing ↗

Drawing notation: Red Nebo Golden Travis marble floor border

Existing text re-audit only. Stone species, finish sheen and threshold rules

f1-public-lobby-w214-brown-marble-fieldverified · printed

stone material and zone

BROWN NEBO GOLDEN TRAVIS FIELD

supported. No accepted full-room field/border polygon, stone thickness or physical slab.

IMG_1302 · sheet-W214 · Locate on drawing ↗

Drawing notation: BROWN NEBO GOLDEN TRAVIS FIELD

supported; Material zoning is direct design evidence; the note does not specify stone gauge or exact border shape.

IMG_1208 · sheet-W4 · View drawing ↗

Drawing notation: BROWN NEBO GOLDEN TRAVIS FIELD

supported;

f1-public-lobby-w214-red-marble-borderverified · printed

stone material and zone

RED NEBO GOLDEN TRAVIS BORDERS

supported. No accepted full-room field/border polygon, stone thickness or physical slab.

IMG_1302 · sheet-W214 · Locate on drawing ↗

Drawing notation: RED NEBO GOLDEN TRAVIS BORDERS

supported; Material zoning is direct design evidence; the note does not specify stone gauge or exact border shape.

IMG_1208 · sheet-W4 · View drawing ↗

Drawing notation: RED NEBO GOLDEN TRAVIS BORDERS

supported;

f1-public-lobby-w214-marble-finish-floor-assemblyverified · printed

floor and border finish

FLOORS, BORDERS ... HIGH-HONED

supported at material-schedule level. No accepted full-room field/border polygon, stone thickness or physical slab.

IMG_1208 · sheet-W4 · View drawing ↗

Drawing notation: FLOORS, BORDERS ... HIGH-HONED

supported at material-schedule level;

f1-public-lobby-w214-marble-finish-floor-assemblyunreviewed · inferred

field and border marble thickness

Unresolved

Numeric value unresolved

open. No accepted full-room field/border polygon, stone thickness or physical slab.

IMG_1302 · sheet-W214 · Locate on drawing ↗

Drawing notation: HALF CEILING PLAN & HALF FLOOR PLAN OF TYPICAL BAY OF P. O. LOBBY; MARBLE FLOOR; CENTER LINE OF LOBBY

open; The half-floor diagram shows a large-joint field and perimeter bands in one typical bay. It is not a closed plan of the entire room. Joint line endpoints, stone faces, and dimensioned field/border widths are not established by this read.

IMG_1302 · sheet-W214 · Locate on drawing ↗

Drawing notation: MARBLE: WALLS AND BASE TO BE PINK KASOTA FLEURI. FLOORS TO BE OF BROWN NEBO GOLDEN TRAVIS FIELD WITH RED NEBO GOLDEN TRAVIS BORDERS.

open; Material zoning is direct design evidence; the note does not specify stone gauge or exact border shape.

IMG_1208 · sheet-W4 · View drawing ↗

Drawing notation: Main Post Office Lobby: Red Nebo Golden Travis border and Brown Nebo Golden Travis field; floors and borders high-honed

open;

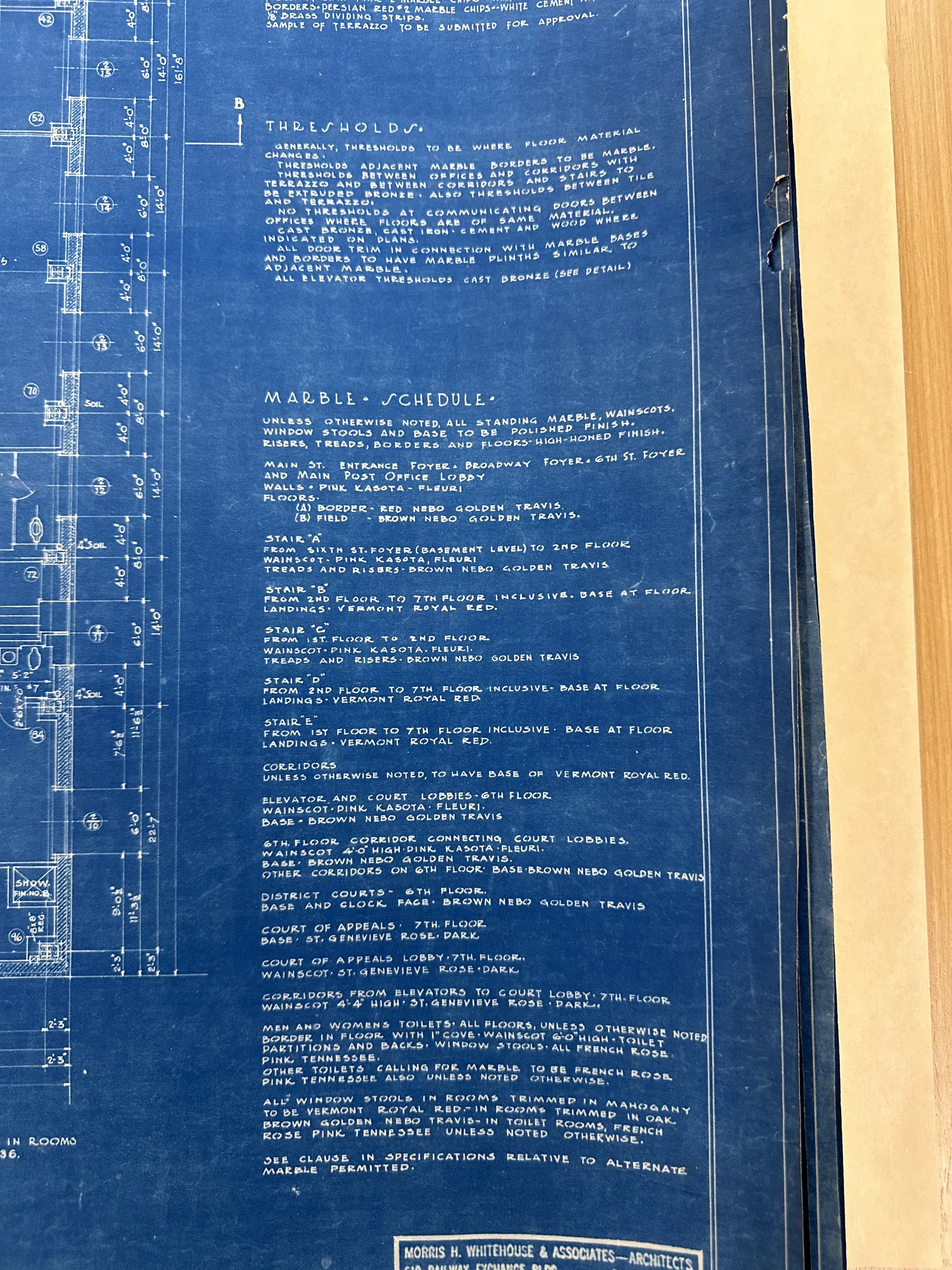

img1209-schedule-thresholdverified · printed

applicability_general_resolved

GENERALLY, THRESHOLDS TO BE WHERE FLOOR MATERIAL CHANGES

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-threshold-applicability_general; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: GENERALLY, THRESHOLDS TO BE WHERE FLOOR MATERIAL CHANGES

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-threshold-applicability_general; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-thresholdverified · printed

adjacent_marble_material

THRESHOLDS ADJACENT MARBLE BORDERS TO BE MARBLE

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-threshold-adjacency_unresolved; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: THRESHOLDS ADJACENT MARBLE BORDERS TO BE MARBLE

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-threshold-adjacency_unresolved; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-thresholdverified · printed

bronze_scope

THRESHOLDS BETWEEN OFFICES AND CORRIDORS WITH TERRAZZO AND BETWEEN CORRIDORS AND STAIRS TO BE EXTRUDED BRONZE; ALSO THRESHOLDS BETWEEN TILE AND TERRAZZO

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-threshold-adjacency_unresolved; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: THRESHOLDS BETWEEN OFFICES AND CORRIDORS WITH TERRAZZO AND BETWEEN CORRIDORS AND STAIRS TO BE EXTRUDED BRONZE; ALSO THRESHOLDS BETWEEN TILE AND TERRAZZO

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-threshold-adjacency_unresolved; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-thresholdverified · printed

no_threshold_exception_resolved

NO THRESHOLDS AT COMMUNICATING DOORS BETWEEN OFFICES WHERE FLOORS ARE OF SAME MATERIAL

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-threshold-no_threshold_exception; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: NO THRESHOLDS AT COMMUNICATING DOORS BETWEEN OFFICES WHERE FLOORS ARE OF SAME MATERIAL

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-threshold-no_threshold_exception; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-thresholdverified · printed

cast_iron_flooring_scope

IN CAST STONE, CAST IRON, CEMENT AND WOOD WHERE INDICATED ON PLANS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-threshold-case_material_unresolved; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: IN CAST STONE, CAST IRON, CEMENT AND WOOD WHERE INDICATED ON PLANS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-threshold-case_material_unresolved; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-thresholdverified · printed

door_trim_plinth_rule

ALL DOOR TRIM IN CONNECTION WITH MARBLE BASES AND BORDERS TO HAVE MARBLE PLINTHS SIMILAR TO ADJACENT MARBLE

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-threshold-case_material_unresolved; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: ALL DOOR TRIM IN CONNECTION WITH MARBLE BASES AND BORDERS TO HAVE MARBLE PLINTHS SIMILAR TO ADJACENT MARBLE

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-threshold-case_material_unresolved; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-thresholdverified · printed

elevator_threshold_material_corrected

ALL ELEVATOR THRESHOLDS CAST BRONZE (SEE DETAIL)

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-threshold-lavatory_threshold_material; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement. Prior 'lavatory' reading contradicted: source clearly prints ELEVATOR.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: ALL ELEVATOR THRESHOLDS CAST BRONZE (SEE DETAIL)

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-threshold-lavatory_threshold_material; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement. Prior 'lavatory' reading contradicted: source clearly prints ELEVATOR.

img1209-schedule-marble-generalverified · printed

standing_finish_resolved

UNLESS OTHERWISE NOTED, ALL STANDING MARBLE, WAINSCOTS, WINDOW STOOLS AND BASE TO BE POLISHED FINISH

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-general-standing_finish; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: UNLESS OTHERWISE NOTED, ALL STANDING MARBLE, WAINSCOTS, WINDOW STOOLS AND BASE TO BE POLISHED FINISH

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-general-standing_finish; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-generalverified · printed

walking_surface_finish_resolved

RISERS, TREADS, BORDERS AND FLOORS - HIGH-HONED FINISH

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-general-walking_surface_finish; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: RISERS, TREADS, BORDERS AND FLOORS - HIGH-HONED FINISH

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-general-walking_surface_finish; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-foyersverified · printed

applicability_resolved

MAIN ST. ENTRANCE FOYER, BROADWAY FOYER, 6TH ST. FOYER AND MAIN POST OFFICE LOBBY

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-foyers-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: MAIN ST. ENTRANCE FOYER, BROADWAY FOYER, 6TH ST. FOYER AND MAIN POST OFFICE LOBBY

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-foyers-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-foyersverified · printed

floor_border_resolved

(A) BORDER - RED NEBO GOLDEN TRAVIS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-foyers-floor_border; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: (A) BORDER - RED NEBO GOLDEN TRAVIS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-foyers-floor_border; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-foyersverified · printed

floor_field_resolved

(B) FIELD - BROWN NEBO GOLDEN TRAVIS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-foyers-floor_field; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: (B) FIELD - BROWN NEBO GOLDEN TRAVIS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-foyers-floor_field; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-stair-averified · printed

applicability_resolved

FROM SIXTH ST. FOYER (BASEMENT LEVEL) TO 2ND FLOOR

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-stair-a-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: FROM SIXTH ST. FOYER (BASEMENT LEVEL) TO 2ND FLOOR

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-stair-a-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-stair-averified · printed

treads_risers_resolved

TREADS AND RISERS - BROWN NEBO GOLDEN TRAVIS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-stair-a-treads_risers; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: TREADS AND RISERS - BROWN NEBO GOLDEN TRAVIS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-stair-a-treads_risers; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-stair-bverified · printed

base_floor_applicability

FROM 2ND FLOOR TO 7TH FLOOR INCLUSIVE. BASE AT FLOOR

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-stair-b-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: FROM 2ND FLOOR TO 7TH FLOOR INCLUSIVE. BASE AT FLOOR

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-stair-b-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-stair-dverified · printed

base_floor_applicability

FROM 2ND FLOOR TO 7TH FLOOR INCLUSIVE. BASE AT FLOOR

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-stair-d-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: FROM 2ND FLOOR TO 7TH FLOOR INCLUSIVE. BASE AT FLOOR

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-stair-d-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-stair-everified · printed

base_floor_applicability

FROM 1ST FLOOR TO 7TH FLOOR INCLUSIVE. BASE AT FLOOR

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-stair-e-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: FROM 1ST FLOOR TO 7TH FLOOR INCLUSIVE. BASE AT FLOOR

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-stair-e-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-stair-cverified · printed

treads_risers_resolved

TREADS AND RISERS - BROWN NEBO GOLDEN TRAVIS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-stair-c-treads_risers; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: TREADS AND RISERS - BROWN NEBO GOLDEN TRAVIS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-stair-c-treads_risers; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-corridorsverified · printed

base_resolved

UNLESS OTHERWISE NOTED, TO HAVE BASE OF VERMONT ROYAL RED

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-corridors-base; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: UNLESS OTHERWISE NOTED, TO HAVE BASE OF VERMONT ROYAL RED

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-corridors-base; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-sixth-court-connectingverified · printed

applicability_resolved

6TH FLOOR CORRIDOR CONNECTING COURT LOBBIES

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-sixth-court-connecting-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: 6TH FLOOR CORRIDOR CONNECTING COURT LOBBIES

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-sixth-court-connecting-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-sixth-court-connectingverified · printed

other_corridor_base_resolved

OTHER CORRIDORS ON 6TH FLOOR - BASE BROWN NEBO GOLDEN TRAVIS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-sixth-court-connecting-other_corridor_base; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: OTHER CORRIDORS ON 6TH FLOOR - BASE BROWN NEBO GOLDEN TRAVIS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-sixth-court-connecting-other_corridor_base; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-district-courtsverified · printed

base_clock_face_resolved

BASE AND CLOCK FACE - BROWN NEBO GOLDEN TRAVIS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-district-courts-base_clock_face; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: BASE AND CLOCK FACE - BROWN NEBO GOLDEN TRAVIS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-district-courts-base_clock_face; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-court-lobby-corridorsverified · printed

applicability_resolved

CORRIDORS FROM ELEVATORS TO COURT LOBBY, 7TH FLOOR

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-court-lobby-corridors-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: CORRIDORS FROM ELEVATORS TO COURT LOBBY, 7TH FLOOR

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-court-lobby-corridors-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-court-lobby-corridorsverified · printed

wainscot_material_resolved

WAINSCOT 4'-4" HIGH - ST. GENEVIEVE ROSE, DARK

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-court-lobby-corridors-wainscot; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: WAINSCOT 4'-4" HIGH - ST. GENEVIEVE ROSE, DARK

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-court-lobby-corridors-wainscot; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-toiletsunreviewed · printed

exception_unresolved

MEN AND WOMANS TOILETS - ALL FLOORS, UNLESS OTHERWISE NOT... [right edge cropped in selected crop]

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-toilets-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: MEN AND WOMANS TOILETS - ALL FLOORS, UNLESS OTHERWISE NOT... [right edge cropped in selected crop]

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-toilets-applicability; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-toiletsverified · printed

wainscot_height_resolved

WAINSCOT 6'-0" HIGH

72 in

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-toilets-wainscot; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: WAINSCOT 6'-0" HIGH

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-toilets-wainscot; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-toiletsverified · printed

partitions_backs_stools_material

TOILET PARTITIONS AND BACKS, WINDOW STOOLS ALL FRENCH ROSE PINK TENNESSEE

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-toilets-partitions_backs_stools; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: TOILET PARTITIONS AND BACKS, WINDOW STOOLS ALL FRENCH ROSE PINK TENNESSEE

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. Resolves/compares prior measurement closeout-img1209-marble-toilets-partitions_backs_stools; prior reading preserved. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-toiletsverified · printed

pink_tennessee_material

PINK TENNESSEE

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. New legible cell. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: PINK TENNESSEE

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. New legible cell. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-toiletsverified · printed

other_toilet_material_rule

OTHER TOILETS CALLING FOR MARBLE TO BE FRENCH ROSE PINK TENNESSEE ALSO UNLESS NOTED OTHERWISE

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. New legible cell. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: OTHER TOILETS CALLING FOR MARBLE TO BE FRENCH ROSE PINK TENNESSEE ALSO UNLESS NOTED OTHERWISE

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. New legible cell. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-window-stoolsverified · printed

mahogany_room_material

ALL WINDOW STOOLS IN ROOMS TRIMMED IN MAHOGANY TO BE VERMONT ROYAL RED

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. New legible cell. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: ALL WINDOW STOOLS IN ROOMS TRIMMED IN MAHOGANY TO BE VERMONT ROYAL RED

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. New legible cell. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-window-stoolsverified · printed

oak_room_material

IN ROOMS TRIMMED IN OAK - BROWN GOLDEN NEBO TRAVIS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. New legible cell. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: IN ROOMS TRIMMED IN OAK - BROWN GOLDEN NEBO TRAVIS

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. New legible cell. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-window-stoolsverified · printed

toilet_material

IN TOILET ROOMS - FRENCH ROSE PINK TENNESSEE UNLESS NOTED OTHERWISE

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. New legible cell. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: IN TOILET ROOMS - FRENCH ROSE PINK TENNESSEE UNLESS NOTED OTHERWISE

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. New legible cell. TRAVIS preserved literally; no inferred modern stone-name replacement.

img1209-schedule-marble-generalverified · printed

alternate_material_reference

SEE CLAUSE IN SPECIFICATIONS RELATIVE TO ALTERNATE MARBLE PERMITTED

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. New legible cell. TRAVIS preserved literally; no inferred modern stone-name replacement.

IMG_1208 · W-4 · Locate on drawing ↗

Drawing notation: SEE CLAUSE IN SPECIFICATIONS RELATIVE TO ALTERNATE MARBLE PERMITTED

Companion source crop courthouse-1208-fullcolumn.jpg, original pixels x80,y80,w1120,h2050; normalized source mapping x=(80+u*1120)/1650,y=(80+v*2050)/2200. New legible cell. TRAVIS preserved literally; no inferred modern stone-name replacement.

View all source photographs →
