Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.

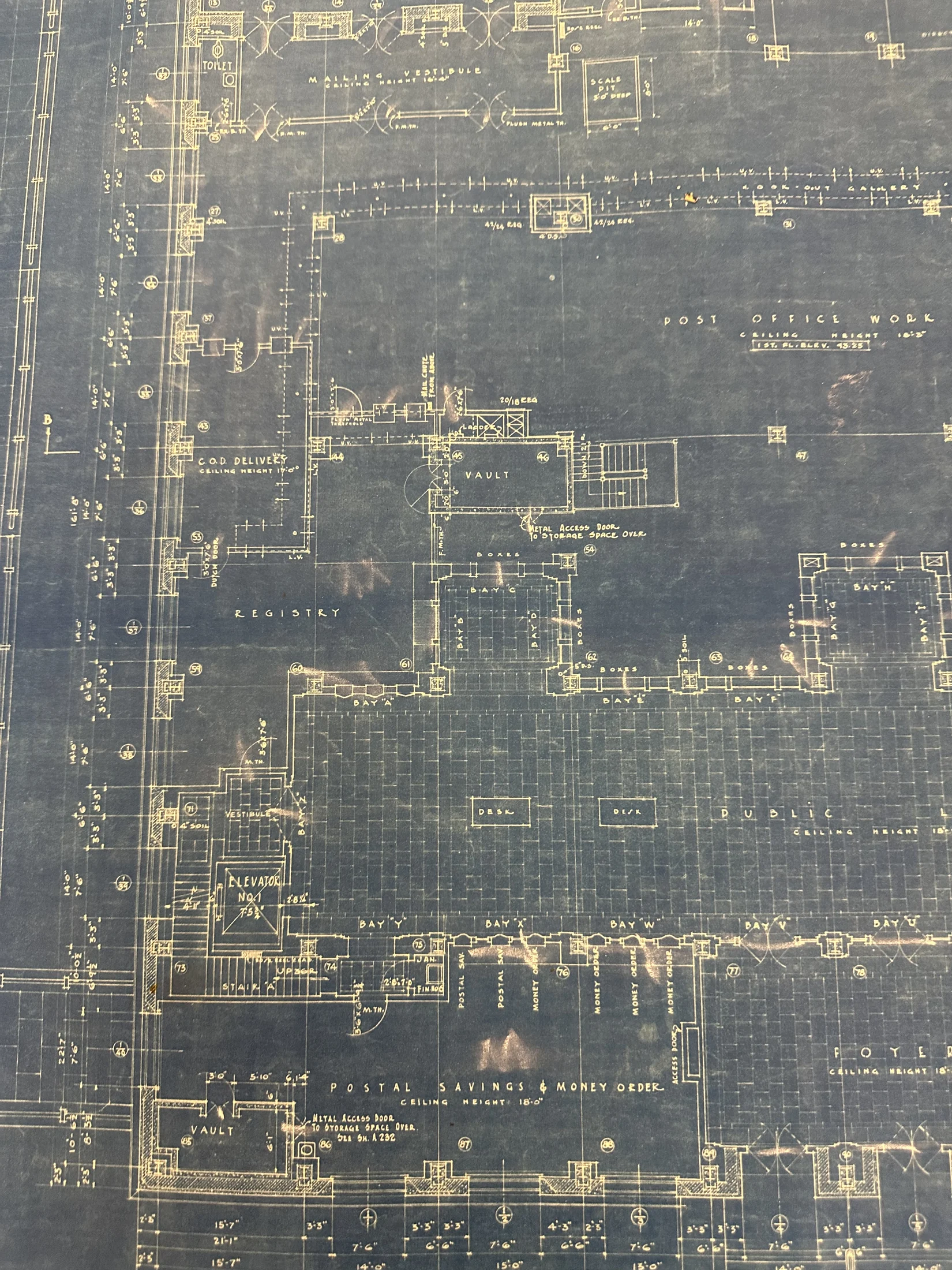

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial sequential 1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1206.webp after OCR/catalogue and reports. Actual clockwise reading rotation 0 degrees. Coordinates normalized access-image before rotation. No full-region extraction/modeling claim. Partial timed visual review: Additive bounded follow-up; coordinates normalized to unrotated access raster. Original plan/topology records retained. No model acceptance or complete-sheet claim. Partial timed visual review: Bounded text-first follow-up; ten sequential inspections total across nine derivatives including one W-6 same-source core crop. No accepted physical geometry. Existing verified readings omitted. IMG_1209 uses prior closeout text only. Partial timed visual review: Access ceiling note and master crop inspected; master reading orientation 270 degrees. Pit crop missed label and produced no depth reading. Partial timed visual review: undefined Partial timed visual review: Source-local partial review; no physical coordinates accepted. Partial timed visual review: undefined Partial timed visual review: Text reuse only: prior first-floor close-up package already contains selected heights/dimensions; no visual review or count-chain duplication.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: REGISTRY
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: POSTAL SAVINGS & MONEY ORDER
Partial source detail only; witnesses not promoted to complete geometry or world registration.
216 in
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: CEILING HEIGHT 18'-0"
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: METAL ACCESS DOOR TO STORAGE SPACE OVER
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: SEE SH.#232
Partial source detail only; witnesses not promoted to complete geometry or world registration.
1 number
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: ELEVATOR NO.1
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: STAIR A
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: P.O. LOBBY
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Numeric value unresolved
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: CEILING HEIGHT 18'-3" [fine reading]
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Numeric value unresolved
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: Registry/lobby grid, ceiling levels, vault wall properties and room/opening dimensions unresolved
Partial source detail only; witnesses not promoted to complete geometry or world registration.
18.25 ft
Agrees with detail1010 apparent reading but derivative insufficient for independent digit verification; does not establish public-lobby ceiling or uniform extent.
Drawing notation: CEILING HEIGHT 18'-3"
Agrees with detail1010 apparent reading but derivative insufficient for independent digit verification; does not establish public-lobby ceiling or uniform extent.
Observed adjacency only; no wall coordinate or physical pit footprint.
Drawing notation: SCALE PIT [within workroom beside mailing vestibule]
Observed adjacency only; no wall coordinate or physical pit footprint.
Numeric value unresolved
Depth digits unreadable; do not infer from symbol.
Drawing notation: SCALE PIT ... DEEP
Depth digits unreadable; do not infer from symbol.
18.25 ft
Companion IMG_1206 shows an apparent 3-inch final digit on named POST OFFICE WORK space. Bounded reading remains unreviewed; retain prior f1-room-post-office-work-space-ceiling-height null (IMG_1202) separately and do not silently replace it. This label is not the public lobby height.
Drawing notation: CEILING HEIGHT 18'-3"
Companion IMG_1206 shows an apparent 3-inch final digit on named POST OFFICE WORK space. Bounded reading remains unreviewed; retain prior f1-room-post-office-work-space-ceiling-height null (IMG_1202) separately and do not silently replace it. This label is not the public lobby height.
Numeric value unresolved
Master crop supports prior 18-foot candidate and appears consistent with 3 inches, but worn final glyph remains insufficiently distinct to upgrade numeric candidate. Preserve existing 18.25-foot readings separately; no new duplicate numeric measurement or uniform room/lobby height accepted.
Drawing notation: CEILING HEIGHT 18'-3" [candidate]
Master crop supports prior 18-foot candidate and appears consistent with 3 inches, but worn final glyph remains insufficiently distinct to upgrade numeric candidate. Preserve existing 18.25-foot readings separately; no new duplicate numeric measurement or uniform room/lobby height accepted.
Calculated from: detail1010-1206-f1-room-post-office-work-space-printed_ceiling_height_followup, detail1011m-1206-detail1011m-workroom-ceiling-second-witness-height_reading_reconciliation
3 ft
Printed depth inside scale-pit rectangle. Relation to finished-floor datum/rim and exact construction bottom remains unclassified. Source-local original-layer witness only; no installation, quantity or geometric acceptance.
Drawing notation: SCALE PIT / 3'-0" DEEP
Printed depth inside scale-pit rectangle. Relation to finished-floor datum/rim and exact construction bottom remains unclassified. Source-local original-layer witness only; no installation, quantity or geometric acceptance.
18.25 ft
High-resolution crop of master rotated90 closes the candidate3. Named work-space note only; precise regional extent and lower lookout ceilings remain unclosed.
Drawing notation: POST OFFICE WORK... / CEILING HEIGHT18'-3"
High-resolution crop of master rotated90 closes the candidate3. Named work-space note only; precise regional extent and lower lookout ceilings remain unclosed.
93.25 ft
Independent printed witness in work-space ceiling note. Drawing datum convention inherited as feet from existing first-floor controls; external benchmark not established.
Drawing notation: 1ST.FL.ELEV.93.25
Independent printed witness in work-space ceiling note. Drawing datum convention inherited as feet from existing first-floor controls; external benchmark not established.
Label points to storage-over-vault access beside Registry stair; no new room number, floor elevation or closed closet polygon.
Drawing notation: METAL ACCESS DOOR TO STORAGE SPACE OVER
Label points to storage-over-vault access beside Registry stair; no new room number, floor elevation or closed closet polygon.
