The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

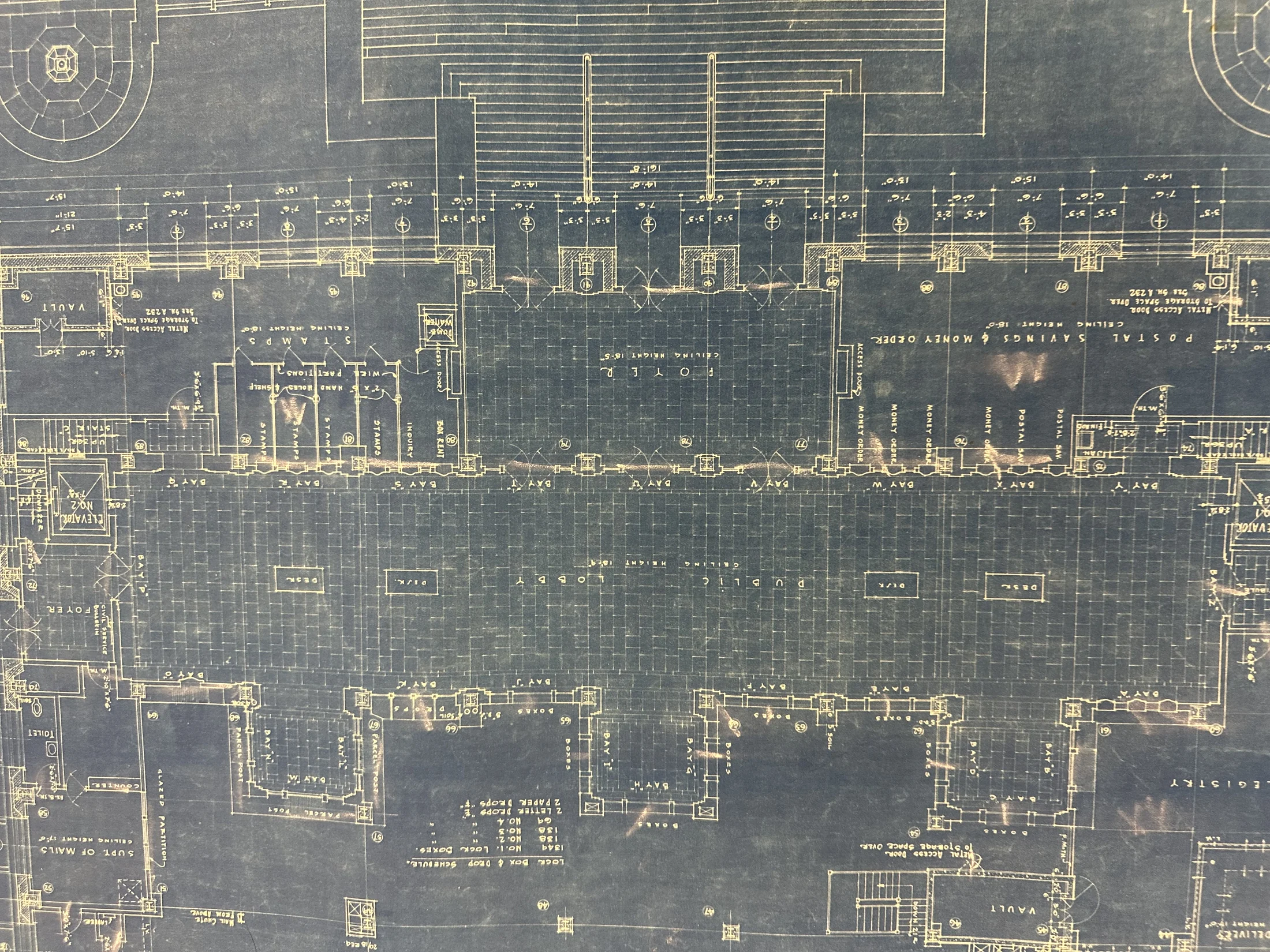

IMG_1204 · Folder 190

FIRST FLOOR PLAN

Sheet W3

Extraction: Reviewed · extraction partial. First-floor public-lobby plan, reported 18'-3" ceiling-height reading and repeated 14'/15' structural dimensions. Normalized from an existing text re-audit; this import did not reopen the source image. W214 P5/P6 ceiling-panel/light installation gate; physical fixture position unresolved. Partial timed visual review: Additive bounded follow-up; coordinates normalized to unrotated access raster. Original plan/topology records retained. No model acceptance or complete-sheet claim. Partial timed visual review: Bounded text-first follow-up; ten sequential inspections total across nine derivatives including one W-6 same-source core crop. No accepted physical geometry. Existing verified readings omitted. IMG_1209 uses prior closeout text only. Partial timed visual review: Upright access schedule and surrounding bay context reviewed; no installed quantity inference. Partial timed visual review: undefined Partial timed visual review: Source-local partial review; no physical coordinates accepted. Partial timed visual review: undefined

Unresolved extraction work

Complete drawing-note transcription
Every dimension and bay placement
Detailed hardware/fastener schedule
Exact cross-sheet bay correspondence
Cross-photo physical deduplication
Complete surviving-object inventory
Exact dimensions
Construction/alteration chronology
Condition assessment
P-6 component extraction
Installed fixture schedule and positions
As-built correspondence
Fixture finish and glass color
installed fixture instance/count and W214-panel-to-WLF-246 type correspondence
dimensioned A/B ceiling-grid station from a classified W3 or W214 plan control in X
dimensioned lobby centerline and panel-row station in Z
accepted W214 ceiling-grid to W3 transform with a held-out check
actual suspension/ceiling anchor within the panel rather than merely somewhere below it
resolved public-lobby height and finished coffer/anchor Y surface
P-5 overall diameter and canopy-to-bottom drop, or independently dimensioned P-6 envelope
fixture orientation and clearance to beams, cornice, openings and occupied space
Every remaining dimension, schedule, callout and companion detail needs region review; no accepted physical/world geometry.
Source-local applicability, construction thicknesses, complete object inventory and as-built correspondence remain unresolved.
All unreviewed local dimensions, exact faces/jambs, room applicability, schedules and companion details remain pending; no full-image extraction claim.
Exact box/drop type-to-bay assignment and endpoints
Full schedule companion details
Remaining plan dimensions and full region coverage
Exact installed quantities and type-to-instance assignment
Rough/finished/structural endpoint classes, complete host outline and source-to-building registration
Governing original/revision and companion-detail authority; no accepted physical geometry
All uninspected source regions, notes, schedules and companion details; whole source remains partial
Accepted finish/rough/structural endpoint classes and source-to-building transform absent
All physical construction layers, exact material limits, installed quantities and as-built correspondence unresolved
Remaining fine chains, schedules, callouts, revisions and companion details require review; exhaustive extraction not certified
Classified finish/rough/structural faces, closed boundaries and source-to-building registration
Original/revision authority, companion details and as-built correspondence
All unreviewed regions, notes, schedules and callouts; no whole-source completeness

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

17 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

f1-public-lobby-architectural-envelopeunreviewed · printed

printed_ceiling_height

18'-3"

18.25 ft

The re-audit attributes this reading to IMG_1204 in the W3/first-floor-plan family. The image was not reopened for this package. Authoring eligibility: none-until-conflict-resolved. Report transcription; verify the cited drawing before promoting physical geometry. Review correction review-correction-20261013h-lobby-height-report-reading-18-3: Verified same-image raw-upright master crop resolves the same PUBLIC LOBBY ceiling glyph as9 rather than3; no different revision/station is selected.

IMG_1204 · sheet-W3 · View drawing ↗

Drawing notation: Public Lobby — ceiling height 18'-3"

Existing text re-audit only; image not reopened. First-floor public-lobby plan, reported 18'-3" ceiling-height reading and repeated 14'/15' structural dimensions

Conflicting readings: lobby-height-existing-package-reading-18-9

f1-public-lobby-architectural-envelopeunreviewed · printed

repeated_structural_bay_dimension

14'-0"

14 ft

One of the repeated structural dimensions reported on the first-floor public-lobby plan; no count or exact station assignment is asserted. Authoring eligibility: rhythm-reference-only. Report transcription; verify the cited drawing before promoting physical geometry.

IMG_1204 · sheet-W3 · View drawing ↗

Drawing notation: 14'-0"

Existing text re-audit only; image not reopened. First-floor public-lobby plan, reported 18'-3" ceiling-height reading and repeated 14'/15' structural dimensions

f1-public-lobby-architectural-envelopeunreviewed · printed

repeated_structural_bay_dimension

15'-0"

15 ft

IMG_1204 · sheet-W3 · View drawing ↗

Drawing notation: 15'-0"

Existing text re-audit only; image not reopened. First-floor public-lobby plan, reported 18'-3" ceiling-height reading and repeated 14'/15' structural dimensions

f1-public-lobby-postal-wall-systemunreviewed · observed
