Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial sequential 1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1203.webp after OCR/catalogue and reports. Actual clockwise reading rotation 0 degrees. Coordinates normalized access-image before rotation. No full-region extraction/modeling claim. Partial timed visual review: Additive bounded follow-up; coordinates normalized to unrotated access raster. Original plan/topology records retained. No model acceptance or complete-sheet claim. Partial timed visual review: Bounded text-first follow-up; ten sequential inspections total across nine derivatives including one W-6 same-source core crop. No accepted physical geometry. Existing verified readings omitted. IMG_1209 uses prior closeout text only. Partial timed visual review: undefined Partial timed visual review: Source-local partial review; no physical coordinates accepted. Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: STAMPS
Partial source detail only; witnesses not promoted to complete geometry or world registration.
216 in
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: CEILING HEIGHT 18'-0"
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: BOX RENT
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: INQUIRY
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: DUMB WAITER
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: ACCESS DOORS
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: WIRE PARTITIONS
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: HAND HOLES & SHELF
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Numeric value unresolved
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Drawing notation: Tube/mesh sizes and door-opening fractions unclear
Partial source detail only; witnesses not promoted to complete geometry or world registration.
Numeric value unresolved
Notation is visible but component, endpoint and second unit are ambiguous; not partition thickness or clear door width. Review correction review-correction-20261013h-detail1011m-1203-detail1011m-stamps-partition-annotation-annotation_unresolved: Same annotated counter strip reads2-inch by6-inch HAND HOLES, not a6-foot partition dimension; old unknown numeric retained.
Drawing notation: 2" x 6' [adjacent to WIRE PARTITIONS]
Notation is visible but component, endpoint and second unit are ambiguous; not partition thickness or clear door width.
42 in
First component candidate of an opening label. Preserve separately; exact jamb/leaf assignment and fraction remain unverified.
Drawing notation: 3'-6" x 6'-9 3/4"
First component candidate of an opening label. Preserve separately; exact jamb/leaf assignment and fraction remain unverified.
Numeric value unresolved
Height fractional digits not established; null retained.
Drawing notation: 3'-6" x 6'-9 3/4"
Height fractional digits not established; null retained.
270 deg
Reading orientation only; conflicts with prior locator scope stating 0 degrees. Coordinates remain unrotated access raster.
Drawing notation: Reading requires 270 degrees clockwise from access raster
Reading orientation only; conflicts with prior locator scope stating 0 degrees. Coordinates remain unrotated access raster.
81.75 in
Second component of same source annotation; 6feet9¾inches. Annotation only, leaf/clear/rough opening and sill/head classes unresolved. Source-local original-layer witness only; no installation, quantity or geometric acceptance.
Drawing notation: 3'-6" x 6'-9¾"
Second component of same source annotation; 6feet9¾inches. Annotation only, leaf/clear/rough opening and sill/head classes unresolved. Source-local original-layer witness only; no installation, quantity or geometric acceptance.
42 in
First component of same source annotation. The selected glyph itself is upright in the access crop; no270-degree transform applied to this local witness. Source-local original-layer witness only; no installation, quantity or geometric acceptance.
Drawing notation: 3'-6" x 6'-9¾"
First component of same source annotation. The selected glyph itself is upright in the access crop; no270-degree transform applied to this local witness. Source-local original-layer witness only; no installation, quantity or geometric acceptance.
2 in
The two dimensions modify HAND HOLES, not wire-partition thickness or height. Hole instance quantity and construction remain unresolved.
Drawing notation: 2" x 6" HAND HOLES & SHELF
The two dimensions modify HAND HOLES, not wire-partition thickness or height. Hole instance quantity and construction remain unresolved.
6 in
Printed counter aperture dimension, not room geometry; no installed quantity.
Drawing notation: 2" x 6" HAND HOLES & SHELF
Printed counter aperture dimension, not room geometry; no installed quantity.

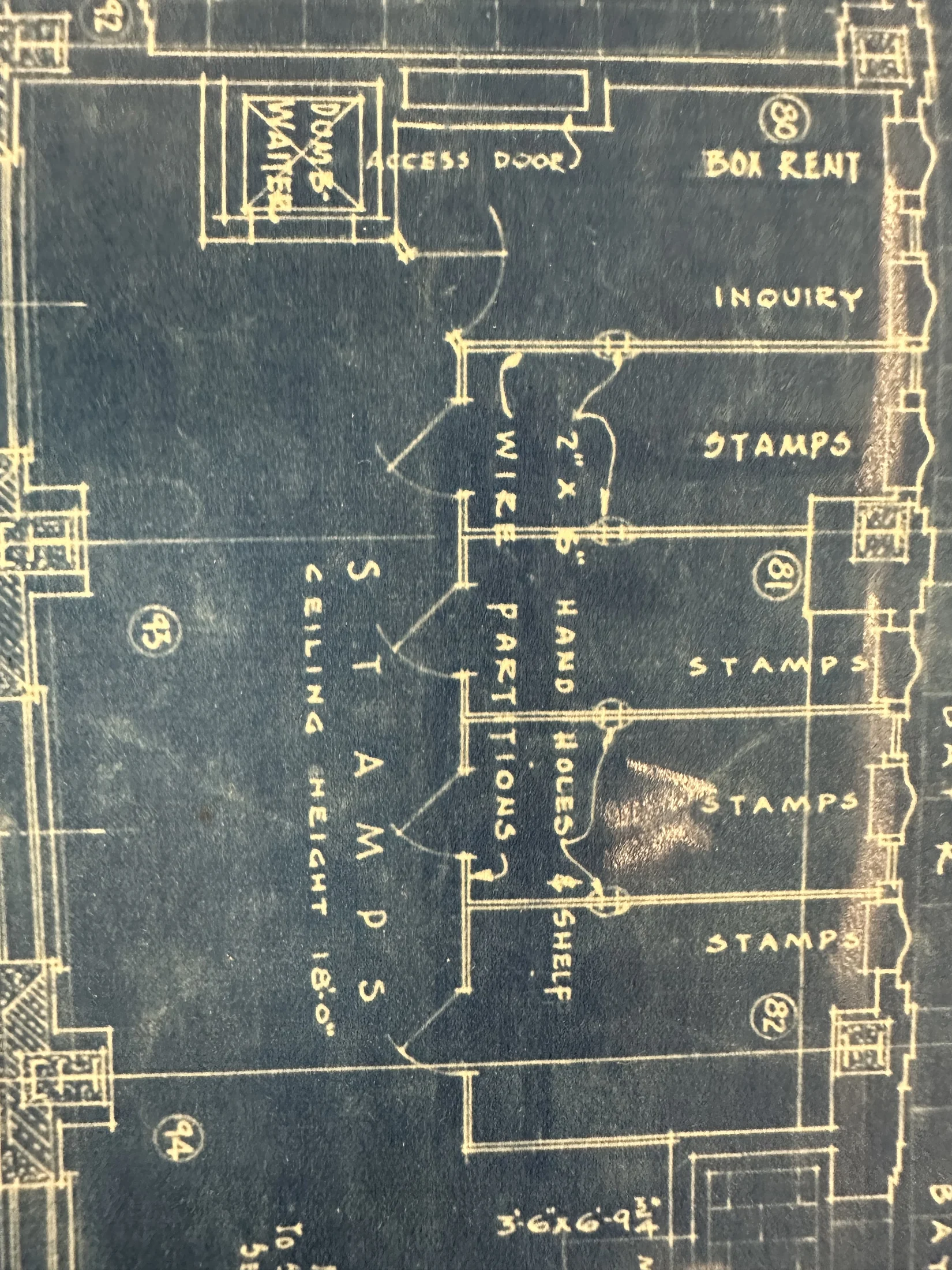

Dumbwaiter lies at the page-left end of the Inquiry/Stamps strip after270-degree access rotation; access-door labels adjoin the shaft. No exact shaft bounds or new physical identity established.
Drawing notation: INQUIRY / STAMPS / DUMB WAITER / ACCESS DOORS
Dumbwaiter lies at the page-left end of the Inquiry/Stamps strip after270-degree access rotation; access-door labels adjoin the shaft. No exact shaft bounds or new physical identity established.
