The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

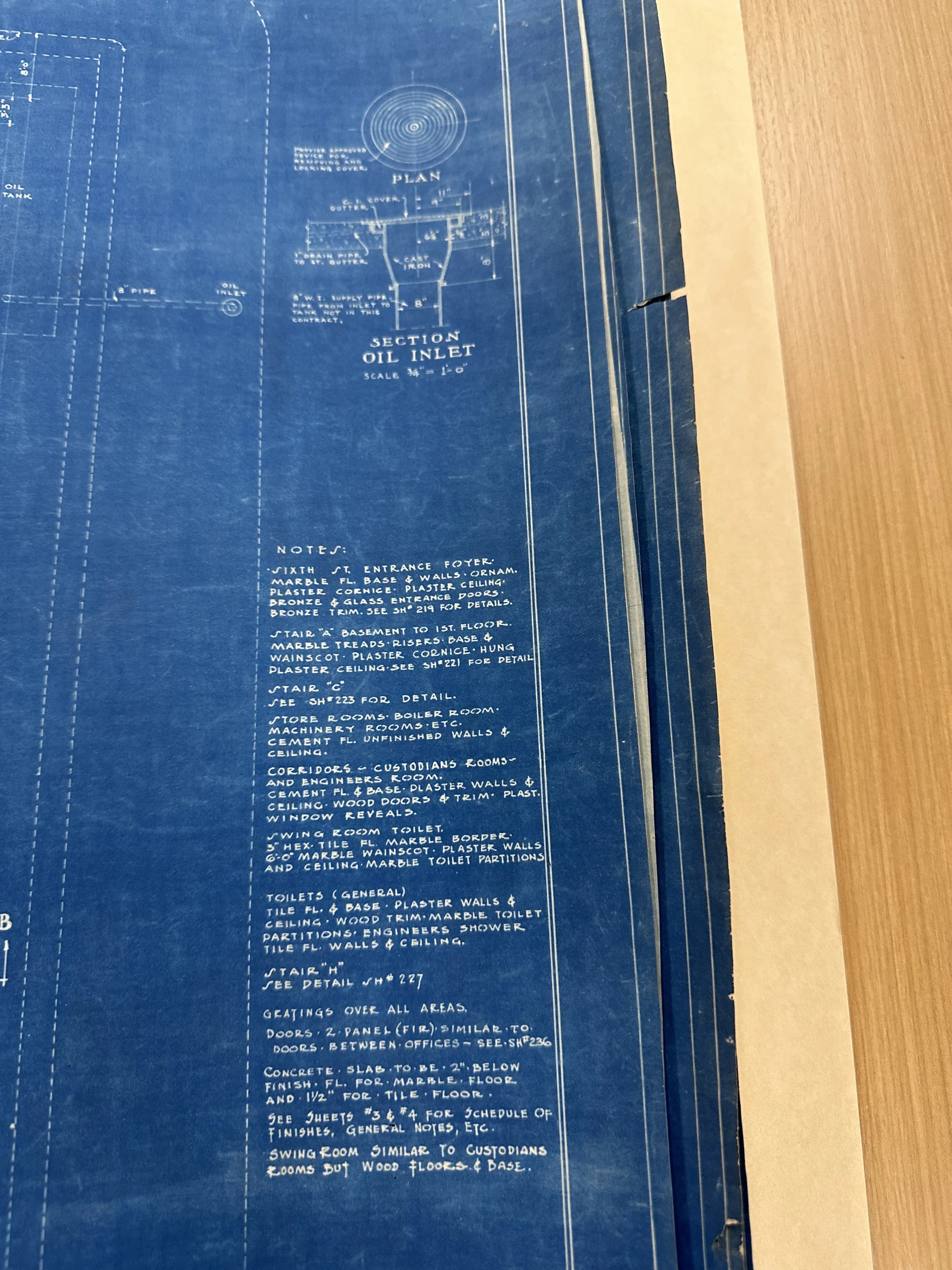

IMG_1199 · Folder 190

Store Rooms. Boiler Room

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial companion-detail readings; full source review remains outstanding. Partial timed visual review: Additive bounded follow-up; coordinates normalized to unrotated access raster. Original plan/topology records retained. No model acceptance or complete-sheet claim. Partial timed visual review: undefined Partial timed visual review: Source-local partial review; no physical coordinates accepted. Partial timed visual review: undefined

Unresolved extraction work
  • All remaining source regions and companion details
  • Every remaining dimension, schedule, callout and companion detail needs region review; no accepted physical/world geometry.
  • Source-local applicability, construction thicknesses, complete object inventory and as-built correspondence remain unresolved.
  • Exact installed quantities and type-to-instance assignment
  • Rough/finished/structural endpoint classes, complete host outline and source-to-building registration
  • Governing original/revision and companion-detail authority; no accepted physical geometry
  • All uninspected source regions, notes, schedules and companion details; whole source remains partial
  • Accepted finish/rough/structural endpoint classes and source-to-building transform absent
  • All physical construction layers, exact material limits, installed quantities and as-built correspondence unresolved
  • Remaining fine chains, schedules, callouts, revisions and companion details require review; exhaustive extraction not certified
  • Complete remaining notes, dimensions, schedules, callouts and companion details; this is targeted partial review.
  • Installed identities and quantities, governing original/revision, complete construction endpoints and source-to-building registration remain unresolved.
  • No accepted physical geometry or architectural release.
  • b-finish-recess-rules clear-height, footprint-trace and source-footprint remain unresolved physical-geometry questions. Printed recess2″/1½″ cannot establish enclosure, height or coordinates; no rescan solely for partial status.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

57 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

b-finish-recess-rulesunreviewed · observed

Located source-space footprint; physical coordinates unresolved

0 source-space vertices; no world registration

Source locator only, not a measured room polygon. Original vertices remain in the extraction package.

IMG_1199 · Locate on drawing ↗

Drawing notation: CONCRETE SLAB TO BE2″ BELOW FINISH FL.FOR MARBLE FLOOR AND1½″ FOR TILE FLOOR.

Upright1650×2200 WebP close-up; this region must not be applied directly to the unrotated master.

b-finish-recess-rulesunreviewed · observed

footprint-trace

Location only; closed enclosure unresolved

No polygon accepted

IMG_1199 · Locate on drawing ↗

Drawing notation: CONCRETE SLAB TO BE2″ BELOW FINISH FL.FOR MARBLE FLOOR AND1½″ FOR TILE FLOOR.

Upright1650×2200 WebP close-up; this region must not be applied directly to the unrotated master.

b-finish-recess-rulesillegible · observed

clear-height

Not read

Numeric value unresolved

IMG_1199 · Locate on drawing ↗

Drawing notation: CONCRETE SLAB TO BE2″ BELOW FINISH FL.FOR MARBLE FLOOR AND1½″ FOR TILE FLOOR.

Upright1650×2200 WebP close-up; this region must not be applied directly to the unrotated master.

b-finish-recess-rulesverified · printed

slab-recess-marble

2″ below finish floor for marble floor

2 in

Only locations using marble finish; not a general basement depression.

IMG_1199 · Locate on drawing ↗

Drawing notation: CONCRETE SLAB TO BE2″ BELOW FINISH FL.FOR MARBLE FLOOR AND1½″ FOR TILE FLOOR.

Upright1650×2200 WebP close-up; this region must not be applied directly to the unrotated master.

b-finish-recess-rulesverified · printed

slab-recess-tile

1½″ below finish floor for tile floor

1.5 in

Only locations using tile finish.

IMG_1199 · Locate on drawing ↗

Drawing notation: CONCRETE SLAB TO BE2″ BELOW FINISH FL.FOR MARBLE FLOOR AND1½″ FOR TILE FLOOR.

Upright1650×2200 WebP close-up; this region must not be applied directly to the unrotated master.

detail1011m-basement-oil-inletverified · printed

casting_material

CAST IRON

Source-local printed witness only; no exact instance placement, dimensioned physical envelope or installed quantity established.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: CAST IRON

Source-local printed witness only; no exact instance placement, dimensioned physical envelope or installed quantity established.

detail1011m-basement-oil-inletverified · printed

cover_material

C.I. COVER

Source-local printed witness only; no exact instance placement, dimensioned physical envelope or installed quantity established.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: C.I. COVER

Source-local printed witness only; no exact instance placement, dimensioned physical envelope or installed quantity established.

detail1011m-basement-oil-inletverified · printed

gutter_material

GUTTER / C.I. COVER

Source-local printed witness only; no exact instance placement, dimensioned physical envelope or installed quantity established.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: GUTTER / C.I. COVER

Source-local printed witness only; no exact instance placement, dimensioned physical envelope or installed quantity established.

detail1011m-basement-oil-inletunreviewed · printed

cover_features

PROVIDE APPROVED SCREW DOWN / REMOVING AND LOCKING COVER

Partial transcription; exact wording of removal mechanism requires original-resolution witness.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: PROVIDE APPROVED SCREW DOWN / REMOVING AND LOCKING COVER

Partial transcription; exact wording of removal mechanism requires original-resolution witness.

detail1011m-basement-oil-inletverified · printed

supply_pipe_diameter

8" W.I. SUPPLY PIPE

8 in

Source-local printed witness only; no exact instance placement, dimensioned physical envelope or installed quantity established.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: 8" W.I. SUPPLY PIPE

Source-local printed witness only; no exact instance placement, dimensioned physical envelope or installed quantity established.

detail1011m-basement-oil-inletverified · printed

supply_pipe_scope

PIPE FROM INLET TO TANK NOT IN THIS CONTRACT

Source-local printed witness only; no exact instance placement, dimensioned physical envelope or installed quantity established.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: PIPE FROM INLET TO TANK NOT IN THIS CONTRACT

Source-local printed witness only; no exact instance placement, dimensioned physical envelope or installed quantity established.

detail1011m-basement-oil-inletunreviewed · printed

drain_relationship

1" DRAIN PIPE TO ST. GUTTER

Drain to street gutter appears printed; diameter first digit requires high-resolution confirmation.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: 1" DRAIN PIPE TO ST. GUTTER

Drain to street gutter appears printed; diameter first digit requires high-resolution confirmation.

detail1011m-basement-oil-inletverified · printed

cover-removing-locking-device

PROVIDE APPROVED DEVICE FOR REMOVING AND LOCKING COVER

Same oil-inlet plan leader; DEVICE FOR is printed, not SCREW DOWN. Source-local original-layer witness only; no installation, quantity or geometric acceptance.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: PROVIDE APPROVED DEVICE FOR REMOVING AND LOCKING COVER

Same oil-inlet plan leader; DEVICE FOR is printed, not SCREW DOWN. Source-local original-layer witness only; no installation, quantity or geometric acceptance.

detail1011m-basement-oil-inletverified · printed

drain-street-gutter-relationship

1" DRAIN PIPE TO ST. GUTTER

Leader connects a drain pipe to street gutter; material and installed route not established. Source-local original-layer witness only; no installation, quantity or geometric acceptance.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: 1" DRAIN PIPE TO ST. GUTTER

Leader connects a drain pipe to street gutter; material and installed route not established. Source-local original-layer witness only; no installation, quantity or geometric acceptance.

detail1011m-basement-oil-inletverified · printed

drain-pipe-printed-diameter

1" DRAIN PIPE TO ST. GUTTER

1 in

Printed nominal drain-pipe diameter; not a drain invert or gutter opening dimension. Source-local original-layer witness only; no installation, quantity or geometric acceptance.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: 1" DRAIN PIPE TO ST. GUTTER

Printed nominal drain-pipe diameter; not a drain invert or gutter opening dimension. Source-local original-layer witness only; no installation, quantity or geometric acceptance.

lowerplan1013h-basement-finish-rulesverified · printed

Sixth foyer floor material

MARBLE FL.

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: MARBLE FL.

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Sixth foyer base material

MARBLE ... BASE

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: MARBLE ... BASE

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Sixth foyer wall material

MARBLE ... WALLS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: MARBLE ... WALLS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Sixth foyer cornice material

ORNAM. PLASTER CORNICE

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: ORNAM. PLASTER CORNICE

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Sixth foyer ceiling material

PLASTER CEILING

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: PLASTER CEILING

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Sixth foyer door assembly materials

BRONZE & GLASS ENTRANCE DOORS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: BRONZE & GLASS ENTRANCE DOORS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Sixth foyer trim material

BRONZE TRIM

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: BRONZE TRIM

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Sixth foyer companion reference

SEE SH#219 FOR DETAILS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: SEE SH#219 FOR DETAILS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Store / boiler / machinery room floor material

STORE ROOMS. BOILER ROOM. MACHINERY ROOMS ETC. / CEMENT FL.

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: STORE ROOMS. BOILER ROOM. MACHINERY ROOMS ETC. / CEMENT FL.

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Store / boiler / machinery wall finish

UNFINISHED WALLS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: UNFINISHED WALLS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Store / boiler / machinery ceiling finish

UNFINISHED ... CEILING

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: UNFINISHED ... CEILING

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Corridor/custodian/engineer floor material

CORRIDORS — CUSTODIANS ROOMS — AND ENGINEERS ROOM. / CEMENT FL.

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: CORRIDORS — CUSTODIANS ROOMS — AND ENGINEERS ROOM. / CEMENT FL.

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Corridor/custodian/engineer base material

CEMENT ... BASE

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: CEMENT ... BASE

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Corridor/custodian/engineer wall material

PLASTER WALLS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: PLASTER WALLS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Corridor/custodian/engineer ceiling material

PLASTER ... CEILING

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: PLASTER ... CEILING

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Corridor/custodian/engineer door material

WOOD DOORS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: WOOD DOORS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Corridor/custodian/engineer trim material

WOOD ... TRIM

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: WOOD ... TRIM

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Corridor/custodian/engineer window reveals

PLAST. WINDOW REVEALS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: PLAST. WINDOW REVEALS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Swing-room toilet floor material

SWING ROOM TOILET / 5" HEX. TILE FL.

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: SWING ROOM TOILET / 5" HEX. TILE FL.

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Swing-room toilet floor border material

MARBLE BORDER

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: MARBLE BORDER

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Swing-room toilet wainscot material

6'-0" MARBLE WAINSCOT

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: 6'-0" MARBLE WAINSCOT

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Swing-room toilet upper wall material

PLASTER WALLS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: PLASTER WALLS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Swing-room toilet ceiling material

PLASTER ... CEILING

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: PLASTER ... CEILING

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

Swing-room toilet partition material

MARBLE TOILET PARTITIONS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: MARBLE TOILET PARTITIONS

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

lowerplan1013h-basement-finish-rulesverified · printed

General toilet floor material

TOILETS (GENERAL) / TILE FL.

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

IMG_1199 · W-2 · Locate on drawing ↗

Drawing notation: TOILETS (GENERAL) / TILE FL.

Named heading governs the listed room category only; no automatic finish extent or whole-basement assignment. Swing room is distinct from Swing room toilet.

View all source photographs →
