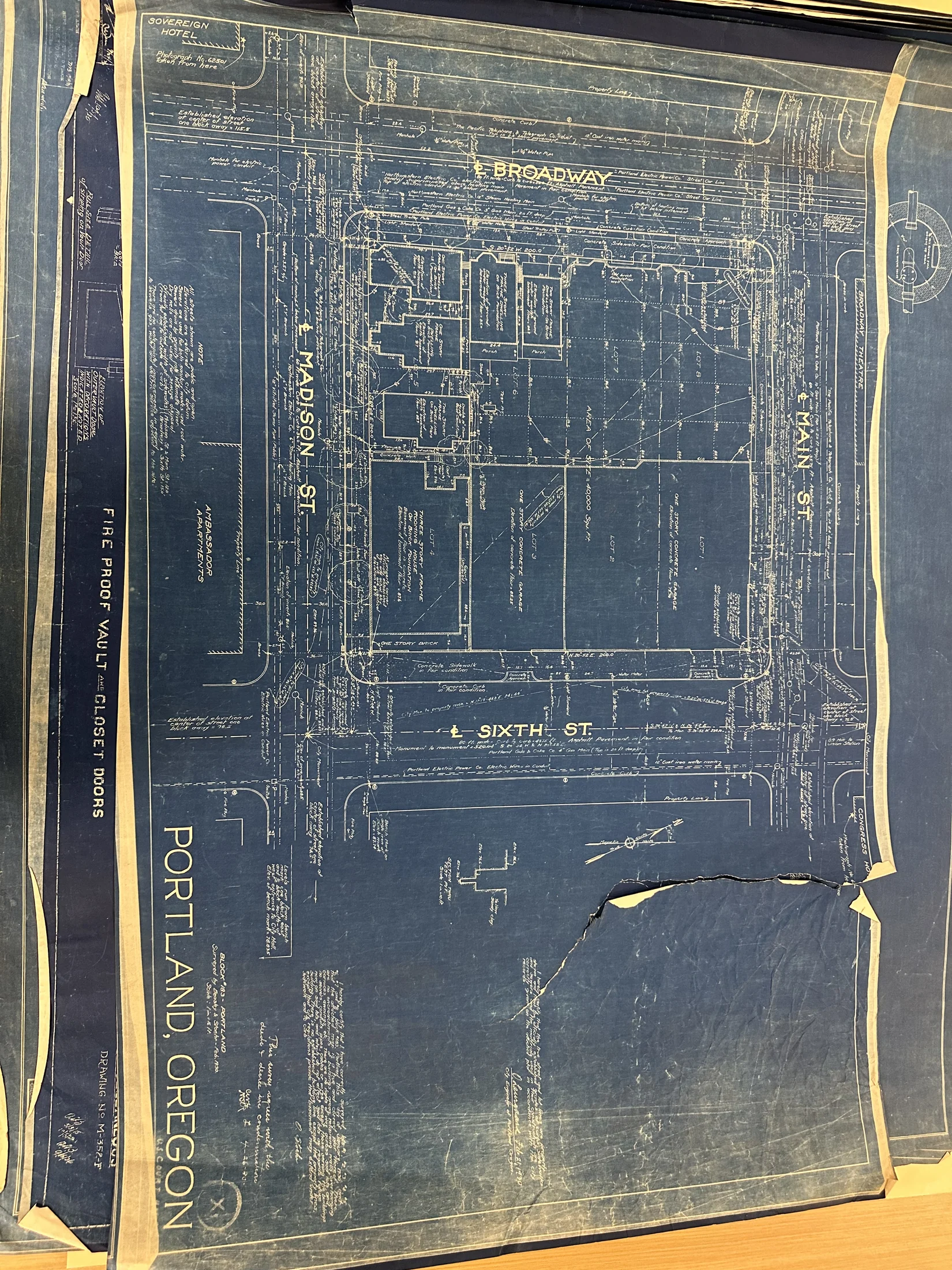

IMG_1186 · Folder 190

Fire Proof Vault Alcloset Doors

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial text-first and one sequential <=1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1186.webp. Coordinates normalized to unrotated access image; clockwise correction given by rotationDegrees. Selected regions only, not full measured extraction. No modeling authorized. Partial timed visual review: Prior evidence reused; no new image inspection. Partial timed visual review: Additive selected region follow-up; previously verified findings omitted. Dimension witnesses apply only to depicted source-local spans. Extraction partial; modeling not started. Partial timed visual review: undefined Partial timed visual review: undefined

Unresolved extraction work
  • locator review only: all dense notes, dimension chains, utility marks and fine fractions need complete region extraction
  • original survey datum, later annotations and revision authority reconciliation
  • source-to-instance registration, quantities and companion construction details
  • Remaining fractional dimensions, leaders and endpoint assignments
  • Full regional notes and companion detail reconciliation
  • Physical instance registration and quantities; no accepted model geometry
  • All unvisited survey regions and notes remain incomplete
  • Underlying M352F sheet is separate source context; not survey identity
  • All unvisited notes, dimensions, schedules, revisions and companion details remain open.
  • Source-to-building registration, installed quantity and governing issue unresolved; no accepted geometry.
  • Area establishes a printed source quantity only, not accepted parcel geometry.
  • Survey photograph has several orientations; no transformation inferred from underlay text.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

17 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1186-surveyverified · printed

streets

BROADWAY / MAIN ST. / SIXTH ST. / MADISON ST.

Selected source evidence only; partial locator review. Applies to depicted historical drawing, not accepted building geometry.

IMG_1186 · Locate on drawing ↗

Drawing notation: BROADWAY / MAIN ST. / SIXTH ST. / MADISON ST.

Selected source evidence only; partial locator review. Applies to depicted historical drawing, not accepted building geometry.

parallel-img1186-surveyunreviewed · printed

site_area

AREA OF SITE 40000 SQU.FT [locator small]

Numeric value unresolved

Selected source evidence only; partial locator review. Applies to depicted historical drawing, not accepted building geometry.

IMG_1186 · Locate on drawing ↗

Drawing notation: AREA OF SITE 40000 SQU.FT [locator small]

Selected source evidence only; partial locator review. Applies to depicted historical drawing, not accepted building geometry.

parallel-img1186-surveyverified · printed

adjacent_building

AMBASSADOR APARTMENTS

Selected source evidence only; partial locator review. Applies to depicted historical drawing, not accepted building geometry.

IMG_1186 · Locate on drawing ↗

Drawing notation: AMBASSADOR APARTMENTS

Selected source evidence only; partial locator review. Applies to depicted historical drawing, not accepted building geometry.

parallel-img1186-surveyverified · printed

adjacent_hotel

SOVEREIGN HOTEL

Selected source evidence only; partial locator review. Applies to depicted historical drawing, not accepted building geometry.

IMG_1186 · Locate on drawing ↗

Drawing notation: SOVEREIGN HOTEL

Selected source evidence only; partial locator review. Applies to depicted historical drawing, not accepted building geometry.

parallel-img1186-surveyverified · observed

survey_scope

Parcel outlines, demolished-existing structures, utility alignments and north arrow shown

Selected source evidence only; partial locator review. Applies to depicted historical drawing, not accepted building geometry.

IMG_1186 · Locate on drawing ↗

Drawing notation: Parcel outlines, demolished-existing structures, utility alignments and north arrow shown

Selected source evidence only; partial locator review. Applies to depicted historical drawing, not accepted building geometry.

parallel-img1186-underlayverified · printed

underlay_title

FIRE PROOF VAULT AND CLOSET DOORS

Selected source evidence only; partial locator review. Applies to depicted historical drawing, not accepted building geometry.

IMG_1186 · Locate on drawing ↗

Drawing notation: FIRE PROOF VAULT AND CLOSET DOORS

Selected source evidence only; partial locator review. Applies to depicted historical drawing, not accepted building geometry.

parallel-img1186-underlayverified · printed

underlay_sheet

DRAWING NO.M-352-F

Visible title from different underlying drawing, not site-survey title.

IMG_1186 · Locate on drawing ↗

Drawing notation: DRAWING NO.M-352-F

Visible title from different underlying drawing, not site-survey title.

parallel-img1186-surveyverified · printed

site_boundary_witness

N.20°12'W. 200.0'

200 ft

Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.

IMG_1186 · Locate on drawing ↗

Drawing notation: N.20°12'W. 200.0'

Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.

parallel-img1186-surveyverified · observed

physical_source_loss

Large tear removes lower/right survey-note region

Observed condition; original survey text in missing area unrecoverable in this photograph.

IMG_1186 · Locate on drawing ↗

Drawing notation: Large tear removes lower/right survey-note region

Observed condition; original survey text in missing area unrecoverable in this photograph.

parallel-img1186-surveyverified · printed

street_access_note

All streets shown are public and open.

General note on this survey exposure only.

IMG_1186 · Locate on drawing ↗

Drawing notation: All streets shown are public and open.

General note on this survey exposure only.

parallel-img1186-surveyverified · printed

elevation_datum

Elevations are referred to city datum.

Independent IMG1186 exposure; city datum definition and numerical benchmark remain open.

IMG_1186 · Locate on drawing ↗

Drawing notation: Elevations are referred to city datum.

Independent IMG1186 exposure; city datum definition and numerical benchmark remain open.

parallel-img1186-surveyverified · printed

sewer_use

Sewers are used for both sanitary wastes and roof water.

Survey general note, not courthouse branch-pipe specification.

IMG_1186 · Locate on drawing ↗

Drawing notation: Sewers are used for both sanitary wastes and roof water.

Survey general note, not courthouse branch-pipe specification.

parallel-img1186-surveyverified · printed

sewer_destination

Sewers drain by gravity into Willamette river.

Historical survey note; no current infrastructure claim.

IMG_1186 · Locate on drawing ↗

Drawing notation: Sewers drain by gravity into Willamette river.

Historical survey note; no current infrastructure claim.

parallel-img1186-surveyverified · printed

dry_well_use

Dry wells are not used for sewage disposal.

Survey general note only.

IMG_1186 · Locate on drawing ↗

Drawing notation: Dry wells are not used for sewage disposal.

Survey general note only.

parallel-img1186-surveyverified · printed

contemplated_service_connections

There are no contemplated improvements in regard to sewers, gas, water and electric service adjacent to the site.

Historical intent at survey date; does not establish built connections or absence of later alterations.

IMG_1186 · Locate on drawing ↗

Drawing notation: There are no contemplated improvements in regard to sewers, gas, water and electric service adjacent to the site.

Historical intent at survey date; does not establish built connections or absence of later alterations.

parallel-img1186-surveyverified · observed

physical_loss_claim_review

[ragged edge, yellow exposed backing and blank textured region visible; original missing text not demonstrated]

Native crop supports damage/occlusion but cannot distinguish missing paper from folded or overlapping material, nor prove specific survey notes were removed. Earlier loss assertion preserved with this qualification.

IMG_1186 · Locate on drawing ↗

Drawing notation: [ragged edge, yellow exposed backing and blank textured region visible; original missing text not demonstrated]

Native crop supports damage/occlusion but cannot distinguish missing paper from folded or overlapping material, nor prove specific survey notes were removed. Earlier loss assertion preserved with this qualification.

parallel-img1186-surveyverified · printed

site-area-reading

AREA OF SITE = 40000 Squ. Ft.

40000 ft2

Printed area on foreground site survey only. Survey lettering is sideways clockwise90 in inspected crop; rotate crop270 for reading. Underlying M352F vault-door sheet is unrelated identity.

IMG_1186 · Locate on drawing ↗

Drawing notation: AREA OF SITE = 40000 Squ. Ft.

Printed area on foreground site survey only. Survey lettering is sideways clockwise90 in inspected crop; rotate crop270 for reading. Underlying M352F vault-door sheet is unrelated identity.
