The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

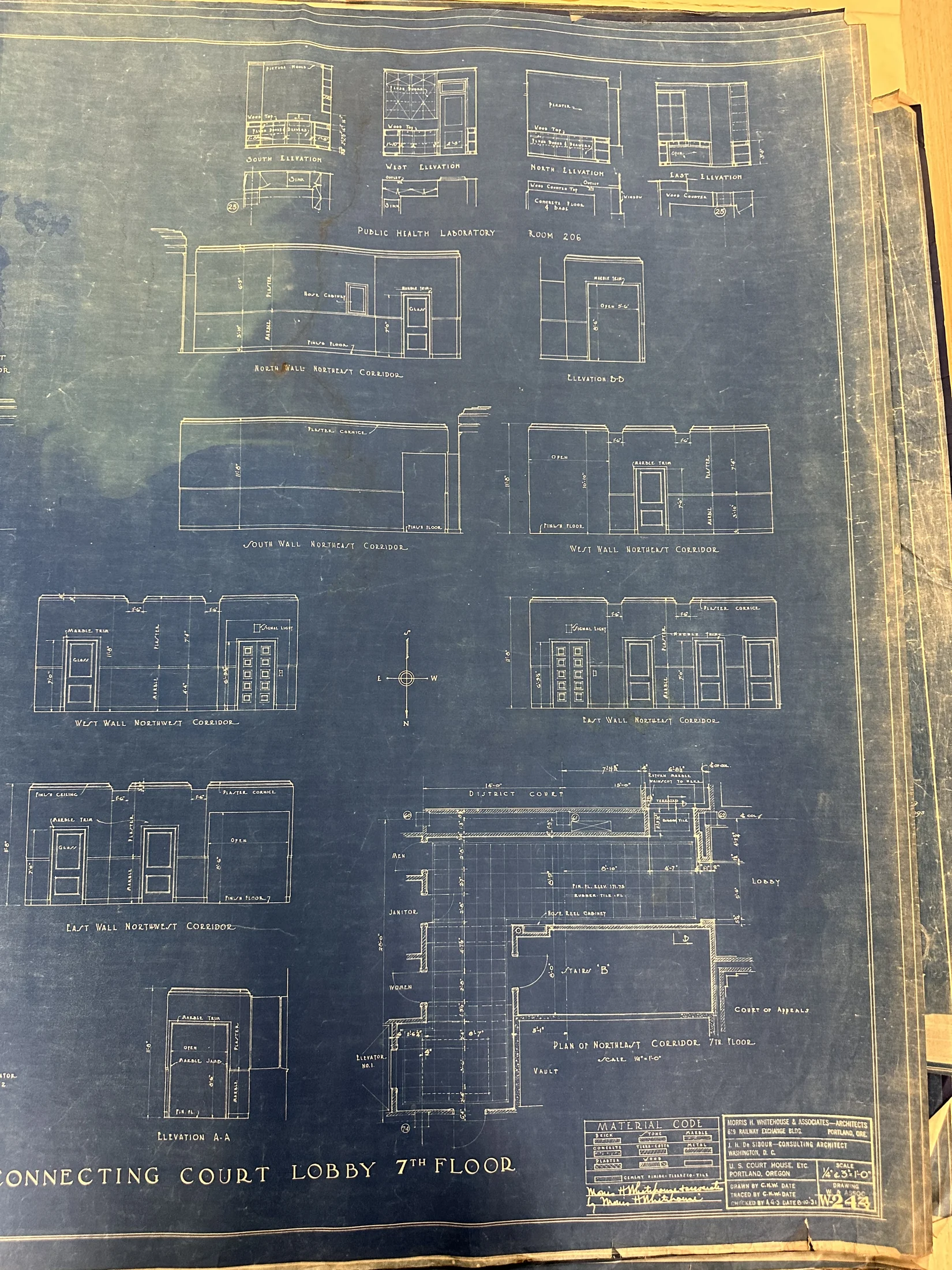

IMG_1184 · Folder 190

Onnecting Court Lobby 7Th Floor

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial text-first sequential locator review using <=1000px JPEG65 derivative of public/archive/drawings/complete-upright/IMG_1184.webp. Lettering upright; access-image normalized regions. No full region review or model geometry claim. Partial timed visual review: Prior evidence reused; no new image inspection. Partial timed visual review: Additive selected region follow-up; previously verified findings omitted. Dimension witnesses apply only to depicted source-local spans. Extraction partial; modeling not started. Partial timed visual review: undefined Partial timed visual review: Source-local regional inventory and bounded companion findings; architecture and exhaustive extraction unapproved.

Unresolved extraction work
  • complete region-by-region extraction
  • fine dimensions, schedules, callouts, revisions and hidden/cropped detail
  • floor and instance registration
  • Remaining fractional dimensions, leaders and endpoint assignments
  • Full regional notes and companion detail reconciliation
  • Physical instance registration and quantities; no accepted model geometry
  • Catalogue/global sheet identity not modified
  • Unvisited regions remain partial
  • Remaining fine dimension fractions and witness endpoint classes require targeted master crops; standard inventory does not certify exhaustive extraction.
  • All notes, material-code keys, schedules, approval/date/revision fields and companion references need complete transcription and reconciliation.
  • Exact installed quantities, room/bay placement, source-to-building registration, physical layer/profiles and as-built correspondence remain unresolved.
  • Clipped left source edge prevents a full-sheet regional inventory from this capture.
  • Room206 laboratory view group must not be assigned to level7 because the adjoining corridor title says seventh floor; laboratory floor remains unresolved.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

22 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1184-assemblyverified · printed

subject

CONNECTING COURT LOBBY 7TH FLOOR

Selected legible locator evidence; partial assembly-local scope.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: CONNECTING COURT LOBBY 7TH FLOOR

Selected legible locator evidence; partial assembly-local scope. Source correction source-correction-20261013l-parallel-img1184-m001: The same foreground title block reads W244 in the current upright derivative. Prior W248 is a package source association without its own separately verified sheet-number property, so treat it as metadata error. The prior tentative W244 reading is consistent and should be retained, not numerically withdrawn. IMG1284 remains uninspected; no duplicate or revision equivalence is established.

parallel-img1184-assemblyverified · printed

laboratory_room

PUBLIC HEALTH LABORATORY ROOM 206

Selected legible locator evidence; partial assembly-local scope.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: PUBLIC HEALTH LABORATORY ROOM 206

Selected legible locator evidence; partial assembly-local scope. Source correction source-correction-20261013l-parallel-img1184-m002: The same foreground title block reads W244 in the current upright derivative. Prior W248 is a package source association without its own separately verified sheet-number property, so treat it as metadata error. The prior tentative W244 reading is consistent and should be retained, not numerically withdrawn. IMG1284 remains uninspected; no duplicate or revision equivalence is established.

parallel-img1184-assemblyverified · printed

laboratory_north_elevation

NORTH ELEVATION

Selected legible locator evidence; partial assembly-local scope.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: NORTH ELEVATION

Selected legible locator evidence; partial assembly-local scope. Source correction source-correction-20261013l-parallel-img1184-m003: The same foreground title block reads W244 in the current upright derivative. Prior W248 is a package source association without its own separately verified sheet-number property, so treat it as metadata error. The prior tentative W244 reading is consistent and should be retained, not numerically withdrawn. IMG1284 remains uninspected; no duplicate or revision equivalence is established.

parallel-img1184-assemblyverified · printed

laboratory_west_elevation

WEST ELEVATION

Selected legible locator evidence; partial assembly-local scope.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: WEST ELEVATION

Selected legible locator evidence; partial assembly-local scope. Source correction source-correction-20261013l-parallel-img1184-m004: The same foreground title block reads W244 in the current upright derivative. Prior W248 is a package source association without its own separately verified sheet-number property, so treat it as metadata error. The prior tentative W244 reading is consistent and should be retained, not numerically withdrawn. IMG1284 remains uninspected; no duplicate or revision equivalence is established.

parallel-img1184-assemblyverified · printed

northeast_north_wall

NORTH WALL NORTHEAST CORRIDOR

Selected legible locator evidence; partial assembly-local scope.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: NORTH WALL NORTHEAST CORRIDOR

Selected legible locator evidence; partial assembly-local scope. Source correction source-correction-20261013l-parallel-img1184-m005: The same foreground title block reads W244 in the current upright derivative. Prior W248 is a package source association without its own separately verified sheet-number property, so treat it as metadata error. The prior tentative W244 reading is consistent and should be retained, not numerically withdrawn. IMG1284 remains uninspected; no duplicate or revision equivalence is established.

parallel-img1184-assemblyverified · printed

northeast_south_wall

SOUTH WALL NORTHEAST CORRIDOR

Selected legible locator evidence; partial assembly-local scope.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: SOUTH WALL NORTHEAST CORRIDOR

Selected legible locator evidence; partial assembly-local scope. Source correction source-correction-20261013l-parallel-img1184-m006: The same foreground title block reads W244 in the current upright derivative. Prior W248 is a package source association without its own separately verified sheet-number property, so treat it as metadata error. The prior tentative W244 reading is consistent and should be retained, not numerically withdrawn. IMG1284 remains uninspected; no duplicate or revision equivalence is established.

parallel-img1184-assemblyverified · printed

plaster_cornice

PLASTER CORNICE

Selected legible locator evidence; partial assembly-local scope.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: PLASTER CORNICE

Selected legible locator evidence; partial assembly-local scope. Source correction source-correction-20261013l-parallel-img1184-m007: The same foreground title block reads W244 in the current upright derivative. Prior W248 is a package source association without its own separately verified sheet-number property, so treat it as metadata error. The prior tentative W244 reading is consistent and should be retained, not numerically withdrawn. IMG1284 remains uninspected; no duplicate or revision equivalence is established.

parallel-img1184-assemblyverified · printed

door_trim_material

MARBLE TRIM

Selected legible locator evidence; partial assembly-local scope.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: MARBLE TRIM

Selected legible locator evidence; partial assembly-local scope. Source correction source-correction-20261013l-parallel-img1184-m008: The same foreground title block reads W244 in the current upright derivative. Prior W248 is a package source association without its own separately verified sheet-number property, so treat it as metadata error. The prior tentative W244 reading is consistent and should be retained, not numerically withdrawn. IMG1284 remains uninspected; no duplicate or revision equivalence is established.

parallel-img1184-assemblyverified · printed

east_northeast_wall

EAST WALL NORTHEAST CORRIDOR

Selected legible locator evidence; partial assembly-local scope.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: EAST WALL NORTHEAST CORRIDOR

Selected legible locator evidence; partial assembly-local scope. Source correction source-correction-20261013l-parallel-img1184-m009: The same foreground title block reads W244 in the current upright derivative. Prior W248 is a package source association without its own separately verified sheet-number property, so treat it as metadata error. The prior tentative W244 reading is consistent and should be retained, not numerically withdrawn. IMG1284 remains uninspected; no duplicate or revision equivalence is established.

parallel-img1184-assemblyverified · printed

northeast_corridor_plan

PLAN OF NORTHEAST CORRIDOR 7TH FLOOR

Selected legible locator evidence; partial assembly-local scope.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: PLAN OF NORTHEAST CORRIDOR 7TH FLOOR

Selected legible locator evidence; partial assembly-local scope. Source correction source-correction-20261013l-parallel-img1184-m010: The same foreground title block reads W244 in the current upright derivative. Prior W248 is a package source association without its own separately verified sheet-number property, so treat it as metadata error. The prior tentative W244 reading is consistent and should be retained, not numerically withdrawn. IMG1284 remains uninspected; no duplicate or revision equivalence is established.

parallel-img1184-assemblyunreviewed · printed

remaining_corridor_dimensions

[wall-height chains, cornice profiles, finished floor level and entrance details unresolved]

Numeric value unresolved

Unresolved fine locator evidence; value withheld.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: [wall-height chains, cornice profiles, finished floor level and entrance details unresolved]

Unresolved fine locator evidence; value withheld. Source correction source-correction-20261013l-parallel-img1184-m011: The same foreground title block reads W244 in the current upright derivative. Prior W248 is a package source association without its own separately verified sheet-number property, so treat it as metadata error. The prior tentative W244 reading is consistent and should be retained, not numerically withdrawn. IMG1284 remains uninspected; no duplicate or revision equivalence is established.

detail-northeast-corridor-laboratory-1011lunreviewed · printed

sheet_number_candidate

W244 [candidate; final digit requires crop]

Prior W-248 retained; conflict audit requested title block check. At this resolution looks W244; no identity promotion.

IMG_1184 · Locate on drawing ↗

Drawing notation: W244 [candidate; final digit requires crop]

Prior W-248 retained; conflict audit requested title block check. At this resolution looks W244; no identity promotion.

detail-northeast-corridor-laboratory-1011lverified · printed

laboratory_countertop_material

WOOD COUNTER TOP

Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.

IMG_1184 · Locate on drawing ↗

Drawing notation: WOOD COUNTER TOP

Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.

detail-northeast-corridor-laboratory-1011lverified · printed

laboratory_floor_base

CONCRETE FLOOR & BASE

Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.

IMG_1184 · Locate on drawing ↗

Drawing notation: CONCRETE FLOOR & BASE

Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.

detail-northeast-corridor-laboratory-1011lverified · printed

laboratory_wall_finish

PLASTER PAINTED

Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.

IMG_1184 · Locate on drawing ↗

Drawing notation: PLASTER PAINTED

Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.

detail-northeast-corridor-laboratory-1011lverified · printed

corridor_hose_cabinet

HOSE CABINET

Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.

IMG_1184 · Locate on drawing ↗

Drawing notation: HOSE CABINET

Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.

detail-northeast-corridor-laboratory-1011lverified · printed

same-image printed drawing-number resolution

W-244

Foreground lower-right title block reads W244. Prior W248 is source metadata, not a separately verified title-number property; no comparison or revision selection for IMG1284.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: W-244

Foreground lower-right title block reads W244. Prior W248 is source metadata, not a separately verified title-number property; no comparison or revision selection for IMG1284.

Calculated from: detail-1178-1187-20261011l-1184-m001

parallel-img1184-assemblyverified · printed

south wall northeast corridor finish-floor-to-top witness

11'-0"

11 ft

Vertical witness on SOUTH WALL NORTHEAST CORRIDOR from FINISH FLOOR baseline to upper wall/cornice line. Local depicted wall height, not transferred to laboratory206 or other corridors.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: 11'-0"

Vertical witness on SOUTH WALL NORTHEAST CORRIDOR from FINISH FLOOR baseline to upper wall/cornice line. Local depicted wall height, not transferred to laboratory206 or other corridors.

parallel-img1184-assemblyverified · printed

northeast corridor plan finish floor elevation

FIN. FL. ELEV. 171.75

171.75 ft

Printed northeast corridor seventh-floor plan datum only. Does not independently place wall heights in world coordinates.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: FIN. FL. ELEV. 171.75

Printed northeast corridor seventh-floor plan datum only. Does not independently place wall heights in world coordinates.

detail-northeast-corridor-laboratory-1011lverified · printed

laboratory south elevation identity

SOUTH ELEVATION

Part of PUBLIC HEALTH LABORATORY ROOM206 view group; room number retained separately in prior identity property. No floor inferred from206 alone.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: SOUTH ELEVATION

Part of PUBLIC HEALTH LABORATORY ROOM206 view group; room number retained separately in prior identity property. No floor inferred from206 alone.

detail-northeast-corridor-laboratory-1011lverified · printed

laboratory east elevation identity

EAST ELEVATION

East elevation of printed Room206 group; not a seventh-floor corridor wall.

IMG_1184 · W-244 · Locate on drawing ↗

Drawing notation: EAST ELEVATION

East elevation of printed Room206 group; not a seventh-floor corridor wall.

parallel-img1184-assemblyunreviewed · observed

off-frame left-hand detail completeness

Unresolved

Foreground drawing continues beyond left image edge; cannot catalogue clipped drawings/notes completely from this capture. Companion whole-sheet capture needed.

IMG_1184 · W-244 · Locate on drawing ↗

Foreground drawing continues beyond left image edge; cannot catalogue clipped drawings/notes completely from this capture. Companion whole-sheet capture needed.
