Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial text-first sequential locator review using <=1000px JPEG65 derivative of public/archive/drawings/complete-upright/IMG_1182.webp. Lettering upright; access-image normalized regions. No full region review or model geometry claim. Partial timed visual review: Prior evidence reused; no new image inspection. Partial timed visual review: Additive selected region follow-up; previously verified findings omitted. Dimension witnesses apply only to depicted source-local spans. Extraction partial; modeling not started. Partial timed visual review: undefined Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected legible locator evidence; partial assembly-local scope.

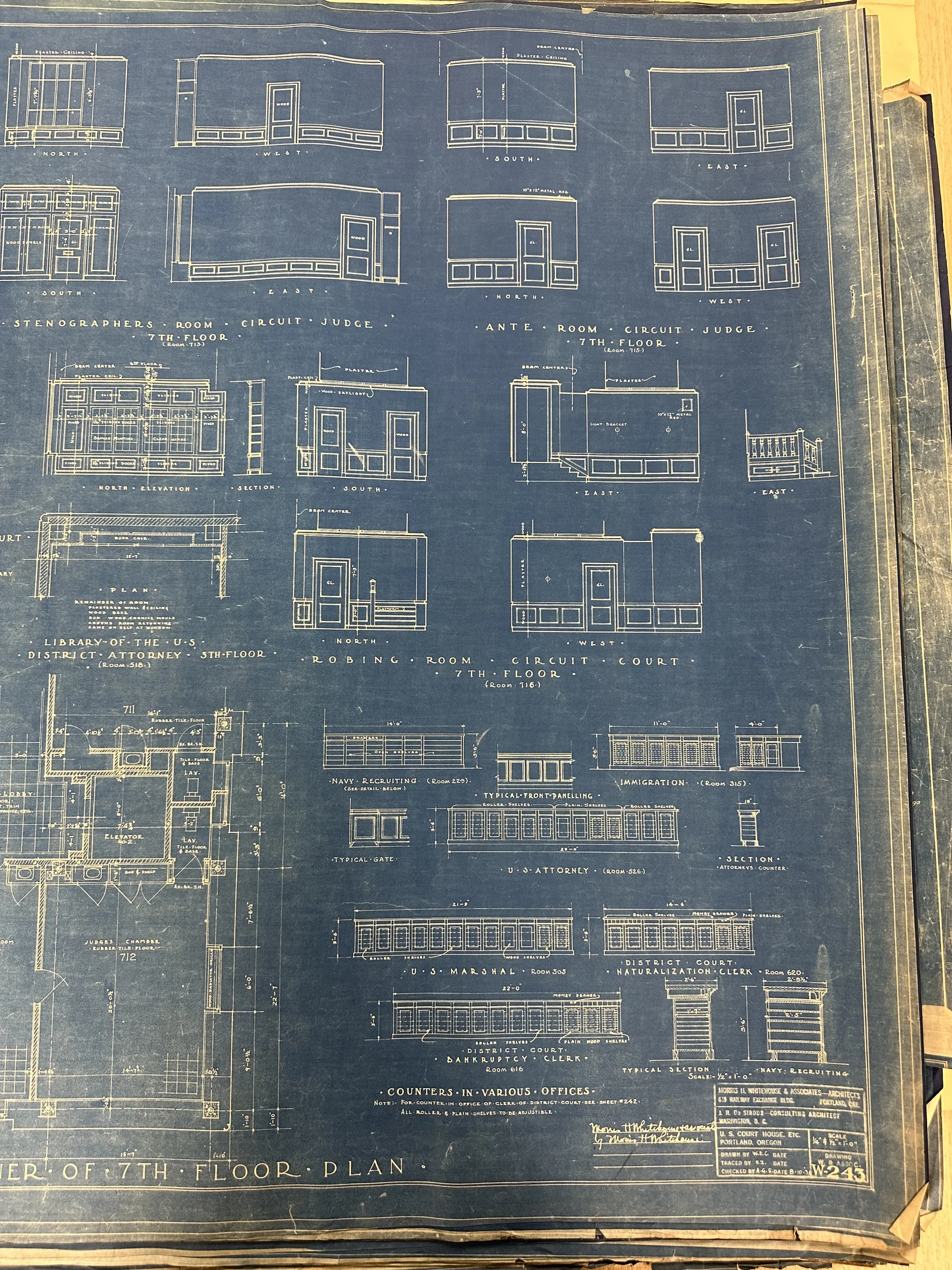

Drawing notation: STENOGRAPHERS ROOM CIRCUIT JUDGE 7TH FLOOR
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: ANTE ROOM CIRCUIT JUDGE 7TH FLOOR ROOM 715
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: ROBING ROOM CIRCUIT COURT 7TH FLOOR ROOM 716
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: LIBRARY OF THE U.S. DISTRICT ATTORNEY 5TH FLOOR ROOM 518
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: NAVY RECRUITING ROOM 229
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: IMMIGRATION ROOM 215
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: U.S. ATTORNEY ROOM 526
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: U.S. MARSHAL ROOM 505
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: DISTRICT COURT NATURALIZATION CLERK ROOM 620
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: DISTRICT COURT BANKRUPTCY CLERK ROOM 616
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: ALL ROLLER & PLATE SHELVES TO BE ADJUSTABLE
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: FOR COUNTERS IN OFFICES OF CLERK OF DISTRICT COURT SEE SHEET 242
Selected legible locator evidence; partial assembly-local scope.
Numeric value unresolved
Unresolved fine locator evidence; value withheld.
Drawing notation: [counter lengths, gate/rail dimensions and room elevation finish assignments unresolved]
Unresolved fine locator evidence; value withheld.
Conflicts with prior parallel-img1182-m006 Room 215; both retained.
Drawing notation: IMMIGRATION (ROOM 315)
Conflicts with prior parallel-img1182-m006 Room 215; both retained.
132 in
Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.
Drawing notation: 11'-0"
Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.
48 in
Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.
Drawing notation: 4'-0"
Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.
348 in
Horizontal full front-elevation witness; does not locate counter in Room526 or prove installed length.
Drawing notation: 29′-0″
Horizontal full front-elevation witness; does not locate counter in Room526 or prove installed length.
42 in
Front-elevation vertical witness from baseline to counter top.
Drawing notation: 3′-6″
Front-elevation vertical witness from baseline to counter top.
18 in
SECTION ATTORNEYS COUNTER horizontal top witness; not linked to generic section depth.
Drawing notation: 18″
SECTION ATTORNEYS COUNTER horizontal top witness; not linked to generic section depth.
Labeled left, middle and right shelf groups in attorney counter elevation; installed unit counts unknown.
Drawing notation: ROLLER SHELVES / PLAIN SHELVES / ROLLER SHELVES
Labeled left, middle and right shelf groups in attorney counter elevation; installed unit counts unknown.
174 in
Printed horizontal overall witness above naturalization clerk counter.
Drawing notation: 14′-6″
Printed horizontal overall witness above naturalization clerk counter.
42 in
Printed left vertical front witness, top to baseline.
Drawing notation: 3′-6″
Printed left vertical front witness, top to baseline.
Leader names drawer toward right of counter; number, lock and exact construction unresolved.
Drawing notation: MONEY DRAWER
Leader names drawer toward right of counter; number, lock and exact construction unresolved.
264 in
Printed horizontal overall front witness above bankruptcy clerk counter.
Drawing notation: 22′-0″
Printed horizontal overall front witness above bankruptcy clerk counter.
42 in
Printed left vertical front witness.
Right shelf group leader explicitly names wood; not applied to rollers or all counter construction.
Drawing notation: PLAIN WOOD SHELVES
Right shelf group leader explicitly names wood; not applied to rollers or all counter construction.
30 in
Horizontal top witness in TYPICAL SECTION; no physical counter assignment.
Drawing notation: 2′-6″
Horizontal top witness in TYPICAL SECTION; no physical counter assignment.
21 in
Separate internal horizontal section witness; exact member faces retained as open.
Drawing notation: 1′-9″
Separate internal horizontal section witness; exact member faces retained as open.
42 in
Left vertical section witness from baseline to top.
Drawing notation: 3′-6″
Left vertical section witness from baseline to top.
