Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: undefined Partial timed visual review: Partial text-first sequential locator review using <=1000px JPEG65 derivative of public/archive/drawings/complete-upright/IMG_1179.webp. Lettering upright; access-image normalized regions. No full region review or model geometry claim. Partial timed visual review: Prior evidence reused; no new image inspection. Partial timed visual review: undefined Partial timed visual review: Additive selected region follow-up; previously verified findings omitted. Dimension witnesses apply only to depicted source-local spans. Extraction partial; modeling not started. Partial timed visual review: undefined Partial timed visual review: Partial regional review; prior closed properties reused. Each new numeric value is source-local only; no building coordinate, installed total or geometry approval follows.
Loading the selected drawing…

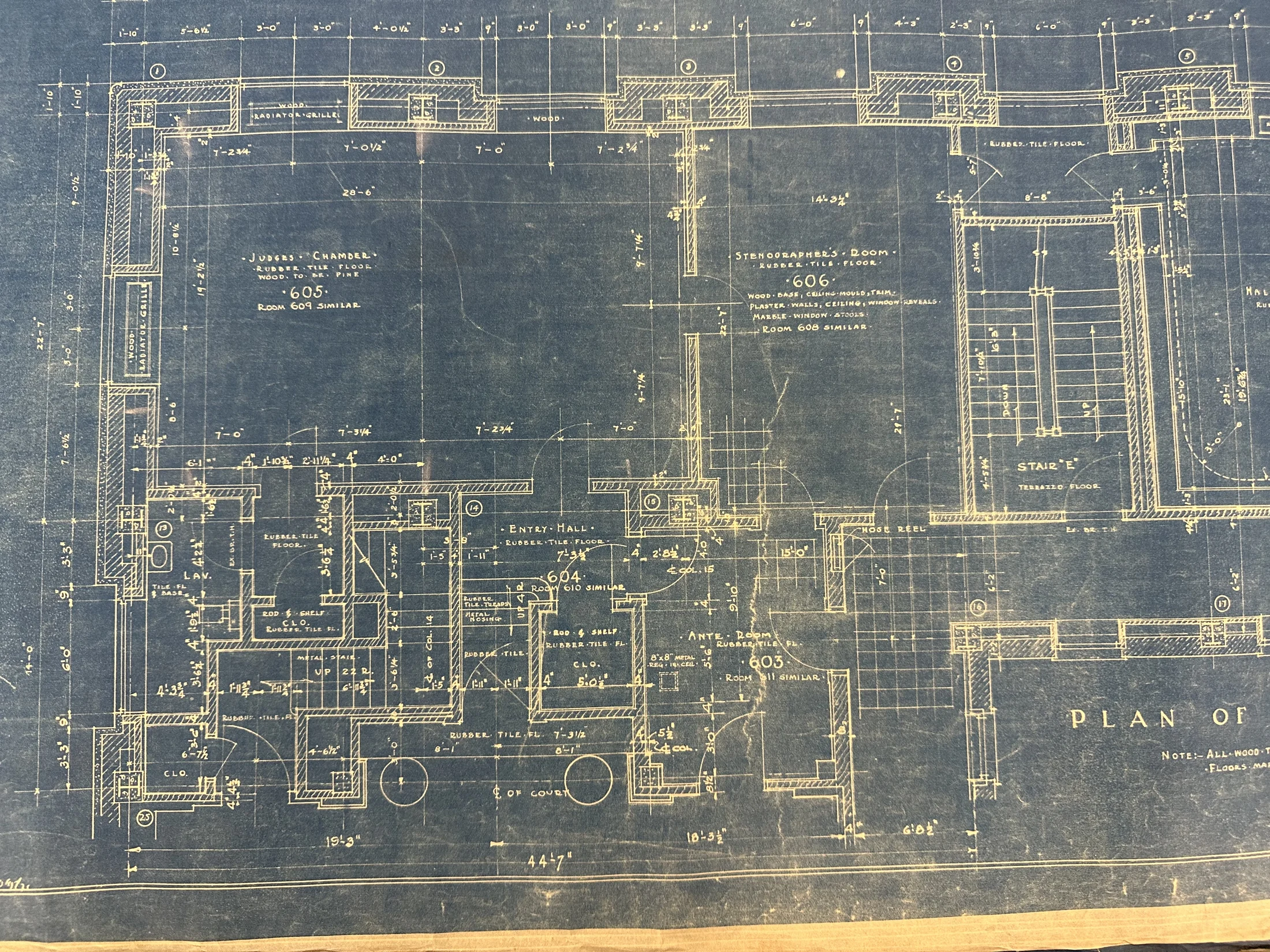

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: JUDGES CHAMBER 605 ROOM 609 SIMILAR
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: RUBBER TILE FLOOR
Selected legible locator evidence; partial assembly-local scope.
Unresolved fine locator evidence; value withheld.
Drawing notation: WOOD TO BE PHIL. [remaining species wording unresolved]
Unresolved fine locator evidence; value withheld.
342 in
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: 28'-6"
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: STENOGRAPHERS ROOM 606 ROOM 608 SIMILAR
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: RUBBER TILE FLOOR
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: WOOD BASE, CEILING MOULD, TRIM
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: PLASTER WALLS, CEILING, WINDOW REVEALS
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: MARBLE WINDOW STOOLS
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: ENTRY HALL 604 ROOM 610 SIMILAR
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: ANTE ROOM 603 ROOM 611 SIMILAR
Selected legible locator evidence; partial assembly-local scope.
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: STAIR E TERRAZZO FLOOR
Selected legible locator evidence; partial assembly-local scope.
535 in
Selected legible locator evidence; partial assembly-local scope.
Drawing notation: 44'-7"
Selected legible locator evidence; partial assembly-local scope.
Numeric value unresolved
Unresolved fine locator evidence; value withheld.
Drawing notation: [all other chains, fractional wall/door measurements and room-level assignments unresolved]
Unresolved fine locator evidence; value withheld.
51.75 in
Printed horizontal interval west of internal stair between depicted west enclosure and stair-side partition. Wall-face calibration and installed geometry remain open.
Drawing notation: 4′-3¾″
Printed horizontal interval west of internal stair between depicted west enclosure and stair-side partition. Wall-face calibration and installed geometry remain open.
83.75 in
Horizontal witness across depicted internal-stair portion; not total stair travel, rise or accepted flight footprint.
Drawing notation: 6′-11¾″
Horizontal witness across depicted internal-stair portion; not total stair travel, rise or accepted flight footprint.
42.25 in
Vertical plan witness across lower stair portion between landing division and bottom line; source-local dimension with endpoints retained for follow-up.
Drawing notation: 3′-6¼″
Vertical plan witness across lower stair portion between landing division and bottom line; source-local dimension with endpoints retained for follow-up.
60.5 in
Printed interval between depicted east closet interior side lines. Not an accepted clear-width or installed-room measurement.
Drawing notation: 5′-0½″
Printed interval between depicted east closet interior side lines. Not an accepted clear-width or installed-room measurement.
Lavatory note specifies tile floor; tile composition, module and thickness not specified by this reading.
Drawing notation: TILE FL.
Lavatory note specifies tile floor; tile composition, module and thickness not specified by this reading.
Same lavatory clause applies tile to base as well as floor; base height/profile/composition unresolved.
Drawing notation: TILE FL. & BASE
Same lavatory clause applies tile to base as well as floor; base height/profile/composition unresolved.
4 count
Printed UP4 applies to short steps immediately south of entry604. Separate from adjacent internal metal stair UP22R; no installed count or riser height.
Drawing notation: UP 4
Printed UP4 applies to short steps immediately south of entry604. Separate from adjacent internal metal stair UP22R; no installed count or riser height.
Rubber tile tread note on short entry604 steps; no thickness or manufacture inferred.
Drawing notation: RUBBER TILE TREADS
Rubber tile tread note on short entry604 steps; no thickness or manufacture inferred.
Metal nosing note on same short entry604 steps; alloy/profile/fastening remain unknown.
Drawing notation: METAL NOSING
Metal nosing note on same short entry604 steps; alloy/profile/fastening remain unknown.
Conflicts with unresolved PHIL. reading parallel-img1179-m003; preserve separately.
Drawing notation: WOOD TO BE PINE
Conflicts with unresolved PHIL. reading parallel-img1179-m003; preserve separately.
230.5 in
Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.
Drawing notation: 19'-2½"
Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.
Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.
Drawing notation: ROD & SHELF
Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.
22 count
Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.
Drawing notation: METAL STAIR UP 22 R.
Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.
Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.
Drawing notation: 8"x8" METAL REG. IN CEIL.
Selected printed source-local evidence only; exact endpoints, physical installation and governing revision unresolved.
Caption on north-side chamber605 radiator grille; repeated west-side caption corroborates type material. Not the Library607 grille despite shared W242 sheet.
Drawing notation: WOOD RADIATOR GRILLE
Caption on north-side chamber605 radiator grille; repeated west-side caption corroborates type material. Not the Library607 grille despite shared W242 sheet.
8 in
First dimension of square metal ceiling register in Ante Room603 plan. Source-specific fixture size; no duct/rough opening or installed product identified.
Drawing notation: 8"x8" METAL REG. IN CEIL.
First dimension of square metal ceiling register in Ante Room603 plan. Source-specific fixture size; no duct/rough opening or installed product identified.
Calculated from: detail-1178-1187-20261011l-1179-m005
8 in
Second dimension of square metal ceiling register in Ante Room603 plan, independent of first numeric property.
Drawing notation: 8"x8" METAL REG. IN CEIL.
Second dimension of square metal ceiling register in Ante Room603 plan, independent of first numeric property.
Calculated from: detail-1178-1187-20261011l-1179-m005
Printed metal and ceiling location apply to Ante Room603 register; metal alloy, finish and manufacturer are unspecified.
Drawing notation: METAL REG. IN CEIL.
Printed metal and ceiling location apply to Ante Room603 register; metal alloy, finish and manufacturer are unspecified.
