The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

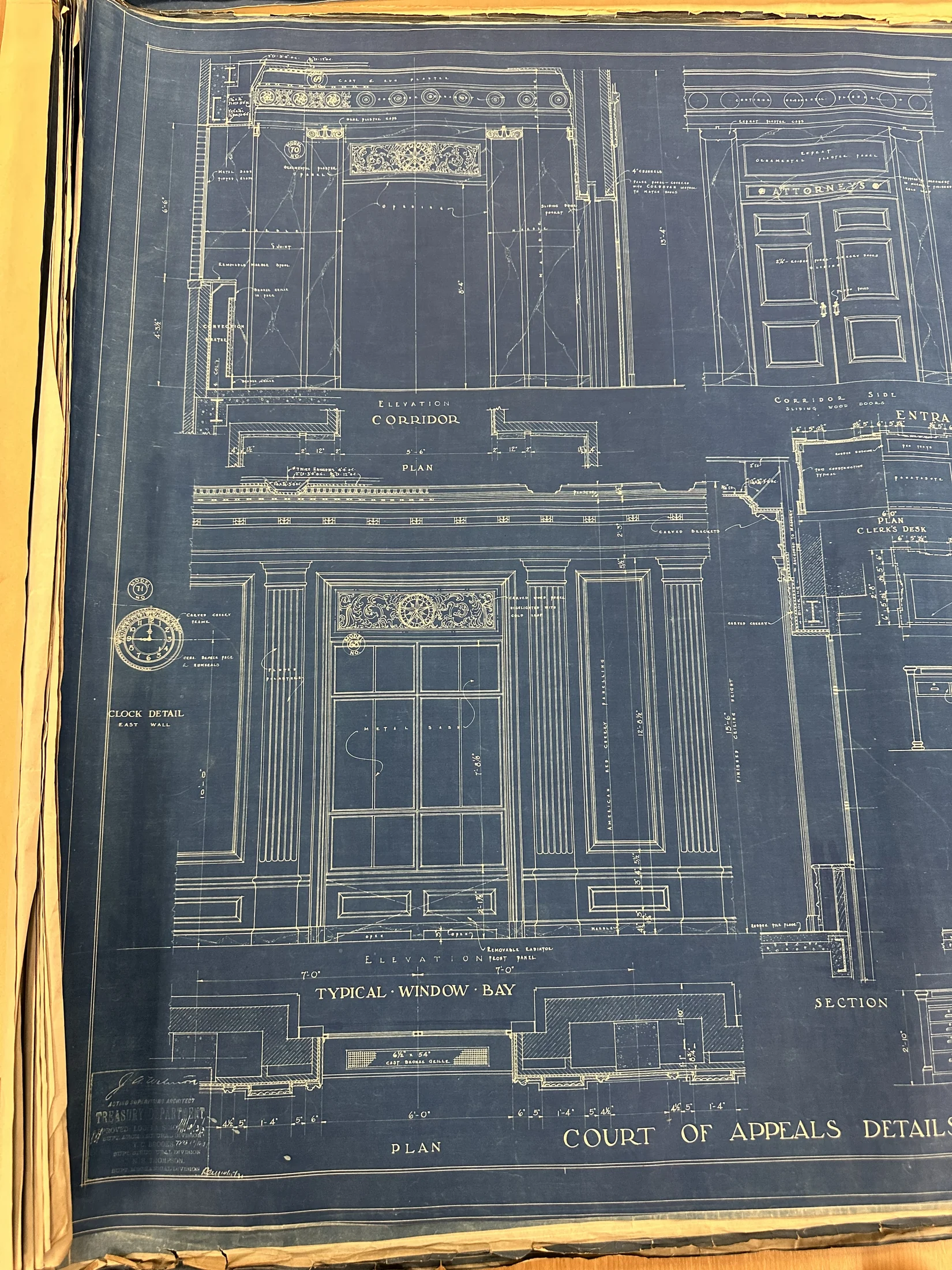

IMG_1176 · Folder 190

Corridor

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: undefined Partial timed visual review: Partial text-first sequential locator review using <=1000px JPEG65 derivative of public/archive/drawings/complete-upright/IMG_1176.webp. Lettering upright; access-image normalized regions. No full region review or model geometry claim. Partial timed visual review: Additive targeted 1650x2200 upright access derivative review. Previous verified findings reused; no installed quantity, registration or completeness claim. Partial timed visual review: Additive targeted derivative crop review after OCR, prior packages and reports; orientation upright, clockwise reading rotation 0 degrees. Regions use uncropped 2200px access photograph coordinates. Existing verified properties reused without duplication. Partial extraction only. Partial timed visual review: Bounded text-first follow-up using sequential upright 2200px WebP derivative inspection; this photograph is a cropped or perspective view. New local properties only; no complete-sheet or geometry acceptance claim.

Unresolved extraction work
  • complete region-by-region extraction
  • fine dimensions, schedules, callouts, revisions and hidden/cropped detail
  • floor and instance registration
  • Remaining fine dimension chains and fraction readings
  • Profile depths, attachment hardware and quantities
  • Installed room/floor registration
  • Companion views and revisions; no whole-sheet completion
  • Remaining dimensions, hardware, profiles and companion views not fully reviewed
  • Installed instance registration and quantities unresolved
  • No calibrated floor registration; geometry remains unmodeled
  • Full-region dimensional/notation review outstanding
  • No calibrated drawing-to-floor registration
  • Alternate-photo conflicts and cropped-away source areas outstanding
  • Source-local controls are not physical building coordinates or accepted room717/716/701 placements
  • Complete remaining endpoint/profile/hardware/finish/quantity extraction and companion review
  • Original/revision/annotation precedence and installed applicability remain unresolved

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

28 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

w241-typical-window-bay-ornament-detailverified · printed

sash-vertical-witness-reread

7′-8⅛″

92.125 in

Printed source-local detail control. Exact historical revision and physical installation unresolved; does not accept whole-room geometry. Same central sash-head-to-lower-sash witness as prior courtdata sash null; excludes grille and radiator front.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: 7′-8⅛″

Printed source-local detail control. Exact historical revision and physical installation unresolved; does not accept whole-room geometry. Same central sash-head-to-lower-sash witness as prior courtdata sash null; excludes grille and radiator front.

parallel-img1176-assemblyverified · printed

sheet_subject

COURT OF APPEALS DETAILS

Selected legible locator evidence; partial assembly-local scope.

IMG_1176 · Locate on drawing ↗

Drawing notation: COURT OF APPEALS DETAILS

Selected legible locator evidence; partial assembly-local scope.

parallel-img1176-assemblyverified · printed

corridor_elevation

ELEVATION CORRIDOR

Selected legible locator evidence; partial assembly-local scope.

IMG_1176 · Locate on drawing ↗

Drawing notation: ELEVATION CORRIDOR

Selected legible locator evidence; partial assembly-local scope.

parallel-img1176-assemblyverified · printed

window_bay

TYPICAL WINDOW BAY

Selected legible locator evidence; partial assembly-local scope.

IMG_1176 · Locate on drawing ↗

Drawing notation: TYPICAL WINDOW BAY

Selected legible locator evidence; partial assembly-local scope.

parallel-img1176-assemblyverified · printed

clock_detail

CLOCK DETAIL EAST WALL

Selected legible locator evidence; partial assembly-local scope.

IMG_1176 · Locate on drawing ↗

Drawing notation: CLOCK DETAIL EAST WALL

Selected legible locator evidence; partial assembly-local scope.

parallel-img1176-assemblyverified · printed

clock_body_material

CARVED WOOD

Selected legible locator evidence; partial assembly-local scope.

IMG_1176 · Locate on drawing ↗

Drawing notation: CARVED WOOD

Selected legible locator evidence; partial assembly-local scope.

parallel-img1176-assemblyverified · printed

window_bay_plan_dimension

6'-0"

72 in

Selected legible locator evidence; partial assembly-local scope.

IMG_1176 · Locate on drawing ↗

Drawing notation: 6'-0"

Selected legible locator evidence; partial assembly-local scope.

parallel-img1176-assemblyverified · printed

window_bay_elevation_dimension

7'-0"

84 in

Selected legible locator evidence; partial assembly-local scope.

IMG_1176 · Locate on drawing ↗

Drawing notation: 7'-0"

Selected legible locator evidence; partial assembly-local scope.

parallel-img1176-assemblyverified · printed

window_grille_material

CAST BRONZE GRILLE

Selected legible locator evidence; partial assembly-local scope.

IMG_1176 · Locate on drawing ↗

Drawing notation: CAST BRONZE GRILLE

Selected legible locator evidence; partial assembly-local scope.

parallel-img1176-assemblyunreviewed · printed

remaining_profiles_dimensions

[window/door height chains, clock fixings, ornamental profiles and section specifications unresolved]

Numeric value unresolved

Unresolved fine locator evidence; value withheld.

IMG_1176 · Locate on drawing ↗

Drawing notation: [window/door height chains, clock fixings, ornamental profiles and section specifications unresolved]

Unresolved fine locator evidence; value withheld.

w241-corridor-door-opening-detailverified · printed

opening_height

8'-4"

100 in

Opening vertical witness from floor line to underside of grille/transom; not ceiling height.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: 8'-4"

Opening vertical witness from floor line to underside of grille/transom; not ceiling height.

w241-corridor-door-opening-detailverified · printed

corridor_cornice_material

CAST & RUN PLASTER

Upper cornice printed material; exact profile dimensions remain unreviewed.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: CAST & RUN PLASTER

Upper cornice printed material; exact profile dimensions remain unreviewed.

w241-corridor-door-opening-detailverified · printed

corridor_cap_material

ORN. PLASTER CAPS

Printed leader applies to pilaster caps beside corridor opening.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: ORN. PLASTER CAPS

Printed leader applies to pilaster caps beside corridor opening.

w241-corridor-door-opening-detailverified · printed

side_sash_glazing

METAL SASH / TINTED GLASS

Adjacent side-screen glazing specification; no thickness established.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: METAL SASH / TINTED GLASS

Adjacent side-screen glazing specification; no thickness established.

w241-corridor-door-opening-detailverified · printed

sliding_door_pocket_relationship

SLIDING DOOR POCKET

Printed leader locates pocket at right opening return; width/depth unresolved.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: SLIDING DOOR POCKET

Printed leader locates pocket at right opening return; width/depth unresolved.

w241-corridor-door-opening-detailverified · printed

removable_marble_panel_relationship

REMOVABLE MARBLE PANEL

Section at opening side marks service access panel; no dimensions inferred.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: REMOVABLE MARBLE PANEL

Section at opening side marks service access panel; no dimensions inferred.

w241-corridor-door-opening-detailverified · printed

convection_baffle_relationship

CONVECTION BAFFLE

Section below removable marble panel; exact baffle geometry unresolved.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: CONVECTION BAFFLE

Section below removable marble panel; exact baffle geometry unresolved.

w241-typical-window-bay-ornament-detailverified · printed

window_grille_material

CARVED WOOD GRILLE

Leader points to ornamental grille above metal sash; distinct from cast-bronze floor grille.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: CARVED WOOD GRILLE

Leader points to ornamental grille above metal sash; distinct from cast-bronze floor grille.

w241-typical-window-bay-ornament-detailverified · printed

window_grille_finish

HIGHLIGHT WITH GOLD LEAF

Instruction associated with carved wood grille; no exact gilded subregion inferred.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: HIGHLIGHT WITH GOLD LEAF

Instruction associated with carved wood grille; no exact gilded subregion inferred.

w241-typical-window-bay-ornament-detailverified · printed

radiator_front_panel_vertical_witness

2'-1 1/2"

25.5 in

Vertical chain beside removable radiator front panel from panel base line to upper panel line; not grille size.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: 2'-1 1/2"

Vertical chain beside removable radiator front panel from panel base line to upper panel line; not grille size.

w241-typical-window-bay-ornament-detailneeds-review · printed

sash_vertical_witness

7'-8 [fraction unclear]

Numeric value unresolved

Vertical witness inside sash elevation; fraction requires enlarged companion source. No approximate geometry.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: 7'-8 [fraction unclear]

Vertical witness inside sash elevation; fraction requires enlarged companion source. No approximate geometry.

w241-typical-window-bay-plan-grilleverified · printed

grille_short_dimension

6 1/2" x 54" CAST BRONZE GRILLE

6.5 in

Printed grille size in window bay plan; short dimension, not opening clear width.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: 6 1/2" x 54" CAST BRONZE GRILLE

Printed grille size in window bay plan; short dimension, not opening clear width.

w241-typical-window-bay-plan-grilleverified · printed

grille_long_dimension

6 1/2" x 54" CAST BRONZE GRILLE

54 in

Printed long dimension; installed bay count and mounting details unresolved.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: 6 1/2" x 54" CAST BRONZE GRILLE

Printed long dimension; installed bay count and mounting details unresolved.

detail-courts-20261010-img1176-assemblyverified · printed

clock_face_material

CAST BRONZE FACE & NUMERALS

Clock detail east wall; face/numerals specification; not installation coordinates.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: CAST BRONZE FACE & NUMERALS

Clock detail east wall; face/numerals specification; not installation coordinates.

detail-courts-20261010-img1176-assemblyverified · printed

clock_carved_material

CARVED CHERRY FRAME

Clock frame leader, more specific material than earlier generic carved wood; not a conflicting new frame instance.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: CARVED CHERRY FRAME

Clock frame leader, more specific material than earlier generic carved wood; not a conflicting new frame instance.

detail-courts-20261010-img1176-assemblyverified · printed

window_radiator_service_panel

REMOVABLE RADIATOR FRONT PANEL

Typical-window-bay elevation base-panel leader; service panel location in depicted bay, hardware unmeasured.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: REMOVABLE RADIATOR FRONT PANEL

Typical-window-bay elevation base-panel leader; service panel location in depicted bay, hardware unmeasured.

detail-courts-20261010-img1176-assemblyverified · printed

window_sash_material

METAL SASH

Typical-window-bay elevation glazing/sash field; no pane count or section inferred.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: METAL SASH

Typical-window-bay elevation glazing/sash field; no pane count or section inferred.

detail-courts-20261010-img1176-assemblyverified · printed

window_ceiling_height

15'-6" FINISHED CEILING HEIGHT

186 in

Local window section floor datum to finished ceiling plane; specified vertical height, no room floor polygon or global elevation assigned.

IMG_1176 · W-241 · Locate on drawing ↗

Drawing notation: 15'-6" FINISHED CEILING HEIGHT

Local window section floor datum to finished ceiling plane; specified vertical height, no room floor polygon or global elevation assigned.
